How to Choose Electrical Lugs for Copper and Aluminum Conductors

Electrical lugs create a termination between a conductor and an equipment connection point. A lug that accepts the right wire gauge can still be unsuitable if its conductor material, strand compatibility, stud-hole dimensions, or installation method do not match the project. Start with the cable and the equipment terminal, then select the lug style. In Lumera's assortment, copper and aluminum compression lugs include different barrel lengths and one-hole or two-hole mounting configurations, so the complete part number matters more than appearance.

Match Conductor Size, Metal, and Strand Construction First

Identify the conductor's marked size in AWG or kcmil (often shown as MCM on product listings), whether it is copper or aluminum, and whether its strand construction is compatible with the lug. A lug marked for 600 kcmil is not automatically appropriate for a cable described as 600 AWG flexible cable; fine-stranded conductors can need connectors specifically identified for their strand class. Check the exact manufacturer's conductor range and approved wire types rather than assuming all conductors of a similar nominal size terminate the same way.

Copper-only lugs must not be used for aluminum conductors unless the connector is specifically identified for that use. Some aluminum-bodied, tin-plated lugs are approved for copper or aluminum, but the permitted materials depend on the listing. When the cable and the equipment terminal involve different metals, verify the connector's markings and installation instructions instead of assuming plating alone solves compatibility.

Compression Lugs vs. Mechanical Set-Screw Lugs

Compression lugs use a specified crimping system to form a permanent connection between the conductor and barrel. They require the correct connector, tool, die, and crimp pattern. Mechanical lugs secure the conductor with a screw or other approved clamping mechanism and require the manufacturer's specified installation torque. Neither type should be selected solely on convenience; the equipment listing, conductor construction, and application determine which connection method is permitted.

For a replacement inside electrical equipment, check whether the termination is an approved field-replaceable part. A mechanically suitable lug is not automatically an approved substitute for a factory terminal or lug assembly.

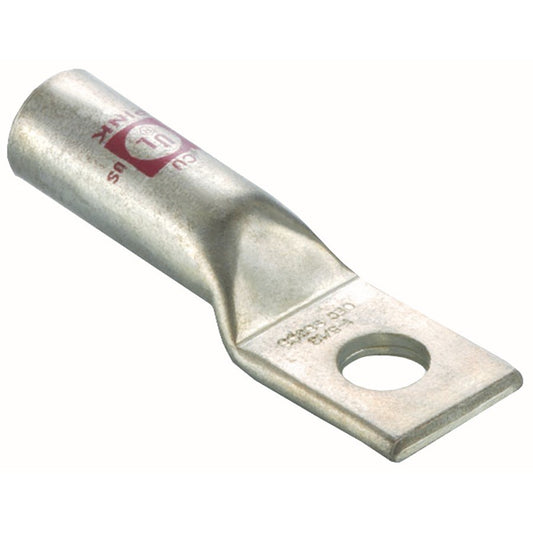

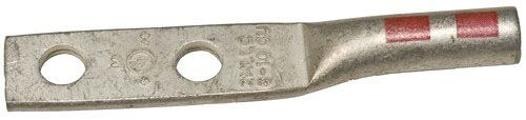

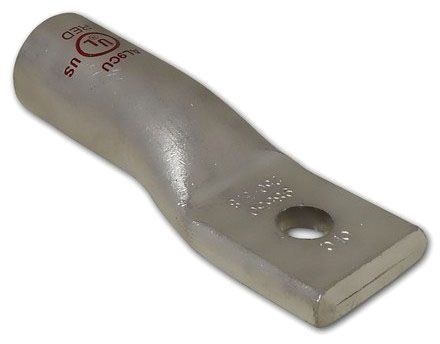

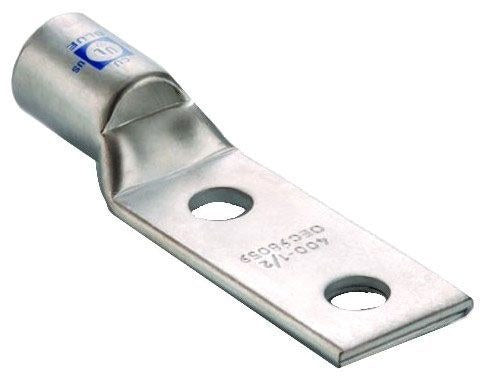

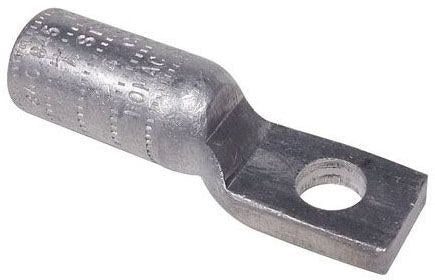

One-Hole vs. Two-Hole Lugs: Match the Equipment Pad

The lug's palm must match the bolted connection on the equipment. Record the stud or bolt diameter, mounting-hole count, hole spacing where two holes are used, and the available space around the termination. A one-hole lug may be appropriate for a compatible single-stud connection, while a two-hole design can help maintain orientation on equipment intended for that mounting pattern. Two-hole lugs are not universal replacements for single-hole designs.

For example, two compression lugs may both accept a 750 kcmil conductor while using different 3/8-inch, 1/2-inch, or 5/8-inch mounting holes. If the equipment pad or bus connection does not match, the conductor size alone does not make those lugs interchangeable. Verify the lug's width, palm geometry, bolt spacing, and assembly instructions before ordering.

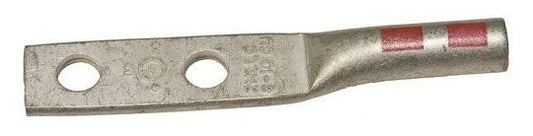

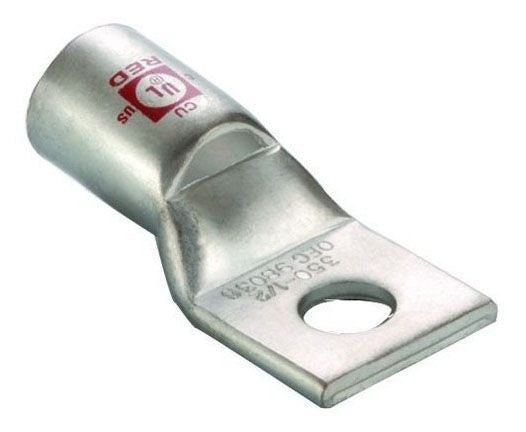

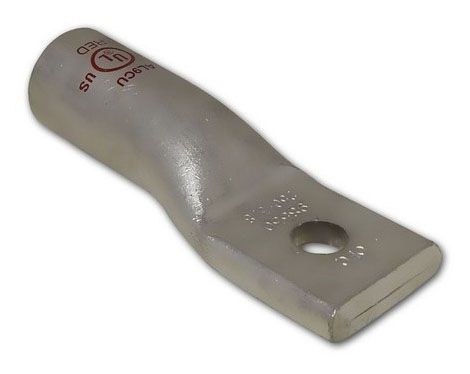

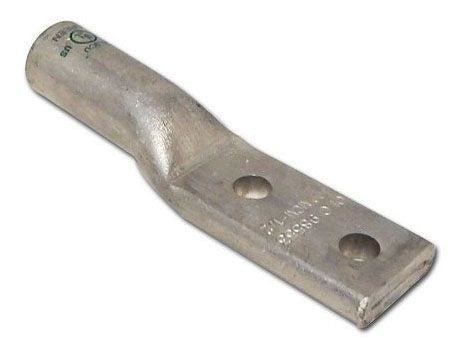

Short-Barrel vs. Long-Barrel Compression Lugs

Barrel length affects the connection footprint and the manufacturer's required crimp pattern. A short-barrel lug can be useful where the available termination space is limited, while a long-barrel design may support a different number or arrangement of crimps. That does not mean every long-barrel lug is automatically stronger or suitable for every feeder; compare the actual product's ratings, dimensions, and specified crimping instructions.

Space inside a panel, switchgear compartment, or enclosure matters. Check conductor bending space and the distance to adjacent terminals before selecting a barrel length. If the cable is highly flexible or fine-stranded, confirm that the compression lug is approved for that construction rather than substituting a standard-strand barrel with the same size marking.

Crimping Dies, Tools, and Installation Quality

A compression lug is only as reliable as its completed termination. The connector manufacturer specifies the compatible crimp tool or tooling system, die or die index, and number and position of crimps. A finished-looking crimp made with an incorrect die can have inadequate contact pressure or damaged strands. Do not choose a die from barrel color or a general wire-gauge chart unless it matches the manufacturer's published instructions.

Confirm the tool and die availability before placing a large lug order. Follow the required conductor preparation, insertion depth, crimp sequence, and inspection steps. For mechanical lugs, use the specified torque and conductor preparation. Work inside electrical distribution equipment should be performed by qualified personnel using the required de-energization and verification procedures.

When to Use a Lug, a Pin Terminal, or a Wire Splice

A lug typically terminates a conductor at a bolted pad, stud, or other equipment connection. Some applications instead require a pin terminal to adapt a compatible conductor to an approved equipment connector. The conductor size, pin size, insertion depth, and approved terminal system must all match. A pin terminal is not simply a substitute for a two-hole compression lug.

When the task is joining conductors rather than landing a conductor on equipment, review wire connectors and compression splices. Straight splices, reducing splices, and equipment lugs serve different connection geometries and must not be selected from conductor gauge alone.

Insulation, Heat Shrink, and Environmental Protection

Some terminations require an insulating sleeve, heat-shrink component, or protective boot after the lug has been installed. Choose the protection from the voltage, exposure, connector dimensions, and applicable equipment instructions. Heat-shrink tubing is not automatically approved for every wet, direct-burial, or high-voltage application; product ratings and the complete assembly determine suitability.

Where an insulating sleeve is required over the barrel, do not cover the intended electrical contact surface of the palm or interfere with the specified bolted joint. If the lug is installed in a corrosive or moisture-exposed environment, verify the permitted termination materials and sealing method. An insulating covering cannot compensate for an incompatible connector or an improperly completed crimp.

Grounding and Bonding Lugs Need Application-Specific Approval

Lugs used for grounding or bonding must be identified for the intended connection point and conductor. Check whether the lug can attach to the equipment, bus, enclosure, or other listed location; the number and material of conductors it accepts; and any required mounting hardware. A lug that holds a grounding wire securely is not automatically approved for every bonding application. Follow the complete grounding and bonding design and the equipment manufacturer's requirements.

Electrical Lug Ordering Checklist

• Conductor: AWG or kcmil size, copper or aluminum, and standard or fine-stranded construction.
• Connection method: Compression or approved mechanical termination.
• Barrel: Diameter, short- or long-barrel configuration, and available installation space.
• Mounting palm: One-hole or two-hole design, stud diameter, hole spacing, and palm dimensions.
• Electrical suitability: Applicable voltage, temperature, conductor-material, and equipment requirements.
• Tooling: Required die index, crimp count and position, or mechanical-lug torque specification.
• Environment: Corrosion exposure, insulation, sealing, and approved installation location.
• Quantity: Exact catalog numbers and quantities by panel, feeder, or equipment connection.

For a larger distribution project, prepare a termination schedule that identifies the conductor, lug part number, connection point, mounting bolts, installation tooling, and required insulation for each circuit. This avoids ordering lugs that match the cable but not the equipment interface.

Electrical Lugs FAQs

Can I use a copper lug on an aluminum wire?

Only if that exact connector is identified for aluminum conductors. A copper-only lug is not suitable for aluminum simply because the wire physically fits. Verify the material marking, allowed wire size, conductor strand construction, and installation instructions.

What does a two-hole compression lug mean?

A two-hole lug has two mounting holes in its palm for an equipment connection designed to accept that arrangement. It is selected by conductor size and by the specified stud diameter, hole spacing, and mounting requirements. It is not an automatic upgrade for a connection designed around a single stud.

How do I choose between a short-barrel and long-barrel lug?

Check the manufacturer's approved application, required crimp system, barrel dimensions, and the available space inside the equipment. Longer barrels often use a different crimp pattern, while shorter barrels may fit restricted compartments. Follow the actual product specifications instead of assuming one length is always preferable.

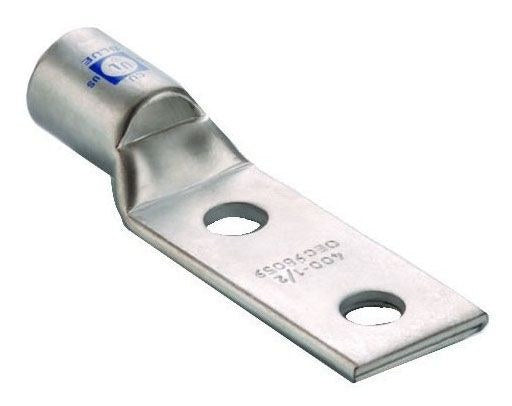

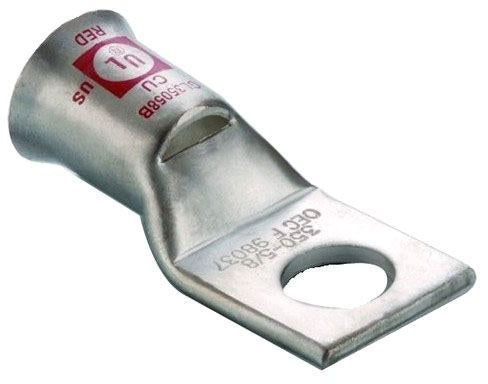

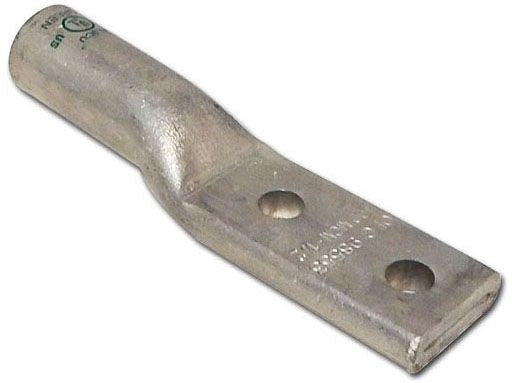

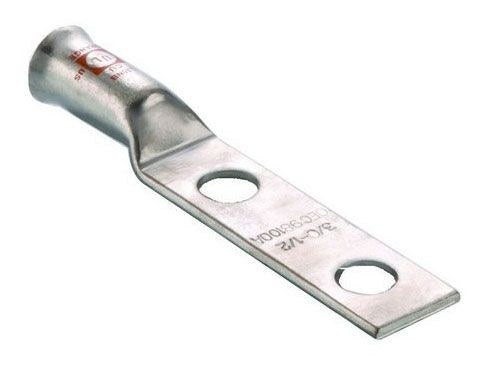

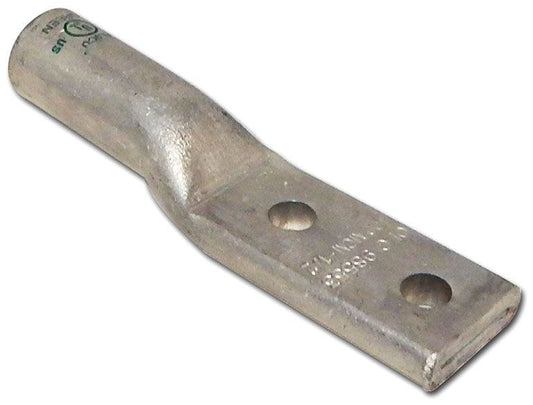

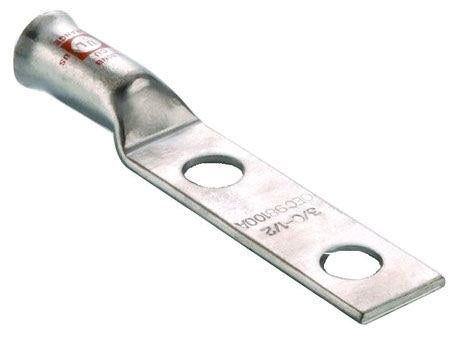

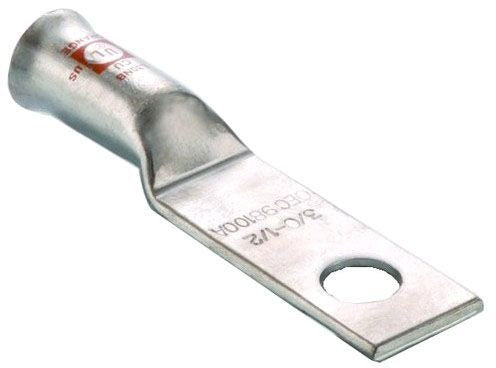

Do fine-stranded flexible cables need special lugs?

They may. Fine-stranded and flexible cable constructions can require compression connectors specifically identified for their strand class. Matching only the nominal conductor size is not sufficient. Confirm the lug's approved conductor construction and crimping instructions before ordering.

Can any hydraulic crimper be used with a compression lug?

No. The manufacturer specifies suitable tooling, dies, and crimp locations. An incorrect tool-and-die combination can produce an inadequate connection even when the completed barrel appears tightly compressed. Match the exact lug series and follow the published crimp procedure.

Is heat shrink required on every cable lug?

No. Insulation and sealing requirements depend on the equipment design, voltage, installation location, and product instructions. Some terminations are protected by an approved enclosure or insulating boot; others require a suitable insulating or sealing system. Do not apply heat shrink in a way that interferes with the electrical contact surface or equipment clearances.
