Optics Decide the Layout, the Control Receptacle Decides What Comes Next
Two things on an area light specification are effectively permanent once the poles are up. The optical distribution determines whether the lot is evenly lit or striped with dark gaps, and the small receptacle on top of the fixture determines what controls the site can ever use without replacing hardware. Wattage and finish are easy to change your mind about. These two are not.
Reading the Distribution Types
Area light optics are classified by how the light leaves the fixture, and picking by lot geometry rather than by habit is what produces even coverage.
- Type I: a narrow two-way pattern, used along walkways and narrow paths with the pole roughly centered
- Type II: a longer, narrower spread for roadway edges, drive lanes, and pathways wider than Type I suits
- Type III: an asymmetric pattern throwing forward and to the sides but not behind, which is the standard perimeter choice
- Type IV: a forward-throw pattern with almost nothing behind it, for poles hard against a property line and for building-mounted heads
- Type V: a symmetric circular or square pattern radiating equally in all directions, for poles in the middle of open ground

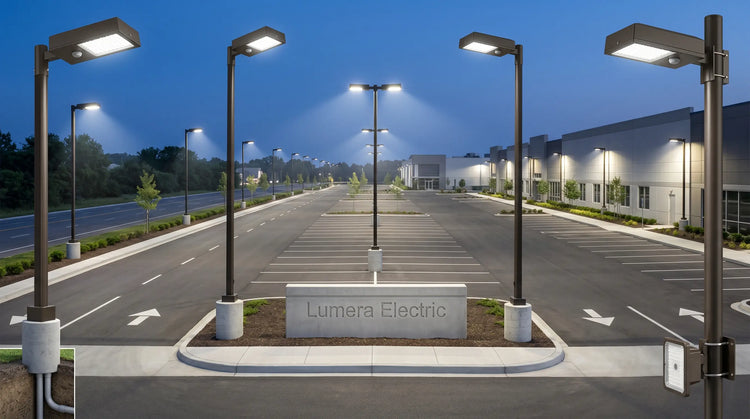

The layout most parking lots end up with is Type III on the perimeter facing inward and Type V on the interior islands. Where the pole sits directly on a boundary and any spill past it is a problem, Type IV is the tighter answer. For lighting mounted flat on the building itself rather than on a pole, the correct fixture is a different product entirely, and Lumera's wall packs collection covers those.
Mounting Height, Spacing, and Getting a Layout
Height and spacing move together. Smaller lots commonly run poles in the 15 to 20 foot range, and larger commercial sites 20 to 30 feet, with spacing that typically lands somewhere around 30 to 40 feet depending on output and optics. A higher mount covers more ground per fixture and needs more output to keep the same level on the pavement.
Those figures are a starting point, not a design. On anything past a handful of poles, ask for a photometric layout before ordering. Most manufacturers produce one at no cost, and it converts an argument about fixture count into a drawing showing predicted light levels and uniformity. It is the cheapest insurance available in this category, and it also catches the case where the problem is not the fixtures but the pole positions the civil drawings already fixed.
BUG Ratings Have Largely Replaced Cutoff Language
Older specifications talked about full cutoff and non-cutoff. Current ordinances increasingly reference BUG ratings instead, which break the same concern into three separately rated parts: backlight, meaning what falls behind the fixture, uplight, meaning what escapes above horizontal, and glare, meaning high-angle light toward the eye.
This matters practically because a jurisdiction may set a maximum for one component rather than demanding a blanket cutoff classification. A fixture can be acceptable on uplight and fail on backlight at a property line, which the older single label would not have distinguished. Check which components the local ordinance actually limits before selecting, since it can widen the acceptable range rather than narrow it.
House-Side Shields Are Often the Cheaper Fix
When a perimeter pole throws unwanted light onto a neighboring property, the instinct is to respecify to a tighter distribution or reduce output. There is usually a cheaper option: a house-side shield, a field-installable insert that blocks light on the back side of the fixture without altering the pattern thrown into the lot.
Ordering shields alongside perimeter fixtures at the outset costs very little and avoids the far more expensive alternative of swapping heads after a complaint. Confirm the specific fixture accepts one, because not all do.
The Photocell Receptacle Is a Long-Term Decision
On top of most pole-mounted fixtures sits a standardized twist-lock receptacle, and the number of contacts in it quietly determines the site's control future.
A three-pin receptacle carries line, neutral, and switched load. That is enough for a simple dusk-to-dawn photocontrol and nothing more. A five-pin adds two conductors for a dimming signal, and a seven-pin adds further contacts used by networked and wireless control nodes. Fixtures are also sold with no receptacle at all, controlled instead at the circuit.
The consequence is easy to miss at order time and expensive later. A site fitted with three-pin fixtures that subsequently needs scheduled dimming or networked control cannot simply add a node, because the receptacle has no conductors to carry the signal. Specifying five or seven pin on a project that may grow costs very little up front. Lumera's photocells collection covers the controls that drop into these receptacles.
One Control Strategy Is No Longer Enough
Energy codes have moved on from accepting a photocell as the whole exterior lighting control strategy. Current commercial energy standards generally require a second, independent reduction on top of dusk-to-dawn switching, which means the lighting has to drop to a lower level during defined hours or when the area is unoccupied, not simply run at full output all night.
In practice that is satisfied either by a scheduled reduction or by occupancy-based dimming, and both need a fixture that can actually be dimmed and a control path to reach it. Lumera's occupancy and motion sensors collection covers the sensing side of that arrangement. Confirm the requirement against the energy code your jurisdiction has adopted, because this is one of the areas where enforcement has tightened noticeably.
EPA, Wind Load, and the Pole
Every fixture has an effective projected area, which is the surface the wind pushes against, and every pole has a maximum EPA it can carry at a given height in a given wind zone. Exceeding it does not cause a lighting problem. It causes a structural one.
The calculation has to include everything hanging on the pole, not just the light: multiple heads, brackets, cameras, banner arms, and anything added later. This is also why adding a second fixture to an existing pole years afterward is not a neutral change. Have a qualified professional verify pole loading and foundation suitability rather than assuming an existing pole has capacity, and expect stamped calculations on anything substantial.
Mounting Hardware Follows the Pole Shape
Two mounting arrangements cover most installations and they are not interchangeable. A slip fitter clamps over a round tenon on top of a pole or bracket. A direct arm bolts to the flat face of a square pole using a specific bolt pattern. Round poles and square poles therefore take different hardware, and ordering the wrong one is a return trip rather than a field fix.
Check the pole shape, the tenon diameter or bolt pattern, and whether the fixture ships with the mount or takes it as a separate item. On a retrofit, measure what is actually on site rather than trusting the original drawings, since poles get replaced without paperwork.
Voltage, Surge, and Site Conditions
Most commercial area lights accept a universal input covering 120 through 277 volts, with 347 and 480 volt versions sold as separate part numbers rather than a switch setting. Confirm the actual service voltage before a site order, because this is a common and costly mismatch on larger properties.
Exterior circuits also run long distances and feed equipment exposed to both lightning-induced transients and the switching activity of the building's own loads, which is why many commercial fixtures include integral surge protection rated in kilovolts. On a site with a history of premature driver failures that rating is worth comparing between candidates, and protection at the service benefits every exterior circuit at once. Lumera's surge protection collection covers those devices.
Where an Area Light Is the Wrong Fixture
Area lights distribute light downward across open ground from height. Where the requirement is instead to aim a beam at a specific target, such as a sign, a facade, or a loading area, the correct product aims rather than distributes. Lumera's flood lights collection covers those fixtures.
Installation
These are line-voltage fixtures installed at height on commercial circuits, frequently at 277 volts, so a licensed electrician should handle the circuit, the connection, and the verification of supply voltage. Pole work brings its own requirements around foundations, anchor bolts, grounding, and in some regions seismic bracing, and those belong with the structural and civil scope rather than being assumed.
Aim and level the heads deliberately during commissioning. A fixture tilted a few degrees from level throws light past where the photometric layout predicted, which is how a compliant design becomes a light trespass complaint.
Area Light FAQs
Which distribution type do I need?
Match it to where the pole sits. Type III throws forward and sideways but not behind, which suits perimeter poles facing into the lot. Type V radiates equally in all directions, which suits interior poles. Type IV is forward-throw for poles tight against a boundary, and Types I and II suit paths and drive lanes.
How far apart should the poles be?
Spacing commonly lands around 30 to 40 feet with poles in the 15 to 30 foot range, but that is a starting point rather than a design. Request a photometric layout before ordering, since it predicts actual light levels and uniformity for your specific lot rather than a generic one.
What is a BUG rating?
It rates three separate aspects of stray light: backlight behind the fixture, uplight above horizontal, and glare at high angles. Ordinances increasingly limit these individually rather than requiring a blanket cutoff classification, so check which components your jurisdiction actually restricts.
How do I stop light spilling onto the neighboring property?
Often with a house-side shield, a field-installable insert that blocks light behind the fixture without changing the pattern thrown into the lot. It is usually far cheaper than respecifying to a different distribution or swapping heads after a complaint. Confirm the fixture accepts one.
Does the number of pins on the photocell receptacle matter?
Considerably. Three pins support a simple dusk-to-dawn photocontrol and nothing else. Five and seven pin receptacles carry additional conductors for dimming signals and networked control nodes. A site fitted with three-pin fixtures cannot later add scheduled or networked dimming without replacing hardware.
Can I add another fixture to an existing pole?
Not without checking. Every pole has a maximum effective projected area it can carry at its height in the local wind zone, and that budget covers everything mounted on it including brackets, cameras, and banner arms. Adding a head changes the structural calculation, so have it verified rather than assumed.
