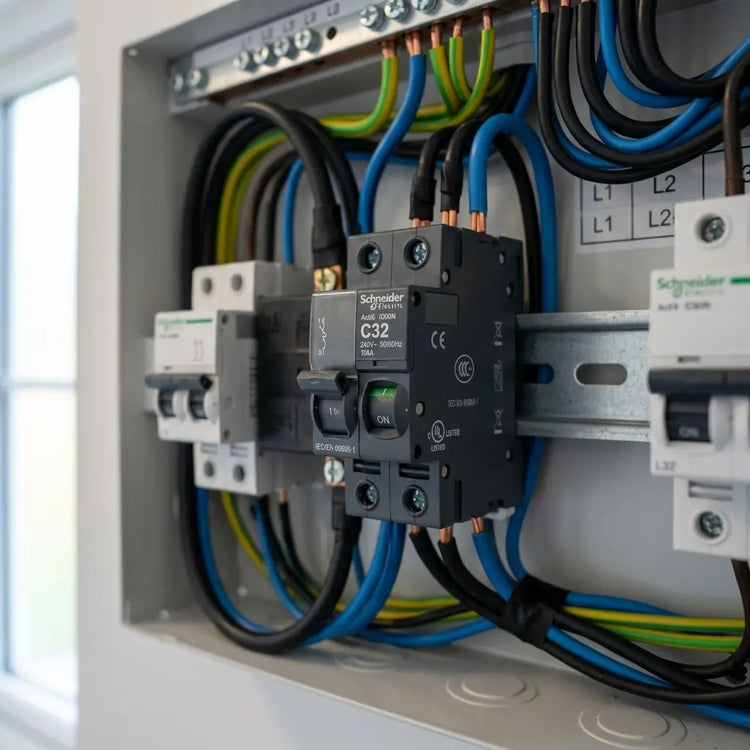

How to Choose the Right Circuit Breaker
A breaker has to match the panel it mounts in, the wire it protects, and the type of fault the circuit needs guarding against, and getting any of those wrong is a safety problem. The sections below break down each of those choices.
Which Brand and Series Fits Your Panel
A breaker has to match the bus it clips or bolts onto, not just the amperage. Cross-brand breakers exist for some panels under UL classified listings, but matching the panel's original brand and series is the safer default unless you've confirmed a listed cross-fit.

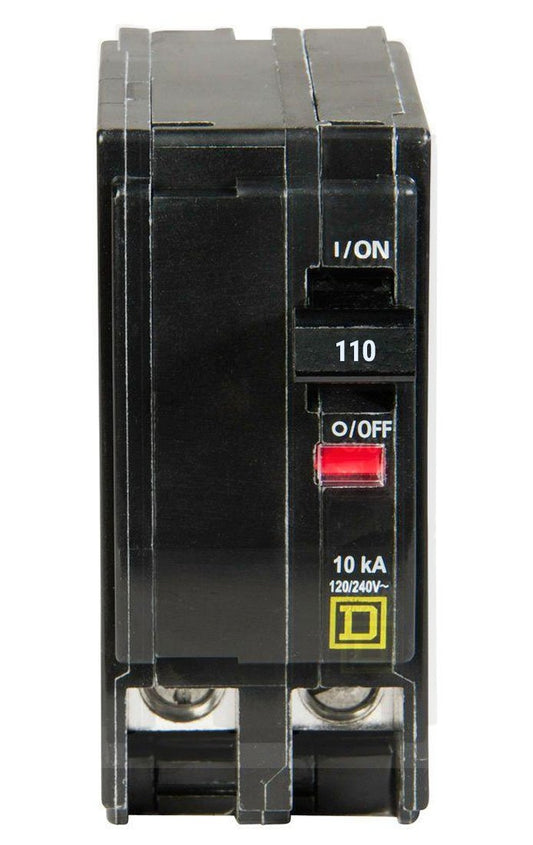

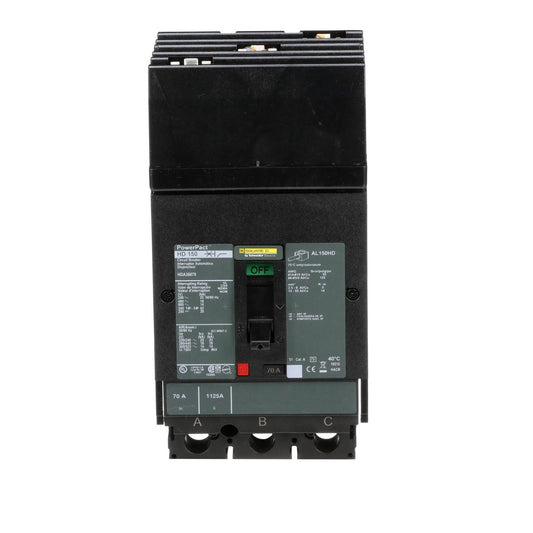

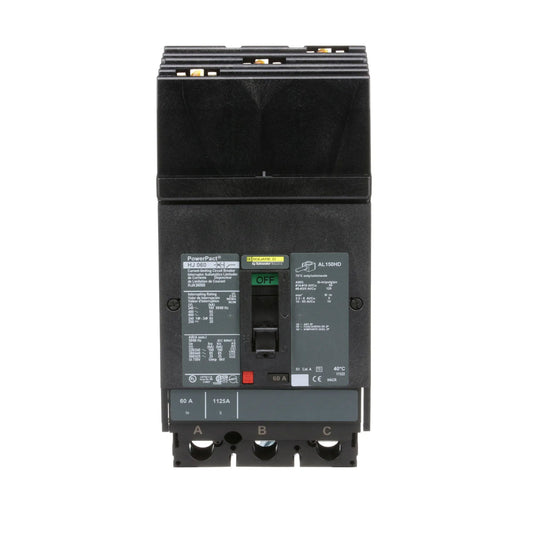

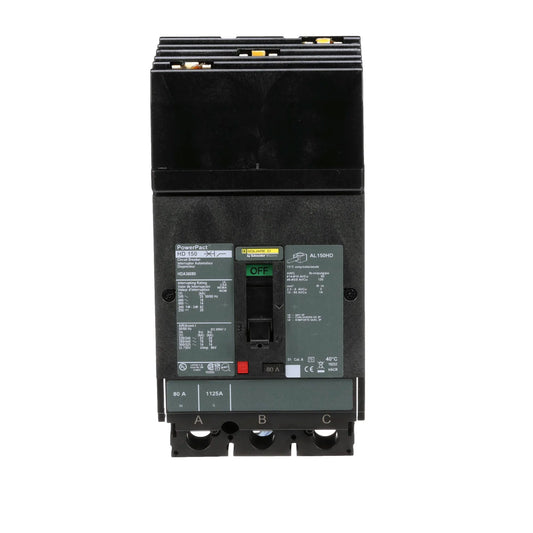

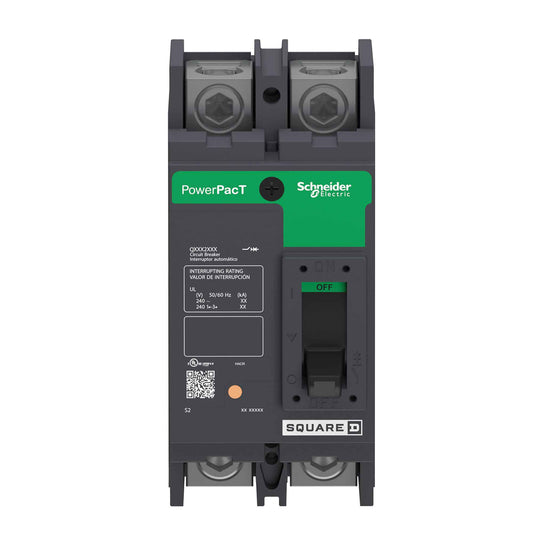

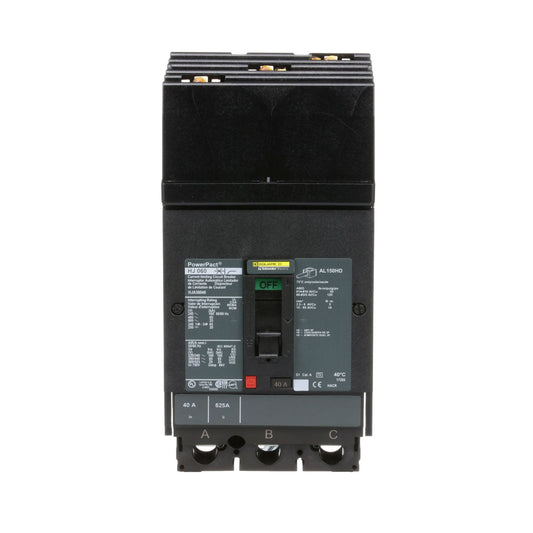

- Square D QO, fits Square D QO load centers
- Square D Homeline, fits Square D Homeline load centers
- Eaton and Cutler-Hammer BR, fits Eaton BR load centers
- Eaton and Cutler-Hammer CH, fits Eaton CH load centers

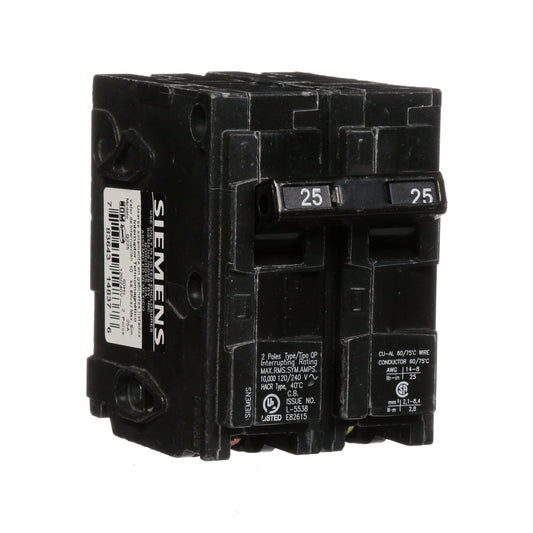

- Siemens QP, fits Siemens and legacy Murray panels

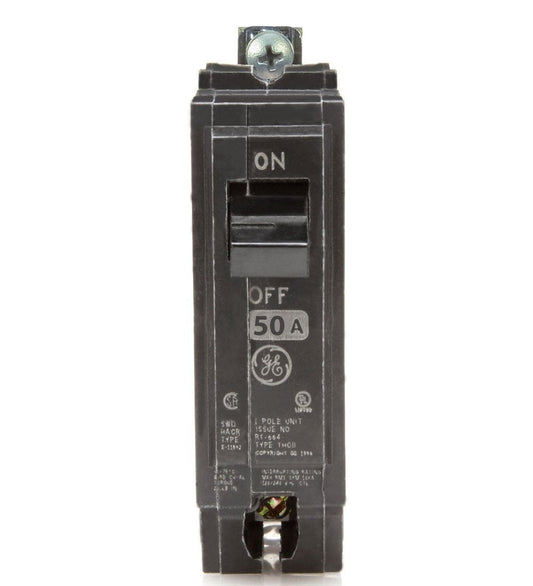

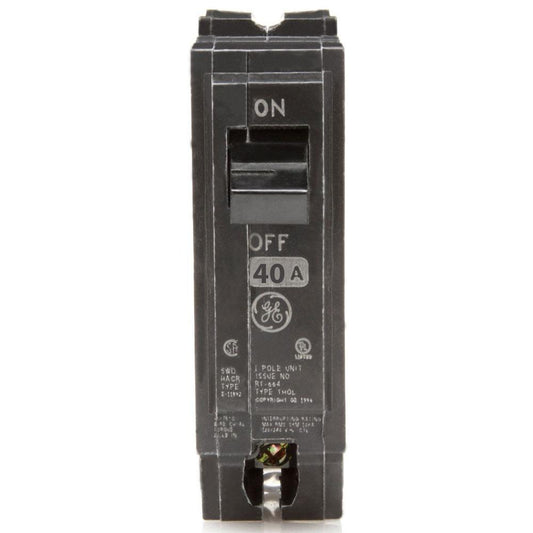

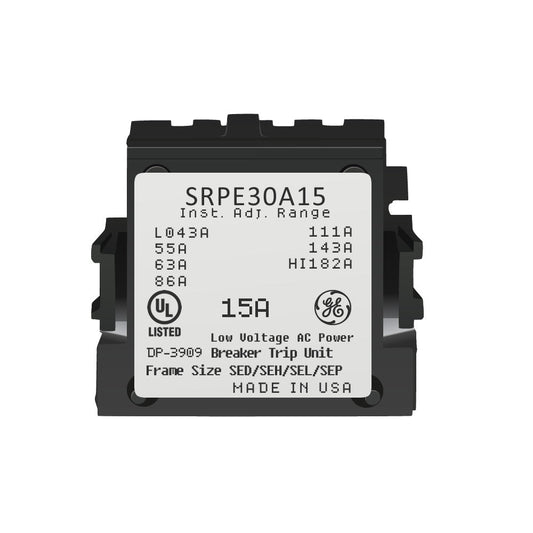

- GE THQL and Q-Line, fits GE and ABB load centers
Choosing the Right Amperage and Wire Gauge
The breaker's job is to protect the wire, so amperage has to match the conductor feeding the circuit, not just the load plugged into it. Undersizing the breaker relative to the wire causes nuisance tripping, and oversizing it lets a wire overheat before the breaker reacts, which is the more dangerous mistake of the two.
Pole count sets the voltage. A single-pole breaker delivers 120V for lighting and general receptacles. A two-pole breaker delivers 240V for larger appliances and EV chargers. A three-pole breaker feeds three-phase loads in commercial settings.
AmperageWire Gauge (Copper)PolesTypical Use15A14 AWG1-poleLighting, general receptacles20A12 AWG1-poleKitchen, small appliance circuits30A10 AWG2-poleDryer, water heater40A8 AWG2-poleElectric range, EV charger50A6 AWG2-poleRange, EV charger60A6 AWG (75°C)2-poleSubpanel feeder
Conductor sizing here follows NEC 240.4(D) and 310.16. Always verify against your conductor's actual insulation temperature rating and the terminations on the breaker and panel before finalizing a size.

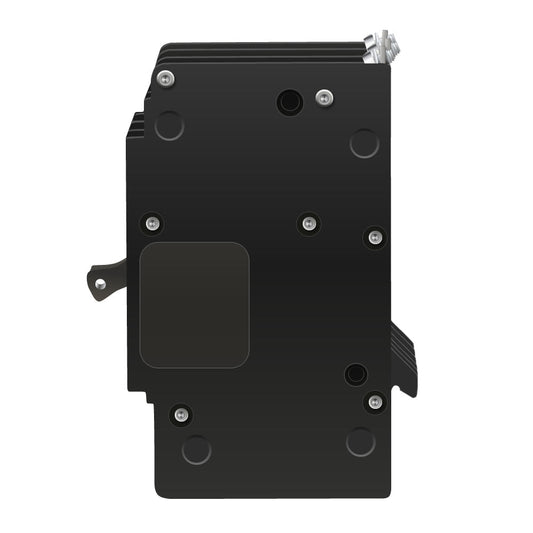

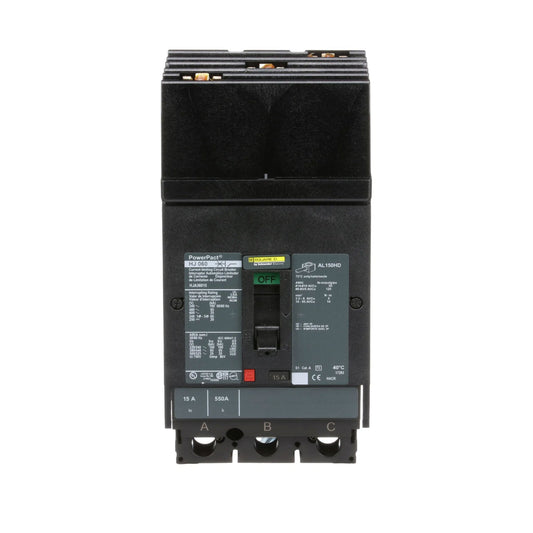

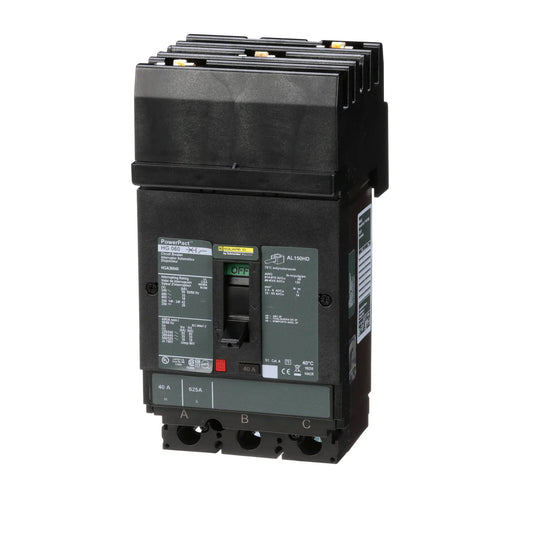

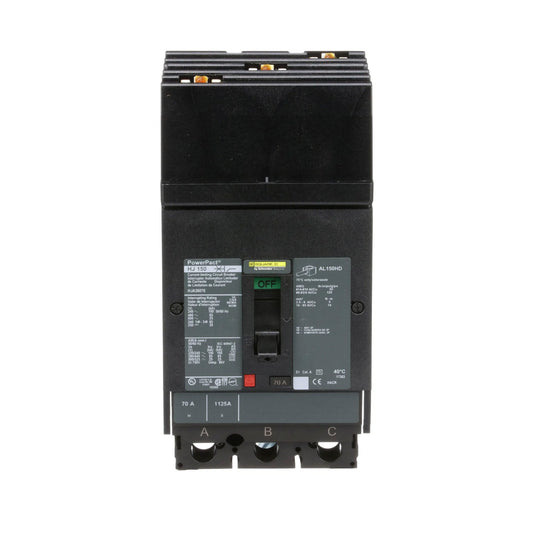

Plug-On vs. Bolt-On Breakers

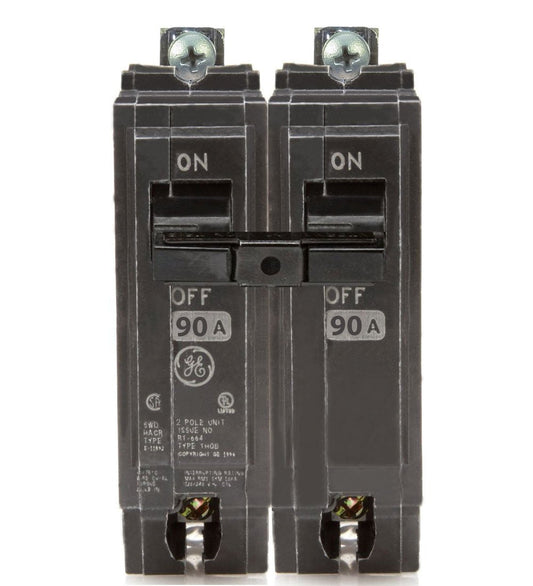

Plug-on breakers clip directly onto the panel bus, which makes them fast to install and the standard choice in residential load centers. Bolt-on breakers fasten with screws, which holds up better against vibration in commercial panelboards. The mounting style has to match what the panel is built for, plug-on and bolt-on breakers are not interchangeable even when the amperage and brand line up.
GFCI, AFCI, and Dual-Function Breakers, When Each Is Required
These three breaker types protect against different failure modes, and code increasingly requires more than one in the same panel. A GFCI breaker protects against ground faults, the kind of leakage current that causes shock, and is required in wet-prone areas like bathrooms, kitchens, and outdoor circuits. An AFCI breaker protects against arc faults, the sparking that starts electrical fires in damaged wiring, and is required on most living-area branch circuits under current code. A dual-function breaker combines both protections in a single unit, which current NEC editions require in many residential locations rather than picking one or the other. Lumera also stocks GFCI protection as a standalone GFCI receptacle for circuits where receptacle-level protection is the better fit than a breaker.
Interrupting Rating (AIC), Why It Matters
AIC, or amps interrupting capacity, is the highest fault current a breaker can safely shut off without failing itself. Common ratings are 10kA, 22kA, and 65kA. The breaker's AIC has to meet or exceed the available fault current at its point of installation, a number that depends on the utility service and panel, not just the branch circuit. Getting this wrong doesn't show up in daily use, it shows up as a breaker that fails to safely clear a short circuit when one actually happens.
Installation and Panel Safety
Breaker and panel work is electrical work at the service level, not a swap a homeowner should take on solo. Have a licensed electrician install or replace breakers, especially anything involving the main panel, a subpanel feed, or a circuit that didn't exist before. Panels stay energized even with the main breaker off in most residential setups, and mistakes here carry real risk of shock or fire.
If a new circuit is going in for equipment like an EV charger, pair the breaker choice with Lumera's EV charging receptacles and accessories for the outlet side.
It's also worth considering surge protection at the panel, to guard the rest of the circuits it feeds against transient spikes from lightning or utility switching. Lumera's surge protection collection covers Type 1 and Type 2 devices for that purpose.
For landing new conductors in the panel or at a subpanel, properly sized wire connectors are worth having on hand before the electrician starts. Lumera's wire connectors collection covers the rated options for that job.
The grounding connection matters just as much as the breakers themselves, since that bond is what makes a breaker's fault protection actually work. Lumera's ground clamps collection covers the hardware for that connection.
Circuit Breaker Questions, Answered
What circuit breaker brands does Lumera Electric carry?
Square D in QO and Homeline series, Eaton and Cutler-Hammer in BR and CH series, Siemens in QP series, and GE in THQL and Q-Line series. Each line is built for its own panel bus, so match the brand and series to the panel already installed.
How do I know what amperage breaker I need?
Amperage has to match the wire gauge feeding the circuit, not just the load. Fourteen AWG wire pairs with a 15A breaker, 12 AWG with 20A, and 10 AWG with 30A. A licensed electrician can confirm the existing wire gauge before you buy a replacement breaker.
What's the difference between a plug-on and a bolt-on breaker?
A plug-on breaker clips onto the panel bus for quick installation in most residential load centers. A bolt-on breaker fastens with screws, which holds up better under vibration in commercial panelboards. The two are not interchangeable, the panel dictates which style it accepts.
Do I need a GFCI or an AFCI breaker?
GFCI breakers protect against ground faults in wet-prone areas like bathrooms, kitchens, and outdoor circuits. AFCI breakers protect against arc faults on most living-area branch circuits. Many residential locations now require dual-function breakers that combine both protections rather than one or the other.
What does the AIC rating on a breaker mean?
AIC is the highest fault current the breaker can safely interrupt, commonly 10kA, 22kA, or 65kA. It has to meet or exceed the available fault current at the installation point, a figure your electrician or utility can confirm, since an undersized AIC can fail during a real short circuit instead of protecting against it.
