Navigating Lighting Spot 26 by CCT, Cutout, and Kit
Almost every fixture in this collection is CCT selectable, a switch on the body picks the color temperature from three or five options, so one SKU covers the 2700K living room and the 5000K garage. That collapses the catalog into sizes and mounting styles, and the sections below sort it that way, starting from the recessed core.
Which Lighting Spot 26 Family You Need
Recessed Downlights, Trims, and Housings

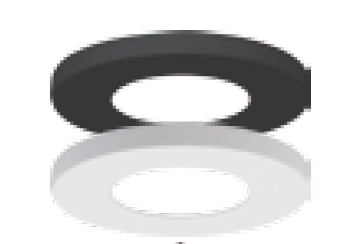

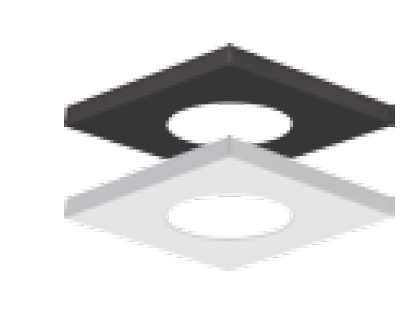

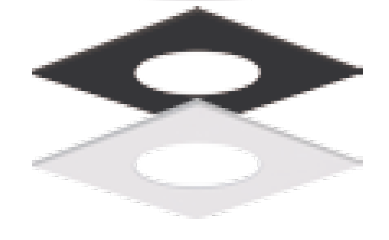

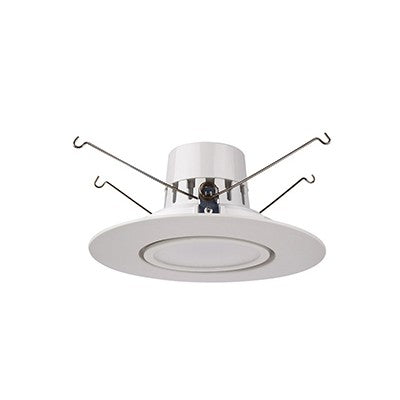

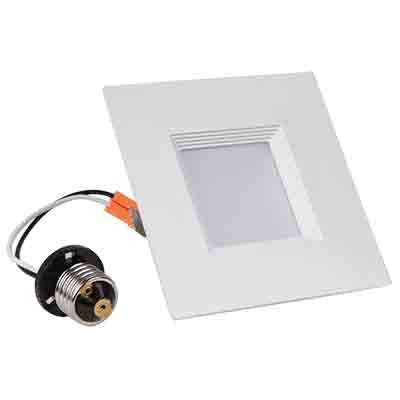

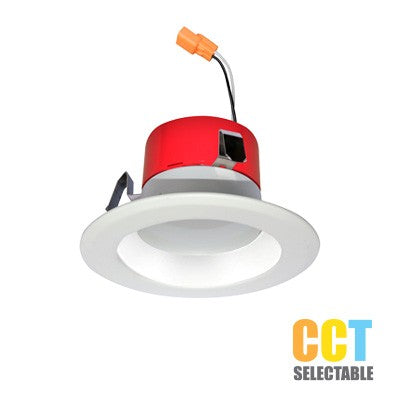

The 190 recessed downlights run 1 inch through 6 inch in round and square, smooth, baffle, adjustable gimbal, and trimless styles, most in 5CCT versions covering 2700K through 5000K. Around them sit 44 canless downlights that skip the housing entirely, 32 recessed housings including IC air-tight and fire-rated needs, 24 snap-in trims, and the mud rings and mounting plates for trimless installs.
Tape Light and Channels

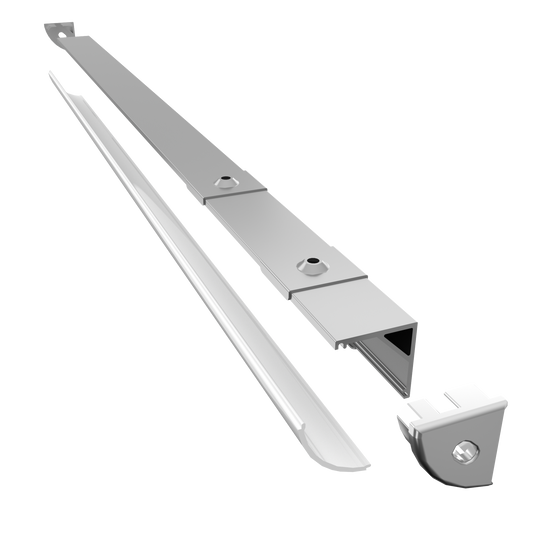

The 61 tape lights span 24V reels in fixed CCTs from 2700K to 5000K plus RGB, and 120V long-run reels to 164 feet, all filed in the tape light collection. Fifteen aluminum channels in recessed, surface, and 45 degree profiles finish the runs, and 11 low voltage drivers power them.
Flood, Area, and Landscape

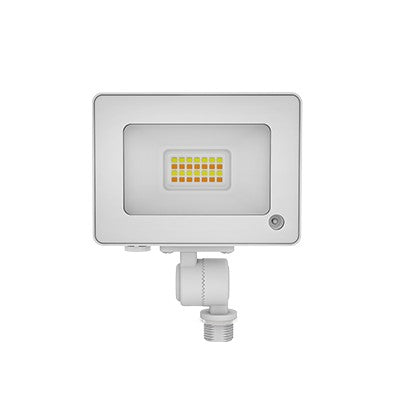

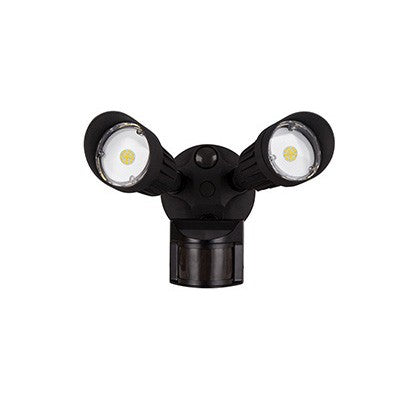

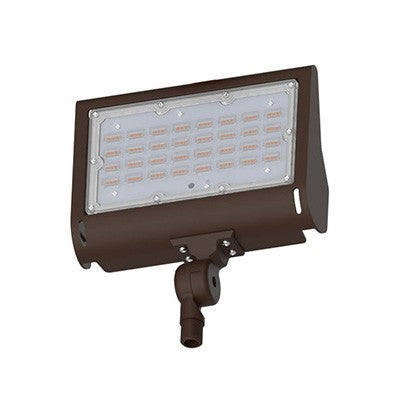

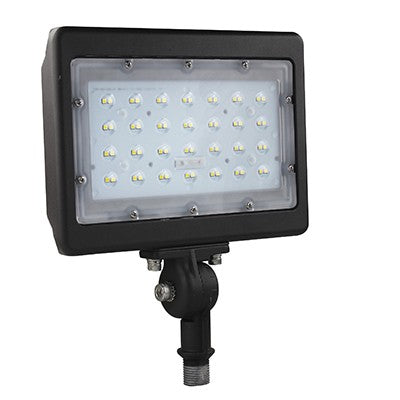

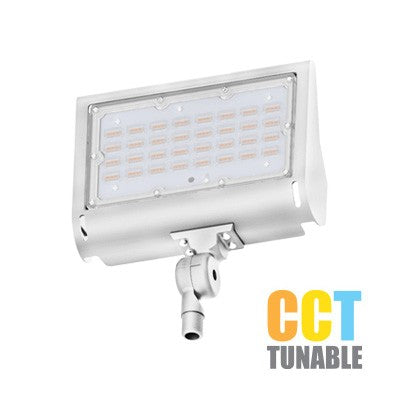

Outdoors the brand covers 44 flood lights from 15W yard units to 120W double heads, every one filed in the flood light collection, plus canopy lights, area lights, and a small 12V landscape group with bullet and path formats.
High Bays, Panels, and Troffers
The commercial ceiling gets 18 high bays, round UFO bodies from 60W to 300W in selectable pairs, all filed in the high bay collection.
Beside them sit 7 flat panels, filed in the panel collection, in 1x4, 2x2, and 2x4 footprints.
Five troffer bodies in the same footprints reach the troffer collection. Emergency work is a real theme here, with 30 emergency backup versions of the panel and troffer families plus standalone battery units.
Room and Task Fixtures

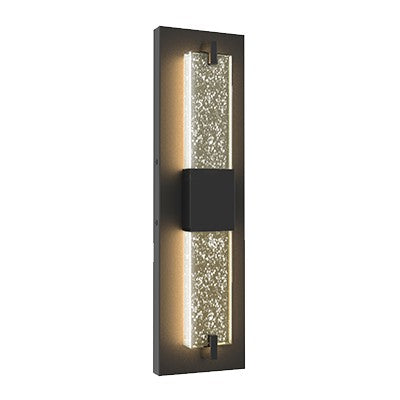

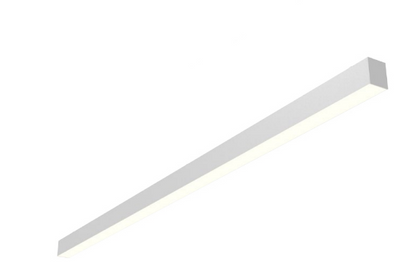

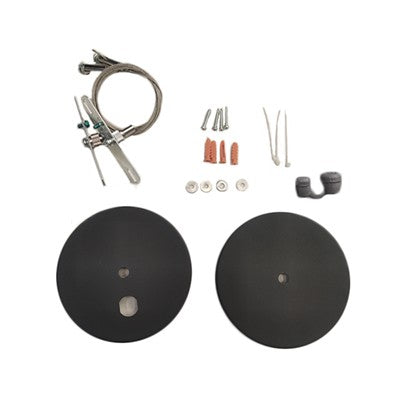

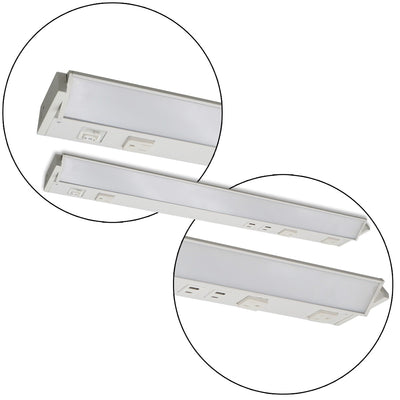

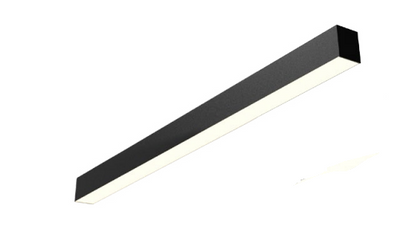

The rest of the range covers the walk-through spaces: 34 disk lights from 11 to 16 inch, 19 slim panels, and 19 under cabinet lights in hardwired and selectable versions. Beside them run 23 linear suspension fixtures with 5 joining connectors, 10 wall lights, and cylinder, multi-head, and surface accent pieces. The 82 items typed as general lighting accessories are mostly retrofit kits and sensor-ready variants of these same families.
Reading a Lighting Spot 26 Model Number
The code stacks prefix, size, wattage, and CCT in order. LS, LS2, and LS26 mark catalog generations, LSH covers the outdoor flood and landscape line, and LSS the linear suspension system. The digits then carry the size in inches or feet and the wattage, with 5CCT or 3CCT closing the selectable models and a K code like 3K or 50K closing the fixed ones. LS-2-TL-5CCT therefore reads as a 2 inch trimless five-CCT downlight, and the pattern holds well enough to search by fragment.
Where Lighting Spot 26 Sits in the Lumera Catalog
Tape light, floods, high bays, drivers, panels, and troffers all carry the brand in their categories, linked in the sections above. The soft spots are real: the 5 landscape units and most of the 30 emergency versions do not currently appear in their matching categories. The recessed downlight majority of this brand also has no reliable category home, so downlight shopping works best from this page and search.
Ordering Notes for Lighting Spot 26 Fixtures
Selectable CCT removes the color decision but not the size decision, so match the cutout dimension in the title to the ceiling opening before quantity ordering, especially between close pairs like 4 inch and 6 inch retrofits. Watch the paired wattage codes, a 100W, 125W high bay is one switchable fixture rather than two models. Emergency backup versions carry their own SKUs at different prices than the base fixture, and trims, housings, and channels are separate line items. The same goes for the 11 tape drivers, which sit with the site's other units in the LED driver collection and are matched to the reel wattage, not assumed into it.
Specs to Confirm Before a Lighting Spot 26 Order
Confirm the cutout or mounting dimension first, then the lumen output at the wattage setting you will actually run, since selectable fixtures list a range. Confirm the input voltage on commercial items, the CCT options against the design spec, and IC or fire ratings where the housing sits in insulation or rated assemblies. On tape runs, confirm voltage, watts per foot, and driver capacity together. Listings differ item to item, so verify certifications on each product page.
Lighting Spot 26 Selection and Spec Questions
What does 5CCT selectable actually mean?
The fixture carries five color temperatures, typically 2700K, 3000K, 3500K, 4000K, and 5000K, and a switch on the body sets which one it runs, chosen at install and changeable later. It replaces stocking five fixed-color versions of the same fixture with one SKU.
Do the canless downlights need a housing?

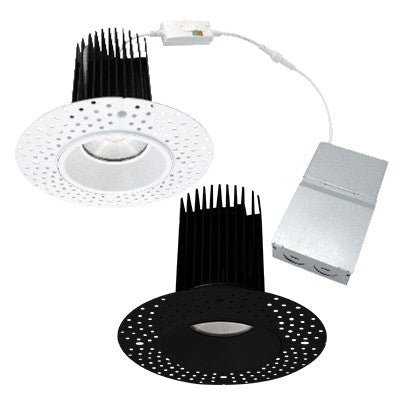

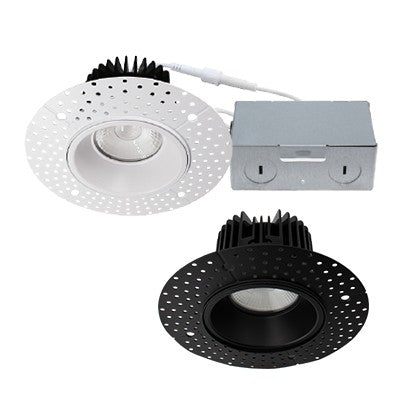

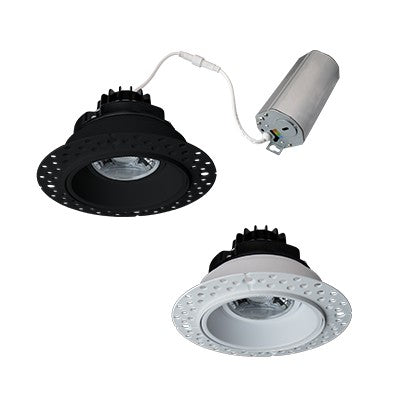

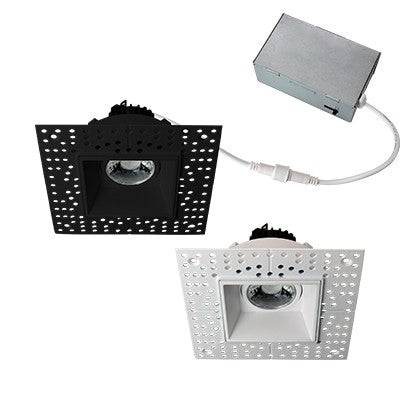

No, a canless downlight is a thin fixture with a junction box that mounts directly to the ceiling cutout, which is the point of the format. The separate recessed housings in this collection belong to the module and trim system, a different installation style that uses a can plus a matching module.
Which tape light works for a long single run?
The 120V family is built for distance, with reels listed to 164 feet on one feed, while the 24V tape is the standard choice for cabinet and cove lengths driven from a nearby driver. Match the tape voltage, the wattage per reel, and the driver rating as one decision.
What is the difference between the disk lights and the recessed downlights?
A disk light mounts flat to a standard ceiling box with no recess, which makes it the fast retrofit where no can exists, while a recessed downlight sits inside the ceiling in a cutout, canless or housed. The disk range here runs 11 to 16 inches for full-room light, and the recessed range starts at 1 inch for accent work.
