Two Panasonic Catalogs Wearing One Badge
Buyers usually arrive here knowing Panasonic as the quiet bath fan
company, and half the shelf is exactly that, but the other half moves
air through ducts, dryers, and open ceilings under the Atmosphere Vortex
name, and treating the two as one catalog is how ordering mistakes
happen. The bathroom half is sized in sones and mounted in ceilings, the
Vortex half is sized in duct inches and static pressure, and this page
walks them separately, beginning where most searches land, in fan only bath units.
Decoding the Whisper Names

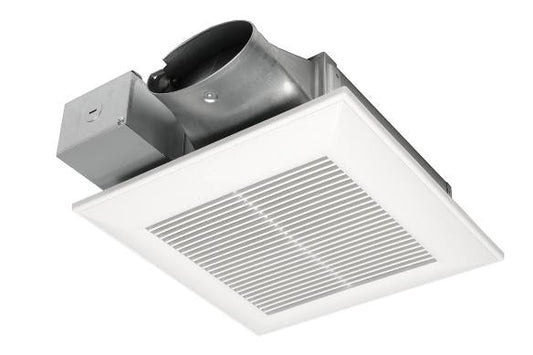

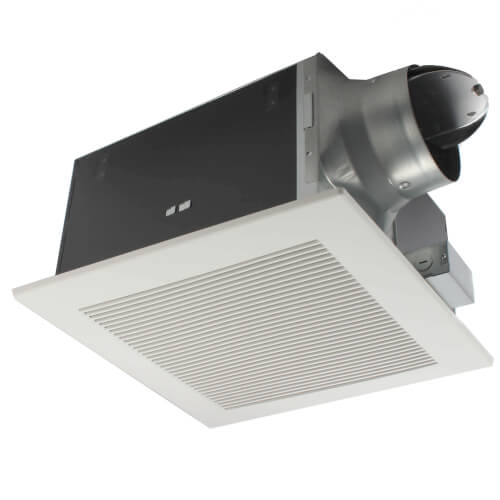

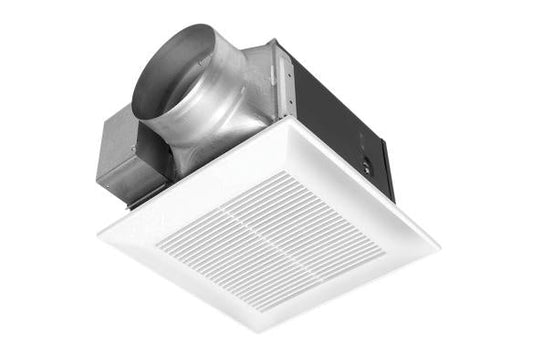

Panasonic's bath line reads like a tier list once the prefixes make

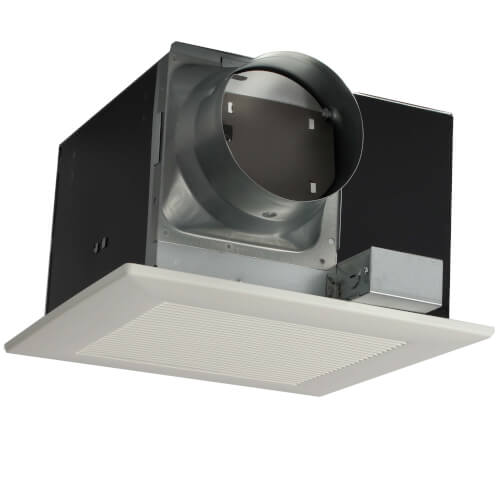

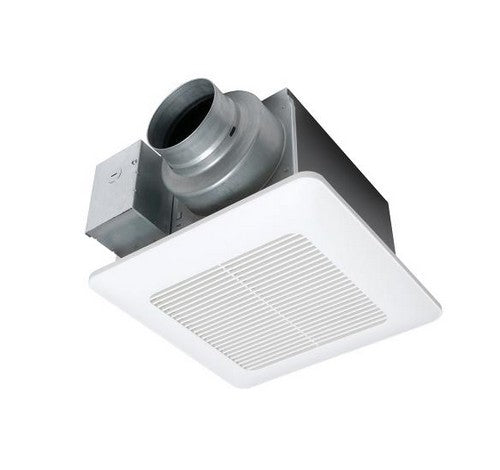

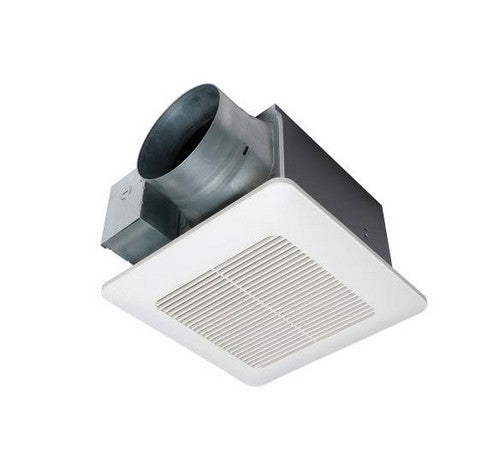

sense. WhisperCeiling is the mainstream ceiling unit, WhisperFit is the
low profile housing for retrofit ceilings with shallow joist space,
WhisperValue goes shallower still for the tightest installs,
WhisperGreen and WhisperGreen Select add ECM motors and modular feature

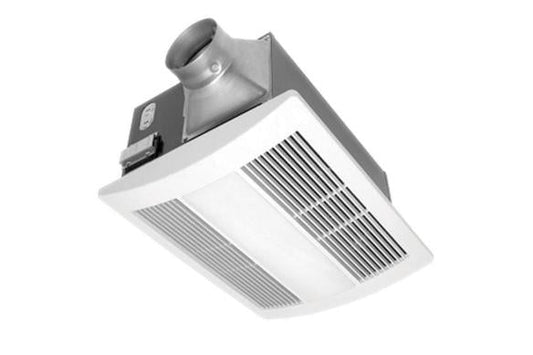

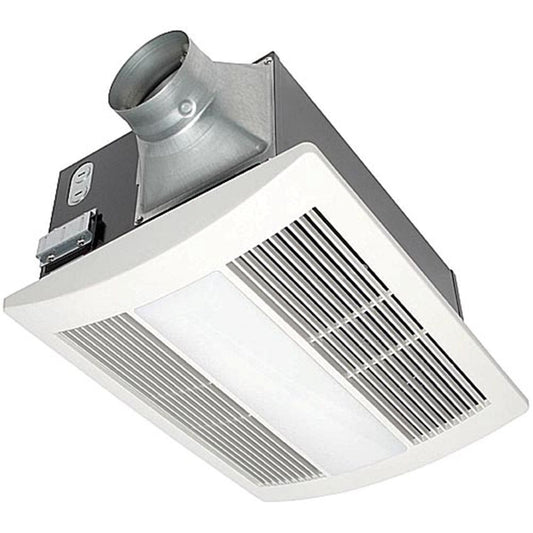

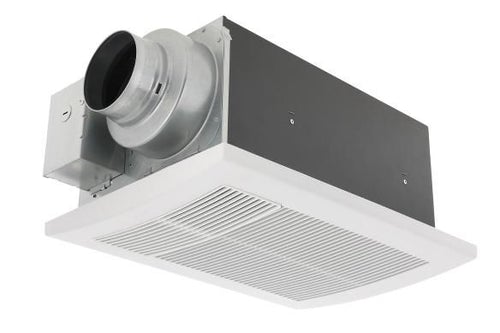

options, and WhisperWarm DC folds a heater into the fan for cold morning
bathrooms. Several of these carry Pick-A-Flow, a switch set at install
that picks the airflow rating, 50, 80, or 100 CFM on one unit, so a

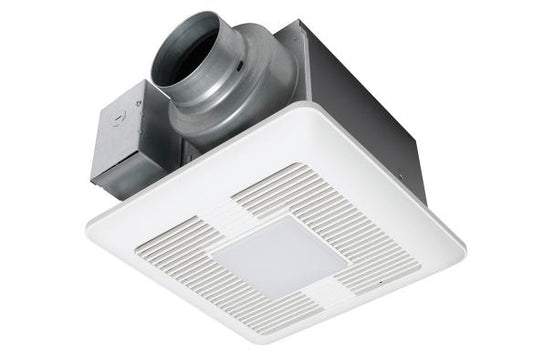

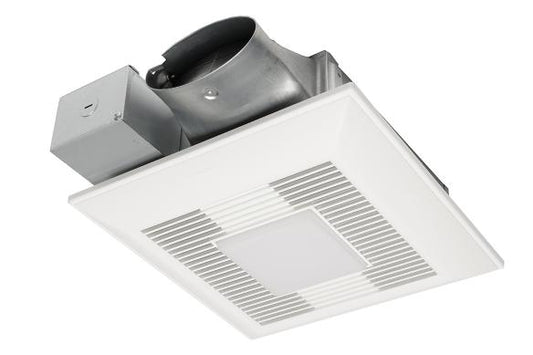

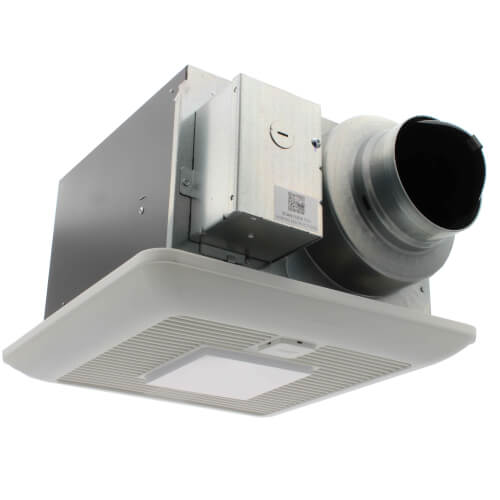

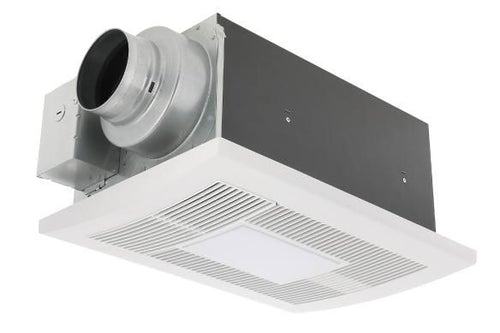

single stocked model covers three different room sizes. The versions
with integrated lighting have their own aisle in fan and light combinations.
Sensors That Run the Fan for You

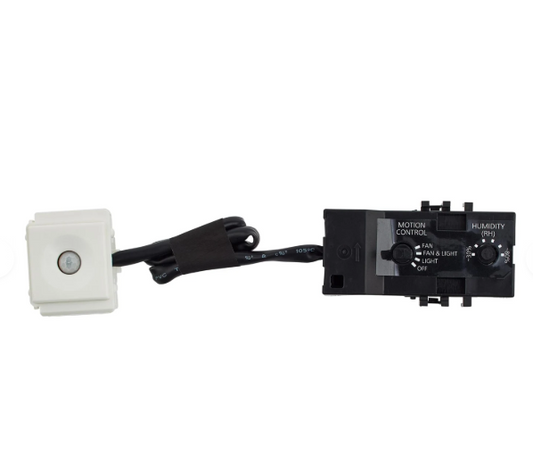

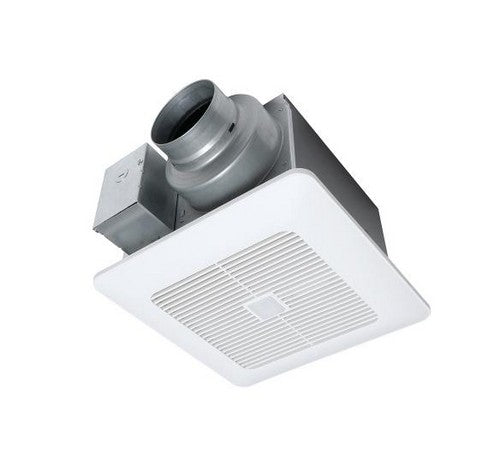

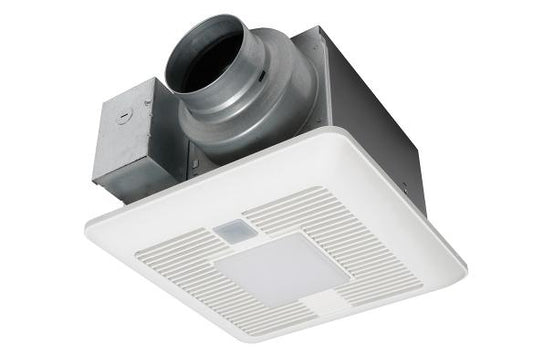

Model suffixes across this range mark automation, and the
condensation sensing versions are the standout: the fan watches humidity
at the ceiling and runs itself after showers, which is the practical
answer for rentals and family bathrooms where nobody touches the switch.
Titles spell out what each unit carries, a current sensor here, an LED
light there, so match the suffix to the behavior the room needs and
confirm the details on each listing before multiplying by bathroom
count.
Intelli-Balance: The Balanced Air Trade

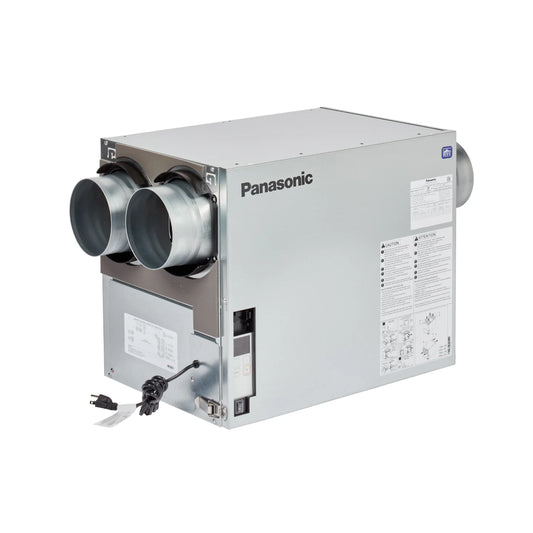

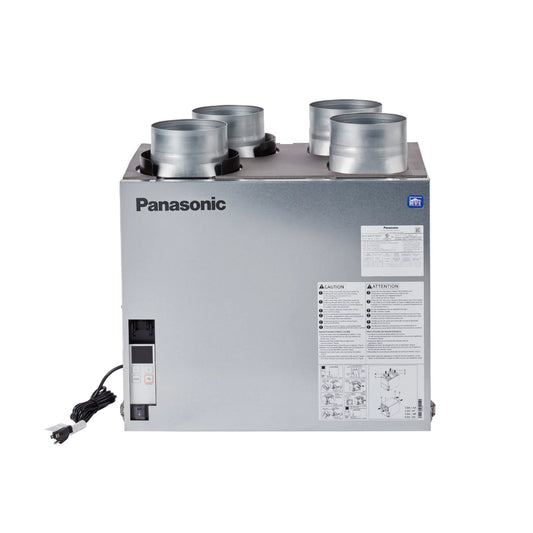

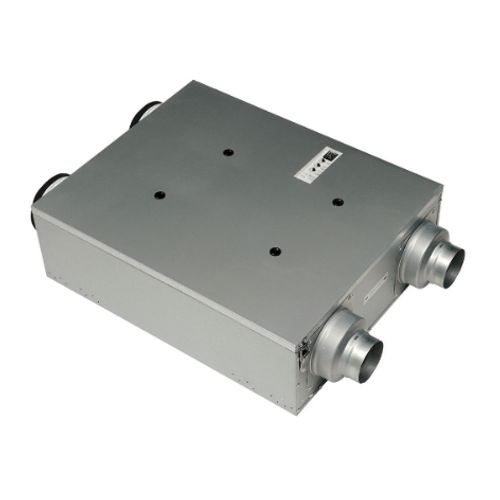

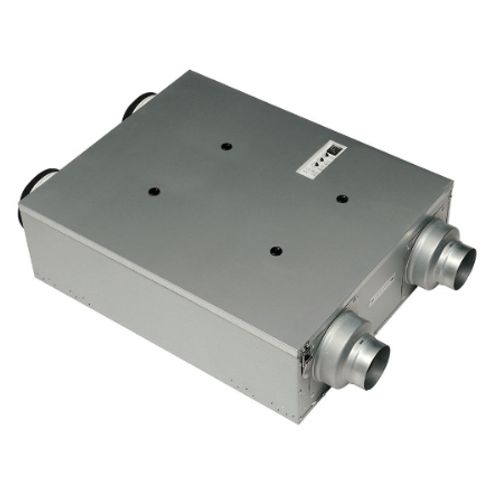

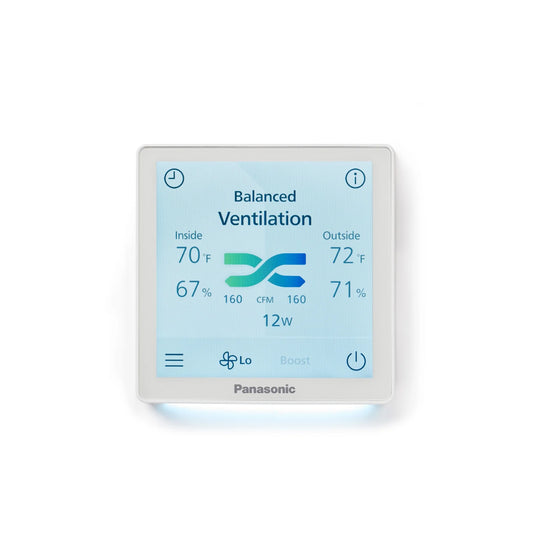

The ten Intelli-Balance 100 units are energy recovery ventilators,
machines that exhaust stale indoor air and pull in fresh outdoor air at
the same time while trading heat between the two streams, which is what
tight modern houses need to breathe without wasting conditioning. The

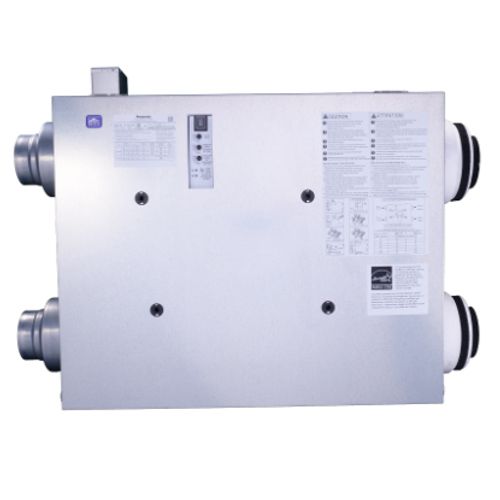

FV-10VE2 through FV-10VEC2RH codes differ by control and configuration
options, so the pick comes off the ventilation design rather than the
shelf photo. That whole balanced category, across brands and capacities,
sorts under energy recovery ventilators.
The Atmosphere Vortex Half
The Vortex side is the pro air moving kit: VTX inline fans in 4
through 12 inch duct diameters plus an L-Series, S-Series mixed flow
fans stepping from 340 to 1082 CFM by size, dryer boosters listed at 192
and 198 CFM and 1 sone with integrated lint traps, and D-65
destratification fans that push warm ceiling air back down in tall
rooms. Support pieces ride along, air pressure sensing switches, current
switches, and replacement lint traps, so a duct job leaves as a set.
The category shelf for this work is inline duct fans.
Quoting the Air Package
A whole house air plan usually pulls from both halves at once, bath
fans by the room, an ERV for the envelope, and a booster or inline unit
where a duct run demands it, and the counter can price that mixed list
in one go. Every unit here wires to building power, so installation
belongs to a licensed electrician from first cable to finished grille,
and ducted models also need the duct work their listings assume. The
parent shelf holding both halves plus every other brand is bathroom and exhaust fans.
Panasonic Ventilation Questions
What does Pick-A-Flow actually do?
It is a selector on the fan, set during installation, that fixes the
unit's airflow at one of three ratings such as 50, 80, or 100 CFM. One
model number then serves small, medium, and large bathrooms, which
simplifies stocking and lets the installer size on site instead of at
the order stage.
Which Whisper series fits a shallow ceiling?
WhisperFit is the retrofit answer for limited joist depth, and
WhisperValue runs shallower again for the tightest cavities. Confirm the
housing depth on the exact listing against the space above the ceiling
before choosing, because the grille looks identical from below either
way.
What is a dryer booster and when is one required?
It is an inline fan dedicated to a clothes dryer's exhaust run,
kicking in so long or complicated duct paths still clear lint and
moisture. The Atmosphere units here list integrated lint traps and 1
sone operation, and the duct length rules on their pages tell you when a
run has outgrown the dryer's own blower.
Do I need an ERV or just a better bath fan?
A bath fan solves one room's moisture, an ERV ventilates the entire
house continuously while recovering heat between the airstreams. If the
problem is stale air through a tight, modern envelope rather than one
steamy mirror, the answer is the Intelli-Balance side of the shelf,
sized by the ventilation calculation for the home.
