Buying an Electrical Box by the Number Inside It
Gang count tells you how many devices fit the front of a box, but the cubic inch figure decides whether the wiring fits behind them. Every conductor, clamp, and device entering a box consumes listed volume under the fill rules, and the sum has to stay inside the box's stamped capacity, which is why two boxes with identical faces can be legal or illegal for the same circuit.
The finishing hardware for whatever volume you land on lives in electrical box covers and rings, so the closure can ride the same order.
The practical habit is to buy the volume, not the face. On this page the choice is laid out plainly, singles from 14 to 22 cubic inches, a 32 cubic inch two gang, a 44 cubic inch three gang, and a 60 cubic inch four gang, so a crowded run of three-ways and travelers simply gets the bigger number.
New-Work, Old-Work, and the Adjustable Escape Hatch
New-work boxes fasten to open framing and get drywalled around, while the old-work versions here, marked MOBR, grip finished drywall with clamping ears so a remodel never opens the wall. The round old-work box extends the same trick to ceilings for a light fixture cut-in.
The adjustable series is the quiet insurance policy. Its face screws forward or back after installation, so an unknown tile or paneling thickness stops being a guess made at rough-in, and the device still lands flush on the day the finish goes on.
One boundary matters overhead: a paddle fan hangs on motion and weight that an ordinary fixture box is not listed to hold, so anything with spinning blades gets a box specifically listed for fan support, no exceptions.
Material, Location, and the Edges of the Category
Wiring method drives material. Metal raceway and armored cable want a metal box that joins the grounding path, while nonmetallic cable pairs naturally with nonmetallic boxes, and mixing the logic is where bonding mistakes start. Larger pull points and splice enclosures graduate to the device and junction boxes range.

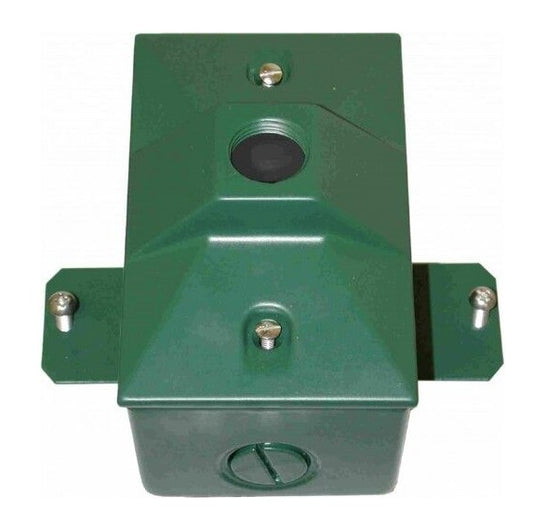

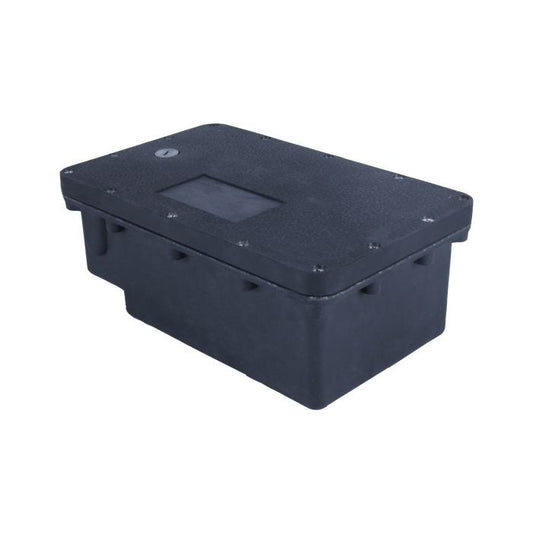

Location moves the purchase entirely. A box living in the weather belongs in weatherproof boxes, and the Orbit fiberglass underground box on this page exists for the in-grade case where even a gasketed wall box is the wrong shape.

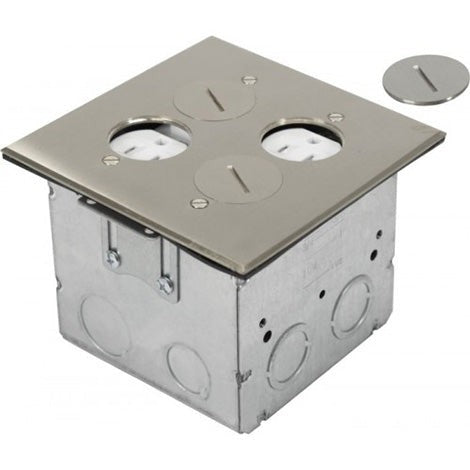

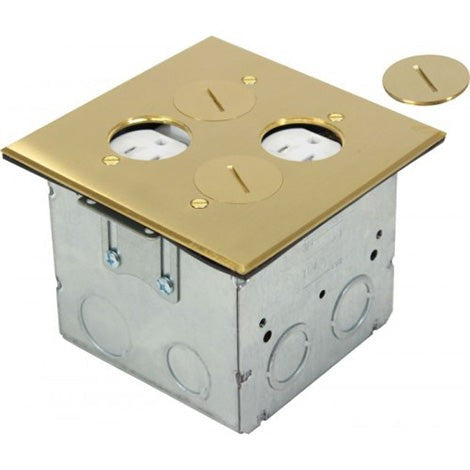

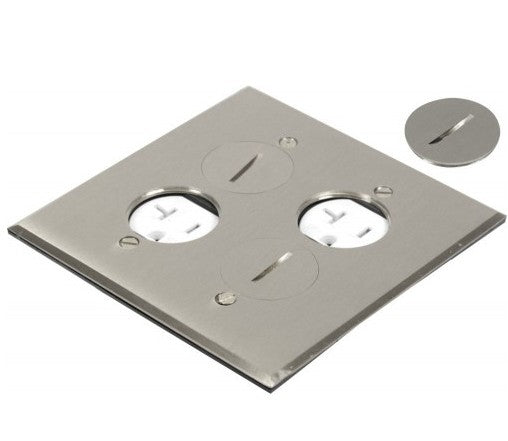

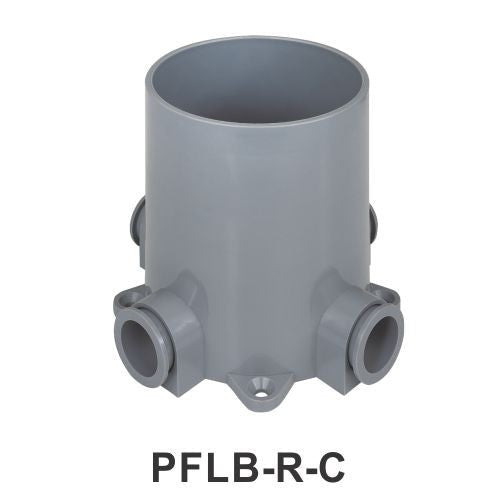

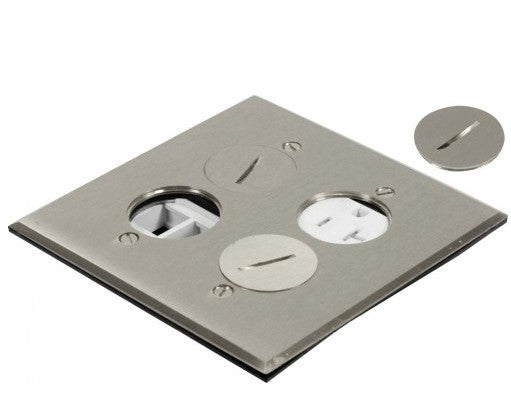

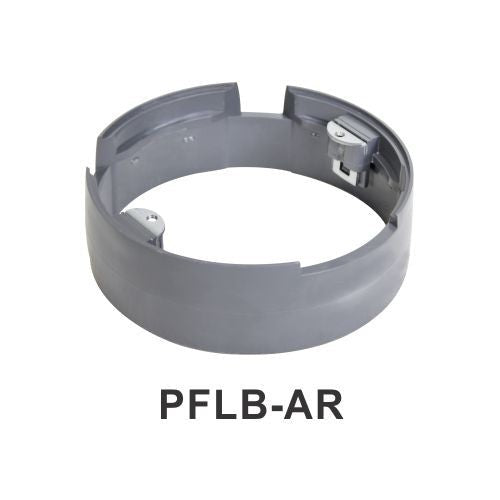

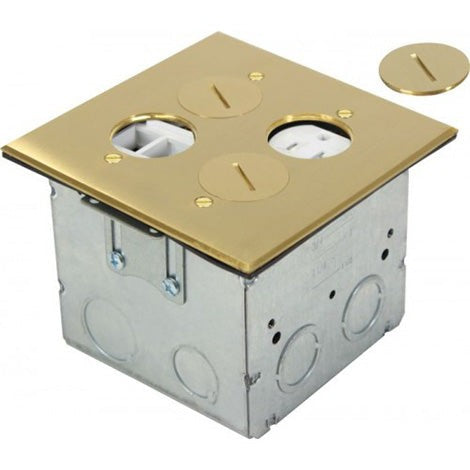

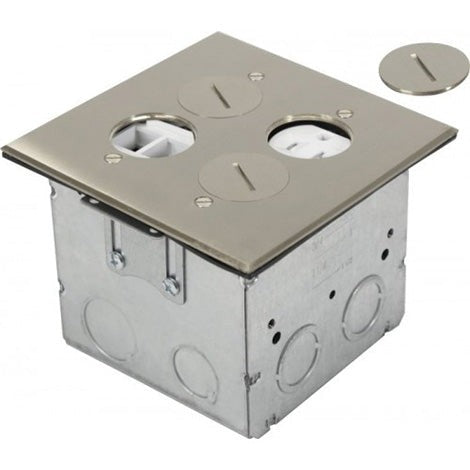

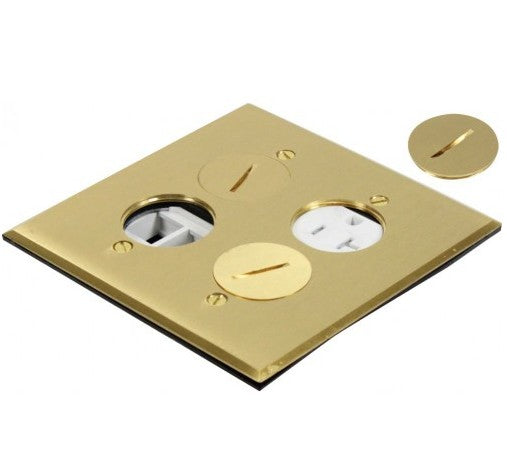

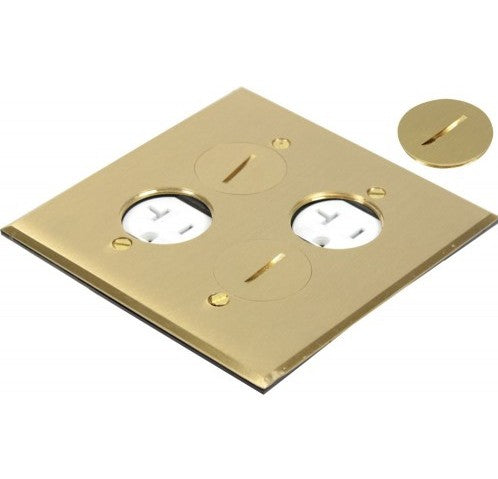

A box set into a walking surface is its own discipline, covered by the floor boxes collection rather than anything here.

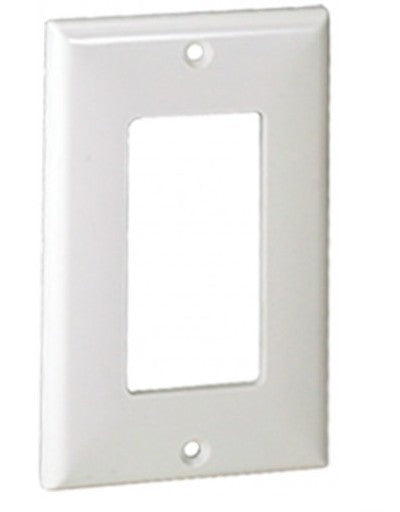

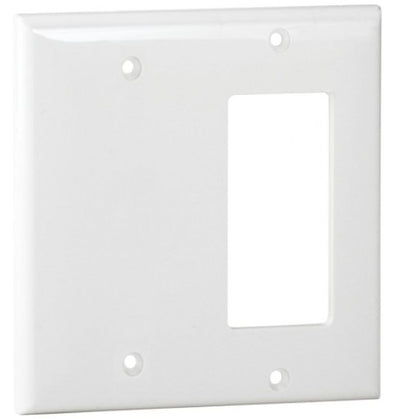

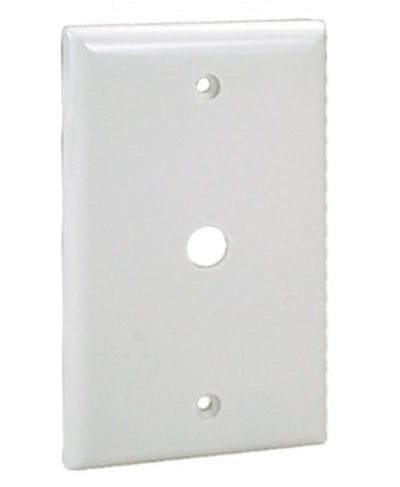

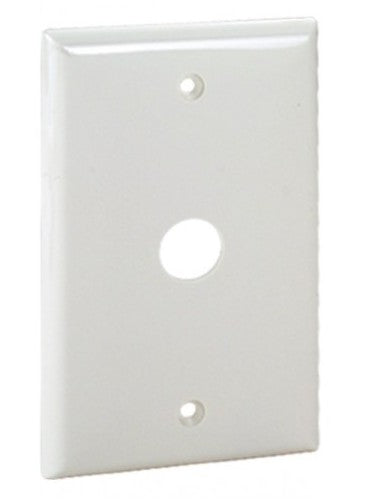

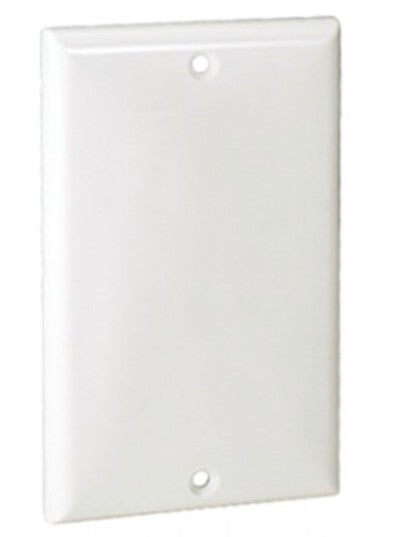

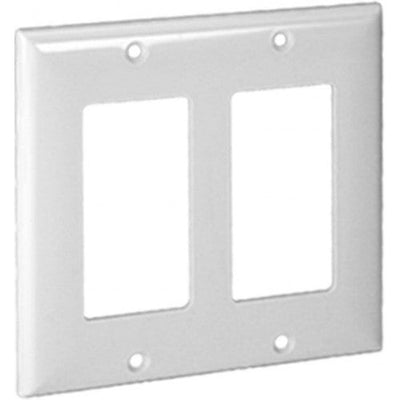

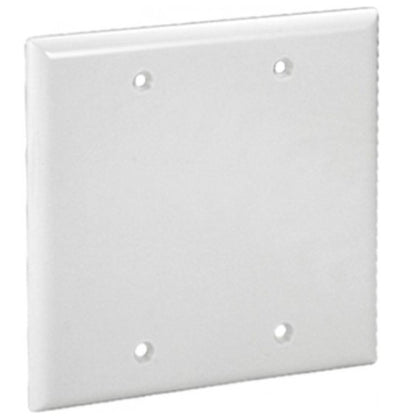

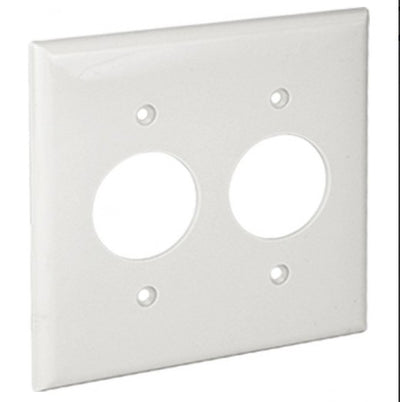

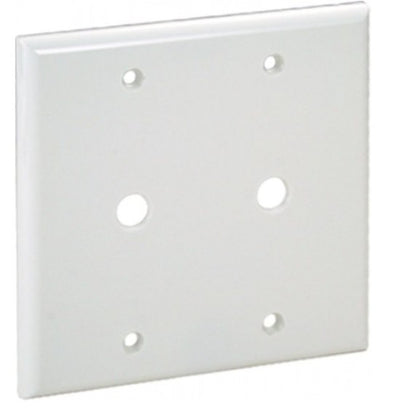

The finished-room face of all this work comes from wall plates, and everything between the plate and the box, the conductors, splices, and terminations, is a licensed electrician's job along with the inspection that signs it off.
Device and Outlet Box Questions
How do I know what cubic inch box I need?
Add up the fill: each insulated conductor entering the box counts, the device counts, and internal clamps and the ground family count, each at the listed volume for the wire gauge. If the arithmetic lands near a box's stamped number, buy the next size up, since nothing about a roomier box ever fails inspection.
What does an adjustable box actually adjust?
The depth of its face relative to the mounting. After the box is fastened, a screw walks the device opening forward or back, so the final finish thickness, tile over backer, stacked drywall, wainscot, can change without the device ending up sunken or proud.
Can I use an old-work box for a heavy device?
Old-work boxes hold by gripping drywall, which is fine for switches, receptacles, and light devices, and wrong for anything with real weight or leverage. When the load matters, open the wall enough to fasten a new-work box to framing, or use hardware listed for the specific load.
Why would anyone need a 60 cubic inch box?
Multi-gang control walls fill fast. Four devices, their conductors, travelers for three-way runs, and a stack of splices consume volume at a rate that surprises people, and the four gang at 60 cubic inches exists so the math still closes on the busiest wall of the house.
