Fitting a Troffer to the Ceiling Grid and the Task

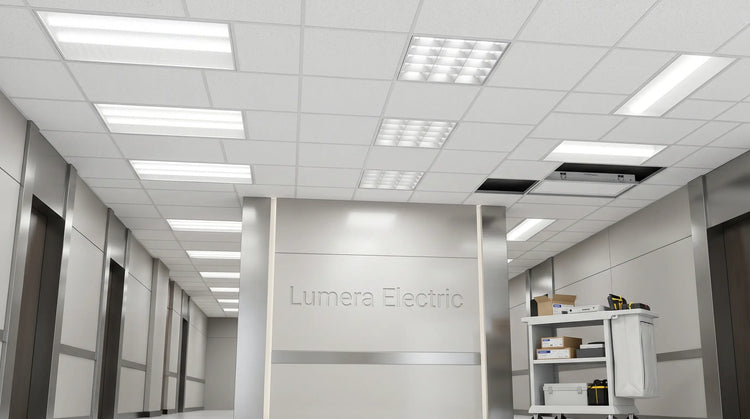

A troffer is a recessed fixture sized to drop into a suspended ceiling grid, which means the ceiling itself makes most of the dimensional decisions for you. What is left is choosing the output, the optic, and the control scheme, and those three determine whether the finished space is comfortable to work in or quietly unpleasant.
Grid Size and Fit

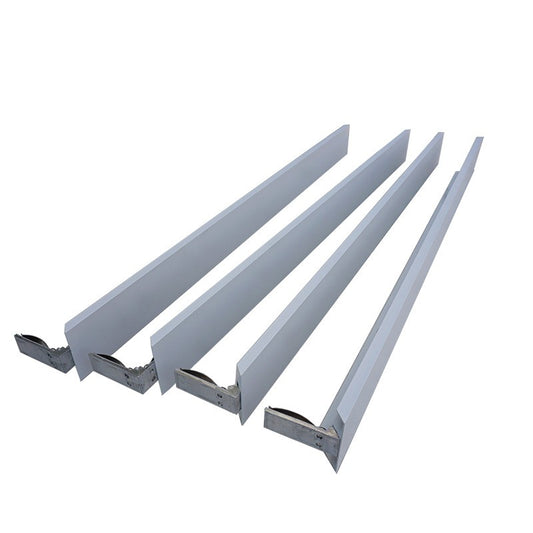

Troffers are built around standard ceiling grid modules, most commonly 2 foot by 2 foot and 2 foot by 4 foot, with 1 foot by 4 foot used in narrower runs. Measure the actual grid opening before ordering rather than assuming, because grid systems vary and a fixture built for one profile may not seat correctly in another. Check the grid type as well: a fixture designed for a standard exposed tee grid will not sit properly in a narrow or slotted profile without the right trim.
Plenum depth is the other constraint people discover late. A troffer needs clearance above the ceiling for the housing and the driver, and in a building with tight plenums or heavy ductwork a shallow-profile fixture or a flat panel is the practical answer. Lumera's LED panel lights collection covers that format.
Flat Panel, Center Basket, and Volumetric
Style is about how the fixture distributes light and how it looks from below.

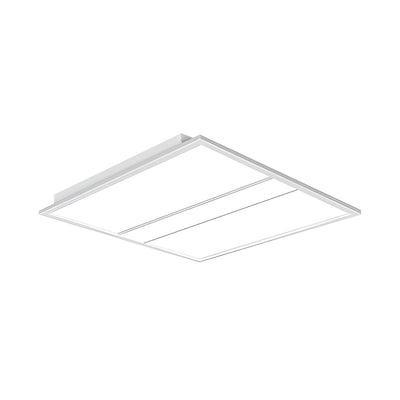

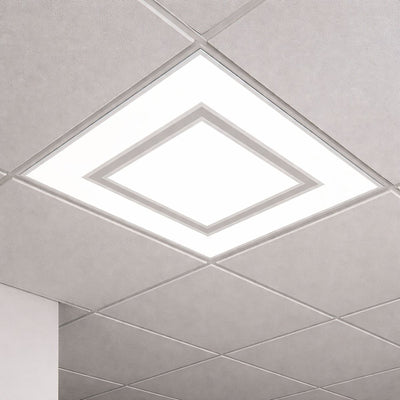

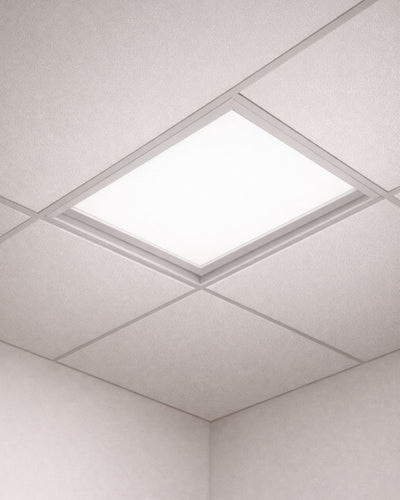

- Flat panel: an edge-lit fixture with a uniformly luminous face, the thinnest option and the easiest fit in a shallow plenum

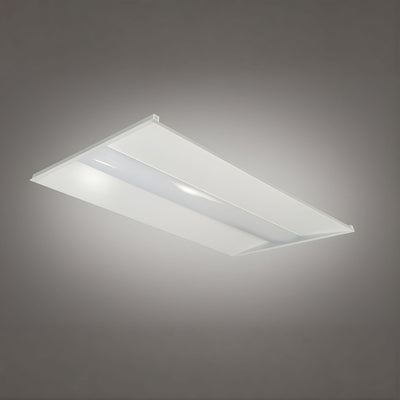

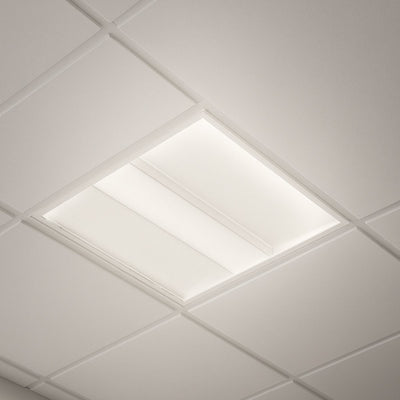

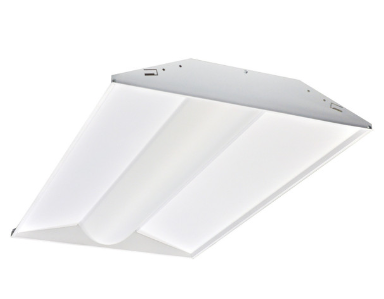

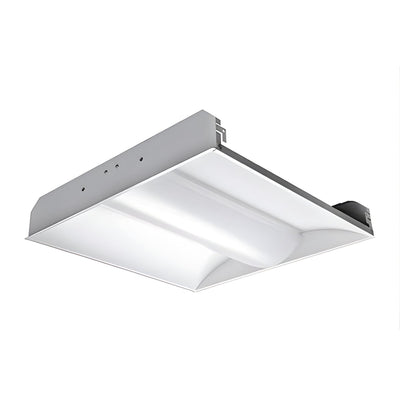

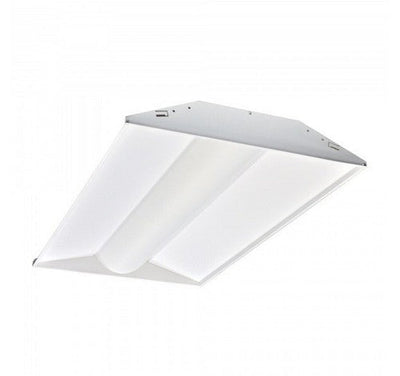

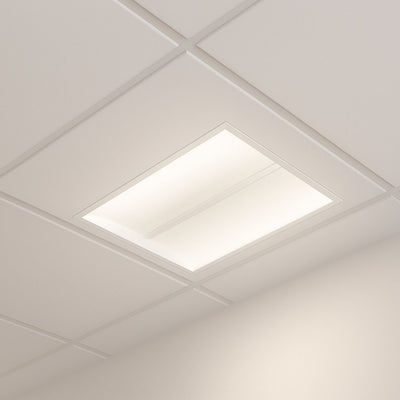

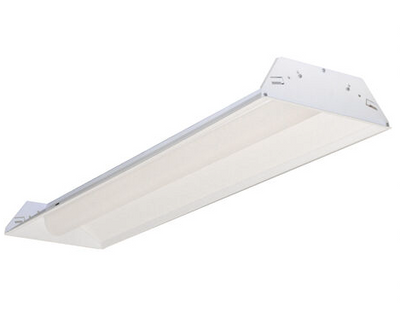

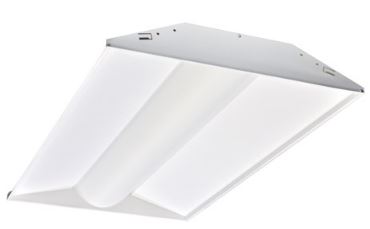

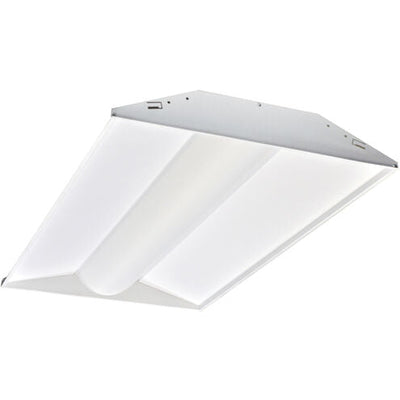

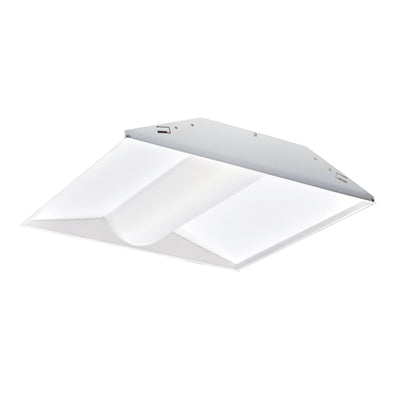

- Center basket: a recessed center section with reflective side panels, which pushes light outward and reduces the brightness of the fixture face itself

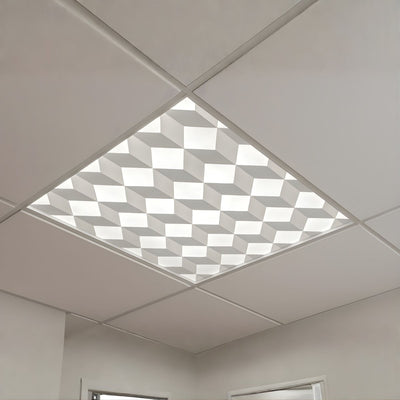

- Volumetric: shaped internal optics that light the ceiling and upper walls as well as the floor, which makes a room feel brighter at the same measured light level
The distinction matters most in spaces with screens. A uniformly bright flat panel reflects in monitors and reads as glare in a room where people look up frequently, while center basket and volumetric designs keep the visible brightness lower for the same delivered light. In a corridor or storage area, none of that matters and a flat panel is the efficient choice. Back-of-house rooms with open ceilings are different again, since a surface or suspended linear fixture suits them better, which is what Lumera's strip lights collection is for.
Glare, UGR, and Why It Matters in Offices
Unified glare rating is the metric that describes how uncomfortable a fixture is to look at within a space, and lower numbers mean less discomfort. It gets specified constantly in office and classroom projects and ignored almost everywhere else, which is a mistake, because glare is the complaint that follows a lighting retrofit most often once the initial reaction to the new brightness fades.
If the space involves desks, screens, or extended reading, ask for the glare rating rather than only the lumen output. A fixture that measures correctly on a light meter and produces squinting occupants has not solved the problem it was bought for.
Lumen Output and Color Temperature
Compare fixtures on delivered lumens rather than wattage, since efficacy varies between product lines and two fixtures at the same wattage can differ noticeably. The right target depends on the task: general office work, classrooms, and retail sales floors all sit at different levels, and corridors and storage need considerably less than any of them.
Color temperature shapes how the space reads. Warmer settings suit hospitality and reception areas. Neutral settings are the usual choice for general office and classroom work. Cooler settings appear in healthcare, laboratory, and industrial areas where alertness and detail visibility matter more than comfort. Selectable models let that decision wait until the fixtures are in the ceiling and the space can be judged in person, which is genuinely useful on a job where the finishes are not final at order time.
Selectable Wattage and Field Adjustment

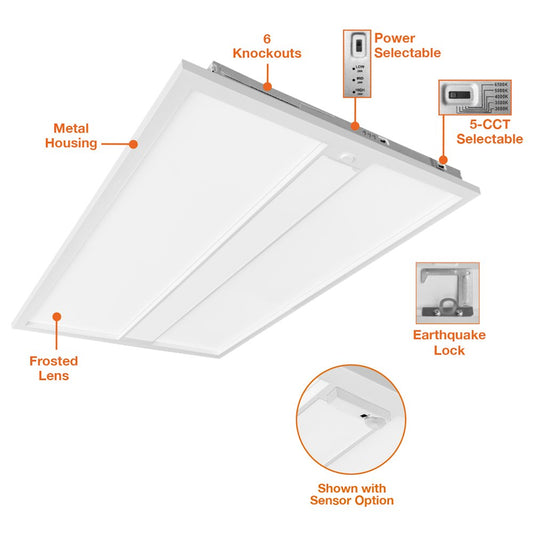

Many current troffers carry small switches on the fixture that set wattage, color temperature, or both before installation. On a large order this collapses several part numbers into one and lets the final level be set once the room is measured rather than guessed at during design. Two practical points: set every fixture in a space to the same position, and record what that position was, because a replacement fixture installed years later on a different setting is immediately visible against the others.
New Fixtures or Retrofit Kits
Replacing fluorescent troffers has two routes. A complete new fixture removes the old housing entirely and drops a new unit into the grid, which gives the full benefit of current optics and a clean warranty on the whole assembly. A retrofit kit installs new LED components into the existing housing, which is faster, produces far less waste, and disturbs the ceiling less, but leaves you with the original housing and whatever condition it is in.
Retrofit makes sense when the existing housings are sound and the ceiling is difficult to work above. Full replacement makes sense when the housings are aged, when the optical performance matters, or when the job is large enough that the labor difference is smaller than it looks.
Dimming and Controls
Most commercial troffers use a low-voltage dimming input rather than a phase-control wall dimmer, which means two additional control conductors have to be pulled to each fixture. That has to be decided before the ceiling closes, not after, and it is the single most common oversight on a troffer specification.
Energy codes in many jurisdictions now require automatic shutoff, multi-level control, or daylight response in the space types troffers typically light, which makes controls part of the compliance package rather than an upgrade. Lumera's ELV and 0-10V dimmers collection covers the control side of that pairing.
For the automatic shutoff requirement specifically, occupancy-based control is usually the simplest route, and Lumera's occupancy and motion sensors collection covers those devices.
Emergency and Damp Locations
Egress lighting requirements apply to many of the same buildings troffers go into, and a troffer with an integral emergency battery keeps a portion of its output running during an outage, which can satisfy the path-of-egress requirement without separate emergency fixtures. Where the ceiling is in a kitchen, a locker room, or another humid space, the fixture needs a damp-location rating rather than a standard dry-location listing.
Beyond the Grid Ceiling
Troffers cover the finished grid ceilings. For an attached warehouse, shop, or any high-ceiling area where a grid fixture is the wrong tool entirely, Lumera's high bay lights collection covers that side of the building.
Installation
Troffers are line-voltage fixtures on commercial circuits, frequently at 277V, and a licensed electrician should handle the connection and confirm the circuit voltage matches the fixture. Grid-mounted fixtures also need independent support to the building structure in most jurisdictions rather than relying on the ceiling grid alone to carry them, and seismic requirements apply in some regions. Confirm the support method with the local code before the first fixture goes up.
Troffer Lighting Questions, Answered
What size troffer do I need?
Match it to the ceiling grid module, most commonly 2 foot by 2 foot or 2 foot by 4 foot. Measure the actual grid opening rather than assuming, and check the grid profile too, since a fixture built for a standard exposed tee will not seat correctly in a narrow or slotted grid without the right trim.
Should I replace the fixture or use a retrofit kit?
A retrofit kit installs new LED components into the existing housing, which is faster, cheaper, and disturbs the ceiling less, but keeps the old housing. A complete fixture replaces everything and gives current optics with a single warranty. Retrofit suits sound housings and difficult ceilings; full replacement suits aged housings and jobs where optical performance matters.
What is the difference between a flat panel and a center basket troffer?
A flat panel is edge-lit with a uniformly luminous face, thin enough for shallow plenums. A center basket has a recessed center with reflective sides that push light outward and lower the visible brightness of the fixture. In rooms with screens, the center basket and volumetric styles produce noticeably less glare.
Why does glare rating matter more than lumens in an office?
Because glare is what people complain about after a retrofit. A fixture can measure correctly on a light meter and still be uncomfortable to sit under if its visible surface is too bright. In spaces with desks, screens, or extended reading, ask for the glare rating alongside the lumen figure.
Do troffers work with a standard wall dimmer?
Usually not. Most commercial troffers use a low-voltage dimming input that needs two additional control conductors run to each fixture, rather than a phase-control wall dimmer. That has to be planned before the ceiling closes, and it is the most commonly missed item on a troffer specification.
Do troffers need to be supported separately from the ceiling grid?
In most jurisdictions yes. Grid-mounted fixtures require independent support wires to the building structure rather than relying on the suspended ceiling alone to carry the weight, and seismic bracing requirements apply in some regions. Confirm the support method against local code before installation.
