Building a 12V Run: Sizing the Transformer, Then Picking Fixtures and Lamps
Every product on this page runs on 12 volts. That single fact controls the whole job. You are not buying a fixture, you are buying a system with three parts that have to agree with each other. A transformer steps 120V down. A run of fixtures has to fit inside that transformer’s capacity. And in many cases a separate lamp goes into the fixture. Get any one of the three wrong and the run either will not light, will light dim at the far end, or will fail early.
Start with the transformer, not the fixture
ABBA's 31 transformers span 3W to 1200W, and the number in the part is the wattage. TSR1200 is 1200W, TSR900 is 900W, TSRPT300 is 300W, TSDC48 is 48W. Add up the wattage of every fixture on the run, leave headroom, and pick a unit above that total. Most ABBA fixtures draw between 2W and 12W, with 3W the single most common rating, so a mid-size residential run adds up faster in fixture count than in watts. All 31 units sit in Lumera's transformers collection.
AC and DC units are not interchangeable
Seventeen of the 31 transformers are AC output and 14 are DC. The DC units are the TSDC, TSDCS, TSDCT, TSDLCD and MX24 families, and several of them output 24V rather than 12V. An AC fixture on a DC supply, or a 12V fixture on a 24V supply, is a failed install, not a compatibility inconvenience. Confirm the output type on both the transformer and the fixture before you pair them.
Multi-tap output solves voltage drop
The manual stainless units in the TSR and TSRPT families offer multi-tap output, which means the transformer carries several output terminals at different voltages: 12V, 13V, 14V and 15V. That is not a feature, it is the fix for a long cable run. Voltage drops over distance, so a fixture 150 feet out fed from the 12V tap arrives under-volted and reads dim and yellow. Move that leg to the 14V or 15V tap and it lands closer to 12V at the fixture. Measure at the fixture rather than guessing at the tap.
Control is built in on some units

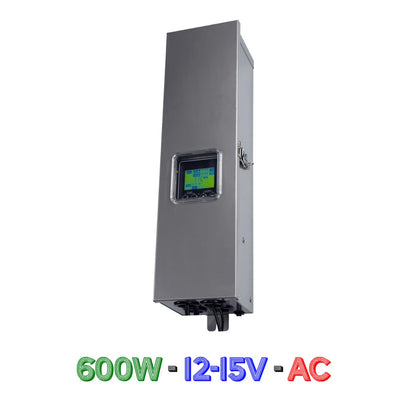

Several ABBA transformers include a timer, and the digital stainless STS models list selectable 12V to 15V output with WiFi scheduling on the STS300 and STS150. If your transformer does not include control, dusk to dawn switching comes from a photocell and scheduling comes from a timer, both of which Lumera stocks separately under photocells.
The fixture types and what each one is for

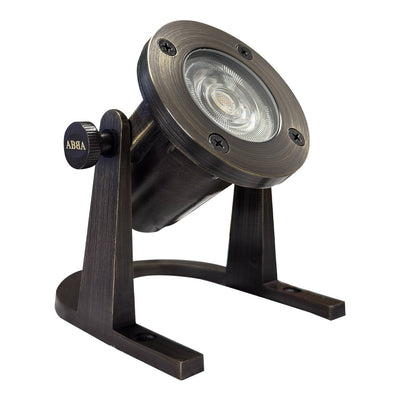

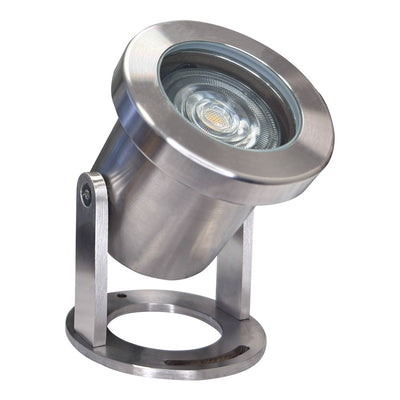

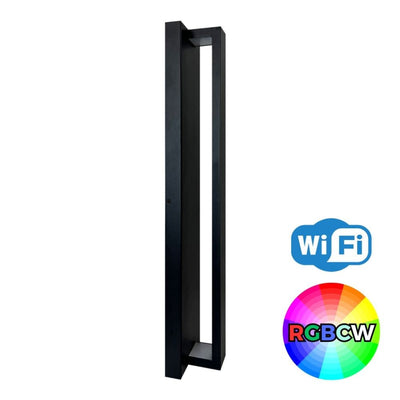

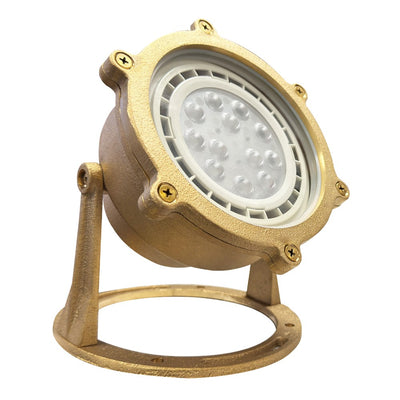

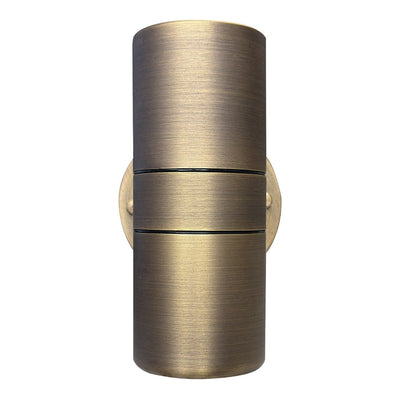

Seven types carry the bulk of the range. Picking the wrong type is the most common specification error on landscape jobs, because a path light and a spot light look interchangeable on a plan and are not interchangeable in the ground. The seven below account for 313 of the 345 fixtures, with wall, hanging, underwater and moonlight types making up the rest. Timers, zone splitting and scheduling for these runs sit in timers and time switches.
TypeItemsWhat it doesWhat it is not forPath light98Downward pool of light on walkways and bedsLighting a wall or tree, the shielding blocks itSpot light58Narrow aimed beam for uplighting trees and facadesWalkway safety lighting, the beam is too tightWell light51In-ground uplight set flush with grade, 51 of them drive-over rated for vehicle loadAnywhere it will sit in standing water without drainageStep light51Recessed or surface light into risers and wallsGeneral area lighting, output is deliberately lowDeck light28Small fixture into railings, posts and deck boardsGround-level use, most are not rated for burialHardscape light15Linear fixture built into masonry under caps, benches and retaining wallsOpen-air mounting where the housing is visibleFlood light12Wide wash across walls, hedges and signagePrecise accenting, the spread is too broad
Matching lamps to the fixtures that take them
This is where ABBA orders go wrong most often. Of the 345 fixtures, 123 take a replaceable lamp and the remaining 222 are integrated. The lamped ones split into 66 that take MR16, 46 that take G4, four that take PAR36, four that take MR11 and three that take E27. If the fixture takes a lamp and you do not order one, a box of housings arrives and nothing lights.
The 64 landscape lamps on this page cover those bases, and their part numbers read straight across. PAR36-24V-12W-5K is a PAR36 lamp at 24V, 12W, 5000K. Base, voltage, wattage, color temperature, in that order. Check the voltage segment carefully, because a 24V lamp in a 12V fixture is a common and avoidable mistake. Note that these landscape lamps are stocked inside this brand collection rather than alongside the general bulb range.
Decoding an ABBA part number
Be careful with the fixture prefixes. Unlike a manufacturer with one clean scheme, ABBA uses several prefixes for the same job. Path lights appear as PLB, PL, CDPA and CDPS. Well lights appear as UNB, UNS, UNF, DM, DMS and CRG. Step lights appear as STA and STB. Reading the prefix alone will mislead you, so trust the product type on the listing.
Two parts of the number are reliable. On transformers the leading letters identify the output family and the trailing digits state the wattage, so TSR1200 reads as a manual multi-tap unit at 1200W.
Transformer prefixOutputVerified exampleTSR, TSRPTAC, manual, multi-tap at 12V, 13V, 14V and 15V, stainlessTSR1200 at 1200WSTSAC, digital stainless, selectable 12V to 15V, WiFi on some unitsSTS300 at 300WTSDC, TSDCS, TSDCT, TSDLCDDC, 12V or 24V depending on the partTSDC48 at 48WMX24DC, 24VMX24150
The finish suffix is the other reliable segment, and it holds across every fixture family. On a job where every fixture has to match, that suffix is what you filter on.
CodeFinishProductsDBDark Brass44NBNatural Brass44BKBlack38SSStainless Steel17BRBrown14WHWhite11BZBronze3

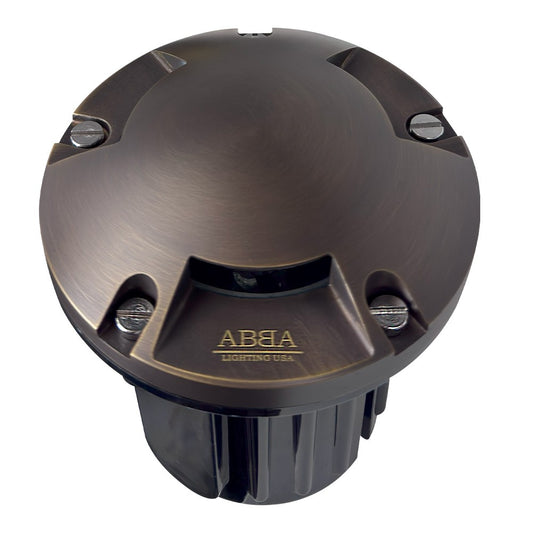

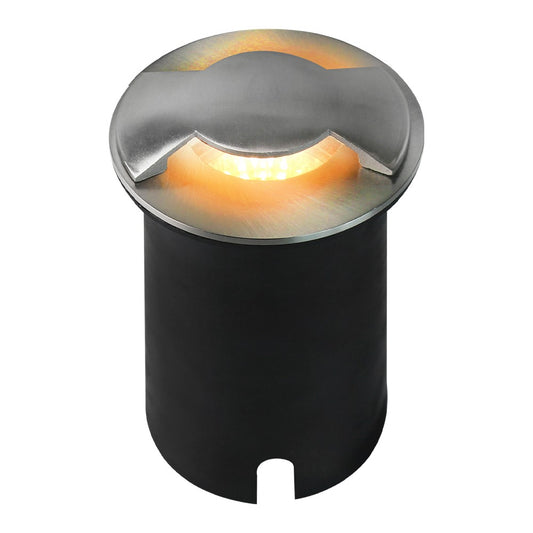

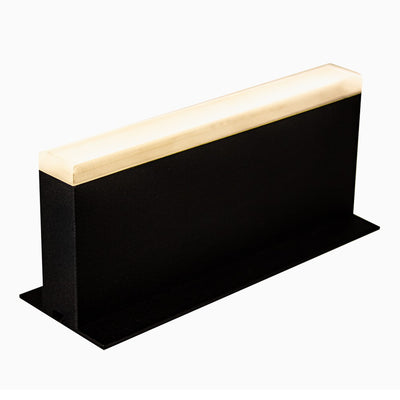

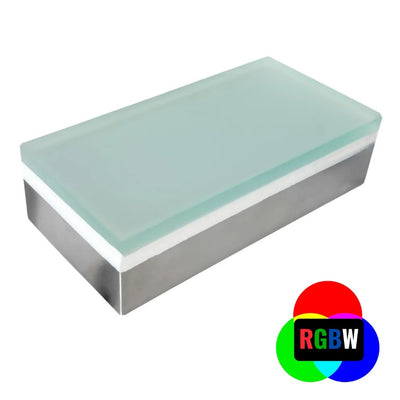

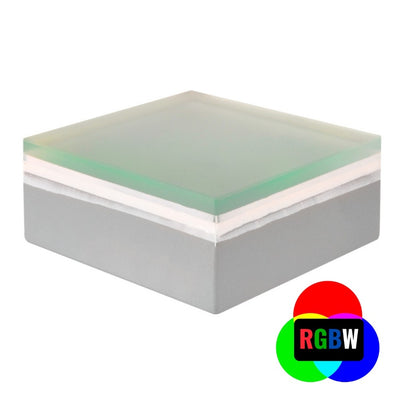

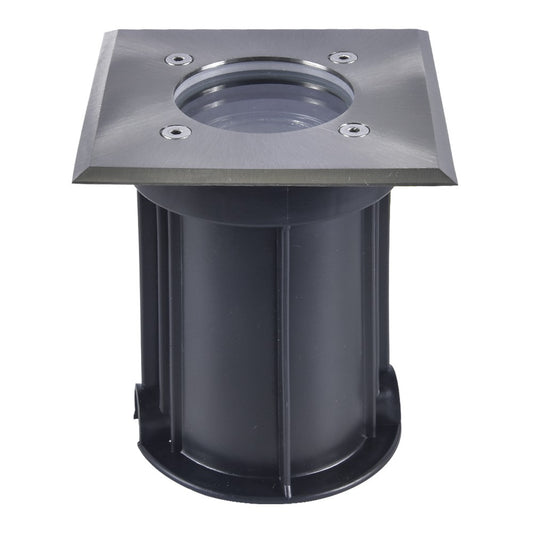

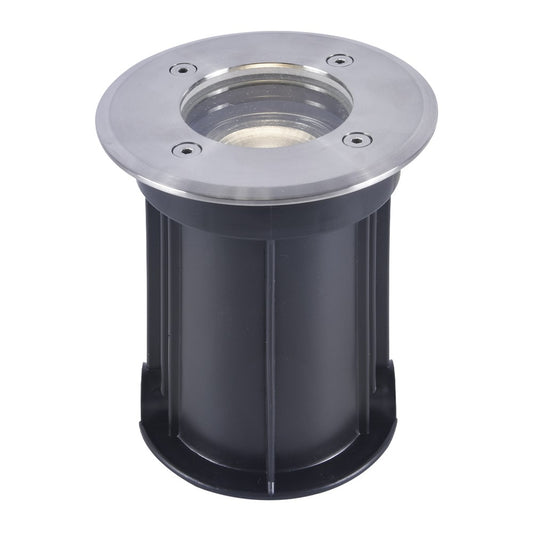

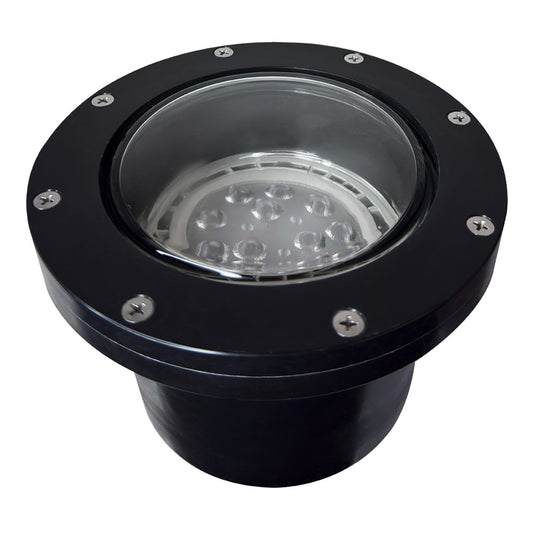

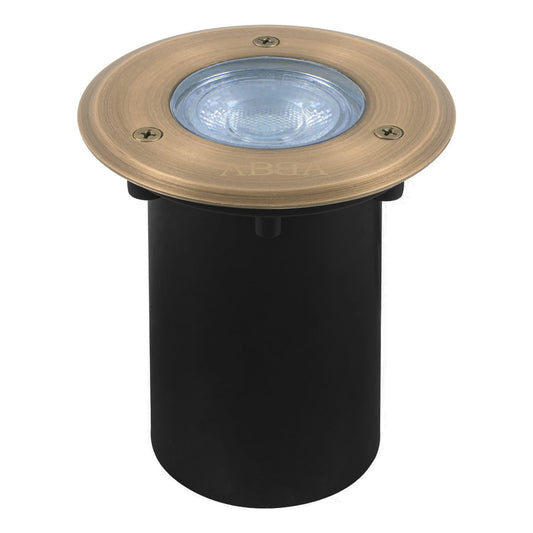

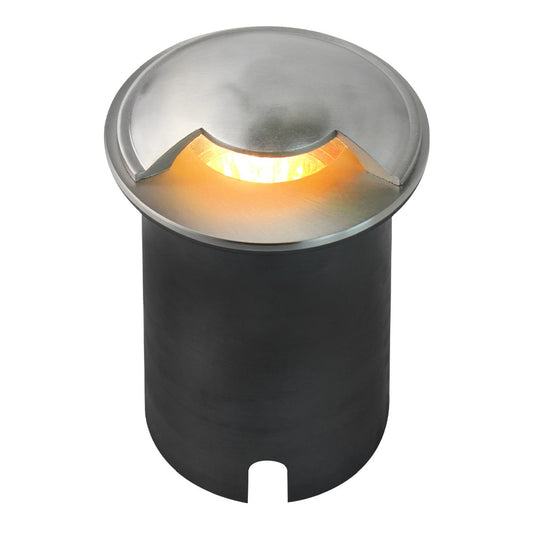

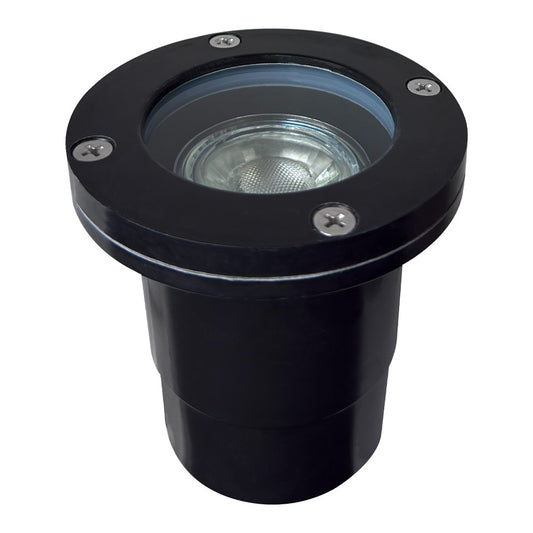

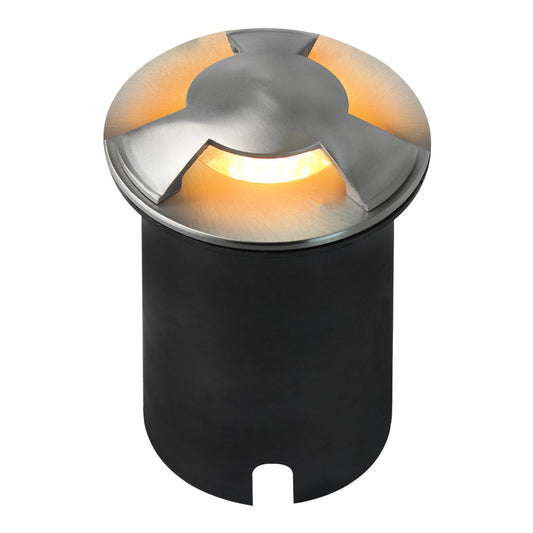

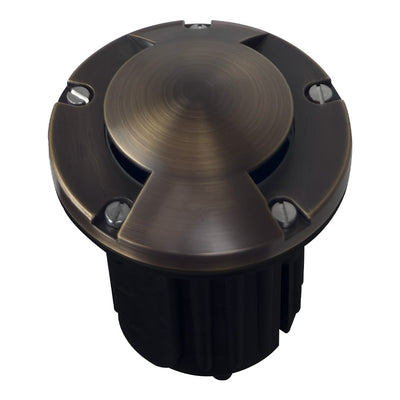

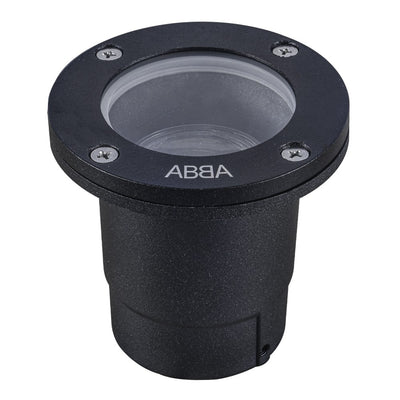

Well lights specifically, including the drive-over rated ones, are collected under LED well lights.
Finding ABBA across Lumera's collections
ABBA is the best merchandised brand in this catalog for cross-shopping. All 463 products appear in landscape lighting, so you can compare ABBA against every other landscape brand Lumera carries on a single filtered grid. That is the collection to start from when the job is open to more than one manufacturer.
Beyond that, 51 well lights and 31 transformers are filed into their own type collections, and five mounting and wiring items sit in landscape lighting accessories.
The 12 wide-beam wall wash fixtures also cross-list into LED flood lights alongside line-voltage floods. Read the voltage before adding one to a 120V order, because a 12V fixture on that grid looks identical to a 120V unit in a thumbnail.
Ordering notes on packs, finishes and accessories
Every ABBA listing here is a single item in a single finish, not a contractor pack, so the quantity you enter is the quantity of fixtures you get. Finish availability is uneven across the range: black covers 59 products, dark brass and natural brass 44 each, stainless steel 31, white 21 and brown 17. If a job specifies natural brass throughout, check finish coverage before you commit the schedule, because not every type is offered in every finish.
Mounting is a separate line item on many fixtures. The range includes 12 mounting brackets, three ground spikes and three post accessories, and a spot light shipped without its stake is a fixture you cannot install. For layout spacing and beam choice, the lighting guides cover the design side.
Numbers that vary inside the ABBA range
The parameters below move from part to part, so check each one on the listing rather than assuming it from the brand or the type. The two that cause the most rework are transformer output type and lamp requirement, because both are invisible in a product photo. Burial depth, cable routing and grounding on a low-voltage run are governed by code and by the inspector on the job, and Lumera sets out where that responsibility falls in its installation and code disclaimer.
- Transformer output. AC or DC, and 12V or 24V on the DC units. Fourteen of the 31 are DC.
- Transformer capacity. Ratings on this page run from 3W to 1200W. Size against total connected load with headroom.
- Tap voltage. The manual TSR and TSRPT units offer 12V, 13V, 14V and 15V taps. Fixed-output units do not.
- Lamp requirement. Integrated or lamped, and if lamped, which base. MR16, G4, PAR36, MR11 and E27 all appear.
- Fixture wattage. Mostly 2W to 12W. You need the actual figure to total the run.
- Color temperature. 2700K, 3000K, 4000K and 5000K all appear in the range. Mixing them on one property is visible at night.
- Housing material. Cast brass is named on 129 fixtures, cast aluminum on 131 and stainless steel on 54. Those figures overlap, because a fixture can list more than one material, so read the housing and the hardware separately.
- Drive-over rating. Claimed on 51 fixtures. Do not assume an in-grade fixture will take vehicle load without it.
- Safety listing. Listings vary by part and are not uniform across the range. Confirm on the specific item if the job requires one.
Wiring, sizing and lamp questions on ABBA systems
How do I size an ABBA transformer for my run?
Add the wattage of every fixture on the run, then choose a transformer rated above that total with headroom left over. ABBA's range covers 3W to 1200W, so most residential runs land on a 150W, 300W or 600W unit. Leaving room matters because landscape jobs almost always grow, and a transformer at its limit has nothing left when the owner adds four more path lights next season.
Can I run ABBA fixtures on another manufacturer's transformer?
Usually yes, as long as the output type and voltage match, since 12V low-voltage landscape is a common standard. The failure cases are specific: a DC-only fixture on an AC transformer, a 12V fixture on a 24V output, or a fixture on a magnetic transformer that expects an electronic one. Match output type first and capacity second.
Why do the fixtures at the end of my run look dim?
That is voltage drop, and it is a wire and distance problem rather than a fixture defect. The remedy on this range is the multi-tap output on the manual TSR and TSRPT transformers. Move the long leg to the 14V or 15V tap, then measure the voltage at the last fixture and confirm it lands in range. Heavier gauge cable and splitting the run into shorter legs also help.
Which ABBA fixtures need a bulb ordered separately?
123 of the 345 fixtures take a replaceable lamp. MR16 is the most common at 66 fixtures, followed by G4 at 46, then a handful using PAR36, MR11 and E27. The product listing states the base. If it does not name one, the fixture is integrated and the LED is not replaceable.
What is the difference between a well light and a spot light here?
A well light sits in the ground at grade with the lens facing up, and 51 of them on this page are drive-over rated for driveways and parking areas. A spot light sits above grade on a stake with an adjustable head you aim. Both uplight, but a well light is chosen when the fixture has to disappear or take traffic, and a spot light is chosen when you need to aim precisely at a tree canopy or a wall detail.
Are brass and stainless steel worth the difference over aluminum?
It depends on the site rather than the budget. Cast brass and 304 stainless resist corrosion far better in coastal air, irrigation spray and de-icing salt, and brass develops a patina instead of failing. Cast aluminum is the value option and holds up well inland, but it is the finish that breaks down first in harsh conditions. On this page cast brass is named on 129 fixtures, cast aluminum on 131 and stainless steel on 54, with overlap where a fixture uses more than one, so all three are available across most types.
