How to Choose Wall Plates & Switch Plates

The easiest way to choose a wall plate is to work from the devices already installed. First count the gangs, then identify the opening required in each position. Toggle switches, decorator-style controls, duplex receptacles, blank openings, and combination devices all use different plate configurations. Once the opening pattern is correct, compare plate dimensions, mounting style, material, finish, and color. A plate can have the right gang count and still be unusable if its device openings do not match the switches or receptacles behind it.

• Traditional toggle switches: choose plates with narrow toggle openings.
• Rocker switches, many dimmers, GFCI devices, sensors, and other rectangular controls: use decorator-style openings.
• Traditional duplex outlets: use plates designed for duplex receptacle faces.
• Unused but accessible electrical boxes: use a blank wall plate.
• Different device styles in one box: select a combination plate with the exact opening arrangement required.

Start With Gang Count

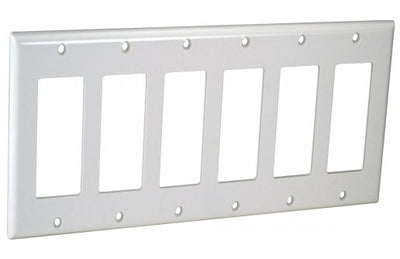

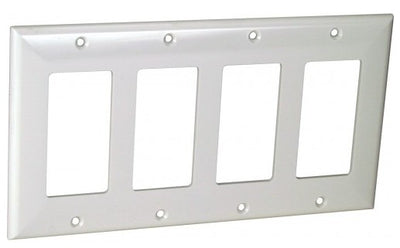

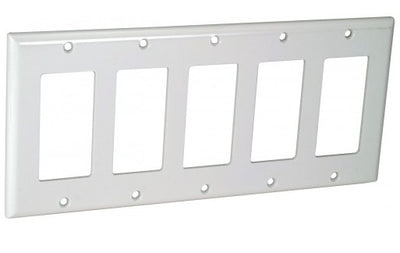

Gang count describes the width of the device grouping or electrical box. A single device position is typically 1-gang; two positions side by side require a 2-gang plate, and larger assemblies continue accordingly. Lumera's current assortment includes single- and multi-gang wall plates, including decorator plates with several device positions.

The number of visible functions does not always equal the gang count. A combination device can contain two switches within one gang, while a 2-gang box can have one active device and one blank position.

Decision rule: count the physical device positions in the box rather than the number of switches, buttons, or controlled loads.

Toggle vs. Decorator Openings

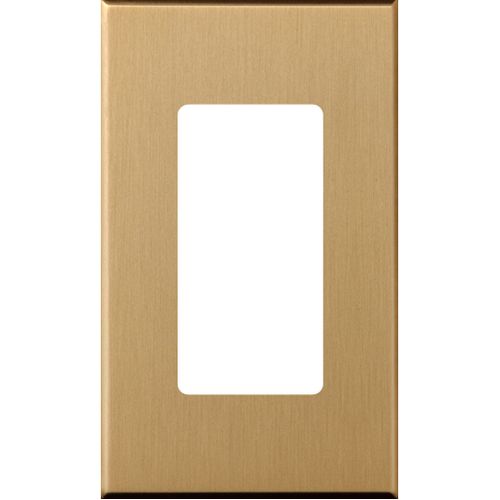

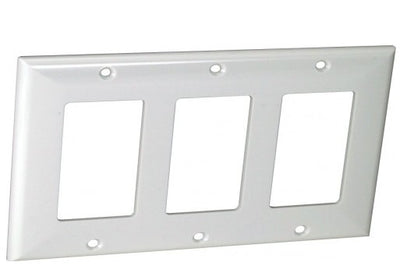

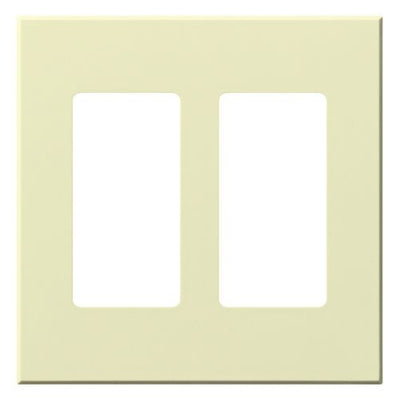

Traditional toggle switches use a narrow vertical slot in the plate. Decorator-style devices use a much larger rectangular opening. That rectangular format is common across rocker switches, dimmers, occupancy sensors, timers, GFCI receptacles, and many electronic controls.

A decorator plate does not determine what the device does. A dimmer, sensor, switch, and receptacle can all use the same general opening shape while having completely different electrical functions.

Decision rule: identify the face style of each installed device before ordering the plate. For basic toggle or decorator switching devices themselves, compare Lumera's standard switches.

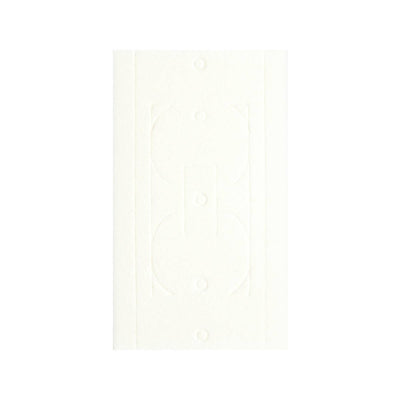

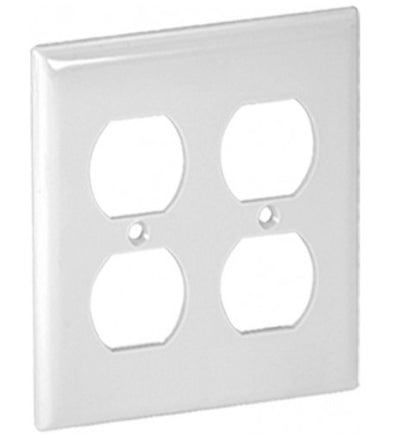

Duplex Receptacle Plates Need the Correct Outlet Opening

Traditional duplex receptacles have a face shape different from a decorator or GFCI device, so they use a corresponding duplex opening. Modern decorator-style receptacles and GFCI devices instead fit the larger rectangular opening.

This distinction becomes important during replacement work. Two outlets may both provide conventional branch-circuit power but require different wall plates because their front faces use different formats.

Decision rule: choose the plate from the physical face of the installed outlet, not from amperage or circuit function. If the receptacle is still being selected, coordinate it with Lumera's receptacles and outlets before finalizing the plate schedule.

Combination Plates: Map Every Gang Before Ordering

Combination plates provide different opening styles within one multi-gang cover. A 2-gang plate might combine a toggle opening with a decorator opening, for example. These plates are useful when older and newer device styles share the same box.

Orientation matters. A plate with the right two opening types can still be wrong if those openings are reversed relative to the installed devices.

Decision rule: sketch the device row from left to right and record each opening type before ordering combination plates. Don't rely on the product photo alone when several similar configurations are available.

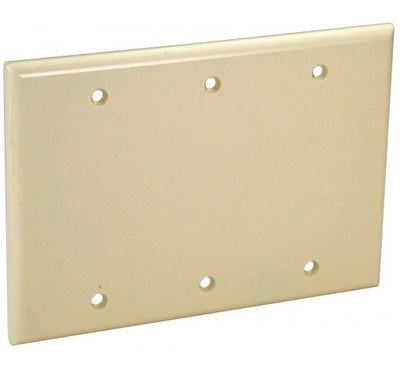

Blank Wall Plates Keep Unused Boxes Accessible

A blank plate closes the face of an electrical box when no device needs to project through the opening. It provides a finished appearance while preserving access to the box for future service.

A blank wall plate should not be confused with permanently patching over an electrical box. Where an electrical box or wiring connection must remain accessible, covering the wall surface with drywall or another permanent finish can create a service problem.

Decision rule: use a blank plate when the box is intentionally unused but still needs an accessible cover. Match the blank plate to the gang count and box dimensions.

Standard, Midway and Oversize Plates

Wall plates are available in different outside dimensions even when the device opening and gang count are the same. Standard plates provide the normal finished footprint. Midway or larger plates extend farther around the box and can provide additional coverage where the wall opening or finish extends slightly beyond a standard plate.

Extra coverage is useful for cosmetic variation, but it is not a substitute for correcting an improperly installed box, damaged structural surface, or unsafe opening.

Decision rule: measure the required outside coverage when the wall finish is imperfect or when replacing an unusually large plate. Confirm the published plate dimensions rather than assuming terms such as “midway” are identical across manufacturers.

Screwless vs. Conventional Wall Plates

Conventional wall plates use visible mounting screws. Screwless designs use a mounting frame or subplate with a finished outer cover that snaps into place, hiding the fasteners from view. Lumera's current wall-plate assortment includes both conventional and screwless products.

Screwless plates can create a cleaner finished appearance, but the device arrangement and mounting system still need to be compatible with the plate family. Replacement covers from different product families should not be assumed interchangeable.

Decision rule: choose screwless or conventional mounting after the opening and gang configuration are established. For screwless systems, keep the mounting components within the compatible product family.

Material and Finish Affect More Than Appearance

Wall plates can be manufactured from nylon, thermoplastic, metal, stainless steel, and other materials. The appropriate choice depends on appearance, impact exposure, cleaning requirements, surrounding devices, and installation environment.

Color matching also deserves attention on larger projects. White, ivory, light almond, black, gray, and designer finishes can vary slightly between manufacturers or product series. Lumera carries product families designed to coordinate plates with matching switches and controls.

Decision rule: select the device family and finish before ordering project quantities. When exact appearance matters, keep visible switches, receptacles, controls, and plates within coordinated manufacturer finishes where possible.

Coordinate the Plate With the Electrical Box

The wall plate finishes the front of the installation, but the device and box behind it establish the physical layout. Box gang count, device position, depth, alignment, and wall finish all affect how the completed plate sits.

A plate should lie flat without being forced over a misaligned device or used to hide an improperly mounted box. When rough-in components are still being selected, coordinate the installation with Lumera's electrical device and outlet boxes.

Decision rule: correct device alignment and box position before treating the wall plate as a finishing solution.

Indoor Wall Plates Are Not Weatherproof Covers

A standard wall plate does not provide the weather protection required for exposed outdoor or wet-location electrical devices. Exterior receptacles and switches can need gasketed, weatherproof, or while-in-use covers depending on the installation and applicable requirements.

The device opening still has to match. A weatherproof toggle cover, decorator cover, or receptacle cover should be selected around the exact device and orientation behind it.

Decision rule: when the device is outdoors or exposed to moisture, move from decorative indoor plates to appropriately rated weatherproof covers.

What to Confirm Before Ordering Wall Plates

• Gang count: count the physical device positions in the electrical box.
• Opening type: toggle, decorator, duplex, blank, or combination.
• Opening order: verify left-to-right arrangement on combination plates.
• Plate size: standard, midway, oversize, or the exact outside dimensions required.
• Mounting style: conventional screw-mounted or compatible screwless construction.
• Material: select from the requirements of the environment and finished installation.
• Color and finish: coordinate visible plates with the installed devices.
• Device family: verify product-family compatibility where a proprietary or screwless system is used.
• Box alignment: make sure devices sit correctly before installing the plate.
• Environment: use a rated weatherproof cover instead of a standard indoor plate where required.

Wall Plates & Switch Plates FAQs

How do I know what size wall plate I need?

Start with the gang count and opening type, then check the outside dimensions. Standard, midway, and larger plates can fit the same device configuration while covering different amounts of wall surface. Measure when extra coverage is required rather than choosing solely by the size description.

What is the difference between a toggle and decorator wall plate?

A toggle plate has a narrow opening for a traditional toggle switch. A decorator plate has a larger rectangular opening used by rocker switches and many dimmers, GFCI devices, timers, and sensors. Match the plate to the device face rather than its electrical function.

Can a GFCI receptacle use a decorator wall plate?

Yes, many GFCI receptacles use the same general rectangular opening commonly described as decorator or GFCI style. The gang count and surrounding device arrangement still need to match the exact plate.

What is a combination wall plate?

A combination wall plate places different opening styles in the same multi-gang plate, such as toggle and decorator openings side by side. Record the exact left-to-right device arrangement before ordering because plates with the same gang count can use different opening combinations.

Are screwless wall plates universal?

No. Screwless wall plates can depend on a compatible mounting frame or plate family. The device-opening format may be standard, but the snap-on cover and mounting components should be used according to the manufacturer's compatibility requirements.

Can I use a standard wall plate outdoors?

Not when the installation requires weather protection. Outdoor and wet-location devices need covers or assemblies rated for those conditions. A standard decorative wall plate should not be used as a substitute for a weatherproof cover.
