How to Choose Surge Protection: Panel Voltage, SPD Ratings, and Installation

Surge protection for a service or distribution panel starts with the system nameplate, not the largest kA figure in a listing. A product labeled 120/240V may be built for a single-phase home service or a three-phase high-leg Delta system; those are different electrical configurations. Use this guide to identify a matching surge protective device (SPD), evaluate its UL 1449 ratings, and choose appropriate diagnostics and installation details. Have a qualified electrician confirm the panel schedule and installation method before purchasing.

Quick Picker: Match the SPD to the Panel

• 200A, 120/240V single-phase home: select a correctly identified single-phase panel SPD.
• 120/208V Wye office distribution: match a three-phase Wye model and neutral arrangement.
• 277/480V Wye facility: check the higher-voltage Wye configuration, not just the kA label.
• 120/240V high-leg Delta panel: require a model specifically rated for that Delta system.
• Panel upgrade with limited space: coordinate mounting with load centers and panel boards.
• Server equipment behind panel protection: add a separately surge-rated point-of-use surge strip.

Single-Phase vs. Wye vs. Delta SPDs: Verify the Wiring Configuration

Two Intermatic devices can both say 120/240V and still serve different panels. The H20S21S1DG2 single-phase SPD is identified for 120-240V one-phase service, while the H20S23D1DG2 Delta SPD is specified for 120/240V three-phase high-leg Delta. A 277/480V Wye system introduces yet another phase-to-neutral relationship. Voltage alone will not distinguish these configurations.

If the panel nameplate identifies high-leg Delta, choose an SPD explicitly listed for that topology rather than a residential single-phase unit. Record voltage, phase count, neutral availability, and grounding arrangement before matching manufacturer model codes.

Type 1 vs. Type 2 Surge Protective Devices: Confirm the Connection Point

On a 200A service replacement, the installation point determines which UL 1449 SPD type is permitted. Type 1 devices are evaluated for installation on the line or load side of the service disconnect; Type 2 devices are intended for the load side. The verified Intermatic examples in this collection are Type 2, even when a generic product description mentions service-entrance applications. Do not infer that a Type 2 listing permits line-side installation.

If the design places the device ahead of the main disconnect, specify a suitable Type 1 product rather than using a Type 2 substitute. For load-side installations, check the manufacturer's specified connection and any required circuit breaker arrangement with the electrician.

SPD Ratings: Compare kA, VPR, MCOV, In, and SCCR

A 100kA and a 200kA unit may differ in maximum surge-current capacity per phase, but that number alone doesn't establish protection at the connected equipment. For a 277/480V panel, review the complete rating set:

• Surge current (kA): maximum tested capability, with per-phase versus per-mode wording.
• VPR: measured voltage protection rating for each tested path.
• MCOV: maximum continuous operating voltage on the specified path.
• In: nominal discharge current used in standardized testing.
• SCCR: available fault-current compatibility at the installation point.

If the available fault current exceeds the SPD's SCCR under its listed installation conditions, reject that model regardless of its advertised kA. Compare the UL 1449 datasheets at the actual system voltage.

Four-Mode vs. Seven-Mode SPDs: Match the Conductors Being Protected

A 480V three-phase Delta panel without a neutral does not have the same surge paths as a 120/208V three-phase Wye panel with a neutral. Intermatic lists both four-mode Delta and seven-mode Wye configurations; the counts reflect different combinations of protected conductors, not a universal ranking of quality. Line-to-line, line-to-ground, line-to-neutral, and neutral-to-ground protection are only applicable where those conductors and paths exist.

If the electrical system has no neutral, don't buy a seven-mode Wye model merely because seven sounds better than four. Confirm the exact protection-mode diagram and the panel's grounded-conductor arrangement, then compare the relevant VPR values for those modes.

Status LEDs vs. Audible Alarms and Dry Contacts: Choose Monitoring

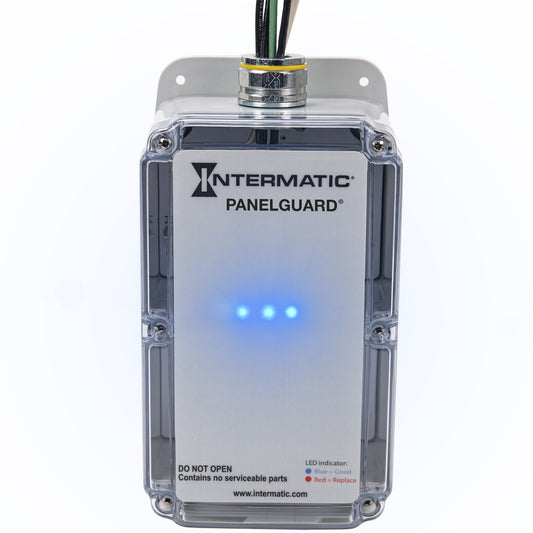

A facility with six distribution panels may not inspect every SPD indicator each day. Some Intermatic models provide local blue protection and red service indicators; selected variants also include an audible alarm and Form C dry contacts for connection to compatible external monitoring equipment. A dry contact is a signaling interface, not built-in Wi-Fi or a guarantee of remote alerts without another system. The alarm option is therefore a purchasing choice, not just a cosmetic feature.

If the protected panel is unattended, select a model with the required alarm and remote-contact functionality, and schedule the receiving equipment separately. Confirm which exact model suffix includes each feature before approving replacements.

Panel Installation: Lead Length, Grounding, and Outdoor Enclosures

A Type 2 SPD mounted beside a 277/480V panel may have a suitable enclosure yet perform poorly if its connection routing adds unnecessary lead impedance. Manufacturers generally call for short, direct conductors, correct grounding and bonding, and approved overcurrent arrangements. Some Intermatic PANELGUARD models have NEMA 4X enclosures, but that rating must be confirmed for the selected SKU and complete installation.

If the SPD will face rain or washdown, require the appropriate environmental rating and compatible conduit fittings and entries. Existing electrode connections may also call for suitable grounding clamps. Only a qualified electrician should install or service equipment inside an electrical panel.

Ordering Surge Protection for Multiple Panels

For a 12-panel facility, group units by panel ID, voltage, phase configuration, SPD type, surge ratings, monitoring options, mounting environment, and quantity. Lumera offers trade accounts for eligible businesses with access to volume and project quotes. Approved account holders can separately apply for Net-30 credit terms. Keep high-leg Delta and single-phase models on different schedule lines.

Request a Surge Protection Project Quote

For service upgrades or coordinated building protection, request a surge protection quote with the panel schedule. Include:

• Panel voltage, phase, Wye or Delta configuration, and grounding details
• Required SPD type, permitted connection location, and any Type 1-only specification
• Required kA, VPR, MCOV, In, and SCCR ratings
• Monitoring contacts, enclosure rating, exact SKUs, and quantities

For an unusual service arrangement, contact Lumera with the panel information before selecting substitutes.

Surge Protection FAQs

What is the difference between Type 1 and Type 2 surge protection?

Type 1 SPDs are evaluated for installation on either side of the service disconnect, while Type 2 SPDs are intended for the load side. The type number describes permitted installation location, not a simple quality grade. Choose the device required by the electrical design and its UL 1449 listing; never place a Type 2 unit on the line side solely because its voltage matches.

Can any 120/240V surge protector be used on a home panel?

No. A 120/240V marking may describe a single-phase split-phase service or a three-phase high-leg Delta system. Those arrangements require different SPD configurations. Read the manufacturer's phase and wiring designation as well as the voltage. For a residential selection overview, see Lumera's whole-house surge protector guide before matching the panel model.

Is a 200kA SPD always better than a 100kA model?

No. A higher surge-current rating indicates greater specified peak capability, often stated per phase, but it doesn't replace the need for suitable VPR, MCOV, SCCR, and system configuration. Two devices can have different protection ratings even when their kA figures match. First confirm voltage and phase compatibility, then compare all published UL 1449 ratings for the protection paths needed.

What do Form C contacts and SPD status lights tell me?

Status LEDs show locally whether the device indicates normal protection or requires service. An audible alarm can signal a problem nearby, while Form C dry contacts can transmit a status change to compatible monitoring equipment. They do not independently provide internet alerts. Select the diagnostic option for the facility's inspection routine, and follow the manufacturer's instructions when an indicator signals lost protection.

Does a whole-house SPD replace surge-protecting power strips?

No. Panel SPDs limit incoming or distribution-level transients, while separately rated point-of-use protectors add another layer near sensitive equipment. A plain multi-outlet power strip is not necessarily a surge protector. Check that the product actually includes surge protection and is suitable for the equipment. Lumera's SPD selection guide explains the different protection locations.

Does the NEC require a whole-house surge protector?

NEC Section 230.67 addresses surge protection for specified services, including those supplying dwelling units, under the code editions in which the provision applies. New installations and service-equipment replacement work may trigger requirements, but local code adoption and project scope determine what must be installed. Have the electrical contractor confirm the adopted edition and authority having jurisdiction before choosing or omitting an SPD.
