What Is a Surge Protective Device (SPD)?
A surge protective device, or SPD, diverts excess voltage away from a building's wiring and equipment before it can damage anything downstream. It's the code-recognized, UL-listed alternative to a plug-in power strip surge protector, sized and installed to protect an entire panel or service rather than a single outlet. Choosing the right surge protection for a project starts with understanding where an SPD sits in the electrical system and how the different UL 1449 types work together. This guide covers how an SPD works, the Type 1, 2, and 3 classifications, and how to select and install one correctly.
How an SPD Works
Under normal conditions, an SPD sits quietly on the circuit, presenting a very high resistance and having essentially no effect on the power passing through it. When a voltage surge arrives, whether from a lightning strike, a utility switching event, or a large motor or HVAC unit cycling on inside the building, the SPD's internal components, most commonly metal oxide varistors (MOVs), rapidly change to a low-resistance state and divert the excess energy safely to ground. Once the surge passes, the SPD returns to its normal high-resistance state and continues protecting the circuit, generally without needing replacement, unless the surge exceeded the device's rated capacity.
Type 1, Type 2, and Type 3 SPDs Explained
UL 1449 classifies SPDs by where they're installed in the electrical distribution system, and each type plays a different role in what's often called a layered or cascaded protection strategy.
|
SPD Type |
Installation Location |
Primary Job |
|---|---|---|
|
Type 1 |
Between the utility transformer and the main service disconnect, or on its load side |
Handles high-energy surges from lightning or utility switching |
|
Type 2 |
At the distribution panel or subpanel, load side of the main disconnect |
Protects panel-level circuits from induced lightning and internal switching surges |
|
Type 3 |
At or very near the point of use, typically 30+ feet of conductor from the panel |
Fine protection for sensitive equipment; often the last stage in a layered system |
Type 1 and Type 2 SPDs are frequently dual-rated, meaning a Type 1 device can also serve in a Type 2 location, giving some flexibility in system design. Type 3 SPDs are the category closest to what many people picture as a simple plug-in surge strip, though a hardwired point-of-use Type 3 device offers more robust protection than a typical consumer power strip.
Why Layered Protection Matters
A single SPD installed only at the service entrance doesn't fully protect sensitive downstream electronics. A Type 1 device is built to absorb massive lightning-related energy, but its voltage protection level, the residual voltage that still passes through during a surge event, is often higher than delicate electronics like computers or process controllers can tolerate. Layering Type 1 protection at the service entrance, Type 2 at the distribution panel, and Type 3 near sensitive equipment progressively reduces surge energy at each stage, so by the time any residual surge reaches a piece of sensitive equipment, it's been reduced to a level that equipment can actually withstand.
Key Specifications When Choosing an SPD
- MCOV (Maximum Continuous Operating Voltage): has to match or exceed the system's actual operating voltage; an SPD rated too low for the system voltage can be damaged by normal operating conditions, not just a surge event.
- VPR (Voltage Protection Rating): the residual voltage that passes through the SPD during a surge; lower VPR generally means better protection for sensitive downstream equipment, though it needs to be balanced against the SPD's other ratings.
- Nominal discharge current (In): indicates the SPD's surge-handling capability under repeated, standardized test surges; Type 1 devices are commonly rated 10 or 20 kA, while Type 2 devices range more broadly from 3 to 20 kA depending on the application.
- SCCR (Short-Circuit Current Rating): confirms the SPD can safely withstand the available fault current at its installation point without becoming a hazard itself if it fails.
Installation Basics

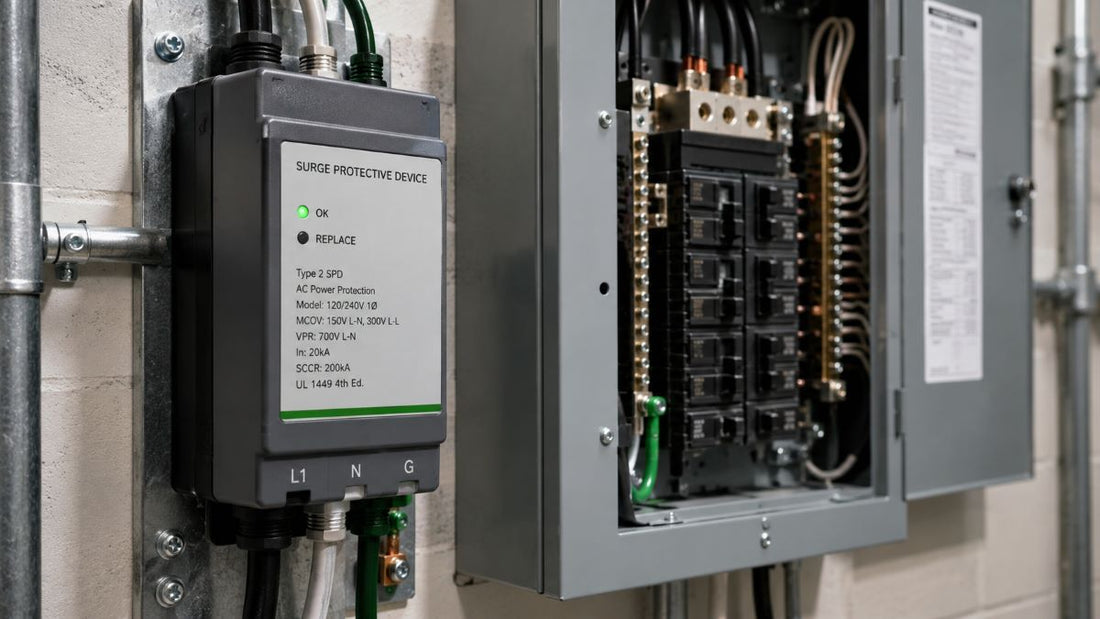

A Type 2 SPD, the most common panel-level installation, is typically mounted at or very near the distribution panel it protects, using short, straight conductor runs, since excess lead length adds inductance that reduces the SPD's effectiveness during a fast-rising surge event. The SPD connects to a dedicated circuit breaker in the panel it's protecting, sized per the manufacturer's instructions, and its ground connection needs a secure, low-impedance path to the panel's grounding bus bar. Installation always starts with the main power de-energized, and a disconnect switch upstream of the work area is standard practice for safely isolating the panel during the installation itself.
Common Signs an SPD Needs Attention
Most panel-mount SPDs include a visual status indicator, commonly a window that shows green under normal operation and changes color or goes dark if the device has reached the end of its protective life after absorbing surge energy beyond its rated capacity. An SPD that has failed doesn't announce itself with an outage the way a tripped breaker does; the panel keeps working normally, just without surge protection, which is why periodically checking the status indicator, or including it in a routine maintenance walkthrough, matters more for an SPD than for most other panel components.
The Bottom Line
A surge protective device diverts excess voltage safely to ground before it reaches a building's wiring or equipment, and UL 1449 organizes SPDs into Type 1, Type 2, and Type 3 categories based on where each one belongs in the system. Type 1 handles the largest surges at the service entrance, Type 2 protects panel-level circuits and is the most common installation, and Type 3 provides fine protection close to sensitive equipment. A layered approach using more than one type, rather than relying on a single device anywhere in the system, is what actually brings residual surge voltage down to a level sensitive electronics can tolerate.
