How to Set Up a Home EV Charging Circuit
Home charging comes down to the outlet, the circuit feeding it, and a proper installation, so it helps to know exactly what this collection covers before you start. Here is how the pieces fit together.
What This Collection Includes

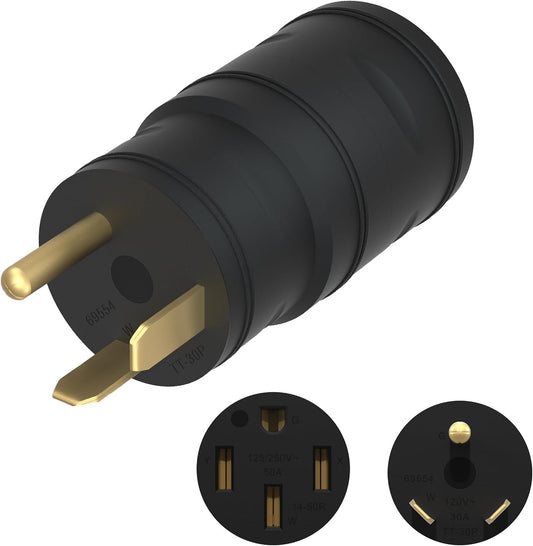

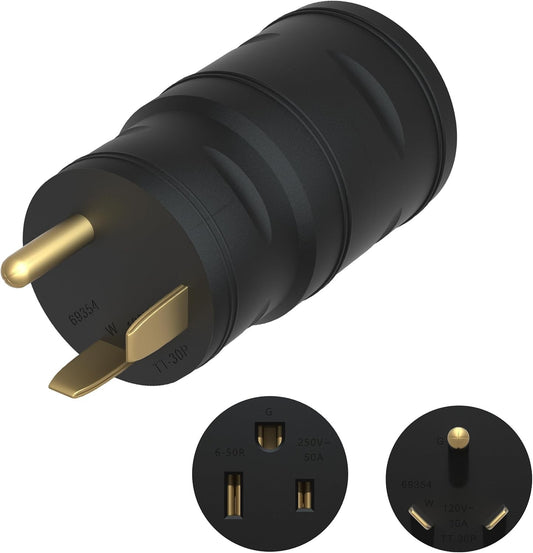

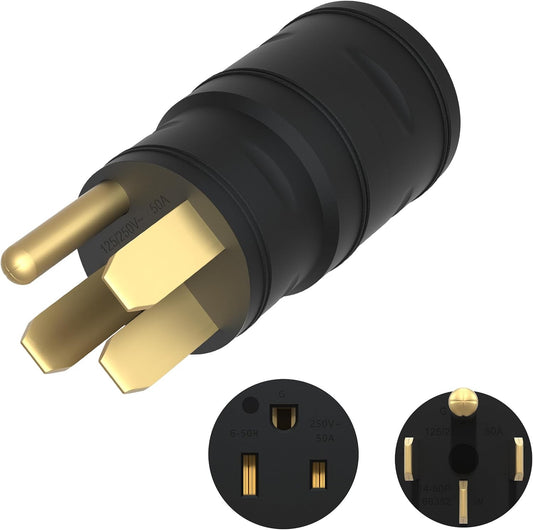

Every EV charger, whether it plugs in or hardwires, needs a dedicated outlet or connection point on the wall. That's what this collection provides: industrial and heavy-duty NEMA 14-50 and NEMA 6-50 receptacles, weatherproof metal boxes for garage and exterior mounting, and adapter cords that convert between outlet types for RV and portable charger use. It does not include the charging unit, the EVSE, itself. If you already own a portable Level 2 charger or are installing a wall-mounted unit, this is where you'd find the outlet and mounting hardware to wire it in.
NEMA 14-50 vs. NEMA 6-50, What's the Difference

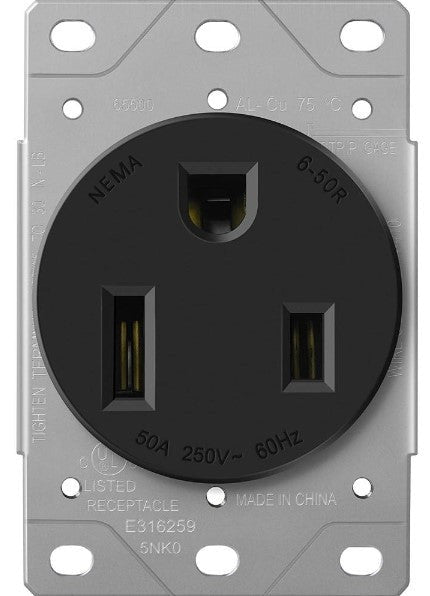

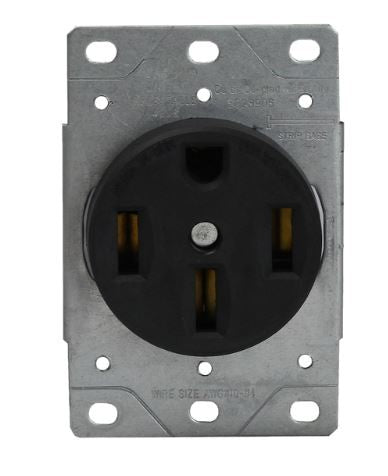

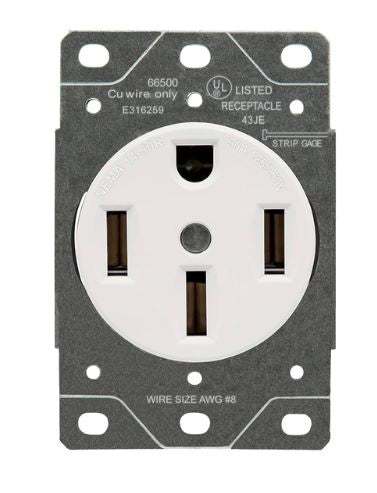

Both are 240-volt, 50-amp receptacles, and the difference comes down to the neutral wire. A NEMA 14-50 has four connections, two hot, a neutral, and a ground, which makes it the same outlet used for electric ranges and the more common choice for portable EV chargers and RVs. A NEMA 6-50 has three connections, two hot and a ground, with no neutral, and is more common on welding equipment and some older RV setups. Most portable Level 2 EV chargers ship with a 14-50 plug, so confirm which one your charger or adapter needs before ordering.
Level 1, Level 2, and the Amperage Behind It
Home EV charging comes in two practical speeds. Level 1 uses a standard 120-volt outlet and adds roughly 3 to 5 miles of range per hour, which is slow but works fine overnight for shorter daily driving. Level 2 runs on a 240-volt circuit, the kind a NEMA 14-50 or 6-50 receptacle provides, and adds roughly 20 to 40 miles of range per hour depending on the vehicle and the charger's output.
Code limits continuous loads like EV charging to 80 percent of the circuit's rated capacity. A 50-amp circuit is rated for 40 amps of continuous draw, which is why most Level 2 chargers built for a 14-50 outlet cap out around 40 amps rather than the full 50.
Hardwired vs. Plug-In Charging, and Why the Outlet Grade Matters
Some EV chargers hardwire directly into the circuit, while others plug into a NEMA 14-50 receptacle like an appliance. For a plug-in setup, the receptacle itself matters more than it would for an appliance used briefly a few times a week. An EV charger draws close to its maximum rated current for hours at a stretch, sometimes an entire overnight charge, and that sustained load builds heat differently than a dryer or range running in short bursts. Standard residential-grade receptacles aren't built for that kind of continuous duty, which is why the industrial and heavy-duty grade receptacles in this collection, rated for sustained current and repeated plug cycles, are the safer choice for a dedicated EV circuit.
Installation and Panel Requirements
An EV charging circuit is a dedicated 240-volt circuit run from the main panel, and it needs a licensed electrician for the panel work regardless of whether the final connection is hardwired or a plug-in receptacle. The electrician will confirm the panel has spare capacity for the new circuit before running it.
Many jurisdictions now require GFCI protection on EV charging circuits installed in garages or outdoors, typically provided by a GFCI breaker at the panel rather than a receptacle-level device at this amperage. Lumera's circuit breakers collection includes GFCI and dual-function options sized for a 240-volt EV circuit.
It's also worth protecting the circuit against voltage spikes from lightning or utility switching, since a charging session that runs for hours overnight has more exposure to a transient event than a light that's only on for a few hours. Lumera's surge protection collection covers panel-level devices for that purpose.
Weatherproofing for Outdoor and Garage Installations

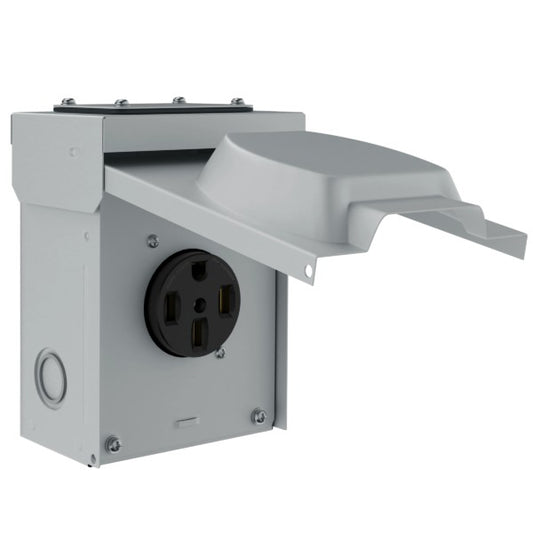

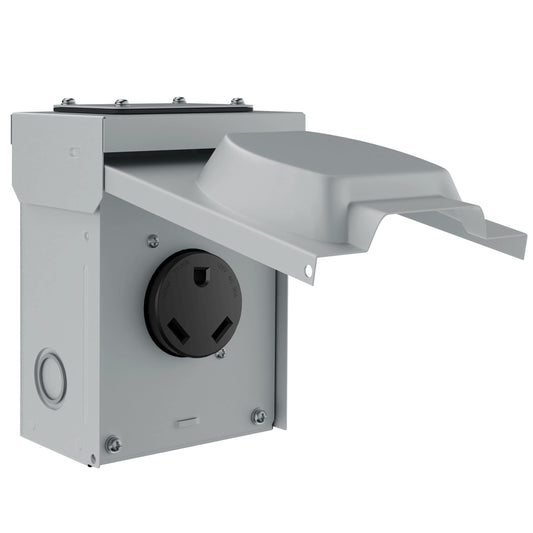

A receptacle mounted outdoors or near a garage door opening needs a weatherproof, in-use rated box and cover, not just a standard indoor device box, since the connection has to stay protected from rain and moisture even with a charger plugged in. Lumera's weatherproof boxes collection covers the enclosures built for that kind of exposed, continuous-duty installation.
A garage EV charging project often calls for more than just the charging circuit. If the space also needs a standard outlet nearby for tools or equipment, separate from the dedicated EV circuit, Lumera's receptacles collection covers general-purpose options.
For a circuit near water or an exterior opening that calls for outlet-level ground fault protection rather than a breaker at the panel, Lumera's GFCI receptacles collection covers that separately from the EV circuit itself.
EV Charging FAQs
Does Lumera sell EV charger units?
Not directly. This collection covers the receptacles, adapters, and weatherproof boxes that make up the electrical side of a charging setup, the outlet your charger connects to, not the charging unit (EVSE) itself. If you already have a charger, or are sourcing one separately, this is where you'd find the outlet hardware to wire it in.
What's the difference between a NEMA 14-50 and a NEMA 6-50 outlet?
Both deliver 240 volts at 50 amps. A NEMA 14-50 has four wires, including a neutral, and is the more common choice for portable EV chargers and RVs. A NEMA 6-50 has three wires with no neutral and is more common on welders and some older RV connections.
Do I need a licensed electrician to install an EV charging outlet?
Yes. An EV charging circuit is a dedicated 240-volt circuit run from the main panel, and that work should be done by a licensed electrician, both for safety and to confirm the panel has enough spare capacity for the added load.
How many amps does an EV charging circuit need?
Most home Level 2 setups use a 50-amp circuit, which code limits to 40 amps of continuous draw under the 80 percent rule. Some chargers are designed for smaller circuits, so match the breaker, wire gauge, and receptacle to the specific charger's rated draw.
Can I use an EV charging receptacle outdoors?
Yes, with the right enclosure. An outdoor or garage installation needs a weatherproof, in-use rated box and cover rather than a standard indoor device box, since the connection has to stay protected from moisture even while a charger is plugged in.
