Under-Cabinet & Under-Counter Lighting

How to Choose Under-Cabinet & Under-Counter Lighting

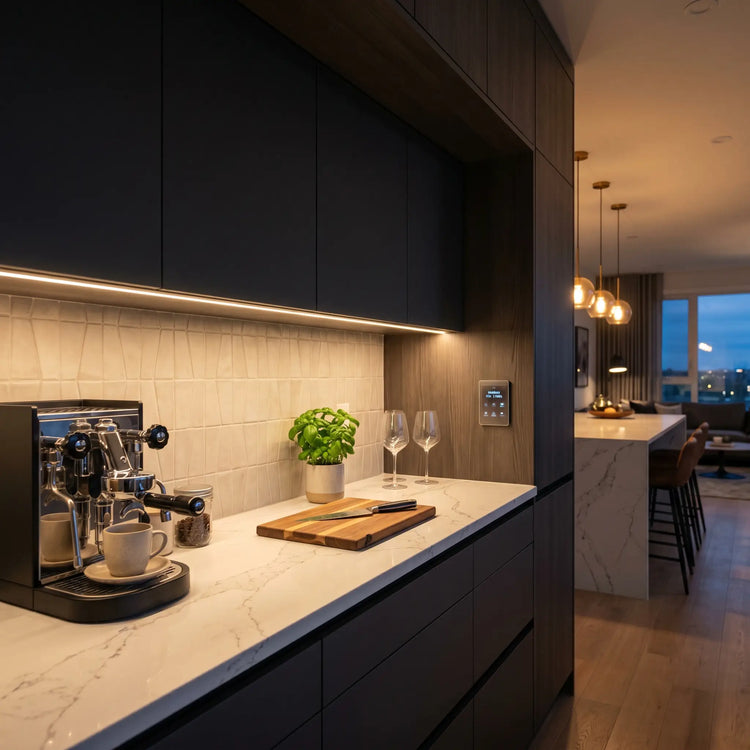

Under-cabinet lighting puts useful light on countertops, workstations, shelves, and other surfaces that overhead fixtures can leave in shadow. The right setup depends on the length of the run, whether you want a complete fixture or a flexible light source, the available power connection, and how the light will be controlled. For a kitchen renovation, coordinate the task lighting with the room's general fixtures in indoor and residential lighting rather than increasing ceiling-light output to compensate for dark counters.

LED Light Bars, Puck Lights, and Flexible Tape: Which Fits?

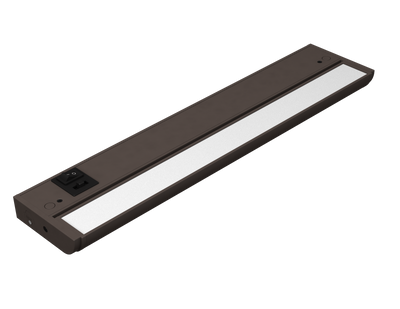

Linear under-cabinet bars are a practical starting point when you want a finished fixture with a defined length and mounting method. Shorter fixtures can suit separated cabinet sections, while longer bars can cover an uninterrupted worktop. Check each listing for whether the light source, power connection, switch, and linking accessories are included. A fixture that looks like a complete bar may still need a separate compatible supply or connecting cable.

Puck lights concentrate illumination into smaller areas, making them useful for cabinet compartments, shelving, and display accents. If the design calls for a concealed continuous line that bends around millwork or must be cut to an approved length, compare LED tape lighting. Tape systems require their own planning for the strip, channel, connectors, power supply, and feed locations; they are not automatically faster to install than finished under-cabinet bars.

Place the Light to Reduce Countertop Shadows and Glare

Mounting position can make as much difference as light output. A fixture set too far back beneath a deep upper cabinet may leave the front of the countertop darker, while an exposed source near the front edge can create distracting reflections in glossy surfaces. Check the beam direction, fixture depth, and whether a diffuser or cabinet lip conceals the source from normal viewing angles.

For a six-foot countertop with a sink or preparation area, plan the light around the working surface and interruptions in the cabinet run. Confirm where cables can pass between sections before ordering lengths. More lumens do not necessarily solve a poor mounting position.

Match 120V Fixtures and Low-Voltage Systems to the Supply

Under-cabinet products do not all use the same electrical arrangement. Some complete fixtures connect to an appropriate line-voltage supply, while low-voltage bars, pucks, and flexible strips need a compatible power supply. Read the exact product specification for required input voltage, AC or DC operation, connection method, and any limits on how many fixtures can be linked.

For a low-voltage run, determine the combined connected load first. Then choose from compatible LED drivers and power supplies using the required output voltage, current or wattage capacity, and dimming method. A 24V DC strip cannot be connected to a 12V supply just because the connectors appear similar. Follow the manufacturer's load margins and maximum-run rules rather than applying one sizing assumption to every system.

Plan Linking Cables, Tape Cut Points, and Driver Access

Several short cabinet sections may need separate fixture connections even when they share one compatible driver. Before ordering, measure each illuminated section, identify gaps around appliances and sinks, and determine where wiring can travel without becoming visible. Linkable light bars need the exact cable and connector family specified by the manufacturer. Tape can be cut only at its marked positions and requires connectors matched to its width and contact pattern.

Place any separate driver where its installation instructions permit ventilation and service access. If the run must cross a cabinet joint or turn a corner, resolve the feed and connector layout before the cabinets are finished. This is especially important with low-voltage runs, where conductor length and connected load can affect voltage at the far end.

Choose Color Temperature and Diffusion for the Countertop

Color temperature changes how the surface and surrounding finishes appear. Warmer light often blends comfortably with residential ambient lighting, while cooler settings may suit some task-focused spaces. Color rendering also matters when the counter is used for food preparation or detailed work. Compare the stated CCT and CRI on the actual fixture rather than assuming every model has selectable settings.

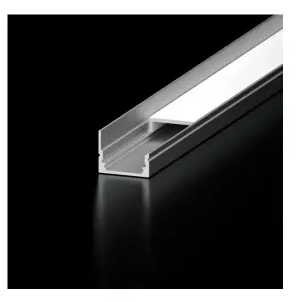

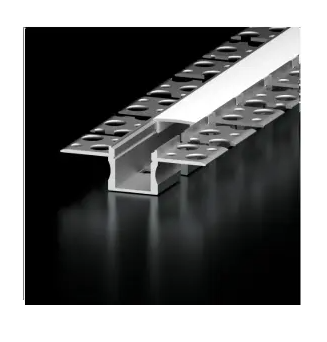

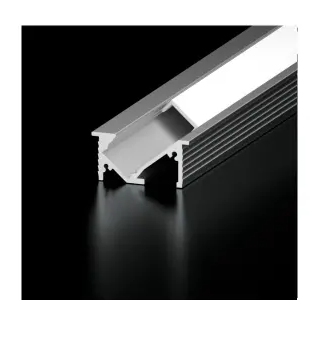

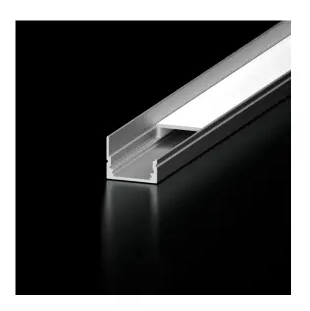

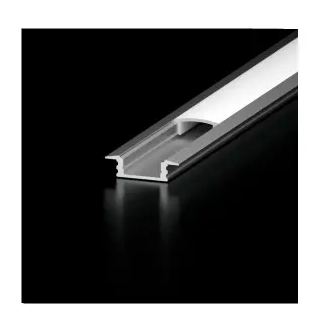

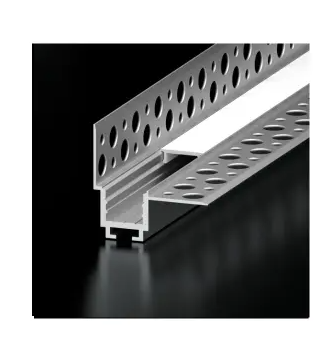

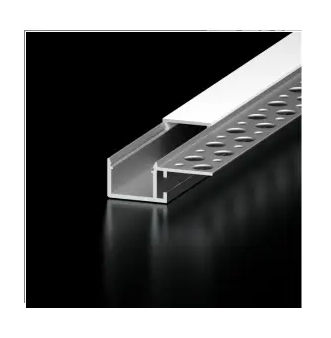

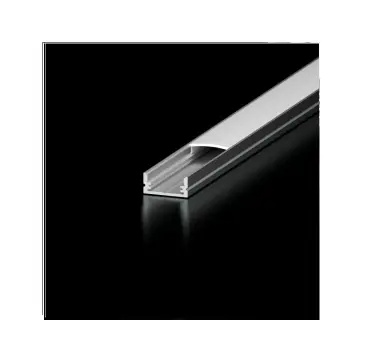

Diffusion determines whether individual LED points are visible. A complete bar may have its own lens; a flexible tape installation can need an appropriately sized channel and diffuser. The chosen diffuser can affect delivered light as well as appearance, so review the finished assembly instead of comparing strip lumens alone.

Dimming: Verify the Fixture, Driver, and Wall Control Together

A light described as dimmable still requires a compatible control. Line-voltage under-cabinet fixtures may support a particular phase-control dimmer, while low-voltage systems often depend on the selected driver's dimming specification. Some fixtures use an integrated on/off switch or a manufacturer-specific controller instead of a conventional wall dimmer.

For a compatible line-voltage lighting circuit, review standard LED dimmer switches after identifying the fixture's supported method. Do not assume that a standard LED wall dimmer can directly control a 12V or 24V light source. Match the control to the driver and wiring architecture, including any multi-location switching requirement.

Installation Conditions and Ordering Checklist

Under-counter and under-cabinet locations may be close to sinks, heat sources, or enclosed spaces. Check each product's location rating, required clearances, mounting surface, and permitted wiring method. A fixture suitable for a dry cabinet is not automatically approved where it may receive direct spray. Hardwired line-voltage connections should be installed by a qualified electrician according to the product instructions and applicable requirements.

• Layout: Cabinet lengths, work areas, corners, and gaps between sections.
• Fixture type: Finished bar, compact puck, or field-assembled flexible strip.
• Light quality: Required output, beam distribution, CCT, CRI, and diffusion.
• Electrical system: Available input, fixture voltage, driver capacity, and AC/DC compatibility.
• Controls: On-fixture switch, compatible wall dimmer, or supported low-voltage controller.
• Accessories: Linking cables, connectors, mounting parts, channel, and diffuser where needed.
• Installation: Wiring route, driver access, exposure rating, and serviceability.

Under-Cabinet Lighting FAQs

Are LED light bars or tape lights better under kitchen cabinets?

Finished LED bars are a good starting point when standard fixture lengths fit the cabinets and you want a defined mounting and connection method. Tape lighting offers more freedom for concealed or irregular runs, but its driver, connectors, and mounting channel must be coordinated. Choose according to the layout and installation complexity, not simply the light-source format.

Do under-cabinet LED lights need a separate driver?

Some do and some do not. Certain complete fixtures are designed for an approved line-voltage connection, while low-voltage pucks, bars, and strips require a suitable supply. Check what the exact product includes and match any separate driver to its voltage, load, and control requirements.

Can I put all the under-cabinet lights on one dimmer?

Only if the connected fixtures or their drivers support the same control method and the total load and wiring are within the control's ratings. Mixing unrelated drivers and dimming technologies can cause inconsistent operation. Plan the dimming arrangement before buying the fixtures or wiring the cabinets.

Where should under-cabinet lights be mounted?

Place them where they illuminate the task surface without producing objectionable glare from normal viewing positions. The most effective location depends on cabinet depth, lens design, countertop finish, and any front lip that conceals the light. Test the proposed position against the sink and preparation zones before fixing the installation layout.

Can LED tape be cut to fit a cabinet?

Cuttable LED tape can be shortened only at the points marked by its manufacturer. The cut interval may prevent an exact fit to every cabinet length. Select the correct connector width and arrangement, follow the strip's maximum-run guidance, and plan the power-feed location before cutting.
