How to Choose Energy Recovery Ventilators: Airflow, Duct Layout, and Climate

Energy recovery ventilators (ERVs) supply outdoor air and exhaust stale indoor air while transferring heat and some moisture between the two airstreams. A compact ERV serving a low-flow zone is not automatically suitable for an entire 2,000-square-foot home. For residential and multifamily projects, start with the required ventilation rate, then check delivered airflow, duct access, and cold-weather operation. This guide helps you choose among the Panasonic configurations sold by Lumera and prepare a model-specific equipment schedule before ordering.

Quick Picker: Match the ERV to the Installation

• 20-50 CFM small-zone ventilation: start with the WhisperComfort 60 ERV.
• 130 CFM with side-exiting ductwork: review the BalancedHome 130 side-port.
• 160 CFM with overhead ducts: check the BalancedHome 160 top-port.
• 150 CFM cold-climate multifamily unit: consider the Intelli-Balance Elite Plus+ 150.

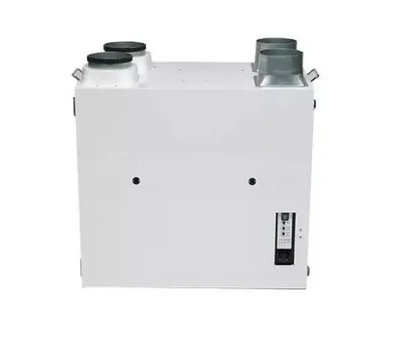

• Up to 200 CFM on the ventilation schedule: inspect the Intelli-Balance 200 ERV.
• 7-by-9-foot bath needing only local exhaust: choose bathroom exhaust fans instead.

ERV CFM vs. Delivered Airflow: Size for the Actual Static Pressure

A 2,000-square-foot, three-bedroom home should not receive a 150 CFM ERV simply because that number appears in the product name. Calculate the dwelling's required outdoor-airflow rate using the applicable residential ventilation standard, such as ASHRAE 62.2, and any locally adopted requirements. Then check the equipment performance curve at the estimated duct-system static pressure. Bends, exterior hoods, filters, and long runs can change the delivered airflow from a headline rating.

If the design requires 90 CFM continuously, select a model that can deliver that rate against the planned duct resistance, with any required boost capacity available. Record the supply and exhaust setpoints before the mechanical rough-in.

Top-Port vs. Side-Port ERVs: Plan the Four Duct Connections

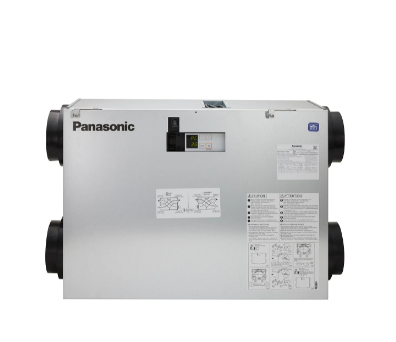

A mechanical closet with only 12 inches above the housing may make a top-port layout difficult, even when its rated CFM is right. Panasonic BalancedHome models include top-port and side-port versions, so choose the connection direction that avoids tight elbows and preserves room to service the unit. The four air paths must be planned separately: outdoor intake, outdoor exhaust, indoor supply, and indoor stale-air return. Duct diameters also vary by model; some compact equipment has different connections from 6-inch BalancedHome and Intelli-Balance models.

If ducts approach horizontally, evaluate the compatible side-port configuration first. Where the risers arrive from overhead, a top-port unit may shorten the route. Check filter-panel clearance before approving either layout.

ERV vs. HRV in Cold Weather: Verify Frost Control and Drain Requirements

In a Minneapolis multifamily project, the familiar "HRV for cold, ERV for humid" rule is too broad for a purchase decision. An HRV transfers sensible heat; an ERV also transfers some moisture. Compare the actual model's frost-management method and temperature limits rather than assuming one acronym determines winter performance. Panasonic specifies frost-prevention options for its Intelli-Balance Elite Plus+ series and describes operation in conditions down to -22 degrees F under its published guidance.

If winter design conditions fall outside the selected model's permitted range, revise the equipment specification. Panasonic also states that its ERVs are designed without condensate drains; don't add a generic drain requirement to these models, or apply that statement to other manufacturers.

ERV Efficiency and Filtration: Compare Certified Ratings and Service Access

Across twelve apartment units, a filter that is difficult to reach becomes a maintenance problem. Compare HVI-certified recovery metrics such as sensible and total recovery efficiency at the relevant airflow, not an isolated percentage from a different model or test condition. Panasonic publishes up to 90% sensible recovery efficiency for FV-15ESC1 at its stated test point and identifies MERV 13 filters for that model. Neither figure should be assigned to every ERV in the collection.

If service access is tight, choose a permitted mounting location with enough clearance to remove filters and inspect the core. Plan filter checks at the manufacturer's recommended interval, and confirm whether each core may be washed or requires another cleaning method.

ERV Wall Controls and Commissioning: Match Boost Functions to the Series

A multifamily unit designed for 80 CFM continuously may need a temporary higher setting during periods of heavy occupancy. Panasonic offers compatible controls for scheduling, boost, and supply/exhaust settings; the FV-SCVE2 ERV wall control supports specified BalancedHome and Intelli-Balance Elite/Elite Plus+ systems, not every Panasonic fan. Identify the complete ERV model before adding controls to the quote.

If the equipment uses automatic airflow compensation, still require field commissioning. Measure the installed supply and exhaust airflow with the selected filters fitted, adjust the system as instructed, and document the readings. An adjustable CFM setting is not proof of balanced delivered ventilation.

Dedicated ERV Ducts vs. HVAC Integration: Keep Air Paths Safe

A 30-foot return route through a finished attic may favor a different distribution plan from a new build with room for four dedicated ducts. Fully ducted ERVs deliver and remove air through their own branches; approved HVAC integrations depend on fan operation and the manufacturer's connection diagrams. Do not tie a greasy kitchen range hood or garage exhaust into the ERV, and keep outdoor intakes away from exhaust outlets and vehicle fumes.

If the project needs only an exhaust booster on a separate run, browse inline duct fans; they do not replace balanced heat-recovery ventilation. For a mixed equipment schedule, review the wider ventilation equipment range. Have qualified mechanical and electrical installers verify duct layout, support, and connections.

Ordering Energy Recovery Ventilators for a Project

For an 18-unit multifamily package, group ERVs by required airflow, family, port orientation, frost-management needs, power supply, compatible control, and replacement-filter SKU. Lumera offers trade account options for project purchasing. Eligible businesses can also submit a separate credit application. Keep wall controls and other accessories on distinct schedule lines.

Request an Energy Recovery Ventilator Project Quote

For several apartments or a whole-home retrofit, request an ERV project quote with the equipment schedule. Include:

• Design supply/exhaust CFM and estimated static pressure
• ERV model, top- or side-port layout, and duct sizes
• Climate requirements, controls, filters, and service access
• Installation quantities and any specified accessories

For unusual duct or control requirements, contact Lumera with the manufacturer model numbers before approving substitutions.

Energy Recovery Ventilator FAQs

What is the difference between an ERV and an HRV?

An ERV transfers both sensible heat and some moisture between incoming and outgoing air; an HRV transfers sensible heat without intentional moisture recovery. Neither eliminates the need for the correct ventilation rate. Choose with the building's climate, indoor moisture conditions, and frost-management requirements in mind. Lumera's ventilation systems guide explains how these systems fit into whole-house airflow design.

What size energy recovery ventilator do I need?

Choose the required CFM from an approved ventilation calculation, then verify that the ERV delivers it at the duct system's design static pressure. A larger maximum rating is not automatically better. For example, the Intelli-Balance 100 FV-10VE2 has selectable airflow settings; use the published curve and the project's continuous and boost requirements before choosing it.

Does a Panasonic ERV need a condensate drain?

Panasonic says its ERV models are designed without condensate drains, so a generic drain instruction should not be added to a Panasonic specification. This does not mean every manufacturer's ERV is drain-free. Check the particular installation manual, including any frost-prevention and duct-insulation details, before rough-in. Don't substitute general HRV installation assumptions for the selected Panasonic equipment.

Can an ERV replace a bathroom exhaust fan?

Not automatically. A whole-home ERV can serve designed bathroom exhaust points where permitted, but a small spot ERV such as WhisperComfort 60 is not recommended by Panasonic as a direct replacement for a primary bath fan. The required local exhaust rate still matters. For shower-focused spot ventilation, see Lumera's bathroom humidity fan guide and confirm the local code.

Do self-balancing ERVs still need commissioning?

Yes. Automatic airflow-compensation features help respond to duct resistance, but they don't replace field verification of the completed installation. A qualified installer should measure both supply and exhaust CFM, check filters and dampers, and record the operating settings. Unbalanced operation can change building pressure and affect air quality, moisture movement, and combustion-appliance safety.

Can an ERV connect to existing furnace or air-handler ductwork?

Yes, when the specific ERV and mechanical design permit HVAC duct integration. Air-handler operation, connection locations, fan interlocks, and pressure effects must be coordinated so the specified outdoor airflow reaches the occupied rooms. A dedicated duct system is another option. Do not connect a kitchen range hood or garage exhaust to the ERV, and commission the finished arrangement before occupancy.
