The Trim Is an Optical Part, Not a Decorative One
It is easy to treat the trim as the finish piece chosen at the end on
appearance. In practice it decides how much light leaves the fixture,
how hard the aperture is to look at, and where the beam lands, and two
trims on identical housings can produce noticeably different rooms. For
the wider picture of how housings, trims, and downlights fit together,
Lumera's recessed lighting and downlights category is the starting point.
Trim and Housing Are a Matched Pair
Before anything optical, there is a fit question that stops projects.
A trim has to match both the aperture size and the housing series it is
going into, and the two are not universally interchangeable across
manufacturers or even across product lines from one manufacturer.
The aperture number is only half of it. Torsion spring positions,
clip geometry, and the depth the trim expects all vary, so a six inch
trim from one line can be physically wrong in a six inch can from
another. ELCO makes the point explicit by labeling trims for the series
they fit, and the listings here include dedicated trims marked for the
ELL line. Confirm compatibility against the housing you actually have
before ordering quantity, and Lumera's recessed housings collection lists the cans these trims pair with.
Baffle or Reflector, and the Tradeoff Nobody Explains
This is the central choice and it runs opposite to instinct.
A baffle is a ribbed interior, usually black or dark, and those ribs
absorb stray light before it can escape sideways. The measured
efficiency of the fixture drops. What you get in exchange is a much
darker aperture that is far more comfortable to look at, which matters
in a ceiling that people see constantly: living spaces, bedrooms, dining
rooms, and any room with a lower ceiling where the fixture sits close
to eye level.

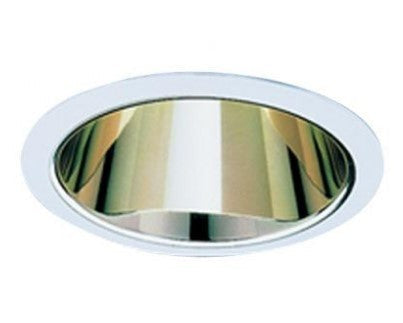

A reflector is a smooth polished interior, in clear, white, bronze,
copper, or a specular finish, and it does the reverse. It pushes nearly
all the light down into the room, which raises delivered output and
makes the aperture itself visibly bright. That suits commercial spaces,
kitchens, retail, and anywhere the light on the surface matters more
than the comfort of glancing at the ceiling.
A white baffle sits between the two, cutting some glare while staying
visually quiet against a white ceiling. The practical rule is a dark
baffle where the ceiling is seen and a reflector where the output is
needed.
Which Aperture Size
Aperture size sets the fixture's visual weight and its role. Two and
three inch openings suit accent work and newer builds where the ceiling
should stay quiet, four inch has become the general-purpose residential
default, and five and six inch dominate older housings and commercial
retrofit work, where a matching trim revives a can without touching the
wiring. Measure the existing can before ordering, since the marketed
size refers to the aperture rather than the outer flange, and the two
can differ by an inch or more.
Gimbal and Other Adjustable Trims
Where the light has to be aimed rather than dropped straight down,
the trim does the aiming. The gimbal trims in this collection stay flush
with the ceiling and tilt within the aperture, which keeps the ceiling
plane clean while redirecting the beam. The tradeoff is that at full
tilt the trim's own edge can clip part of a wide beam.
The protruding alternative in the industry is the eyeball, which
rotates in its socket below the ceiling line for a wider aiming range at
the cost of a visible fixture. Both exist for the same jobs: lighting
artwork, a fireplace, a stone feature, or a sloped ceiling where a fixed
downlight would land the beam in the wrong place. On a sloped ceiling
an adjustable trim is not a preference, it is the only way to get the
beam vertical.
Pinhole Trims
A pinhole trim closes the face down to a small central opening, so
the source disappears and the ceiling shows only a tight, quiet dot. The
payoff is minimal glare and a very controlled beam that suits accent
work, display niches, and modern interiors where the ceiling should read
as uninterrupted. The cost is spread: a pinhole is a poor choice for
general room lighting, and it works best over a narrow-beam source aimed
at something specific.

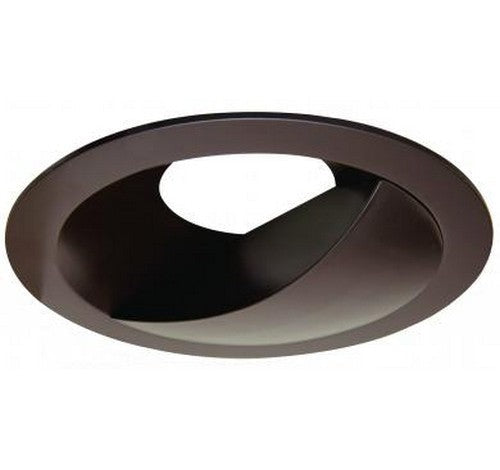

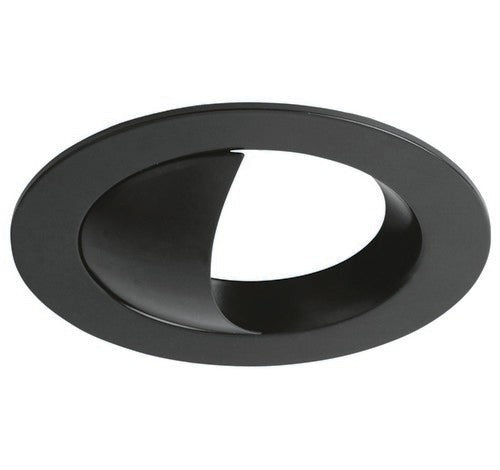

Wall Wash Trims
A wall wash trim uses an internal shield or a kicker reflector to
throw light asymmetrically toward one side, producing an even gradient
down a wall rather than a scallop of bright spots. This collection
carries them from 4 through 6 inch apertures in white and bronze.
Two placement details decide whether the effect works. The fixtures
need to sit a consistent distance out from the wall, typically closer
than people expect, and every trim in the row must be rotated to face
the same direction. A run of wall wash trims with one turned the wrong
way is immediately obvious once the lights are on, and it is a common
defect at handover.
Flange Finish and How It Reads
The flange is the visible ring against the ceiling, and the finish
choice is mostly about whether the fixture should disappear or register.
A white flange against a white ceiling vanishes, which is why it
dominates residential work. Bronze, copper, and black flanges are
deliberate accents and read as part of the design.
Flangeless and trimless options set into the drywall for no visible
ring at all, which looks cleanest and costs more in both parts and
labor, since the drywall has to be finished into the fixture rather than
butted against it. That decision belongs before the ceiling is boarded,
not after.
Air-Tight, Insulation, and Location Ratings Live at the Trim Too
People associate these ratings with the housing, and the trim is part
of the assembly that earns them. An air-tight rating limits conditioned
air leaking from the room into the ceiling cavity, and a gasketed trim
is usually what completes that seal. In an insulated top-floor ceiling
you want both an insulation-contact housing and a trim that maintains
the air seal, since mixing a gasketed housing with a loose trim gives
you neither in practice.
The same logic covers damp and wet locations. A fixture over a tub or
inside a shower enclosure needs a lensed, gasketed assembly listed for
that location, and the listing belongs to the trim and housing together
rather than to either part alone, so check both before specifying. Where
a sealed all-in-one unit is the simpler answer, Lumera's retrofit and canless downlights collection carries fixtures with the rating built in.
Where the ceiling also has to hold a fire resistance rating, the whole assembly is specified together, which Lumera's fire-rated housings collection covers.
Installation
Trims install by hand into a housing that is already wired, using
torsion springs or friction clips, and no electrical connection is made
at the trim itself on a conventional can. That makes trim replacement
one of the few tasks a building owner can reasonably handle, provided
the power is off and the lamp is cool. Anything beyond that, including
any work at the housing's wiring, belongs to a licensed electrician.
Two things spoil an otherwise good install. Springs seated in the
wrong slots leave the trim sitting proud or crooked against the ceiling,
and a trim pushed up hard enough to dent the drywall never sits flat
afterward. Where the housings themselves go in at the same time,
Lumera's new-construction downlights collection covers the framing-stage fixtures these trims drop into.
Recessed Trim FAQs
Will any trim fit my recessed can?
No. A trim has to match both the aperture size and the housing
series, and they are not universally interchangeable between
manufacturers or even between lines from one manufacturer. Spring
positions, clip geometry, and expected depth all vary, which is why ELCO
labels certain trims for specific series, so confirm compatibility
against the actual housing before ordering.
Should I use a baffle or a reflector trim?
A dark baffle absorbs stray light, lowering efficiency but giving a
much darker, more comfortable aperture, which suits living spaces and
lower ceilings. A reflector pushes almost all the light down for maximum
output and a visibly bright aperture, which suits kitchens, retail, and
commercial work.
What is a gimbal trim for?
Aiming. A gimbal stays flush with the ceiling and tilts inside the
aperture to point the beam at artwork, a feature wall, or down a sloped
ceiling where a fixed trim would miss. Its limit is that a steep tilt
can cut into a wide beam, so pair it with a narrower source when the
angle is aggressive.
How far from the wall should a wall wash trim be placed?
Closer than most people assume, and consistently so across the run.
The other requirement is rotation: every trim in a row has to face the
same direction, because a single one turned the wrong way is obvious the
moment the lights come on.
Can I use a standard trim over a shower or tub?
No. That location calls for a lensed, gasketed assembly listed for
wet or damp use, and the listing applies to the trim and housing as a
pair rather than to either part alone. Check both, or use a sealed
all-in-one fixture that carries the rating on its own.
Can I change a trim myself?
Usually yes on a conventional can, since the trim clips in with
springs and makes no electrical connection. Turn the power off, let the
lamp cool, and make sure the springs seat in the correct slots so the
trim sits flat rather than proud or crooked against the ceiling.
