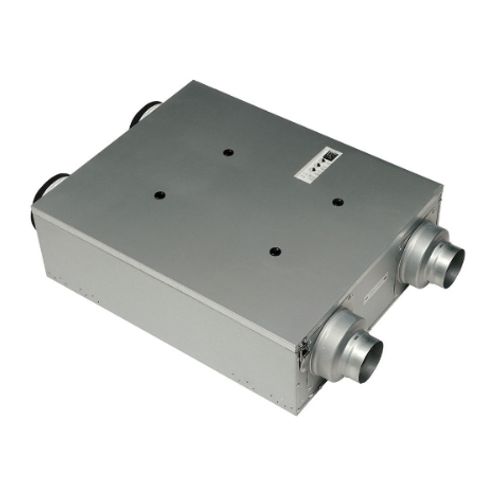

Panasonic FV-10VE2H Intelli-Balance 100 Energy Recovery Ventilator (ERV)

Product Overview

The Panasonic FV-10VE2H Intelli-Balance 100 is a hardwired energy recovery ventilator (ERV) designed to provide balanced supply and exhaust ventilation while transferring heat and moisture between incoming and outgoing air streams.

This temperate-climate ERV provides independently adjustable supply and exhaust airflow settings from 30 to 100 CFM, allowing the ventilation rate to be configured for the requirements of the space. It supports both 4-inch and 6-inch duct connections and can be installed in ceiling- or wall-mount applications.

Key Features

• Adjustable supply and exhaust airflow: 30 / 50 / 60 / 70 / 80 / 90 / 100 CFM
• Occupant-controlled boost capability up to 100 CFM
• 4" or 6" duct compatibility
• Hardwired electrical connection
• Ceiling- or wall-mount installation
• Two enclosed DC brushless motors designed for continuous operation
• Built-in airflow controls for supply and exhaust
• Built-in ASHRAE 62.2 intermittent timing function
• Frost prevention function for ERV core protection
• Part of the Panasonic Intelli-Balance 100 product family
• UPC: 885170416475

How Does the FV-10VE2H Support Balanced Ventilation?

The FV-10VE2H brings outdoor air into the building while exhausting indoor air through a separate airflow path. Its energy recovery core transfers heat and moisture between the two air streams, helping temper incoming air while maintaining controlled ventilation.

Supply and exhaust airflow can be adjusted independently, allowing the system to be configured for balanced, positive, or negative pressure based on the ventilation design.

Where Is the FV-10VE2H Used?

The Panasonic FV-10VE2H is designed for whole-building ventilation applications where controlled supply and exhaust airflow are required.

Typical applications can include:

• Whole-house balanced ventilation
• Single-family homes
• Multifamily residential units
• Airtight or energy-efficient construction
• Ventilation projects requiring adjustable supply and exhaust airflow

Final airflow settings should be based on the ventilation design and applicable project requirements.

Airflow and Duct Configuration

The Intelli-Balance 100 FV-10VE2H provides selectable supply and exhaust airflow settings of:

30, 50, 60, 70, 80, 90, or 100 CFM

The unit supports 4-inch or 6-inch duct connections. Duct size, airflow setting, static pressure, and overall duct layout should be considered together when specifying the unit for a project.

Installation and Project Considerations

Before installation, confirm that the FV-10VE2H matches the mechanical and electrical requirements of the project.

Important considerations include:

• Required supply and exhaust airflow
• 4" or 6" duct configuration
• Available ceiling- or wall-mount location
• Hardwired electrical connection
• 120V / 60Hz power requirements
• Required ventilation and building-code provisions
• Access for filter inspection and maintenance

Installation and airflow configuration should follow the applicable Panasonic installation documentation and project requirements.

Before You Order

Confirm the following before purchasing the Panasonic FV-10VE2H:

• The complete FV-10VE2H model number
• Required quantity
• Required airflow rate
• Duct size and layout
• Mounting location
• Electrical requirements
• Compatibility with the project's ventilation design

For replacement applications, verify the complete model number and installation requirements rather than selecting an ERV based only on airflow capacity or physical dimensions.

Ordering from Lumera Electric

Check the current purchasing options shown on this product page for pricing and availability. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity and relevant project information.
