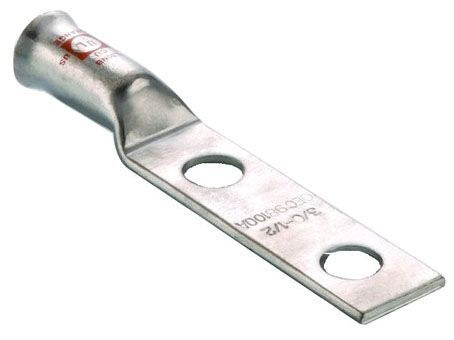

Morris 94744 Copper Flex-Cable Long-Barrel Compression Lug, #600 AWG, 1/2" Stud, 2-Hole

Morris's 94744 is a copper flex-cable long-barrel compression lug that terminates a #600 AWG conductor on a 1/2" stud with 2-hole mounting. It features a flared/belled entry for easy insertion of fine-strand flexible cable (Class G, H, I, K, M, and DLO), It is made of high-conductivity seamless copper with electro-tin plating, has a color-coded (Green) die index printed on the barrel, and is UL 486AB Listed through 35kV.

Key Features

• High-Conductivity Seamless Copper
• Electro-Tin Plating Resists Corrosion
• Color-Coded Die Index and Crimp Marks Printed on Barrel
• UL 486AB Listed for Applications Through 35kV
• Flared/Belled Entry for Easy Insertion of Fine-Strand Flexible Cable - Class G, H, I, K (Battery), M (Welding), and DLO
• Dual Mounting Holes for Superior Contact Integrity
• Long Barrel Accommodates Multiple Crimps
• Inspection Window

Specifications

Applications

Used to terminate #600 AWG fine-strand flexible (welding/DLO/battery) cable conductors to bus, panels, and equipment with a 1/2" bolt.

Installation

Strip the conductor to barrel depth, insert fully through the flared entry, and crimp with the Green-coded die; bolt the tongue to the 1/2" stud.
