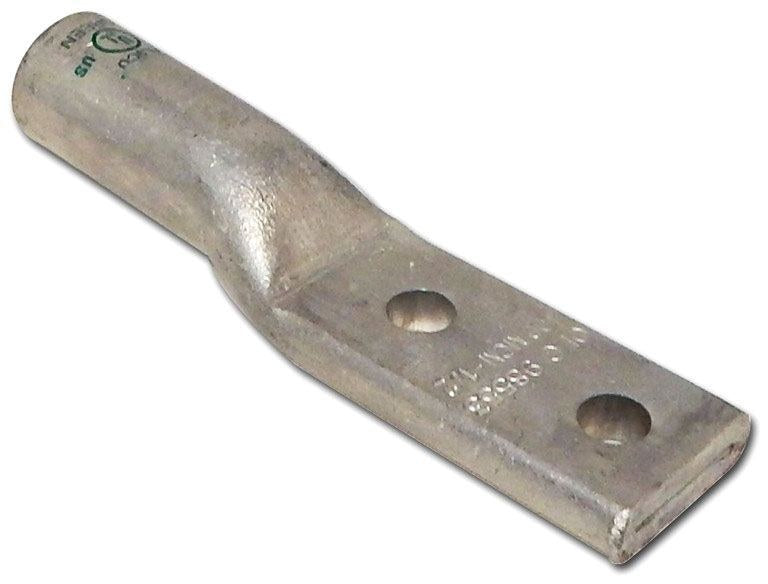

Morris 93129 Aluminum Long-Barrel Compression Lug, 600 MCM, 3/8" Stud, 2-Hole

Product Overview

Morris 93129 is an aluminum long-barrel compression lug for terminating 600 MCM conductors to a 3/8" stud using a 2-hole tongue.

Made of seamless high-conductivity aluminum with electro-tin plating and pre-filled with oxide inhibitor, it is AL9CU dual-rated and UL 486AB listed.

Key Features

• Terminates 600 MCM conductors to a 3/8" stud with a 2-hole tongue
• Seamless high-conductivity aluminum construction with electro-tin plating
• Pre-filled with oxide inhibitor
• AL9CU dual-rated for aluminum and copper conductors
• Black color-coded die index and crimp marks printed on barrel
• Long barrel accommodates the conductor and allows multiple crimps
• UL 486AB listed

What this lug does

The Morris 93129 provides an electrical and mechanical termination for 600 MCM conductors to equipment or bus that accepts a 3/8" stud. The 2-hole tongue provides a bolted attachment point.

• Terminate and secure 600 MCM conductors to a 3/8" stud
• 2-hole tongue for bolted mounting

Conductor and stud compatibility

Specified for 600 MCM conductors and a 3/8" stud. The AL9CU designation indicates suitability for use with aluminum and compatible copper conductors consistent with that rating.

• Conductor size: 600 MCM
• Stud size: 3/8"
• AL9CU dual-rated

Basic installation points

Strip the conductor to the required barrel depth, insert fully into the long barrel, and crimp using the die size indicated by the black color code printed on the barrel. Fasten the lug tongue to the 3/8" stud with appropriate hardware.

• Strip conductor to barrel depth before insertion
• Use the black-coded die for crimping as indicated on the barrel
• Bolt the lug tongue to the 3/8" stud with appropriate hardware

Materials and listings

Manufactured from seamless high-conductivity aluminum with electro-tin plating. The barrel is pre-filled with oxide inhibitor. The product is UL 486AB listed.

• Material: seamless aluminum, electro-tin plated
• Pre-filled with oxide inhibitor
• Listing: UL 486AB

Barrel style and identification

Long-barrel design to accommodate the conductor and allow multiple crimps. Barrel is marked with a black die index and printed crimp marks for tooling guidance.

• Long-barrel compression style
• Black color-coded die index and printed crimp marks

Before You Order

Verify that you need a lug for 600 MCM conductor and a 3/8" stud and confirm the part number and quantity before ordering.

• Confirm conductor size (600 MCM) and stud size (3/8")
• Verify part number '93129 and required quantity
