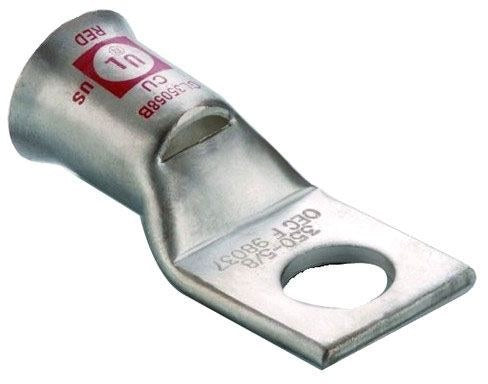

Morris 94646 Copper Flex-Cable Short-Barrel Compression Lug, #600 AWG, 5/8" Stud, 1-Hole
Morris 94646 Copper Flex-Cable Short-Barrel Compression Lug, #600 AWG, 5/8" Stud, 1-Hole
SKU:94646
Couldn't load pickup availability
Morris's 94646 is a copper flex-cable short-barrel compression lug that terminates a #600 AWG conductor on a 5/8" stud with 1-hole mounting. It features a flared/belled entry for easy insertion of fine-strand flexible cable (Class G, H, I, K, M, and DLO), It is made of high-conductivity seamless copper with electro-tin plating, has a color-coded (Green) die index printed on the barrel, and is UL 486AB Listed through 35kV.
Key Features
- High-Conductivity Seamless Copper
- Electro-Tin Plating Resists Corrosion
- Color-Coded Die Index and Crimp Marks Printed on Barrel
- UL 486AB Listed for Applications Through 35kV
- Flared/Belled Entry for Easy Insertion of Fine-Strand Flexible Cable - Class G, H, I, K (Battery), M (Welding), and DLO
- Single Mounting Hole
- Inspection Window
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 94646 |
| Type | Copper Flex-Cable Short-Barrel Compression Lug |
| Conductor Size | #600 AWG |
| Stud Size | 5/8" |
| Mounting | 1-Hole |
| Barrel | Short Barrel |
| Die Color Code | Green |
| Material | Seamless Copper, Tin-Plated |
| Rating | UL 486AB Through 35kV |
Applications
Used to terminate #600 AWG fine-strand flexible (welding/DLO/battery) cable conductors to bus, panels, and equipment with a 5/8" bolt.
Installation
Strip the conductor to barrel depth, insert fully through the flared entry, and crimp with the Green-coded die; bolt the tongue to the 5/8" stud.
