How to Choose ELV & 0-10V Dimmers for LED Drivers and Fixtures

ELV and 0-10V dimmers solve different control problems, even when the wall devices share a decorator face. A 120V reception pendant with an electronic transformer may need reverse-phase dimming; twelve 277V office troffers may require a separate analog control pair. For contractors and project buyers, choosing the wrong method is more consequential than selecting the wrong finish. Use the driver label, line-voltage requirements, switching layout, and low-end behavior to select a suitable dimmer and related equipment.

Quick Picker: Match the Dimmer to the Lighting System

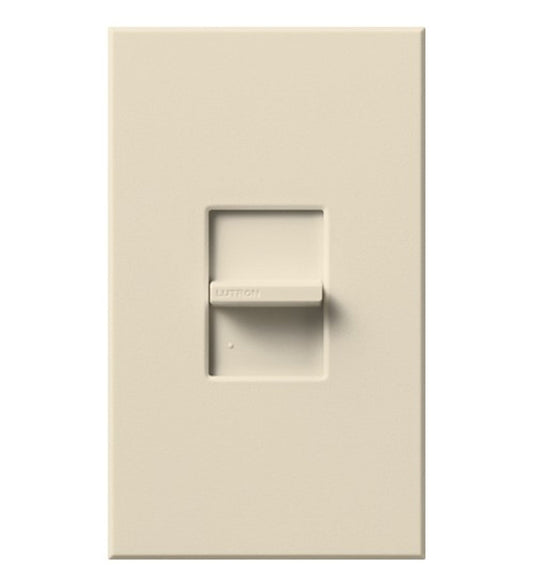

• Four 12V pendants with a reverse-phase driver: review a Lutron Nova T ELV dimmer.
• Twelve 2x4 ceiling fixtures with 0-10V inputs: coordinate LED troffer fixtures and controls.
• 277V stockroom with a 0-10V control requirement: inspect the Morris 82852 dimmer ratings.
• Shared office needing motion-triggered dimming: compare occupancy sensor controls and compatible drivers.
• Twenty feet of 24V cove lighting: check LED tape light control requirements.
• Conference suite needing app-controlled scenes: consider smart and wireless dimmers instead.

ELV vs. 0-10V Dimming: Follow the Driver's Control Input

An architect's schedule might specify eight accent heads as "reverse phase" and ten office fixtures as "0-10V." They cannot share a conventional dimmer merely because both use LEDs. ELV, or trailing-edge control, modifies the AC waveform feeding a compatible electronic transformer or driver. A 0-10V controller instead sends an analog command through a separate control pair while the driver receives normal power. These are different electrical interfaces, not alternative labels for one device.

Decision rule: if the driver calls for forward-phase or TRIAC control, start with standard LED dimmers, not an assumed ELV replacement. Write the permitted method beside each fixture model on the material schedule.

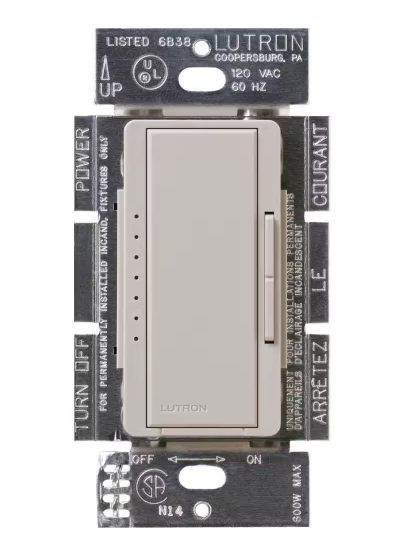

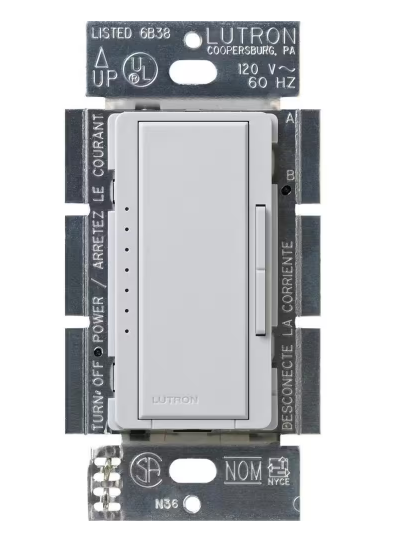

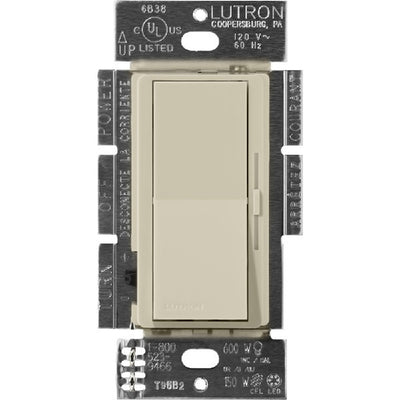

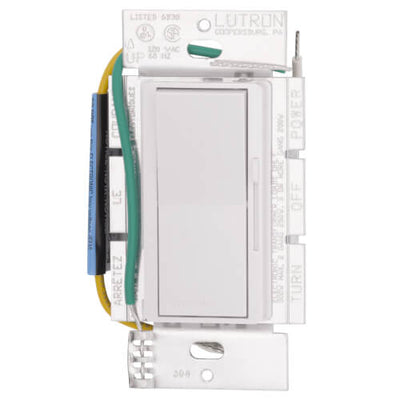

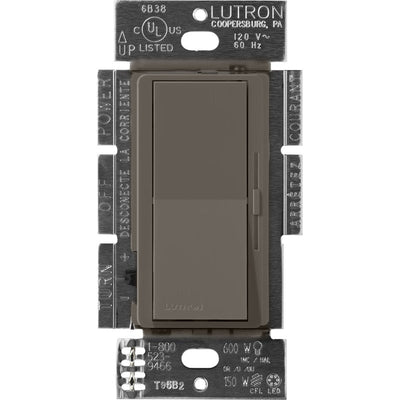

ELV Dimmers: Check the Neutral and Actual Driver Load

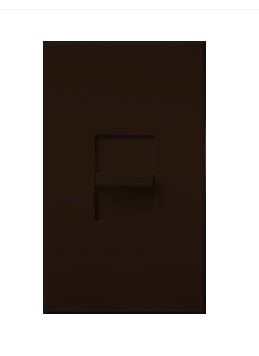

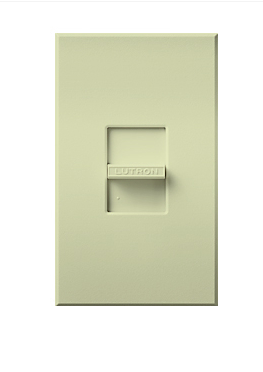

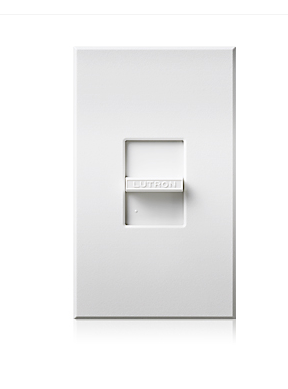

Six 12V accent fixtures on a 120V electronic transformer can use reverse-phase control only when the transformer and fixtures allow it. Lutron's NTELV-300 family, for example, is a 120V ELV control that requires a neutral connection at the wallbox. Older switch loops may not contain an accessible neutral, and LED driver behavior varies even with similar wattage ratings. The dimmer's maximum wattage is not a substitute for the manufacturer's compatibility requirements.

If the chosen control needs a neutral that isn't present, revise the device selection or the wiring plan; never use the equipment-grounding conductor as a neutral. Confirm the driver's dimming specification, the dimmer's actual load range, and any multi-gang derating before ordering.

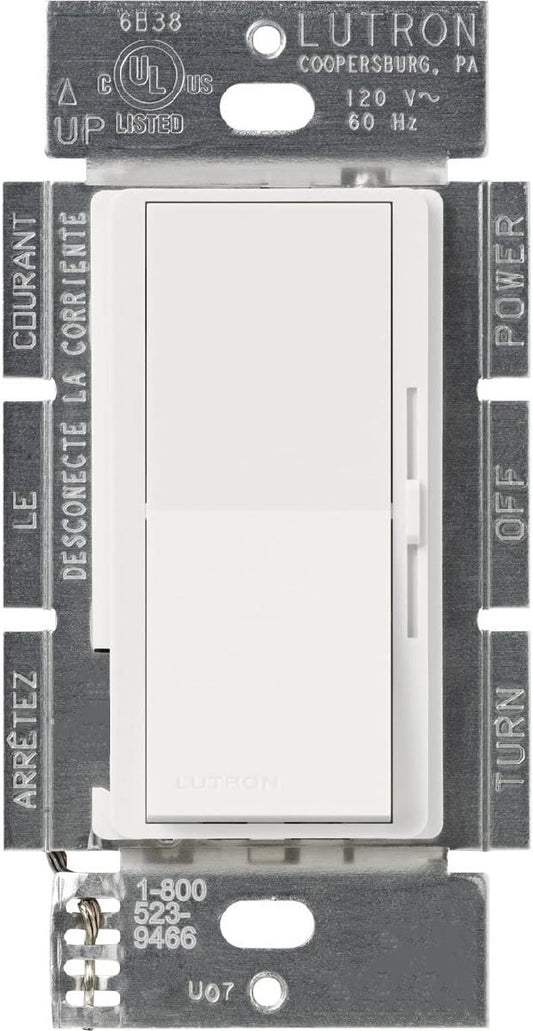

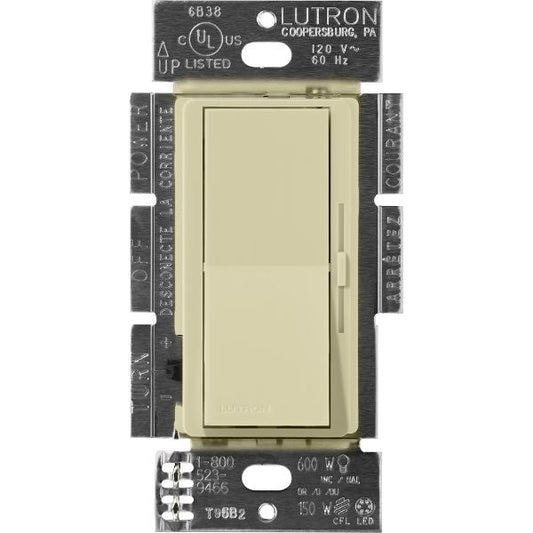

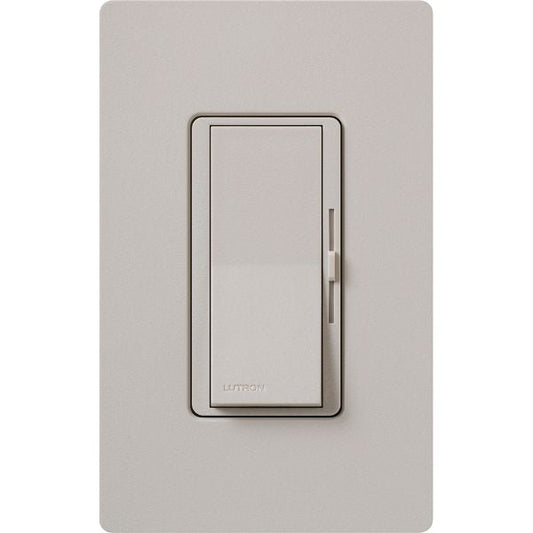

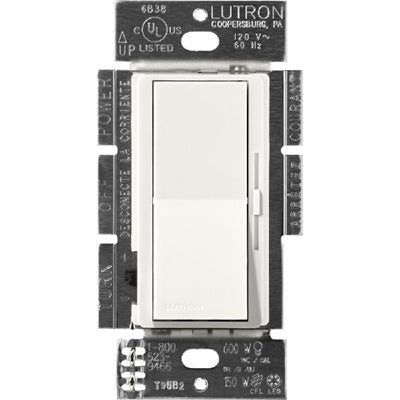

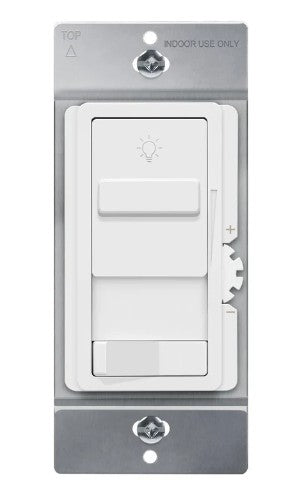

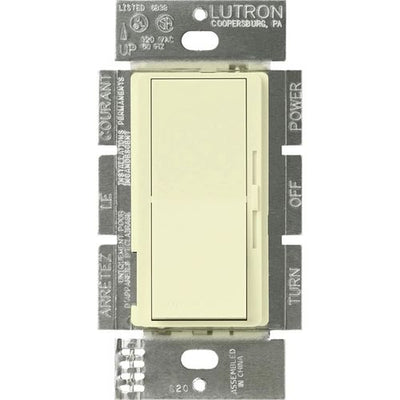

0-10V Control Wiring: Polarity, Wire Colors, and Signal Capacity

On an eight-fixture 277V office run, the supply circuit and the 0-10V control pair perform different jobs. The analog signal is polarity-sensitive, and the driver's current-source or current-sink behavior must work with the selected control. The controller also has a maximum supported signal current across the connected drivers. Modern control leads are commonly violet and pink; violet and gray still appear on older equipment. Color alone does not establish a correct termination.

If the fixture specifies 0-10V, select a compatible controller and coordinate the LED drivers and power supplies on the same schedule. Routing and separation of control and power conductors must follow product listings and applicable electrical-code requirements.

Dim-to-Off vs. Minimum Output: Plan the Switching Method

Fourteen fixtures in a meeting room may dim smoothly to their lowest setting and still remain visibly lit. A zero-volt command does not guarantee complete shutoff: the driver's specified low-end response determines the result. Some wall controllers include a line-voltage switch or relay, while others require separate switching equipment. The printed "10V" on a control refers to its signaling method, not necessarily the line voltage it accepts.

If the room requires full darkness, choose a verified dim-to-off driver and control combination or a correctly rated switched-off arrangement. Check both the control-current capacity and the separate line-voltage switching rating; fixture watts alone won't tell you how many drivers the analog output can handle.

Single-Pole vs. 3-Way ELV and 0-10V Dimmers: Check Both Wallboxes

At either end of a 40-foot corridor, users may need to switch the same lights. That does not mean two identical ELV or 0-10V dimmers belong in both boxes. Certain controls work with a conventional 3-way switch; others require a manufacturer-approved companion or a dedicated control system. Line voltage, neutral availability, and the control wiring all affect the device selection.

If the circuit has two control locations, draw the complete approved arrangement before buying both devices. Then measure wallbox depth, check any mounting and derating instructions, and coordinate matching wall plates and switch plates only after the electrical model is settled.

Low-End Trim and Commissioning: Prevent Flicker and Dropout

During a twelve-fixture showroom relight, instability may appear only when the lights approach their lowest output. For a phase-controlled ELV installation, an untested driver pairing or unsuitable minimum load can produce flicker or audible noise. With 0-10V, the driver's dimming curve, signal polarity, and source/sink compatibility can affect the same test. A slider that moves smoothly is no guarantee that the connected fixtures respond correctly.

If the lights drop out earlier than specified, review the manufacturer pairing data and approved trim settings before changing hardware. A qualified installer should check high, low, and off behavior in each zone and document the result for commissioning.

Ordering ELV and 0-10V Dimmers for Multiple Zones

For a 36-room package, group the schedule by control method, exact fixture or driver model, input voltage, connected load, neutral availability, switching locations, and finish. Lumera offers trade account options for business purchasing; eligible buyers can submit a separate credit application. List relays, companion devices, and other required accessories separately rather than assuming they come with every dimmer.

Request an ELV or 0-10V Dimmer Project Quote

For mixed lighting-control projects, request a dimmer project quote using the actual driver and circuit schedule. Have these details ready:

• Fixture and driver model numbers with their dimming protocols
• Input voltage, load ratings, and 0-10V signal specifications
• Single-pole or multi-location arrangement and neutral availability
• Control style, finish, companion devices, and total quantities

Get the full compatibility and switching requirements approved before replacing specified models with alternatives.
