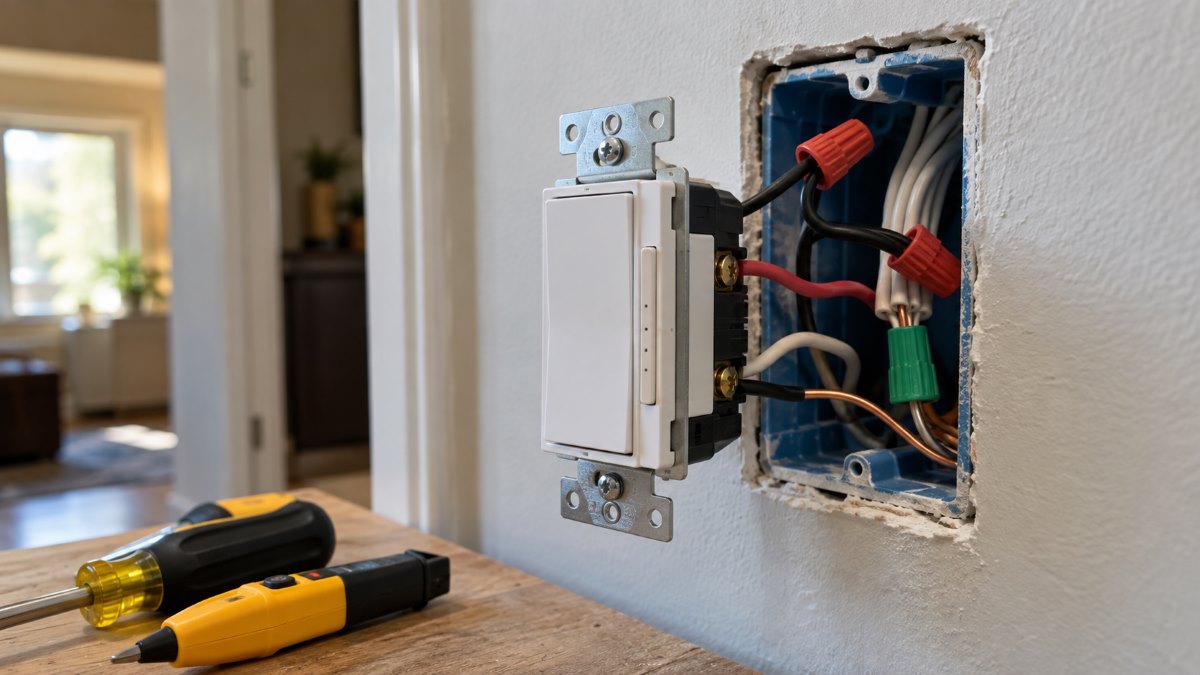

Replacing a standard switch with a dimmer looks like a 20-minute job, and often it is. The problems start when the box holds more wires than expected, the new dimmer asks for a neutral that is not there, or the LED lights flicker the moment the faceplate goes on. This guide walks through dimmer switch wiring from the checks that come before the first wire nut to troubleshooting after power is restored. If you are still choosing a device, Lumera carries standard and LED dimmers as well as smart and wireless dimmers.

Safety note: this is line-voltage work. Codes and permit rules vary by jurisdiction, and some areas require a licensed electrician for any wiring change. If the wiring in the box does not match what is described here, stop and call a qualified electrician.

What to Check Before Wiring a Dimmer

A dimmer switch is installed in place of a standard switch on the ungrounded (hot) conductor between the power source and the light, so the wiring is similar to a switch. What makes dimmers different is the load they control. Four checks prevent most failed installations.

1. Match the Dimmer to the Load Type

Dimmers are built for specific loads: dimmable LED and CFL lamps, incandescent and halogen, magnetic low-voltage (MLV) transformers, electronic low-voltage (ELV) transformers and drivers, or 0-10V fixtures with separate control wiring. A dimmer that is wrong for the load can flicker, buzz, or damage the transformer. Our explainers on MLV vs ELV dimmers and how to read a dimmer compatibility chart cover this in detail, and commercial fixtures with purple and gray control leads need an ELV or 0-10V dimmer.

2. Confirm the Switching Configuration

Count the locations that control the light. One location calls for a single-pole dimmer, two locations for a 3-way dimmer, and three or more locations for a dimmer designed for multi-location control. The differences are explained in single-pole vs 3-way vs 4-way dimmers, and the wider device landscape is covered in types of electrical switches.

3. Check for a Neutral and a Ground

Many smart and electronic dimmers need a neutral to power their own electronics. Since the 2011 edition, NEC 404.2(C) has generally required a neutral at switch locations serving habitable rooms, bathrooms, hallways, and stairways, with listed exceptions, so newer homes usually have one in the box. Older homes often do not. A ground is also needed for the dimmer's green lead or terminal, because switches and dimmers must be grounded when a grounding means exists.

4. Check the Load Rating and Box Space

Add up the actual wattage of every fixture on the circuit and compare it with the dimmer's rating for that load type. Ratings differ sharply by load: a common LED dimmer spec, for example, lists 150 W for dimmable LED or CFL but 600 W for incandescent. Also check the lower end, because some LED setups need a minimum number of lamps to dim smoothly. Finally, dimmers are deeper than switches, so confirm the box has room once the wires are folded back.

What to Check Before Wiring a Dimmer

Dimmer Wire Colors and What They Connect To

Dimmers come with either screw terminals or pre-attached leads. Lead colors vary by manufacturer, so the instruction sheet is the final word, but the pattern below covers most residential devices.

Table 1. Typical dimmer terminals and connections

Terminal or lead

Typical color

Connects to

Notes

Line (hot in)

Black lead or dark screw

Circuit conductor from the panel

Must be identified before connecting

Load (to light)

Black or red lead, brass screw

Conductor running to the fixture

On many single-pole dimmers line and load are interchangeable; on many electronic dimmers they are not

Common (3-way)

Black lead or dark screw

Line or load, depending on dimmer location

Mark the common on the old switch before removal

Traveler(s) (3-way)

Red, red/white, or brass screws

Travelers running to the other switch location

Some dimmers use one traveler terminal only

Neutral

White lead

Bundle of white neutrals in the box

Required by many smart and electronic dimmers

Ground

Green lead or green screw

Bare or green equipment grounding conductors

Connect before line and load

0-10V control

Violet (+) and gray (-)

Fixture or driver dimming leads

Low-voltage control wiring; keep separated as the instructions require


Dimmer Wire Colors and What They Connect To

How to Wire a Single-Pole Dimmer Switch

The steps below assume a single switch controls the light and the existing wiring is in good condition. Always follow the dimmer's own instructions where they differ.

  1. Turn off the circuit at the breaker and confirm the switch and nearby conductors are dead with a tester. Our guide on using a non-contact voltage tester covers how to verify it correctly.
  2. Remove the old switch without disconnecting it yet, and note which conductor lands on which terminal. Photograph the connections. A white conductor on a switch is often a re-identified hot in a switch loop, not a neutral.
  3. Identify line and load. If the connections are not obvious, stop. Identifying the line conductor may require live testing with a meter, which is work for a qualified person.
  4. Connect the ground from the dimmer to the box's grounding conductors.
  5. Connect line and load to the corresponding dimmer leads or terminals using properly sized wire connectors. Twist-on and push-in connectors each have trade-offs, covered in our push-in vs twist-on connector comparison.
  6. Connect the neutral if the dimmer requires one, joining its white lead to the existing neutral bundle.
  7. Fold and mount. Tuck conductors neatly, mount the dimmer straight in the box, and attach the faceplate. Do not break off side fins unless the instructions allow it, and apply the derating described below.
  8. Restore power and test full range, off, and low end. Many LED dimmers have a low-end trim adjustment; set it so lights neither flicker nor shut off at the bottom of the range.
How to Wire a Single-Pole Dimmer Switch

How to Wire a Dimmer in a 3-Way Circuit

In a 3-way circuit, one dimmer replaces one of the two 3-way switches, and the other location keeps a mechanical 3-way switch or a companion device designed for that dimmer. The key task is finding the common conductor: on the old 3-way switch it usually lands on a darker screw, and the two travelers land on the lighter screws. Connect the common to the dimmer's common lead and the travelers to its traveler terminals. Manufacturer instructions for some models also specify where the dimmer may sit; one widely used LED dimmer, for example, must go at the line or load end of a 4-way circuit and cannot occupy the 4-way position.

Two ordinary dimmers should not be installed on the same 3-way circuit. For dimming from both locations, use a multi-location system with matched companion or wireless remote controls.

How to Wire a Dimmer in a 3-Way Circuit

Derating Dimmers in Multi-Gang Boxes

Dimmers produce heat, and side fins help shed it. When dimmers share a multi-gang box, some fins may need to be removed so the devices fit side by side, and removing fins lowers the maximum load the dimmer can carry. Manufacturers publish derating tables for this. Check them whenever two or more dimmers are ganged, especially on circuits close to the dimmer's full rating. Multi-gang wall plates should match the device style you install.

Derating Dimmers in Multi-Gang Boxes

Where a Dimmer Should Not Be Installed

A correctly wired dimmer can still be the wrong device. NEC 404.14(E) states that general-use dimmer switches may be used only to control permanently installed incandescent luminaires unless they are listed for other loads and installed accordingly. In practice that rules out several common shortcuts:

  • Receptacles: do not use a general-use dimmer to control a receptacle, because any appliance could be plugged into it.
  • Ceiling fan motors: use a control listed for fans instead of a light dimmer. Lumera carries dedicated ceiling fan controls, and our ceiling fan controls and remotes guide explains the options.
  • Non-dimmable LED lamps or drivers: they may flicker, buzz, or fail early.
  • Fluorescent fixtures without dimming ballasts: standard ballasts are not designed to be dimmed.

Why LED Compatibility Now Drives Most Dimmer Problems

Dimmer installations used to involve mostly incandescent loads, which dim smoothly on almost any dimmer. That is no longer the typical case. According to the U.S. Energy Information Administration's 2020 Residential Energy Consumption Survey, 47% of U.S. households used LEDs for all or most of their indoor lighting, up from 4% in 2015. Because LED lamps rely on internal drivers, their response to a given dimmer varies by product, which is why a technically correct installation can still flicker, drop out, or refuse to turn fully off. Checking the lamp or fixture maker's tested dimmer list is now part of the installation, not an optional extra.

Troubleshooting After Installation

If the lights misbehave after installation, the symptom usually points to the cause. If flicker persists after the steps below, our LED flickering troubleshooting guide goes deeper.

  • Flicker or shimmer at low levels: adjust the low-end trim, confirm the lamps are dimmable, and check the dimmer's compatibility list.
  • Lights glow faintly or blink when off: some dimmers without a neutral leak a small current through the load; a neutral-wired dimmer or a manufacturer-approved load adapter can solve it.
  • Buzzing: check that the dimmer type matches the transformer or driver, and that the load is within rating.
  • Dimmer feels warm: mild warmth is normal. If it is hot to the touch, turn it off and check the load and derating.
  • Nothing works: recheck line and load, the common in 3-way circuits, and connector tightness.
Troubleshooting After Installation

When to Call an Electrician

Call a licensed electrician if you find aluminum branch-circuit wiring, no grounding conductor, brittle or damaged insulation, more cables in the box than you can account for, or a switch location fed in a way you cannot identify. An electrician should also handle any job that requires pulling a new neutral. Many jurisdictions require a permit for new circuits or rewiring, and our guide on when you need an electrical permit explains the general rules.

Key Takeaways

  • Choose the dimmer for the load type first, then the switching configuration.
  • Many smart dimmers need a neutral; newer homes usually have one at switch locations, older homes often do not.
  • Use the rating for your load type, and derate when dimmers are ganged.
  • In 3-way circuits, identify the common conductor before removing the old switch.
  • General-use dimmers are not for receptacles or fan motors.
