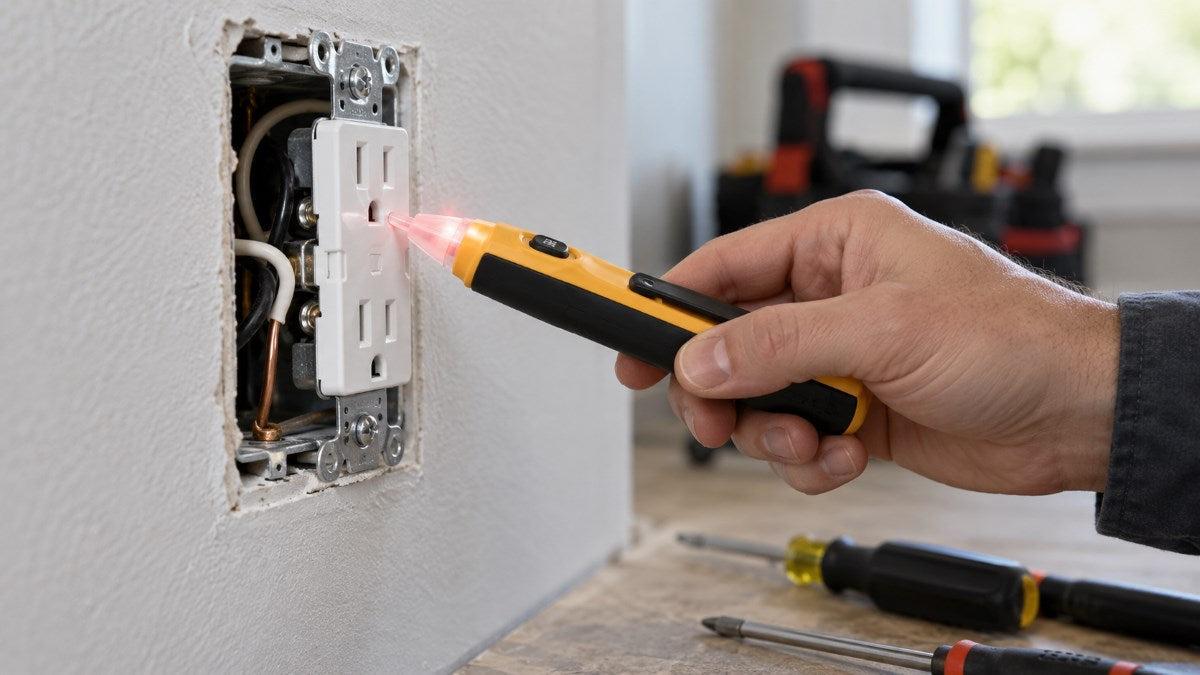

How to Use a Non-Contact Voltage Tester

A non-contact voltage tester (NCVT) detects the presence of AC voltage without touching a bare conductor, making it one of the fastest ways to get a preliminary read on whether a wire, outlet, or panel is energized. It's also one of the most misused tools in electrical work, not because it's complicated, but because people trust a single scan more than the tool is actually designed to support. An NCVT can produce both false positives and false negatives, and using one correctly means treating it as the first step in a verification process, not the only step. This guide covers the proper testing procedure, what causes unreliable readings, and what the tool genuinely can't tell you.

What an NCVT Actually Does

A non-contact voltage tester senses the electric field surrounding an energized conductor and alerts with a light, sound, or vibration when it detects that field, all without the tip of the device touching bare metal. This makes it useful as a quick, low-risk first check before touching anything, but that same non-contact design is also the source of its limitations: it detects the presence of a field, not a precise voltage level, and several common conditions can interfere with the field it's trying to read.

The Live-Dead-Live Test: The Procedure That Actually Matters

This is the single most important habit in using an NCVT safely, and it exists specifically because the tool itself can fail silently, a dead battery or a damaged sensor gives no obvious external sign that the tester has stopped working.

• Step 1 - Test on a known live source. Before testing the actual circuit, touch the tester to a receptacle or cord you know is energized. It should alert clearly, confirming the tester itself is functioning.
• Step 2 - Test the target circuit. After turning off the breaker for the circuit in question, test the wires or device at the point you intend to work on. No alert suggests the circuit is de-energized.
• Step 3 - Test on the known live source again. Immediately return to the same known live source and test it again. If the tester still alerts correctly, the "dead" reading from Step 2 can be trusted. If it fails to alert this time, the tester has failed, and the earlier "dead" reading cannot be trusted at all.

Skipping the final re-check is one of the most dangerous shortcuts in this process: a tester that dies partway through testing gives no indication that it's failed, which means a genuinely live circuit could read as dead with no warning.

Why False Negatives Happen

A false negative, the tester failing to detect voltage that's actually present, is the more dangerous failure mode, since it can create false confidence that a circuit is safe to touch.

• Dead or weak battery: reduced power lowers the tester's sensitivity, and a battery too weak to power the alert can fail to detect voltage it would normally catch.
• Shielded conductors: wire run inside metal conduit or a thick metal junction box can have its electric field blocked or dissipated by the surrounding metal, preventing the tester from detecting a genuinely live conductor.
• Wrong sensitivity range: some testers have adjustable sensitivity or range settings; a setting mismatched to the voltage being tested can miss a real reading.
• Testing the wrong point: an NCVT held too far from the conductor, or against thick insulation, may not pick up a field that would register at closer range.

Why False Positives Happen

A false positive, the tester alerting on a circuit that's actually dead, is less dangerous but still worth understanding, since acting on every alert without investigation leads to wasted time or, worse, a habit of dismissing alerts as "probably nothing."

• Induced or "ghost" voltage: a de-energized wire running parallel and close to a live one can pick up a capacitively coupled field from that live wire, registering as voltage even though the wire itself carries no current capable of doing meaningful work.
• Electromagnetic interference: fluorescent ballasts, motors, and other strong EMF sources near the tester can trigger a false alert without any actual voltage present at the test point.

A positive reading always deserves investigation, ideally with a contact-based meter, rather than being assumed to be either definitely real or definitely a ghost reading without checking further.

What an NCVT Cannot Tell You

• It doesn't measure voltage level. An NCVT indicates presence or absence of voltage, not whether that voltage is 12V or 480V; a multimeter is needed for an actual reading.
• It only detects AC voltage. Standard NCVTs don't detect DC voltage, which matters for battery systems, solar installations, and some low-voltage lighting systems.
• It can't confirm a neutral wire is safe. A neutral wire normally reads near 0V but can become energized under certain fault conditions; an NCVT's lack of alert on a neutral shouldn't be treated as an absolute safety guarantee.
• A negative reading is not proof of de-energization on its own. Given the false-negative risks above, a non-contact tester should never be the sole method used to confirm a circuit is safe to touch.

The Correct Verification Sequence for Working on a Circuit

• Turn off the breaker
• Perform the live-dead-live NCVT test as a fast preliminary check.
• Follow up with a contact-rated meter (a multimeter or a two-pole voltage tester) to take an actual voltage measurement between conductors before touching anything.
• Re-verify if anything changes, including moving to a different point in the circuit, taking a break, or any interruption in the work.

Choosing the Right Tester for the Job

Non-contact testers carry a CAT (category) rating that indicates the environment and voltage level they're rated to be used safely around; using a tester rated below the voltage and environment actually being tested is a real safety gap, not just a technical mismatch. For work on service equipment or circuit breakers at the panel level, confirming the tester's CAT rating matches or exceeds the panel's voltage and fault-current environment matters as much as the testing procedure itself.

The Bottom Line

A non-contact voltage tester is a fast, useful first check, but it's only reliable when paired with the live-dead-live procedure: verify the tester works on a known live source, test the target circuit, then verify the tester still works on the known live source again immediately afterward. Shielded conductors, weak batteries, and induced ghost voltage can all produce misleading readings in either direction, which is exactly why an NCVT should never be the sole method used to confirm a circuit is safe to touch. Following up any negative NCVT reading with a proper contact-based meter before working on a circuit is the difference between a genuinely verified de-energized state and one that just looks that way.
