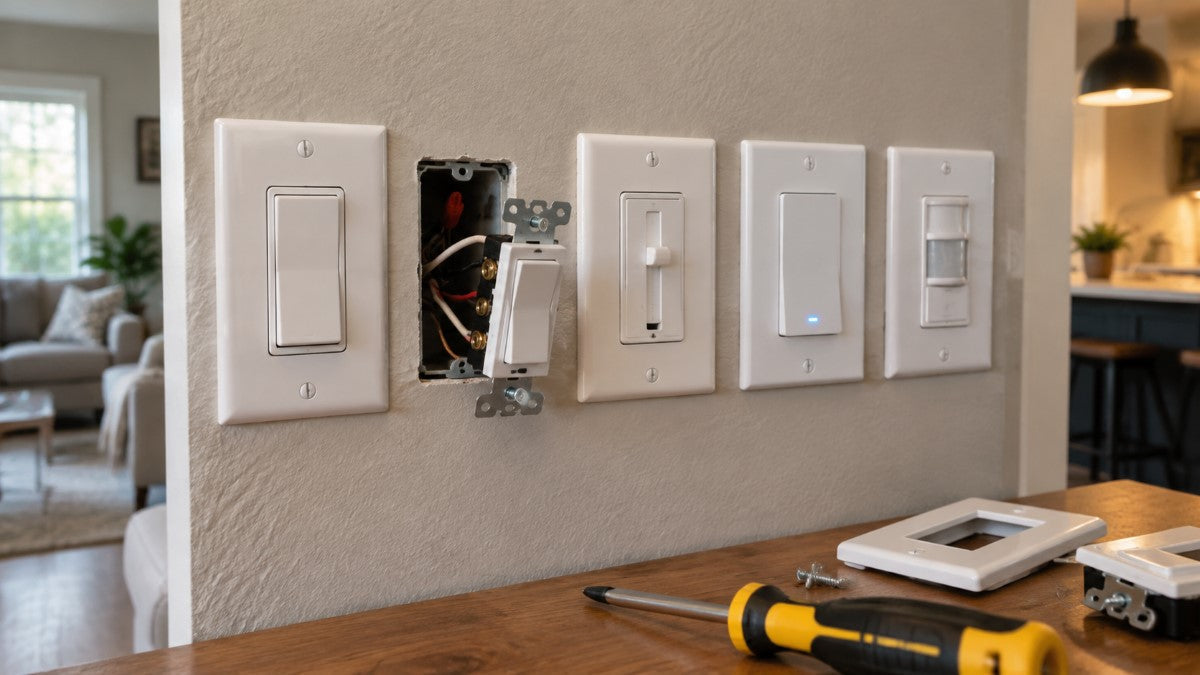

Types of Electrical Switches: How to Choose the Right One

Electrical switches do more than turn a light on and off. The correct switch depends on how many locations control the load, what type of load is being switched, whether dimming or automation is needed, and the electrical ratings of the device. Choosing by appearance alone can leave you with the wrong terminal arrangement or a control that is incompatible with the load.

For product-level selection, Lumera Electric’s switches collection includes standard, 3-way, 4-way, smart, commercial, and specialty controls. The guide below explains what each switch type actually does before you compare finishes or brands.

Electrical Switch Types at a Glance

The most useful way to classify a switch is by circuit function. A toggle, rocker, or decorator face describes the actuator style; single-pole, 3-way, 4-way, and double-pole describe how the device controls the circuit.

1. Single-Pole Switches

A single-pole switch controls one load from one location. It is the standard choice when one wall switch operates one light or one group of lights. A basic mechanical single-pole device has two switched-circuit terminals plus grounding provisions; it opens or closes the ungrounded conductor feeding the load.

A common residential example is a 15 A rocker or toggle switch. Leviton’s single-pole 5601 specifications illustrate why the device markings matter: the manufacturer lists voltage, current, conductor, and termination requirements for the exact model.

Choose single-pole when there is only one control point and no need for multi-location switching. If a second switch must operate the same light independently, a single-pole switch is not the right device.

2. 3-Way Switches

A 3-way switching arrangement controls the same load from two locations. Instead of a simple on/off path, each 3-way switch has a common terminal and two traveler terminals. The two switches route the circuit through one traveler path or the other so either switch can change the state of the light.

Common locations include stairs, hallways, garages with two entries, and rooms with doors on opposite sides. For the wiring layouts, see Lumera’s 3-Way Switch Wiring Diagram Guide.

3. 4-Way Switches

A 4-way switch is used when one light or lighting group must be controlled from three or more locations. It does not replace either end 3-way switch. Instead, the 4-way device sits between the two 3-way switches in the traveler path and changes how the two traveler pairs connect internally.

A standard 4-way switch has four traveler terminals plus grounding provisions and no common terminal. More control locations are added by placing additional 4-way switches between the two end 3-way switches. That topology is the key distinction between a 3-way and a 4-way device.

4. Double-Pole Switches

A double-pole switch operates two circuit conductors together with one handle. These devices are used only where the switch is specifically rated for the circuit voltage, current, and load type. They may appear on certain 240 V loads, motors, heaters, or equipment disconnect applications, but the exact application depends on the equipment and device listing.

Do not assume that a double-pole switch is simply a “stronger” single-pole switch. Its function is different: it opens or closes two poles simultaneously. Match the marked rating to the actual equipment and follow the manufacturer’s wiring diagram.

5. Dimmers

A dimmer controls light output rather than only switching between full output and off. The important selection question is compatibility: the dimmer must be listed for the lamp or driver technology and for the circuit arrangement. An LED lamp marked dimmable can still perform poorly if its driver and the selected dimmer are not compatible.

Multi-location dimming also needs the correct control architecture. Some systems use one 3-way dimmer with a mechanical switch, while others require companion devices. Use the manufacturer’s compatibility documentation rather than assuming any pair of dimmers can share the same 3-way or 4-way circuit.

Lumera’s Single-Pole vs 3-Way vs 4-Way Dimmers guide covers those configurations in more detail.

6. Timer Switches

Timer switches control a load for a set duration or schedule. Countdown timers are useful for bathroom exhaust fans and utility loads because the device can shut the load off automatically after a selected interval. Programmable timers are more appropriate when the load should follow a daily or weekly schedule, such as exterior lighting.

Electronic timers may require a neutral conductor, and their load ratings can differ for LED lighting, motors, fans, or resistive equipment. Check both the wiring requirements and the load category before replacing a mechanical switch with a timer.

7. Occupancy and Vacancy Sensor Switches

Occupancy sensors turn lighting on automatically when motion or presence is detected and turn it off after a programmed period without occupancy. Vacancy sensors usually require a person to turn the light on manually but can turn it off automatically. The better choice depends on the room, code requirements, user behavior, and whether automatic-on operation is desirable.

Sensor technology also matters. Passive infrared sensors respond to changes in infrared energy, ultrasonic sensors detect movement with reflected sound, and dual-technology controls combine sensing methods. Coverage pattern and mounting location can matter as much as the switch itself.

In a 2019 applications guide for federal facility managers, the U.S. Department of Energy reported that lighting accounted for about 20% of commercial-building energy use and summarized occupancy-sensor lighting savings ranging from 10% to 90% depending on room type and usage. Those figures are not a promise for every project, but they show why sensor controls are more than a convenience feature in spaces with intermittent occupancy. DOE/FEMP source.

8. Smart Switches

A smart switch adds electronic control such as schedules, scenes, app access, voice integration, or automation. Unlike a smart bulb, the wall device remains the control point for the circuit, which can be useful when several fixtures are operated together.

Before buying, verify neutral requirements, wireless protocol, supported load types, multi-location configuration, minimum or maximum load, and whether the device needs a companion switch. “Smart” describes the control features; it does not override the electrical ratings of the switch.

9. Specialty Switches and Controls

Several other switches solve specific control problems. Fan controls are designed for compatible ceiling-fan motors, illuminated or pilot-light switches provide visual indication, momentary switches return to their normal position after release, and combination devices place two controls in one yoke. Commercial and industrial installations also use switches with heavier-duty ratings or specialized enclosures.

The right specialty device is determined by the load and the control requirement, not by whether it physically fits the wall box.

How to Choose the Right Electrical Switch

Work through the circuit requirements in this order before comparing styles or finishes:

1. Count control locations. One location usually means single-pole; two use 3-way switching; three or more use two 3-way switches with one or more 4-way switches between them.
2. Identify the load. Lighting, fans, motors, heaters, and electronic drivers can have different control requirements.
3. Match voltage and current ratings. Use the device only within its marked electrical ratings.
4. Check whether the control needs a neutral. Many electronic timers, sensors, and smart switches do; many basic mechanical switches do not.
5. Confirm dimming or fan-speed compatibility. A general light dimmer is not a substitute for a fan-speed control.
6. Verify location and enclosure requirements. Damp, wet, outdoor, or industrial locations may require devices and covers listed for those conditions.

Common Switch Selection Mistakes

Electrical Switch Safety

Switch replacement involves line voltage. Turn off the circuit breaker, verify the circuit is de-energized with an appropriate tester, and remember that a multi-gang box can contain more than one circuit. Do not identify line, travelers, or load conductors by color alone, especially in older or modified wiring.

If the box contains damaged insulation, overheating, aluminum branch-circuit wiring, an unfamiliar multi-wire arrangement, or conductors that cannot be positively identified, stop and have a qualified electrician evaluate the circuit. Always follow the device instructions and the electrical code adopted by the local jurisdiction.
