3-Way Switch Wiring Diagram: How to Wire Two Switches to One Light

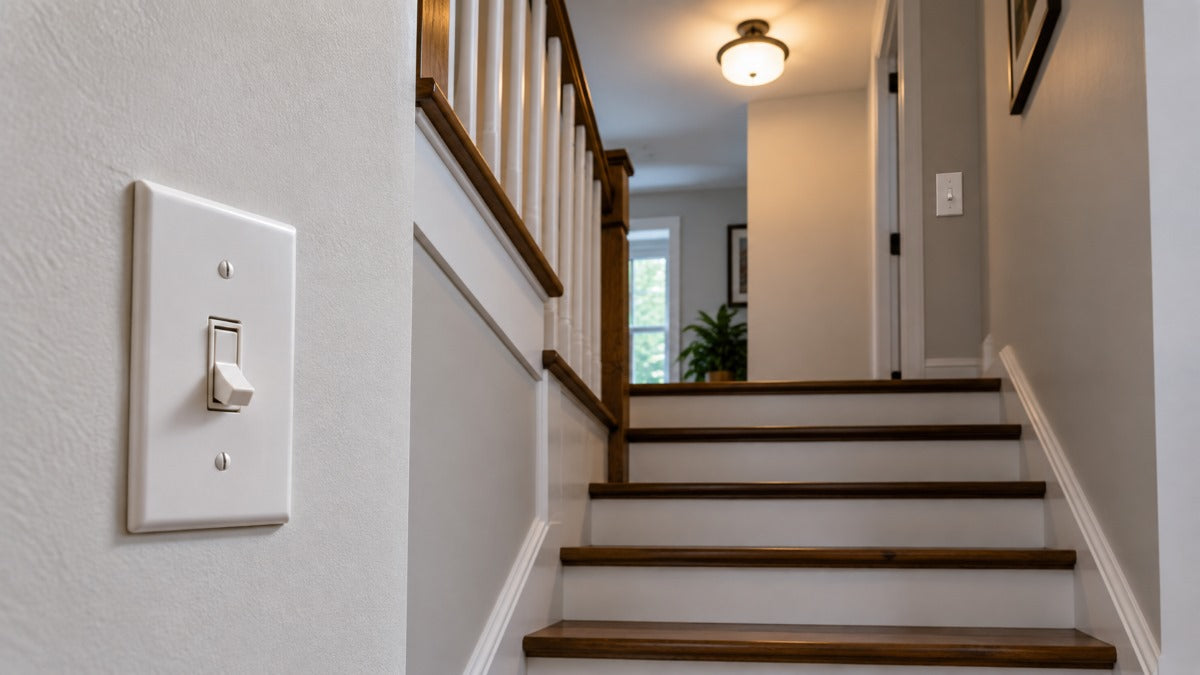

A stairway light that only turns off from the bottom step is a daily hazard, and a replaced switch that works only when the other switch sits in one position is a frustrating end to a simple job. Both problems have the same answer. In a 3-way circuit, the incoming hot conductor connects to the common terminal of one switch, two traveler conductors join the brass terminals of both switches, and the common terminal of the second switch feeds the light. The neutral never connects to a standard 3-way switch.

The work involves line voltage, so turn off the breaker, prove the circuit is dead, check whether the job needs an electrical permit, and call a licensed electrician if any connection is unclear. This guide does not replace the code text, local amendments, or the device instructions.

What Is a 3-Way Switch and How Does It Work?

A 3-way switch is a single-pole, double-throw (SPDT) switch that routes power down one of two paths instead of simply opening a circuit. A pair of them controls one light, or one group of lights, from two places, such as both ends of a hallway, the top and bottom of a stairway, or two doors into a garage.

Each 3-way switch has three terminals plus a green grounding screw. The common terminal, usually a darker screw and often marked COM, takes either the incoming hot conductor or the conductor that feeds the light, while the two brass screws take the travelers. A 3-way switch carries no ON or OFF marking because it can be on or off in either toggle position. Lumera Electric's standard switches include residential and commercial grade 3-way toggle and decorator models.

Inside the switch, the common terminal connects to one traveler terminal in one toggle position and to the other in the opposite position. The light is on when both switches connect their common terminals to the same traveler. Flip either switch and power shifts to the other traveler, which dead ends at the opposite switch, so the light goes off. That is also why the two travelers can go on either brass screw.

3-Way Switch Wire Colors, Cable, and Terminal Connections

In a typical installation with nonmetallic sheathed cable (Type NM-B), two-conductor cable brings power to the first switch box, three-conductor cable runs between the switches, and two-conductor cable carries switched power to the light. The black and red conductors between the switches usually serve as travelers, but color is a convention, not proof. The table shows each conductor's role in Diagram 1.

Conductor size follows the breaker: the minimum is 14 AWG copper on a 15A circuit and 12 AWG copper on a 20A circuit, a pairing explained in the guide to choosing between 12 and 14 gauge wire. The switch's ampere rating also has to cover the load it controls.

3-Way Switch Wiring Diagrams for the Three Most Common Layouts

The right diagram depends on which box the incoming power enters and where the light sits along the cable run, so find the box with the incoming line before disconnecting anything. In every layout, one switch's common terminal connects to power, the other's connects to the light, and the travelers join the brass screws.

Diagram 1: Power at the First Switch, Light After the Second Switch

This is the simplest layout to wire and inspect, because both switch boxes get a neutral and no conductor changes roles. Two-conductor NM-B cable feeds switch box 1, three-conductor cable runs to switch box 2, and two-conductor cable continues to the light.

• Switch box 1: incoming black to COM, black and red travelers to the brass screws, whites spliced together, and grounds pigtailed to the green screw.
• Switch box 2: travelers to the brass screws, the black conductor headed to the light on COM, and the whites and grounds spliced.
• Light box: black to the fixture hot lead, white to the neutral lead, and the ground to the fixture ground.

Diagram 2: Power at the Light Fixture

When the circuit feeds the ceiling box first, the switches form a loop off the light. Three-conductor cable runs to switch box 1 and four-conductor cable (black, red, blue, white) runs to switch box 2, so both switch boxes have a neutral and no white conductor carries switched power.

• Light box: incoming black spliced to the black headed to switch box 1, the returning red spliced to the fixture hot lead, and whites and grounds spliced with the fixture leads.
• Switch box 1: black to COM, the black and red of the four-conductor cable to the brass screws, blue spliced to the red that returns to the light, and whites and grounds spliced.
• Switch box 2: black and red to the brass screws, blue to COM, and the white neutral capped for a future electronic control.

Diagram 3: Light Fixture Between the Two Switches

When the light sits between the switch locations, the travelers pass through the ceiling box. Power enters switch box 1, three-conductor cable runs to the light, and four-conductor cable runs on to switch box 2.

• Switch box 1: incoming black to COM, black and red to the brass screws, whites spliced, and grounds pigtailed to the green screw.
• Light box: black spliced to black and red to red so the travelers continue, blue spliced to the fixture hot lead, and whites and grounds spliced with the fixture leads.
• Switch box 2: black and red to the brass screws, blue to COM, and the white neutral capped.

Existing homes may have an older version of Diagrams 2 and 3 built only with three-conductor cable, where a white conductor wrapped in black or red tape carries power and a switch box has no neutral. Wiring also gets altered over the years, so identify conductors by testing and by cable route, never by color alone.

Any layout can control several fixtures: run two-conductor cable from the first fixture box to the next, splice switched hot to switched hot and neutral to neutral, and keep the total load within the switch rating and each box within its volume limit.

How to Wire a 3-Way Switch, Step by Step

To wire a 3-way switch, shut off and verify power, identify the line, load, and traveler conductors, connect them to match your layout, and test every switch combination. Have two switches marked for 3-way use, correctly sized cable, wire connectors, a non-contact tester, a contact voltage tester, and a torque screwdriver on hand.

1. Turn off the breaker and verify every box is dead. Test each conductor in both switch boxes and the light box, since one box can hold more than one circuit. Use the live, dead, live check from the guide to using a non-contact voltage tester, then confirm with a contact tester.
2. Mark the common conductor before removing an old switch. Tape the conductor on each COM screw and photograph both boxes. If nothing was marked, finding the line and load conductors requires testing an energized circuit, which is a job for a licensed electrician.
3. Make up the connections. Splice the whites and grounds first, then land the travelers on the brass screws and the line or load conductor on COM, following the matching diagram.
4. Terminate each conductor properly. Strip insulation to the switch's strip gauge and wrap solid wire clockwise under the screw. Push-in holes are commonly limited to 14 AWG solid copper, so check the instructions, and when they list a torque value, NEC Section 110.14(D) requires reaching it with an approved means such as a torque screwdriver.
5. Check box fill before closing up. Under NEC Section 314.16, each 14 AWG conductor needs 2.00 cubic inches. A switch box with one 14/2 and one 14/3 cable counts five conductors, one allowance for up to four grounds, and two for the switch, or 16.0 cubic inches, so a 14.0 cubic inch box fails. Internal cable clamps add one allowance. Replace an undersized box with a larger electrical box.
6. Mount, cover, and test. Mount the switch, install the wall plate, restore power, and test all four switch combinations. Each switch should turn the light on and off regardless of the other switch's position.

Why Tight, Correct Switch Connections Matter

A loose or miswired switch connection is a fire risk, not just an annoyance. NFPA's February 2022 report estimated that US fire departments responded to an average of 32,620 home fires per year from 2015 through 2019 involving electrical distribution and lighting equipment. Wiring and related equipment, a category that includes wall switches, receptacles, and branch circuit wiring, accounted for 68 percent of them, and arcing was the heat source in 73 percent of all those fires. The warning signs are covered in the guide to electrical fire causes and prevention.

NEC Rules That Shape 3-Way Switch Wiring

Three NEC requirements drive most 3-way wiring decisions: switch only the hot conductor, provide a neutral at lighting switch locations, and reidentify any white conductor used as a hot. The edition that applies depends on local adoption, as the overview of the National Electrical Code explains, and the section numbers below follow the 2023 NEC.

The 2026 edition moves the rules for snap switches, dimmers, and electronic control switches into a new Part III of Article 406, Sections 406.30 through 406.40, without changing the requirements, according to an IAEI analysis of the 2026 changes.

Switch only the hot conductor. Section 404.2(A) requires all 3-way and 4-way switching to be done in the ungrounded conductor. That rules out an old arrangement sometimes called a Carter system, where the travelers carry hot and neutral and a fixture's screw shell can stay energized with the light off. If testing shows a switch connecting a fixture to neutral, have the circuit rewired.

Provide a neutral at the switch location. Section 404.2(C), first added in the 2011 edition, requires the neutral at switch locations controlling lighting in bathrooms, hallways, stairways, and rooms suitable for habitation or occupancy, because electronic controls need it. Where switches in several locations control the same lighting and the whole floor area is visible from them, one location is enough. Exceptions include certain raceway installations and boxes reachable without removing finish materials.

Reidentify white conductors used as hots. Section 200.7(C)(1) requires permanent marking in a color other than white, gray, or green at every termination and wherever the conductor is visible. In a switch loop, a reidentified white may supply the switch but may never return switched power to the light.

Adding a Dimmer or Smart Switch to a 3-Way Circuit

A 3-way circuit can take a dimmer rated for 3-way or multi-location use, and a conventional 3-way dimmer usually pairs with a standard 3-way switch or a matching companion device rather than a second dimmer. Working combinations are explained in the guide to single-pole, 3-way, and 4-way dimmers.

Smart controls follow the same logic. Many systems replace the second switch with a wireless remote or accessory switch, and many smart devices need a neutral at the main location, which the diagrams above provide. Follow the product's 3-way instructions before choosing among smart switches.

3-Way Switch Troubleshooting: Common Symptoms and Causes

Most 3-way problems trace back to the common conductor landing on a traveler terminal at one switch. Turn off the breaker before opening any box, then use the table to narrow down the cause.

If the breaker keeps tripping or the wiring matches no diagram, stop moving conductors by trial and error and have a licensed electrician trace the circuit.
