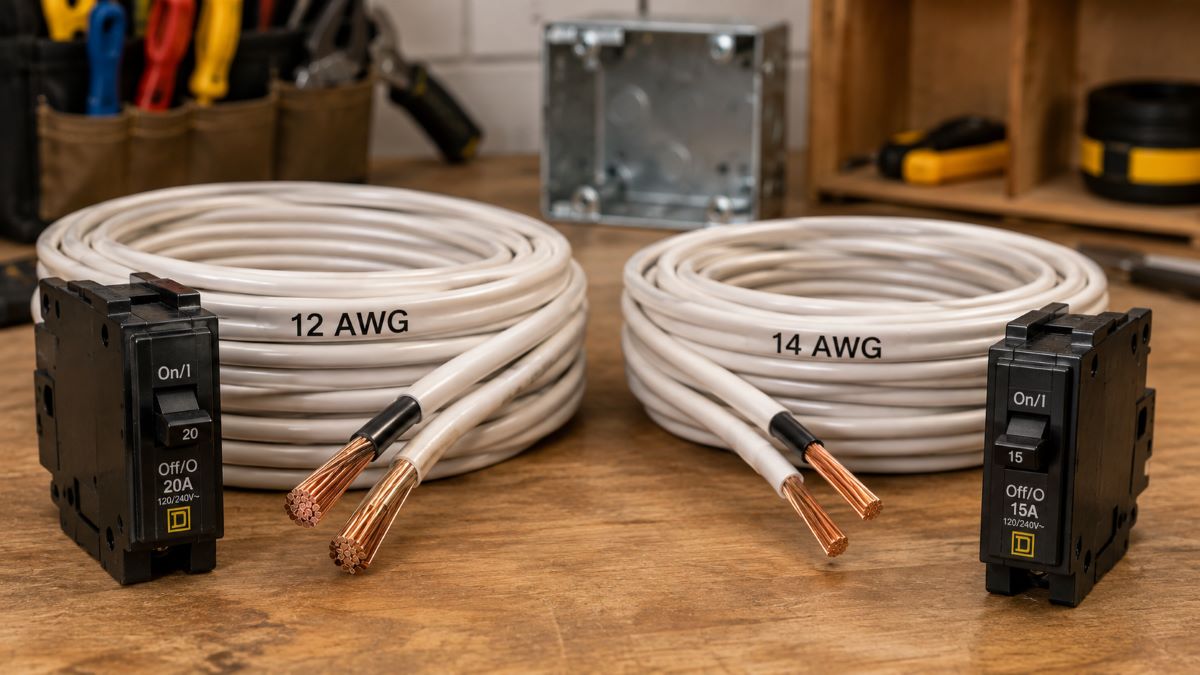

12 vs 14 Gauge Wire: When to Use Each

Choosing between 12 and 14 gauge wire is one of the most common decisions in residential wiring, and it comes down to one hard safety rule plus a few practical judgment calls. Get the match between wire gauge and circuit breaker wrong and you've created a fire hazard; get it right and the rest is about cost, workability, and planning ahead. This guide explains when to use each, why certain circuits legally require one over the other, and the mixing mistake that trips up even experienced DIYers. Everything here assumes copper wire, which is standard for residential branch circuits.

The One Rule That Matters

Start with the principle that governs everything: the breaker protects the wire, so the wire gauge must always match or exceed the breaker's rating. In copper, 14 AWG is rated for 15 amps and 12 AWG for 20 amps. That gives one absolute rule and one useful freedom. The rule: 14-gauge wire must only ever be on a 15-amp breaker, never a 20-amp one, because on a 20-amp breaker the thinner wire can overheat before the breaker trips, which is exactly how electrical fires start, and it's a code violation. The freedom: you can always use thicker wire than required, so 12 AWG on a 15-amp circuit is perfectly fine. You can go heavier, never lighter. (A quick reminder on the counterintuitive AWG system: the smaller the number, the thicker the wire, so 12 is thicker than 14.)

Ampacity at a Glance

When to Use 14 Gauge (15 Amps)

Fourteen-gauge wire on a 15-amp breaker is the workhorse of low-demand circuits. It's the standard, cost-effective choice for general lighting, smoke detectors, and receptacles in low-draw areas such as bedrooms, living and family rooms, and hallways. These circuits rarely approach 15 amps, so the thinner, cheaper, easier-to-handle wire is entirely appropriate. In many homes, lighting and bedroom outlet circuits are wired in 14/2 on 15-amp breakers as a matter of course, and there's nothing wrong with that.

When to Use 12 Gauge (20 Amps)

Twelve-gauge wire on a 20-amp breaker is required by code in the higher-demand areas of a home, and this is not optional. The National Electrical Code mandates 20-amp circuits, and therefore 12 AWG wire, for kitchen countertop small-appliance circuits (210.52), bathroom receptacle circuits, laundry circuits, and typically garage, outdoor, and dining-room receptacles. Dedicated circuits for appliances like dishwashers and garbage disposals also commonly use 12 AWG. These locations are designated 20-amp minimum precisely because they serve high-draw devices, countertop appliances, hair dryers, power tools, that would overwhelm a 15-amp circuit.

The Long-Run Exception: Voltage Drop

Here's the case where you'd choose 12 gauge even when 14 would carry the load: long wire runs. Over distance, a wire's resistance causes voltage to drop, and 14 AWG, being thinner, has higher resistance and greater drop than 12 AWG. The NEC recommends keeping branch-circuit voltage drop under about 3 percent, and as a rough guide a 120-volt circuit approaches that limit somewhere around 50 to 60 feet. For a long run, to a detached garage, a shed, or the far end of a large house, stepping up to 12 AWG even on a 15-amp circuit keeps the voltage stable, so lights don't dim and tools don't underperform at the end of the run. Distance, not just amperage, can justify the heavier wire.

The Mixing Rule (Don't Get This Wrong)

This is where dangerous mistakes happen. On a 20-amp circuit, every inch of wire must be 12 AWG. You cannot splice in a length of 14-gauge wire, not even a short jumper, because that thinner section becomes the weak link that can overheat before the 20-amp breaker ever trips. If any part of a circuit is 14 AWG, the whole circuit is limited to a 15-amp breaker. The reverse is fine: on a 15-amp circuit, 12 and 14 gauge can coexist, since the 12 AWG is simply thicker than it needs to be, but the breaker must stay at 15 amps as long as any 14-gauge wire is present. When in doubt, check the thinnest wire in the circuit, because it sets the ceiling.

Cost, Workability, and Box Fill

The practical trade-offs favor 14 gauge where it's allowed. Twelve-gauge wire costs more, is noticeably stiffer and harder to bend and terminate, and takes up more room in a box (the code counts a 12 AWG conductor as 2.25 cubic inches against 2.00 for 14 AWG), so it fills an electrical box faster. Some 15-amp-rated switches and receptacles won't even accept 12 AWG on all their terminals, which forces you to pigtail down to a shorter lighter lead with a wire connector. None of this makes 12 gauge wrong, it just means there's a real cost and effort penalty to using it where 14 would do the job.

Should You Just Use 12 Everywhere?

Some electricians wire an entire house in 12 AWG, and there's a reasonable argument for it. Running 12-gauge on 15-amp circuits future-proofs the home: you can later upgrade a circuit to 20 amps just by changing the breaker, with no rewiring, and you get lower voltage drop and a single wire type to stock. The counterargument is the one above, higher cost, stiffer and slower installation, and faster box fill. Both approaches are valid and code-compliant. A common middle path is to wire lighting circuits in 14 AWG to save cost and effort and run all receptacle circuits in 12 AWG for flexibility, which balances the two considerations well.

A Note on Aluminum

One important caveat: these ampacity ratings are for copper wire. Aluminum has lower conductivity, so it needs a larger gauge to carry the same current, meaning aluminum 12 AWG is not equivalent to copper 12 AWG. Confusing the two is a genuine hazard, so if you're working with aluminum branch wiring, don't apply copper gauge rules to it. The differences between the two metals are covered in our comparison of aluminum and copper wiring.

The Bottom Line

The choice between 12 and 14 gauge wire rests on one rule and a few judgment calls. The rule: 14 AWG copper is limited to 15-amp breakers and 12 AWG to 20 amps, you can always go thicker but never thinner, and 14 gauge on a 20-amp breaker is a fire hazard. Use 14 AWG for lighting and low-draw receptacles, and 12 AWG where code requires 20-amp circuits, kitchens, bathrooms, laundry, garages, and outdoors, or for long runs where voltage drop matters. Never splice 14 into a 20-amp circuit, weigh the cost and box-fill penalty of 12 against its future-proofing benefit, and always confirm you're using copper gauge rules on copper wire. For panel work and new circuits, bring in a licensed electrician.
