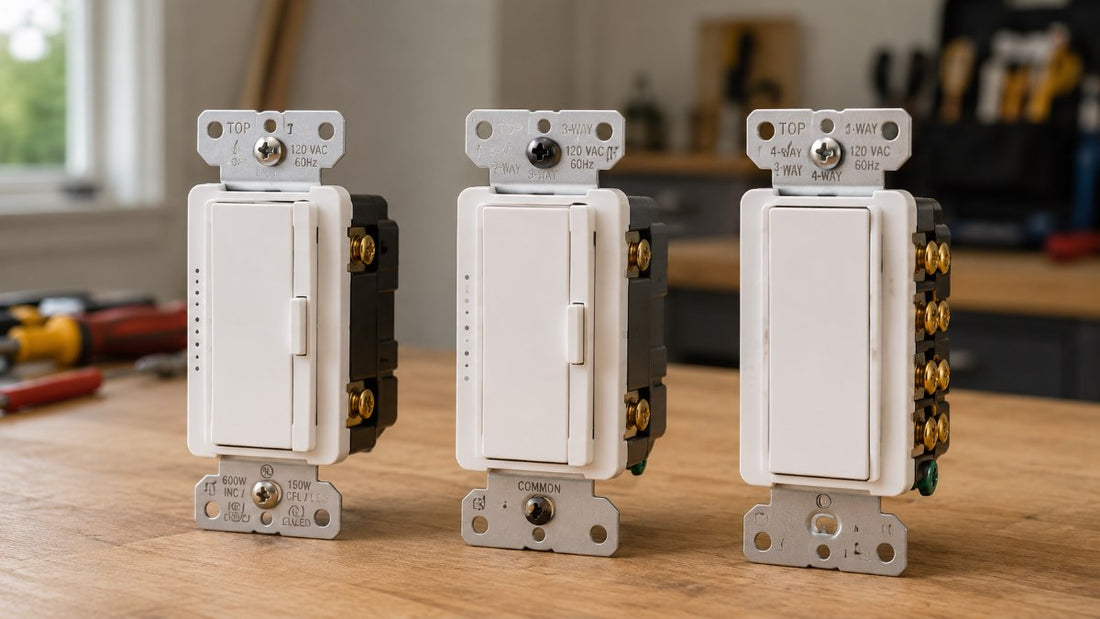

Single-Pole vs 3-Way vs 4-Way Dimmers
The right dimmer depends on one simple question that has nothing to do with wattage or bulb type: how many switch locations control this light? A single-pole dimmer works when only one switch controls the fixture. A 3-way setup, common in hallways and stairwells, needs a dimmer at one location and a matching companion switch at the other. Four or more locations add 4-way switches into the mix. Getting this wrong is one of the most common dimmer-buying mistakes, and unlike a load-compatibility issue, it isn't something a stronger dimmer can fix. This guide covers how to identify which setup a fixture actually has and how each configuration is wired.
How to Tell Which Setup You Have
- Count the switches that control the same light. One switch means single-pole. Two switches means a 3-way circuit. Three or more means a 4-way circuit, with 4-way switches added between the two 3-way switches at the ends.
- Check the terminal count and labeling. A single-pole switch has two terminals (plus ground) and is typically labeled ON/OFF. A 3-way switch has three terminals, one common (often a darker screw) and two travelers, with no ON/OFF label since its position alone doesn't determine the light's state. A 4-way switch has four traveler terminals and also carries no ON/OFF label.
Single-Pole, 3-Way, and 4-Way at a Glance
|
Factor |
Single-Pole |
3-Way |
4-Way |
|---|---|---|---|
|
Number of switch locations |
1 |
2 |
3 or more |
|
Terminals on the switch |
2 (plus ground) |
3: 1 common + 2 travelers |
4 travelers |
|
ON/OFF label present |
Yes |
No |
No |
|
Where it's used |
Bedrooms, bathrooms, single-entry rooms |
Hallways, stairwells, rooms with two entrances |
Long hallways or rooms with 3+ entrances |
|
Can a dimmer go at every location? |
N/A (only one location) |
Not with two standard dimmers |
Not with standard dimmers at multiple points |
Why You Can't Just Install Two Dimmers in a 3-Way Circuit
This is the single most common mistake in multi-location dimming, and it causes real, confusing symptoms: flickering, buzzing, or lights that behave erratically depending on which switch was used last. Two standard dimmers, each trying to independently control the same load through the shared traveler wires, conflict with each other rather than cooperating, since each one is simultaneously attempting phase-control dimming on the same circuit. The traditional, reliable fix is a master/companion setup: install one 3-way dimmer at one location, which does the actual dimming, and keep the other location as a standard 3-way on/off switch that only turns the light on or off at whatever level the dimmer last set.
Wiring a 3-Way Dimmer Circuit
A 3-way circuit always starts and ends with a 3-way device, with the dimmer at either end:
- The "common" terminal on the switch nearest the power source (panel) receives the incoming hot wire.
- The "common" terminal on the switch nearest the light sends the switched power out to the fixture.
- The two "traveler" wires run between the two switch locations, connecting each switch's traveler terminals to the other's.
- Only one of the two devices in this pair should be the dimmer; the other remains a standard 3-way on/off switch.
Wiring a 4-Way Circuit
For three or more locations, a 4-way switch is added between the two 3-way switches at either end, acting as a crossover point for the traveler wires. Additional locations beyond four total switches simply mean adding more 4-way switches into that middle chain; the two ends of the circuit are always 3-way switches, and everything in between is 4-way. As with a 3-way circuit, only one device in the entire chain should be the dimmer, typically placed at one of the two 3-way positions at the ends, with every other location remaining standard on/off switches.
A 3-Way Dimmer Can Also Work as a Single-Pole Switch
If a project uses one dimmer model across both single-pole and 3-way locations to simplify purchasing, a 3-way dimmer can be wired to function as a single-pole device: connect the hot wire to the common terminal, connect the load wire to one of the two traveler terminals, and cap off the unused traveler wire with a wire nut. Wired this way, the 3-way dimmer operates correctly as a single-pole control, which means a single SKU can cover both scenarios on a project without needing to stock two separate dimmer types.
Multi-Location Dimming Without Traditional 3-Way Wiring
Smart dimmers offer an alternative path to multi-location control that doesn't rely on traditional traveler wiring at all. A smart dimmer installed at one location can be paired wirelessly with a battery-powered accessory remote mounted at the second location; the second location's original switch wiring is simply capped off (left permanently energized) and the remote is mounted over the now-inactive switch box. This approach is often the easiest retrofit option in older homes that lack a neutral wire at the second switch location, since the remote doesn't need line-voltage wiring at all, only a battery.
The Bottom Line
Choosing between single-pole, 3-way, and 4-way dimmers comes down to counting how many locations control the light, then wiring so exactly one dimmer does the actual dimming while every other location stays a standard on/off switch. Two standard dimmers wired into the same multi-location circuit will conflict rather than cooperate, producing flickering or erratic behavior that's easy to misdiagnose as a bad dimmer rather than a wiring configuration issue. For retrofits where running new traveler wire isn't practical, a smart dimmer paired with a wireless accessory remote at the second location sidesteps the traditional wiring requirement entirely.
