Matching a Standard Dimmer to the Lamp and the Switching
A standard dimmer is a forward phase, line voltage control, the kind
that trims the front edge of each power cycle, and the whole purchase
turns on whether the lamp overhead accepts that trim gracefully. LED
loads are why the words on these listings matter, since an LED or
LED/CFL marking is the difference between smooth response and a ceiling
that stutters.
So start from the bulb, not the wall. The dimmable lamps this page pairs with live in A19 lamps,
and the habit that prevents returns is checking a lamp against the
dimmer maker's compatibility list before buying either one in quantity.
Ratings, Derating, and the Flicker Question
Watt ratings on dimmers were written for incandescent heat, and the
same device carries a far lower ceiling for LED load, so read the LED
figure on each listing instead of dividing by guesswork. Loading a
dimmer lightly is free insurance, and the listed minimum load matters at
the other extreme, since a single small LED can sit below what the
electronics need to regulate.
Low end flicker usually traces to one of those mismatches rather than
a defect. The fix order is short: confirm the lamp is dimmable at all,
confirm the pairing on the compatibility list, then set the low end trim
where the model provides one.
Single Pole, 3-Way, and the Forms on the Wall
The titles state the wiring plainly, single pole for one control
point and 3-way for two, and the rule that saves callbacks is that a
standard 3-way pair gets exactly one dimmer, with an ordinary switch at
the far end, because two phase cut controls fighting over one load is a
flicker machine by design.

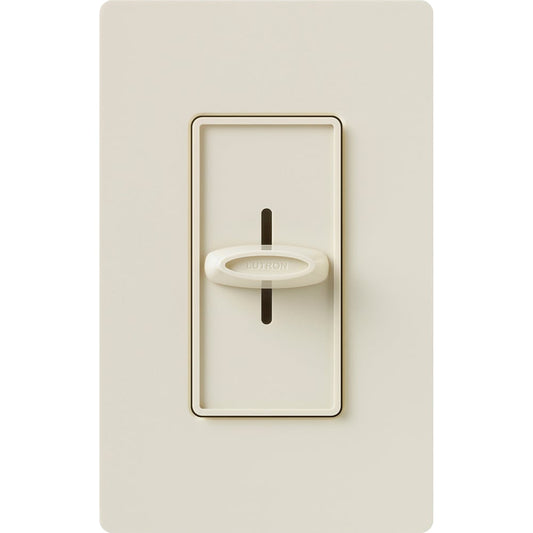

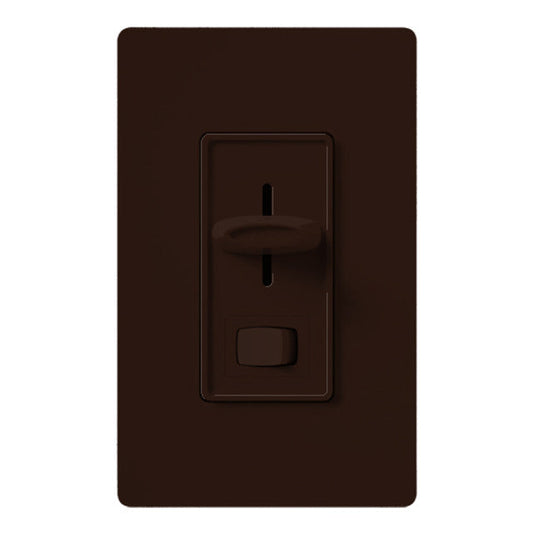

Form is comfort as much as function. A slide with its own on and off
switch returns to the same level every time, a paddle reads like the
rest of a modern device row, and the dual slider versions here run two
separate loads from a single gang position, a quiet space saver on
crowded walls.

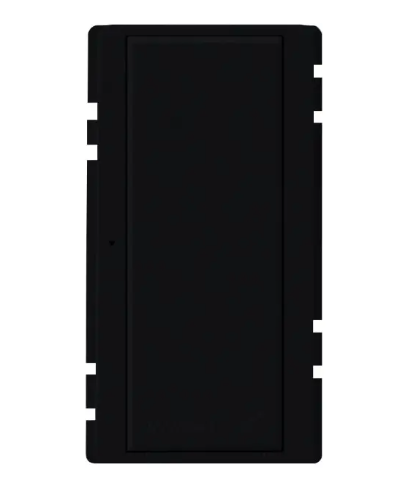

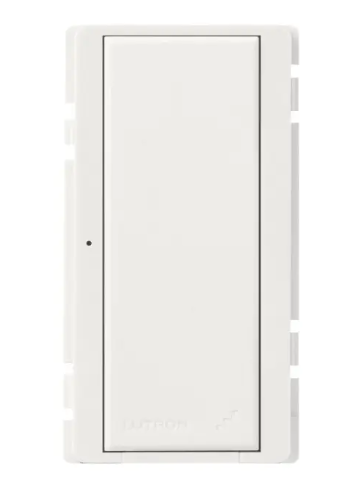

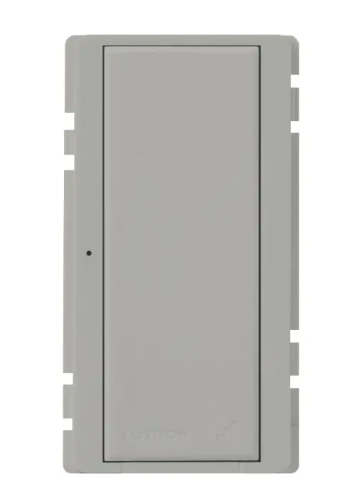

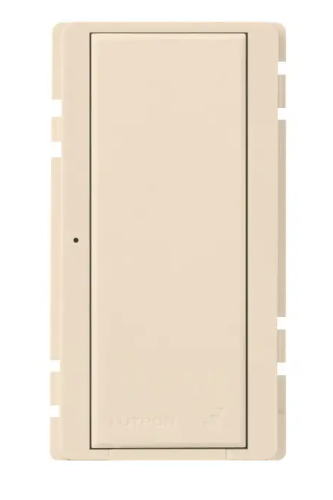

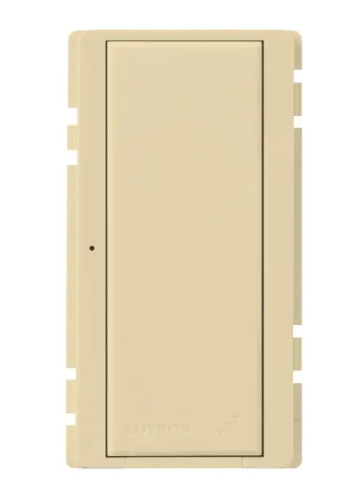

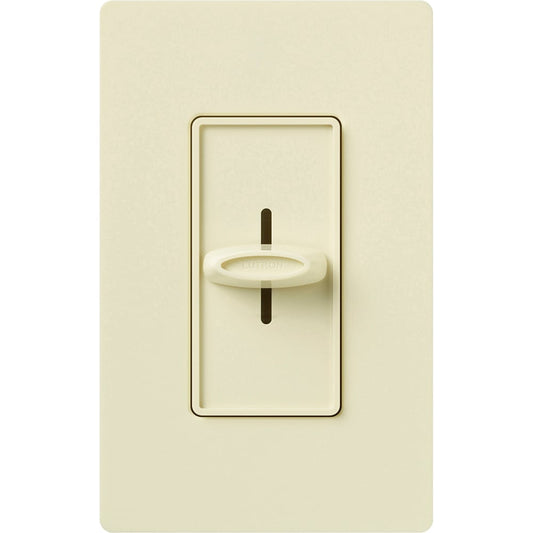

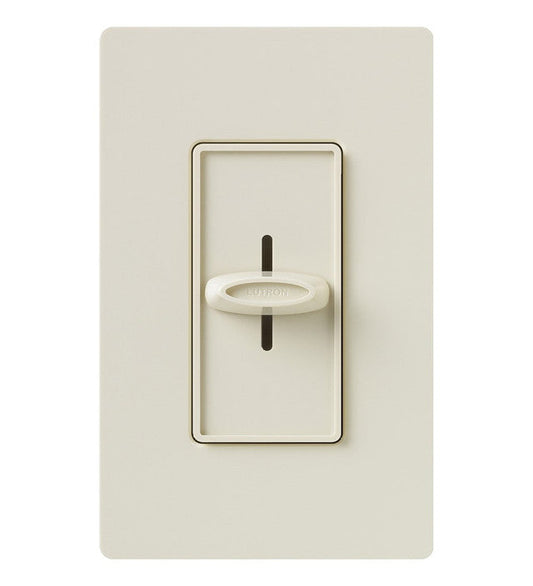

Faces come in white, ivory, light almond, black, and gray so the row
can match end to end, and the plate that finishes it comes from wall plates in the same finish.
What Routes to the Sibling Collections
Standard means forward phase, and some loads want the opposite.
Electronic low voltage transformers and drivers that specify reverse
phase, and any fixture calling for a 0-10V control pair, belong with the
ELV and 0-10V dimmers
instead of anything here. The one exception on this page is the 12V
slide model, a direct low voltage dimmer for small niche loads.
App control, scenes, and added wireless points move the purchase to smart and wireless dimmers, while everything in this collection works the day the power comes on, with no pairing step and nothing to update.
The fan combos on page one make one boundary visible: their fan side
is a true 3-speed control, because a light dimmer must never be pressed
into varying a fan motor, and the dedicated speed controls live in ceiling fan controls.
Every device here lands on house wiring, so installation, and
especially sorting out a 3-way's travelers, is a licensed electrician's
call.
Standard Dimmer Questions
Can I put a dimmer at both ends of a 3-way?
Not with standard phase cut models. The pair works as one dimmer plus
one plain 3-way switch, so the level is set from a single location and
toggled from both. Dimming from every point is a feature of listed
multi-location systems, which is smart dimmer territory.
Why do my LEDs flicker near the bottom of the slide?
Almost always compatibility rather than a bad device. Confirm the
lamp is marked dimmable, check the exact lamp on the dimmer's published
list, and raise the low end trim if the model has the adjustment. A load
below the dimmer's minimum produces the same symptom.
How many LED fixtures can one dimmer run?
Count fixtures times lamp wattage and keep the total under the LED
rating printed on that specific listing, with margin to spare. The
larger incandescent number on the same device is not the budget for LED
load and is the most common sizing mistake in this aisle.
Can the fan and dimmer combo replace a fan speed control?
The combo already contains one, which is the point: its fan half is a
real 3-speed control and its dimmer half touches only the light kit.
What never works is wiring a plain lighting dimmer to a motor, so a fan
without a light still needs a dedicated speed control.
