Straps & Supports

How to Choose Electrical Straps & Supports

Electrical straps and supports should be selected from the raceway, cable, or equipment they carry. Start with the wiring method and trade size or outside dimension, then determine how the run will attach to the building structure. Mounting surface, installed load, orientation, environmental exposure, and support spacing all affect the final choice. A strap that physically closes around a conduit is not automatically suitable for that raceway, location, or support condition.

• Direct attachment of compatible conduit to a wall or framing surface: use an appropriately sized one-hole or two-hole strap.
• Need offset, standoff, or a more complex mounting point: compare brackets, clamps, or channel-based supports.
• Supporting equipment or raceway above a roof surface: use a purpose-built roof support where its application matches the installation.
• Need the connectors and couplings for the same run: coordinate with conduit fittings and connectors.

Start With the Raceway or Cable Type

Support hardware isn't universal across every wiring method. EMT, rigid conduit, flexible raceway, cable assemblies, and other systems can use different support products and installation requirements. The first step is identifying exactly what the support will carry.

Trade size matters too. A strap designed around one conduit diameter should not be tightened around a smaller raceway or forced over a larger one. The support has to engage the run as intended without crushing, distorting, or leaving it loose.

Decision rule: establish the wiring method and trade size before choosing the strap, hanger, clamp, or bracket. Don't select from appearance alone.

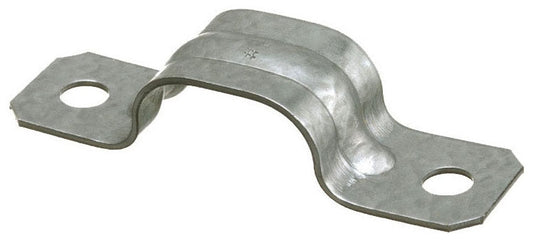

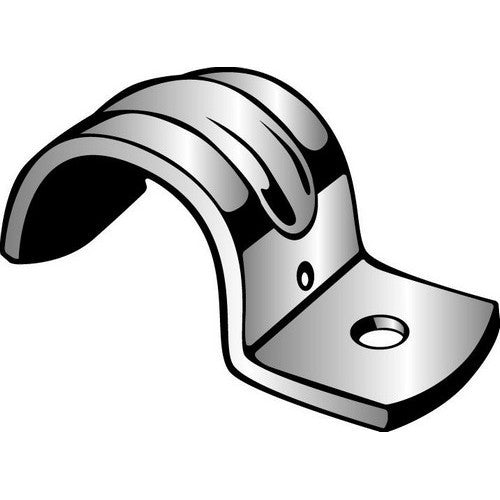

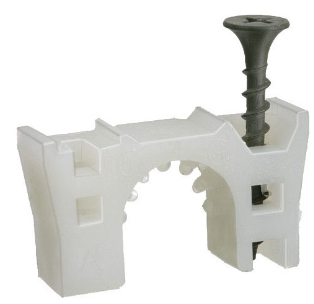

One-Hole vs. Two-Hole Conduit Straps

One-hole and two-hole straps both provide direct surface support, but their mounting patterns differ. A one-hole strap uses a single fastener and can simplify repetitive runs where that support style is permitted. A two-hole strap provides two fastening points and requires enough mounting surface for both holes.

The second hole should not be treated as proof that a strap is automatically stronger for every installation. Material, geometry, fasteners, substrate, and the product's intended application all contribute to support performance.

Decision rule: choose the strap pattern that matches the wiring method, support requirement, surface, and manufacturer's application data rather than assuming one style is universally preferable.

Match the Support to the Mounting Surface

The support and the structural fastener solve two different problems. The strap or bracket carries the raceway; the screw, bolt, or anchor transfers that load into concrete, masonry, steel, wood, or another supporting surface.

A strap mounted to wood framing may use a different fastener than the same strap attached to concrete. Overhead support also creates a different loading condition from a wall-mounted run, so the attachment method needs to suit both the substrate and load direction.

Decision rule: select the support first from the raceway or cable, then choose the attachment from the structure. For concrete, masonry, or hollow-wall installations, use compatible anchors rather than treating the strap fastener as an afterthought.

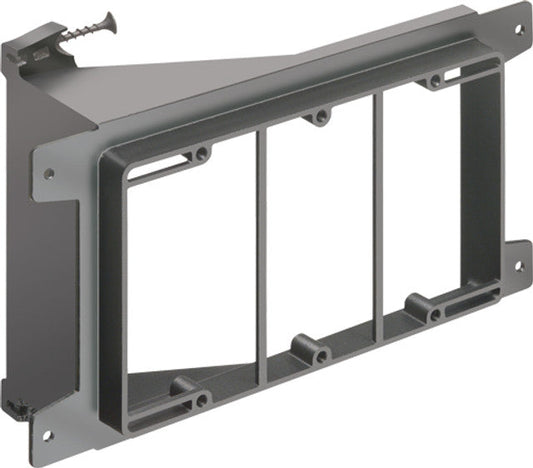

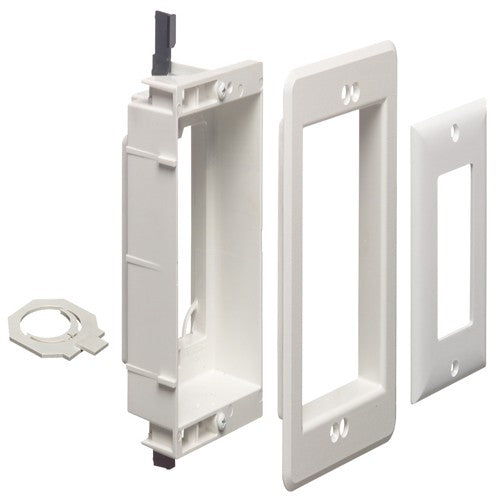

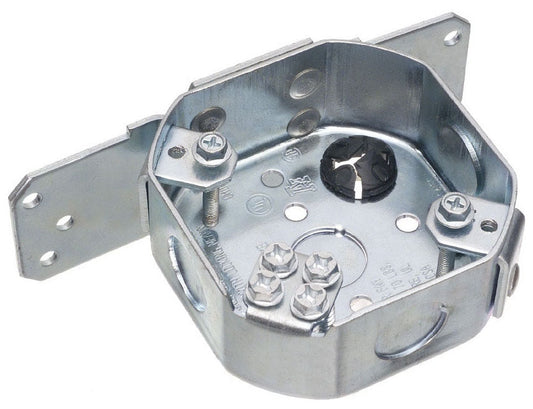

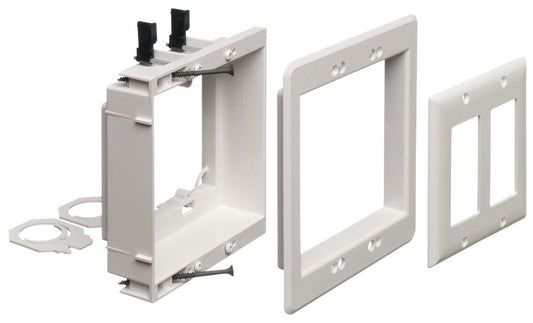

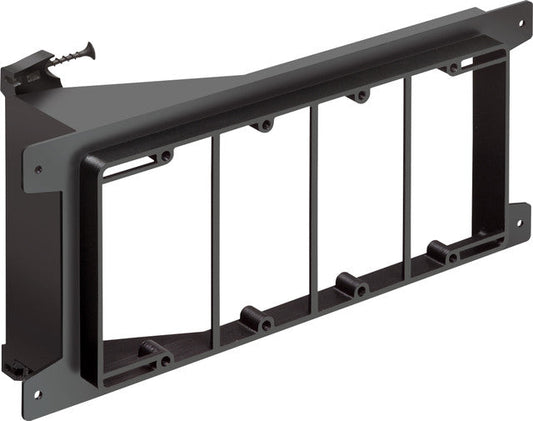

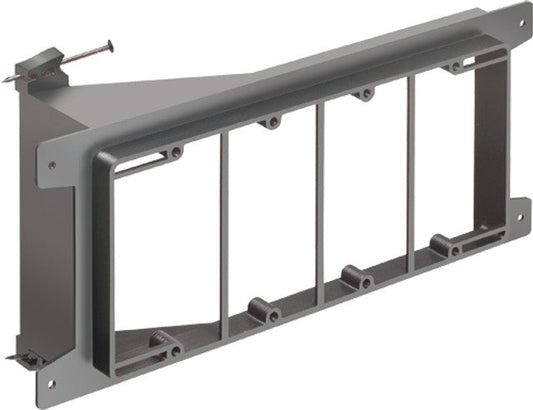

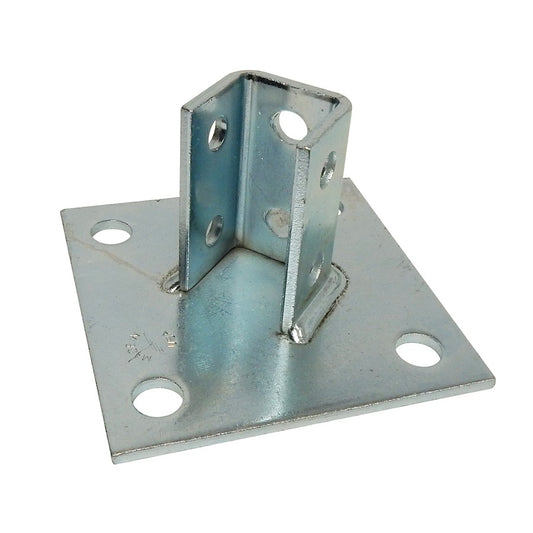

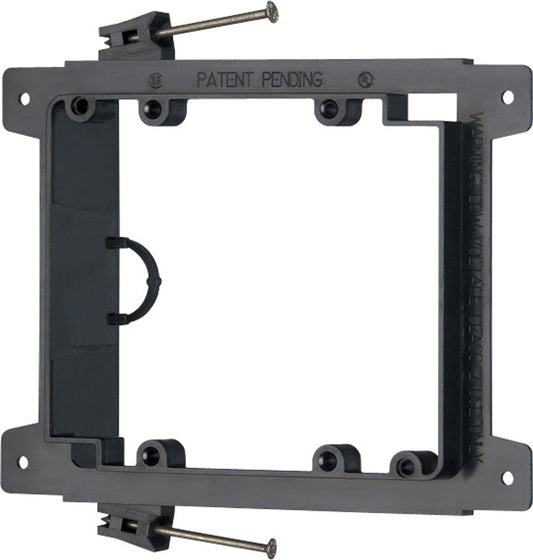

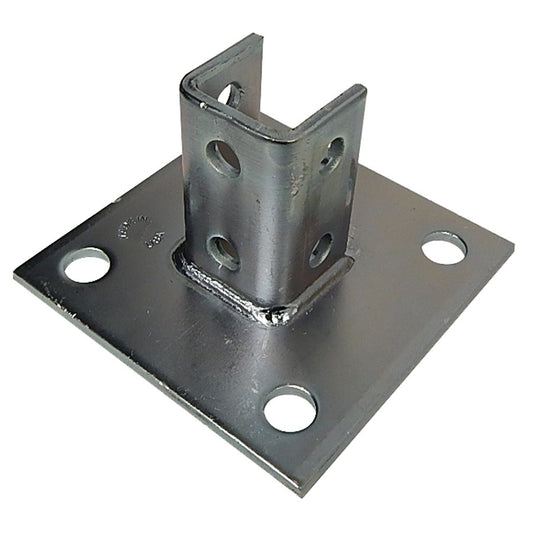

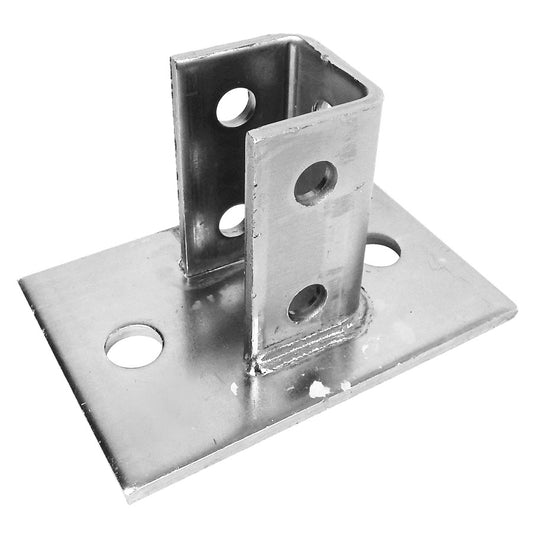

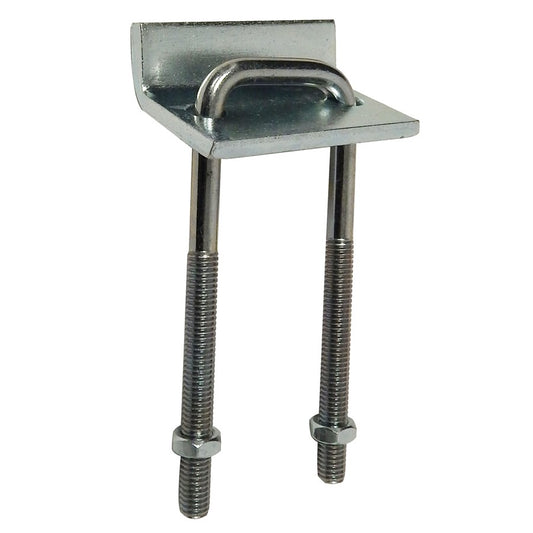

Brackets and Channel Hardware Create More Flexible Support Systems

Direct straps work well when the raceway can sit close to the mounting surface. Brackets and channel-style support hardware become useful when the run needs standoff, alignment with other services, multiple attachment points, or a supporting framework rather than one fastener at each conduit.

Lumera's current assortment includes mounting brackets and channel components as well as direct straps. These products can solve more complex routing conditions, but they introduce additional interfaces between the structure, bracket, channel, hardware, and supported run.

Decision rule: use the simplest support architecture that satisfies the installation. When a bracket or channel system is required, verify every connection in the load path rather than checking only the component touching the conduit.

Clamp-Back and Standoff Hardware Solve Clearance Problems

Some raceway runs need space between the conduit and mounting surface. Clamp-back spacers and similar hardware can create that clearance while maintaining an organized support point.

This can matter where fittings, wall conditions, moisture, surface irregularities, or adjacent services prevent the raceway from sitting directly against the structure. The spacer and strap still need to correspond to the conduit size and support system.

Decision rule: if the run requires standoff, select a support arrangement designed to create that clearance. Don't improvise the spacing with unrelated washers, blocks, or hardware unless the installation design specifically allows it.

Roof Supports Need a Purpose-Built Installation

Rooftop electrical runs create a different support problem from wall-mounted conduit. The support sits on or above the roofing system and may need to elevate raceway or equipment while avoiding unnecessary penetration or concentrated contact with the roof surface.

Lumera's current assortment includes plastic roof-mount supports in several configurations and sizes. Those products should be selected from the load, required elevation, raceway arrangement, roof conditions, and manufacturer instructions rather than used as generic blocks beneath conduit.

Decision rule: when the run crosses a roof, treat the roof support as its own engineered mounting condition. Confirm the exact support's intended use and coordinate the layout with roofing and electrical requirements.

Support Spacing Depends on the Wiring Method

There is no single spacing rule that applies to every conduit, raceway, or cable system. Support requirements vary by wiring method, size, installation, manufacturer instructions, and applicable electrical rules.

This becomes important when similar-looking runs use different raceway types. A spacing pattern that is acceptable for one system should not be copied automatically to another simply because both runs follow the same wall or ceiling.

Decision rule: determine the securing and support requirements for the exact wiring method before laying out attachment points. Use those requirements to calculate strap or hanger quantities instead of estimating from visual spacing.

Fastener Size and Support Hole Size Must Work Together

A support can only transfer load properly when the mounting hardware fits its intended holes or slots and the substrate. A screw that is too small may not provide the required bearing or holding capacity, while oversized hardware can damage the support or prevent proper seating.

Fastener length also depends on the thickness of the strap, bracket, spacer, finish layers, and required engagement in the supporting material.

Decision rule: choose fasteners from both the support manufacturer's requirements and the substrate. Lumera's screws and bolts can be matched after the support type and structural surface are known.

Indoor and Outdoor Supports Need Different Material Decisions

Support hardware can be exposed to humidity, rain, rooftop conditions, chemicals, or other corrosive environments. Material and finish therefore matter alongside physical size. Steel, coated steel, plastic, and other support materials don't have identical environmental limitations.

A support that performs well in a dry interior shouldn't automatically be moved outdoors because its dimensions happen to match. The same applies to its fasteners and anchors; the complete attachment needs to suit the environment.

Decision rule: define the installation exposure before selecting material or finish. Verify outdoor or corrosion suitability on the exact support and attachment hardware.

Straps and Supports vs. Cable Ties

These products can appear to solve the same problem, but their roles differ. Structural straps and supports carry and position raceway or cable along a run. Cable ties are better suited to bundling, organizing, or securing compatible cable at individual points when their ratings and application allow it.

Adding more ties doesn't turn them into a substitute for a required conduit support system. Likewise, a rigid conduit strap isn't the right tool for organizing a small bundle of flexible conductors.

Decision rule: use structural support hardware when the run itself needs carrying or positioning. For bundling and lighter cable-management functions, compare cable ties and tie wire.

What to Confirm Before Ordering Straps & Supports

• Wiring method: identify the conduit, raceway, cable, or equipment being supported.
• Trade size or outside dimension: match the support to the actual run.
• Support style: one-hole strap, two-hole strap, clamp, bracket, channel, spacer, or specialty support.
• Mounting surface: wood, steel, concrete, masonry, roof surface, or another approved structure.
• Installed load: consider the supported run and any additional hardware carried by the assembly.
• Orientation: wall, ceiling, overhead, rooftop, vertical, or horizontal installation.
• Spacing: use the requirements for the exact wiring method and installation.
• Fastener method: match screws, bolts, or anchors to both the support and substrate.
• Clearance: determine whether the run mounts directly to the surface or needs standoff.
• Environment: verify material and finish for dry, damp, wet, rooftop, or corrosive conditions.

Raceway and cable supports are part of the mechanical integrity of the wiring system. Installation should follow the support manufacturer's instructions and the requirements for the specific wiring method. For overhead, rooftop, heavily loaded, or unusual structural conditions, verify the complete support and attachment system rather than relying on a general rule of thumb.

Straps & Supports FAQs

How do I choose the right conduit strap?

Start with the conduit or raceway type and trade size, then confirm whether the installation needs a one-hole, two-hole, or other support style. Match the strap to the mounting surface, orientation, environment, and required attachment method. A strap that simply fits around the conduit isn't necessarily approved for the application.

What is the difference between a one-hole and two-hole conduit strap?

A one-hole strap uses one mounting fastener, while a two-hole strap uses two. The correct choice depends on the raceway system, mounting surface, support requirement, and product design. Two mounting holes should not be interpreted as a universal indication that the strap is suitable for a higher load.

How far apart should conduit straps be installed?

Spacing depends on the exact conduit or raceway type, size, installation, manufacturer instructions, and applicable electrical requirements. There is no single spacing value for every wiring method. Determine the requirement for the specific run before calculating support quantities.

Can I use the same conduit straps outdoors?

Only when the exact strap material or finish is suitable for the outdoor environment. Moisture, rooftop exposure, coastal conditions, chemicals, and contact with other metals can change corrosion requirements. Check the strap and its fasteners rather than assuming an indoor product can be used outside.

When should I use channel or brackets instead of direct straps?

Use brackets or channel-based support when the raceway needs standoff, alignment with multiple runs, a supporting framework, or an attachment geometry that direct surface straps can't provide. Verify the bracket, channel, mounting hardware, and structural attachment as one complete support system.

Can cable ties replace conduit straps?

Not where the wiring method requires structural securing or support. Cable ties are useful for compatible bundling and cable-management tasks, while straps, clamps, brackets, and other supports carry and position conduit or cable runs. Use each product for the function and rating it was designed to provide.
