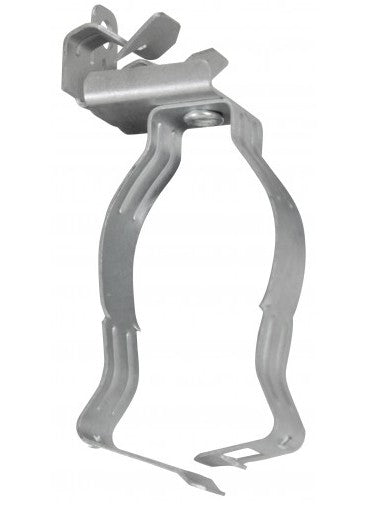

Orbit Conduit to Flange Clip, Bottom Mount 1/2 in - 3/4 in EMT, 5/16 in - 1/2 in Flange Snap-Close F812M58

Product Overview

The Orbit F812M58 is a bottom-mount conduit-to-flange clip specified for 1/2 in to 3/4 in EMT with a flange range of 5/16 in to 1/2 in. It uses a snap-close design to secure EMT to a flange.

Confirm conduit type, trade size, flange thickness, mounting method, and applicable electrical codes before installation.

Key Features

• Trade size compatibility: 1/2 in – 3/4 in EMT
• Flange accommodation: 5/16 in – 1/2 in
• Bottom-mount snap-close conduit-to-flange design
• Manufacturer catalog/SKU: F812M58 (Orbit)

What this clip does

The Orbit F812M58 secures EMT conduit to a mounting flange using a bottom-mount, snap-close configuration. It provides a means to attach conduit as part of a supported raceway layout.

• Secures EMT conduit to a flange
• Snap-close action holds conduit in position

Compatibility and sizing

Use this SKU where the conduit type and dimensions match the listed values. The F812M58 is specified for EMT conduit in the 1/2 in to 3/4 in trade size range and fits flange thicknesses from 5/16 in to 1/2 in.

• Conduit type: EMT
• Supported trade sizes: 1/2 in – 3/4 in
• Flange range: 5/16 in – 1/2 in

Mounting and installation notes

This is a bottom-mount, snap-close clip intended to attach conduit to a flange. Verify flange thickness, conduit trade size, and that the clip's style matches the intended mounting method before use.

• Verify flange thickness is within 5/16 in – 1/2 in
• Confirm EMT trade size is 1/2 in – 3/4 in
• Confirm compliance with local electrical code and project specifications

Typical applications

The F812M58 is appropriate for use where a conduit-to-flange attachment is required. Common contexts include conduit support systems, electrical rooms, and contractor inventory for installation projects.

• Conduit support systems
• Commercial wiring pathways
• Electrical room installations
• Service and maintenance work

Product specifications

Reference these product identifiers and core technical values when specifying or ordering this clip.

• Brand: Orbit
• Model / SKU / Manufacturer Part Number: F812M58
• Product type: Conduit to Flange Clip
• Manufacturer description: Bottom mount 1/2 in – 3/4 in EMT, 5/16 in – 1/2 in flange snap-close
• Catalog page: F2

Before You Order

Confirm the model number and that conduit and flange dimensions match project requirements before ordering.

• Verify conduit is EMT and within 1/2 in – 3/4 in trade size range
• Confirm flange thickness is between 5/16 in and 1/2 in

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Orbit Conduit to Flange Clip, Bottom Mount 1/2 in - 3/4 in EMT, 5/16 in - 1/2 in Flange Snap-Close F812M58. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
