Buying Square D Breakers Without a Returns Pile

A breaker purchase is a compatibility question wearing an amperage
costume, and Square D makes that unusually explicit by running distinct
product lines that do not interchange: the panel on the wall dictates
the family, the family dictates the catalog page, and only then do amps
and poles enter. Every title here front loads the facts, poles,
amperage, voltage, mount, and interrupt rating, so the sections below
sort the shelf the way a panel schedule does, starting inside the
store's wider protection aisle at circuit breakers.

QO and Homeline: Two Families, Never Mixed

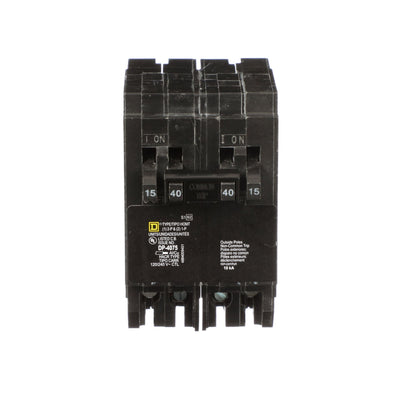

The residential half splits between QO, the brand's compact premium
line, and Homeline, its value line, and the one rule that saves the most
returns is that each goes only into its own panels. HOM prefixed units
like the two pole 150A plug-ins serve Homeline load centers, QO prefixed
units serve QO load centers, and the lines' breakers are not
substitutes for each other even at identical ratings. Read the panel
label before the catalog, then match the prefix, and the rest of the
choice is arithmetic.

Plug-In, Bolt-On, and Unit Mount

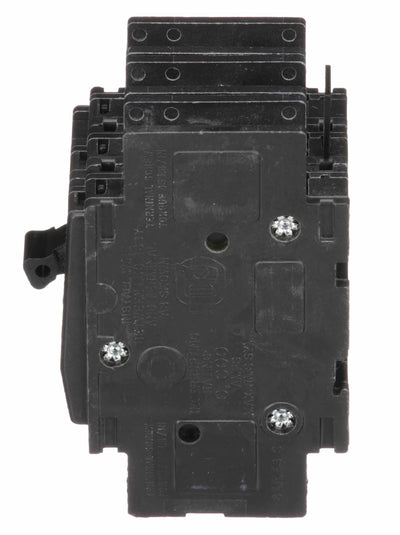

The letters after QO carry the mounting story: plain QO units plug
onto the bus, QOB versions bolt on for the commercial panelboards that
demand a fastened connection, and QOU units mount independently for
equipment and OEM duty without a panel interior at all. The titles state
10kA interrupt ratings and thermal magnetic trip across these miniature
lines, and the mount type must match what the enclosure was built for, a
detail the panel or enclosure listing settles. Standalone housings for
that last category live under NEMA enclosures.

AFCI, Dual Function, and the Letters That Matter

Suffixes on the residential units mark protection technology:
combination arc fault breakers such as the QO 15A plug-on neutral unit
watch for the arc signatures that start fires, and dual function
versions fold ground fault protection into the same body, covering the
bedroom and kitchen circuits that current code fills with these
requirements. Plug-on neutral construction speeds the install in
compatible load centers by dropping the pigtail. Which rooms need which
letters is a code and plan question, so buy these off the drawings, and
pair panel work with the store's surge protection aisle while the cover is already off.

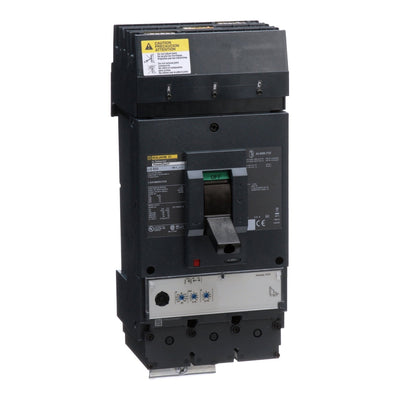

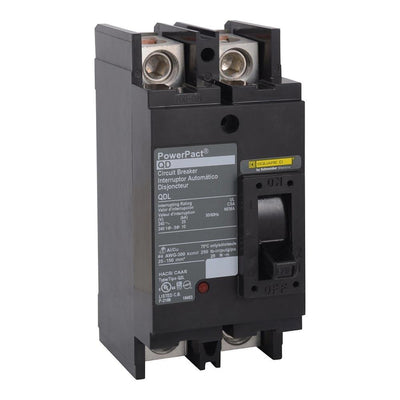

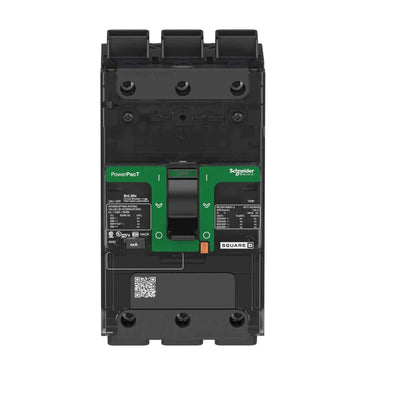

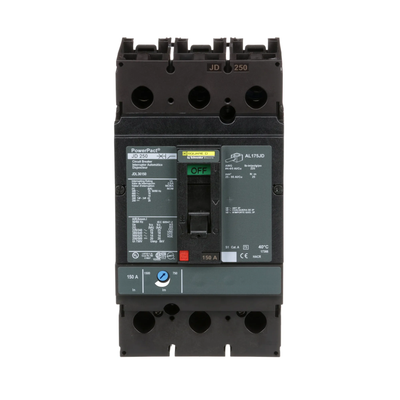

PowerPact and I-Line: The 600V End

Past the residential lines the shelf climbs into molded case
territory, PowerPact H frame units and I-Line breakers in three pole
formats from 15A up through 70A and 80A models, rated to 600V AC with
thermal magnetic trip, plus EJB bolt-on units at 480Y/277V for
commercial lighting and distribution panels. These are the breakers
behind machine feeds and building distribution, chosen against
coordination studies and equipment ratings rather than shelf intuition,
and everything upstream and downstream of them gathers under power and distribution.

Ordering Against the Panel Schedule

The clean Square D order starts from the panel label and the
schedule, one line per position with prefix, poles, and amps, because
the listings here mirror that format exactly and the match becomes
mechanical. Breaker replacement and panel work is live equipment
territory that belongs entirely to a licensed electrician, interrupt
ratings must meet the fault current the service can deliver, and a full
panel's worth of positions prices as a single trade list through the
quote desk, with the termination hardware those frames land on sized
from lugs by conductor range and material.

Square D Selection Questions

Can a Homeline breaker go in a QO panel?

No, and not the other way around either. Each line is designed for
its own load centers, the panel label names which family it accepts, and
matching that label is the first requirement before amperage or poles
are even considered. Identical ratings across the two lines do not make
them substitutes.

What does the 10kA interrupt rating mean?

It is the maximum fault current, ten thousand amps, the breaker can
safely interrupt. The electrical service determines how much fault
current is available at the panel, and the breaker's rating must meet or
exceed it, a match a licensed electrician confirms from the service
characteristics rather than from habit.

When do I need an AFCI versus a dual function breaker?

Arc fault units detect dangerous arcing, dual function units add
ground fault protection in the same device, and current code assigns
each requirement by room and circuit type. The plans and the local code
cycle make the call, so count these positions off the drawings instead
of defaulting either way.

What is the difference between QO plug-in and QOB bolt-on?

The connection to the bus. QO units plug onto compatible load center
bus stabs, QOB units fasten with bolts for panelboards specified that
way, usually commercial, and the enclosure's own documentation states
which it takes. The electrical ratings can match exactly while the
mounts remain incompatible.
