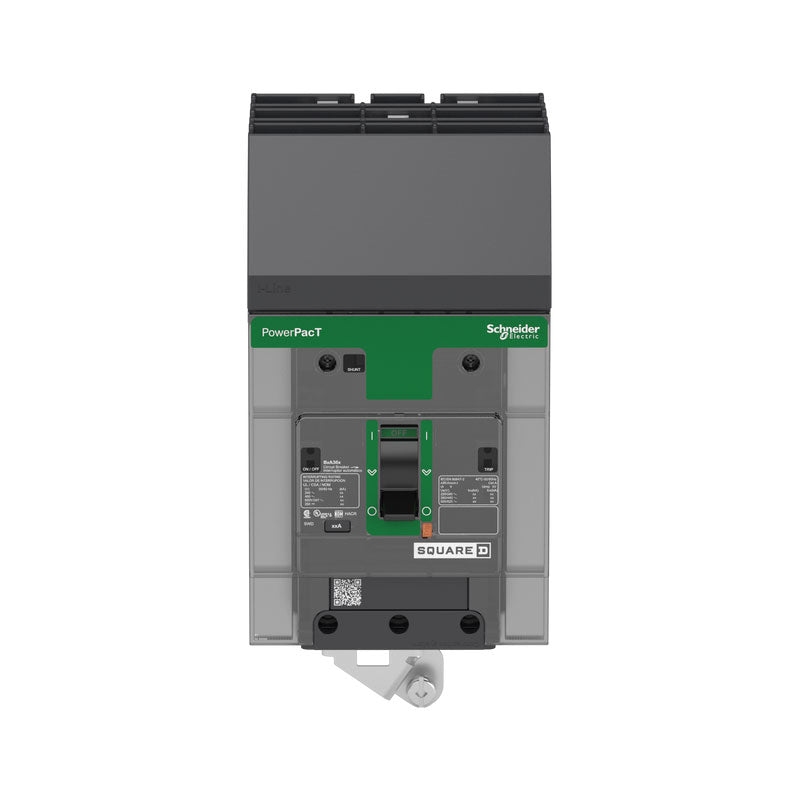

BGA36040 - Square D 40A 600VAC 3-Pole Thermal Magnetic Molded Case Circuit Breaker I-Line

Product Overview

The BGA36040 is a Square D molded‑case circuit breaker with a thermal‑magnetic trip, 3‑pole configuration, and a 40 ampere rating for use on systems rated up to 600 VAC.

This listing is for a new BGA36040 unit. Contact Lumera Electric to request a quote for pricing and availability.

Key Features

• Manufacturer: Square D
• Model/SKU: BGA36040
• Ampere rating: 40 A
• Voltage rating: 600 VAC
• Poles: 3‑pole (thermal‑magnetic)
• Form factor: Molded case, I‑Line

What this breaker does

The BGA36040 uses a thermal‑magnetic trip mechanism to provide overcurrent protection. It combines thermal elements for overload response and magnetic elements for higher‑current interruption.

• Protects three‑phase circuits with a single 3‑pole device
• Thermal‑magnetic trip for overload and higher‑current interruption

Electrical ratings and configuration

This model is rated 40 A and 600 VAC and is supplied as a 3‑pole unit for three‑phase applications requiring a common trip.

• Ampere rating: 40 A
• Voltage rating: 600 VAC
• Poles: 3 (common trip thermal‑magnetic)

Mounting style and physical configuration

The BGA36040 is a molded‑case breaker described for I‑Line mounting. I‑Line is a common form factor for certain Square D panels and distribution equipment.

• Form factor: Molded case
• I‑Line mounting style

Ordering and verification

Confirm the BGA36040 model number and that a 40 A, 3‑pole, 600 VAC thermal‑magnetic I‑Line breaker meets your requirements before ordering. Request a quote from Lumera Electric for pricing and availability.

• Confirm model number (BGA36040) and quantity
• Verify panel or switchgear compatibility with I‑Line breakers

Before You Order

Confirm the model number and quantity before ordering and ensure the 40 A, 3‑pole, 600 VAC I‑Line configuration matches your panel and protection needs.

• Verify panel/switchgear compatibility with I‑Line breakers
• Request a quote from Lumera Electric for pricing and availability

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for BGA36040 - Square D 40A 600VAC 3-Pole Thermal Magnetic Molded Case Circuit Breaker I-Line. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
