Westgate

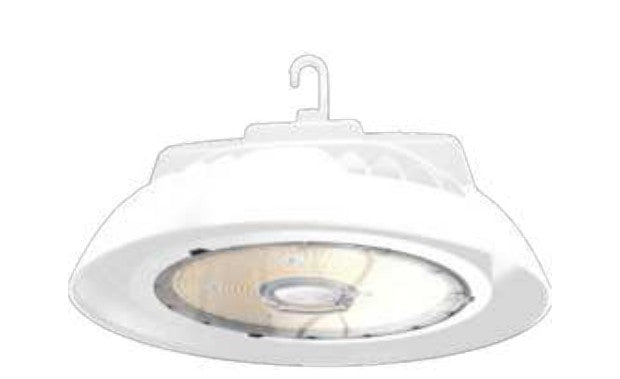

Westgate 200W/240W/320W 30K/40K/50K LED UFO High Bay Silver UHX-G2-320W-MCTPB-WH-SR
Westgate 200W/240W/320W 30K/40K/50K LED UFO High Bay Silver UHX-G2-320W-MCTPB-WH-SR
SKU:UHX-G2-320W-MCTPB-WH-SR
Quantity
The Westgate UHX-G2-320W-MCTPB-WH-SR is an LED high bay that delivers selectable 200W / 240W / 320W output at 165 lumens per watt and 3000K/4000K/5000K for warehouses, manufacturing areas, and high-ceiling commercial interiors. It runs on 120-277V.
Key Features
- 165 LM/W efficiency keeps connected load down across the space
- Selectable 200W / 240W / 320W lets one fixture cover several output levels from stock
- Selectable 3000K/4000K/5000K sets the appearance at install rather than at order time
- 120-277V input lands on common commercial branch circuits
Technical Specifications
| Brand | Westgate |
|---|---|
| Model / SKU | UHX-G2-320W-MCTPB-WH-SR |
| Product Type | LED UFO High Bay |
| Wattage | 200W / 240W / 320W (selectable) |
| Efficacy | 165 LM/W |
| Color Temperature | 3000K/4000K/5000K (selectable) |
| Voltage | 120-277V |
| UPC | 840378331760 |
Applications
Common applications include:
- Warehouse and distribution-center aisles
- Manufacturing and assembly areas
- Large commercial interiors
- HID and fluorescent high-bay retrofits
Compatibility and Installation Notes
Confirm the hook or suspension point is rated for the fixture weight for this LED high bay.
Lumera Electric stocks the Westgate UHX series for contractors specifying LED high bays on commercial projects.
