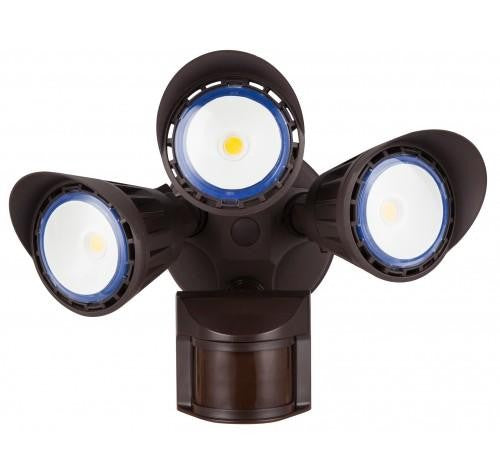

Westgate 30W 2,800LM 3000K/4000K/5000K LED Security Light Dark Bronze SL-30W-MCT-BZ-P

Product Overview

The Westgate SL-30W-MCT-BZ-P is a 30W LED security light that produces 2,800 lumens with field-selectable color temperatures (3000K, 4000K, 5000K). It is intended for exterior building perimeter and entry use and is commonly used with motion-activated controls.

The fixture has a die-cast aluminum housing and an IP65 rating and supports wall or eave mounting.

Key Features

• 30W power consumption with 2,800 lumens output (listed efficacy: 93 lm/W)
• Field-selectable color temperature: 3000K, 4000K, 5000K
• Die-cast aluminum housing
• IP65 rated
• Supports wall or eave security light mounting

Function and intended use

The SL-30W-MCT-BZ-P is intended as an exterior security light for building perimeters, entries, yards, and lot edges. The product description lists common use with motion-activated controls and as an HID retrofit option.

• Typical applications listed: perimeter and entry security, motion-activated lighting, yard and lot edges, HID security retrofits
• Installer note: confirm motion-sensor coverage and mounting layout for the site

Light output and efficiency

This fixture is specified to produce 2,800 lumens from 30 watts. The product listing gives an efficacy value of 93 lm/W.

• Lumens: 2,800 lm (nominal)
• Power: 30W
• Listed efficacy: 93 lm/W

Color temperature

Color temperature is selectable at installation. Options are 3000K (warmer white), 4000K (neutral white), and 5000K (cooler white). The selection is set at the fixture during install rather than fixed at order.

• Selectable CCTs: 3000K, 4000K, 5000K
• CCT is set at installation

Mounting and site considerations

The fixture supports wall or eave mounting for placement on building exteriors. Confirm the mounting method, electrical supply, and motion-sensor coverage for the specific site prior to installation.

• Mounting: wall or eave security light mount
• Verify mounting orientation and electrical supply at the fixture location

Materials and environmental rating

The housing is die-cast aluminum and the product listing indicates an IP65 ingress protection rating for moisture resistance.

• Housing: die-cast aluminum
• Ingress protection: IP65

Before You Order

Confirm the model and quantity needed and verify mounting orientation and electrical supply at the fixture location.

• CCT is field-selectable at installation (3000K / 4000K / 5000K).
• Verify wall or eave mounting details and motion-sensor coverage for your site.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Westgate 30W 2,800LM 3000K/4000K/5000K LED Security Light Dark Bronze SL-30W-MCT-BZ-P. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
