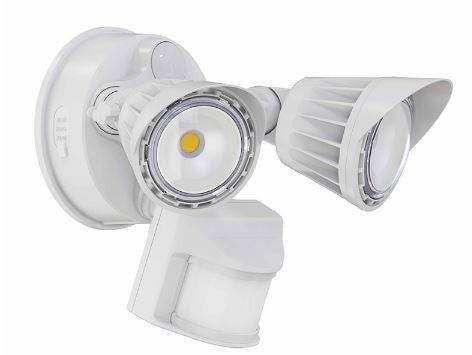

Westgate 20W 1,900LM 3000K/4000K/5000K LED Security Light White SL-20W-MCT-WH-P

Product Overview

The Westgate SL-20W-MCT-WH-P is a 20W LED security light that produces 1,900 lumens (95 lm/W) with a selectable color temperature of 3000K, 4000K, or 5000K.

Designed for exterior building and perimeter applications, the fixture uses a die-cast aluminum housing, carries an IP65 rating for moisture and washdown resistance, and mounts on walls or eaves for motion-activated security lighting.

Key Features

• 20W power draw delivering 1,900 lumens (95 lm/W efficacy)
• Selectable 3000K / 4000K / 5000K color temperature (set at installation)
• Die-cast aluminum housing suitable for exterior installation
• IP65 rated for protection against dust and water ingress
• Wall or eave security light mounting for flexible placement
• Suitable for retrofitting HID security fixtures and motion-activated applications

Function and intended use

The SL-20W-MCT-WH-P is designed as an exterior security light for building perimeters, entries, yards, and lot edges. It is intended for motion-activated security lighting and as a direct LED replacement for comparable HID security fixtures.

• Typical applications: perimeter and entry security, motion-activated lighting, yard and lot edges, HID retrofits.

Performance and light output

This fixture delivers 1,900 lumens from 20 watts, yielding an efficacy of 95 lumens per watt. The color temperature is selectable at installation between 3000K, 4000K, and 5000K to match site appearance requirements.

• Lumen output: 1,900 LM
• Power: 20W
• Efficacy: 95 LM/W
• Selectable color temperatures: 3000K / 4000K / 5000K

Mounting and installation considerations

The model supports wall or eave security light mounting for flexible positioning on building exteriors. Confirm mounting location and that any motion sensor coverage meets site requirements prior to installation.

• Mount types: wall or eave security light mount
• Confirm motion-sensor coverage and mounting details before ordering

Environmental suitability and materials

The SL-20W-MCT-WH-P uses a die-cast aluminum housing and carries an IP65 rating, making it suitable for exterior installations where protection from dust and water spray or washdown is required.

• Housing: die-cast aluminum
• IP rating: IP65 (dust-tight and protected against water jets)

Ordering and product identity

This listing covers the single SKU SL-20W-MCT-WH-P (white finish). Verify the model number and quantity required when specifying or ordering for projects.

• Brand: Westgate
• SKU / Model: SL-20W-MCT-WH-P
• UPC: 845060079432

Before You Order

Confirm the SL-20W-MCT-WH-P model number, required quantity, and that the selectable color temperature and mount type match the project requirements before ordering.

• Verify motion-sensor coverage and mounting location
• Confirm color temperature selection will be set at install (3000K/4000K/5000K)
• Confirm compatibility when planning HID retrofits
