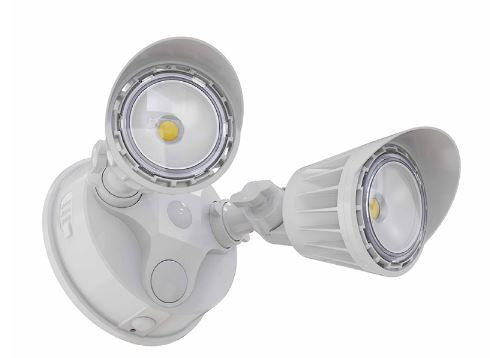

Westgate 20W 1,900LM 3000K/4000K/5000K LED Security Light White SL-20W-MCT-WH-D

Product Overview

The Westgate SL-20W-MCT-WH-D is a 20W LED security light that produces 1,900 lumens with selectable 3000K, 4000K or 5000K color temperatures. It is designed for exterior building and perimeter lighting where efficient, motion-activated security illumination is required.

Built with a die-cast aluminum housing and an IP65 rating, the fixture supports wall or eave mounting and targets HID retrofit and general perimeter security applications.

Key Features

• 1,900 lumens from 20W (95 lm/W efficacy)
• Selectable color temperature: 3000K, 4000K, 5000K
• Die-cast aluminum housing
• IP65 rated for exterior and washdown environments
• Compatible with wall or eave security light mounting

What this light is for

Answer: The SL-20W-MCT-WH-D is intended for exterior security and perimeter illumination where a compact, efficient LED fixture is needed. Typical uses include perimeter and entry security, motion-activated lighting, yard and lot edges, and HID security retrofits.

• Designed for building exteriors and perimeter lighting
• Commonly used with motion sensors for on-demand security illumination
• Suitable for replacing small HID security fixtures

Output and efficiency

Answer: The fixture delivers 1,900 lumens while consuming 20W for an efficacy of approximately 95 lumens per watt.

• Lumen output: 1,900 lm
• Wattage: 20W
• Efficacy: 95 lm/W

Color temperature and control

Answer: Color temperature is selectable at install between 3000K, 4000K and 5000K, allowing installers to set the desired appearance on site rather than selecting it at order time.

• Selectable options: 3000K / 4000K / 5000K
• Color set at installation

Mounting and installation considerations

Answer: The SL-20W-MCT-WH-D supports wall or eave security light mounting. Confirm mounting type and motion sensor coverage to ensure the fixture meets the security area's needs.

• Mounts: wall or eave security light mount
• Confirm motion-sensor coverage and mounting location prior to install

Construction and environmental rating

Answer: The fixture uses a die-cast aluminum housing and is IP65 rated for resistance to moisture and washdown conditions, making it suitable for exterior installation.

• Housing material: die-cast aluminum
• IP rating: IP65 (suitable for exterior and washdown areas)

Before You Order

Confirm the model number and quantity required before ordering. Verify mounting type and that motion-sensor coverage and color temperature selection at installation will meet the project's requirements.

• Confirm SL-20W-MCT-WH-D is the correct SKU for your application
• Verify wall or eave mounting compatibility and desired motion-sensor coverage
• Plan which color temperature (3000K, 4000K or 5000K) will be set at installation

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Westgate 20W 1,900LM 3000K/4000K/5000K LED Security Light White SL-20W-MCT-WH-D. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
