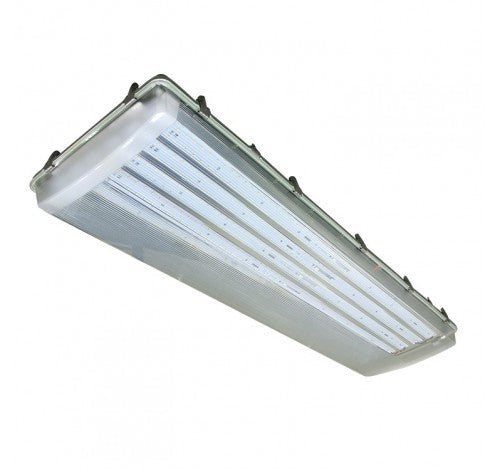

Westgate 100W 13,500LM 3000K/4000K/5000K LED Linear Vapor Light LLVT-4FT-100W-MCT-D
Westgate 100W 13,500LM 3000K/4000K/5000K LED Linear Vapor Light LLVT-4FT-100W-MCT-D
SKU:LLVT-4FT-100W-MCT-D
Quantity
The Westgate LLVT-4FT-100W-MCT-D is an LED vapor-tight fixture that delivers 12,000 lumens from 100W at 3500K/4000K/5000K for garages, utility areas, food facilities, and damp or washdown-prone spaces. It runs on 120-277V AC and supports 0-10V dimming for straightforward control.
Key Features
- 120 LM/W efficiency keeps connected load down across the space
- Selectable 3500K/4000K/5000K sets the appearance at install rather than at order time
- 0-10V dimming ties into standard commercial lighting controls
- 120-277V AC input lands on common commercial branch circuits
- IP65 rating stands up to moisture and washdown areas
Technical Specifications
| Brand | Westgate |
|---|---|
| Model / SKU | LLVT-4FT-100W-MCT-D |
| Product Type | LED Linear Vapor Light |
| Wattage | 100W |
| Lumens | 12,000 LM |
| Efficacy | 120 LM/W |
| Color Temperature | 3500K/4000K/5000K (selectable) |
| Voltage | 120-277V AC |
| Dimming | 0-10V |
| Housing / Material | Polycarbonate housing with opal polycarbonate |
| IP Rating | IP65 |
| UPC | 845060062588 |
Applications
Common applications include:
- Parking garages and service areas
- Food-processing and washdown spaces
- Utility and mechanical rooms
- Damp or wet commercial interiors
Compatibility and Installation Notes
Keep the gasket and latches fully closed to hold the wet-location seal for this LED vapor-tight fixture.
