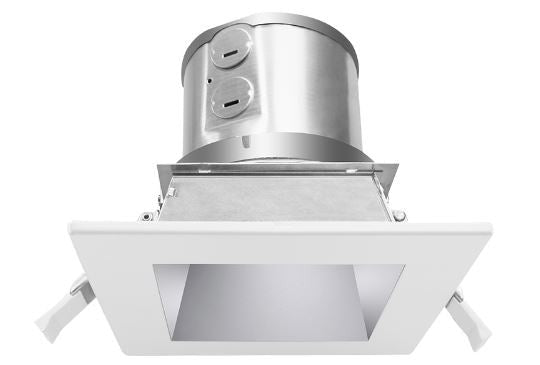

Westgate 20W 1600-1720LM 3000K LED Commercial Recessed Light White CRLC6-20W-30K-SA-D-WH
Description
Product Overview
The Westgate CRLC6-20W-30K-SA-D-WH is a 20W LED recessed downlight engineered for commercial and residential ceiling applications. It delivers up to 1,720 lumens at 3000K with 86 lm/W efficacy and uses 120–277V input with 0–10V dimming.
This SKU includes a white trim and is intended for general downlighting, corridor and lobby grids, and recessed retrofit or new-construction installations where a compact, dimmable LED solution is required.
Key Features
- 20W nominal power draw; 1,720 lumens output (86 lm/W efficacy)
- Color temperature: 3000K (warm white)
- Input voltage: 120–277V
- Dimming: 0–10V compatible
- White trim; UPC 845060076257
What this fixture does
The CRLC6-20W-30K-SA-D-WH provides general recessed downlighting with a rated output of 1,720 lumens from a 20W LED source at 3000K. Use it where a warm-white, energy-efficient general illumination or accent downlight is required.
- 20W draws significantly less power than comparable HID or halogen downlights
- 86 lumens per watt provides a balance of output and efficiency
Electrical and dimming requirements
This model operates on a 120–277V supply and supports 0–10V dimming control systems. Confirm your building’s branch voltage and dimming control wiring before installation.
- Input voltage: 120–277V
- Dimming protocol: 0–10V
Suitable applications
The CRLC6-20W-30K-SA-D-WH is specified for commercial ceiling downlighting and is also suitable for residential recessed lighting, corridor and lobby grids, and retrofit projects where a recessed LED solution is appropriate.
- Commercial ceiling general illumination
- Residential recessed applications
- Corridors, lobbies, and retrofit conversions
Installation and compatibility notes
Confirm the ceiling cutout size and that the chosen rough-in or retrofit housing is compatible with this downlight prior to purchase. The product description identifies the SKU and UPC for matching with housings and trims.
- Verify cutout dimensions and compatible housings before ordering
- Confirm compatibility with 0–10V dimmer modules and wiring
Before You Order
Confirm the model number and quantity required, and verify ceiling cutout, housing type (rough-in or retrofit), and compatibility with 0–10V dimming controls before ordering.
- Verify ceiling cutout and that your housing accepts the CRLC6 series downlight
- Confirm the building branch circuit is 120–277V and that your dimming system is 0–10V compatible
- Match the SKU CRLC6-20W-30K-SA-D-WH and UPC 845060076257 when specifying or ordering
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Westgate 20W 1600-1720LM 3000K LED Commercial Recessed Light White CRLC6-20W-30K-SA-D-WH. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Westgate |
|---|---|
| SKU | CRLC6-20W-30K-SA-D-WH |
| Product type | LED Commercial Recessed Light |
| Wattage | 20W |
| Lumens | 1,720 lm |
| Efficacy | 86 lm/W |
| Color temperature | 3000K |
| Voltage | 120–277V |
| Dimming | 0–10V |
| Trim Finish | White |
| UPC | 845060076257 |
