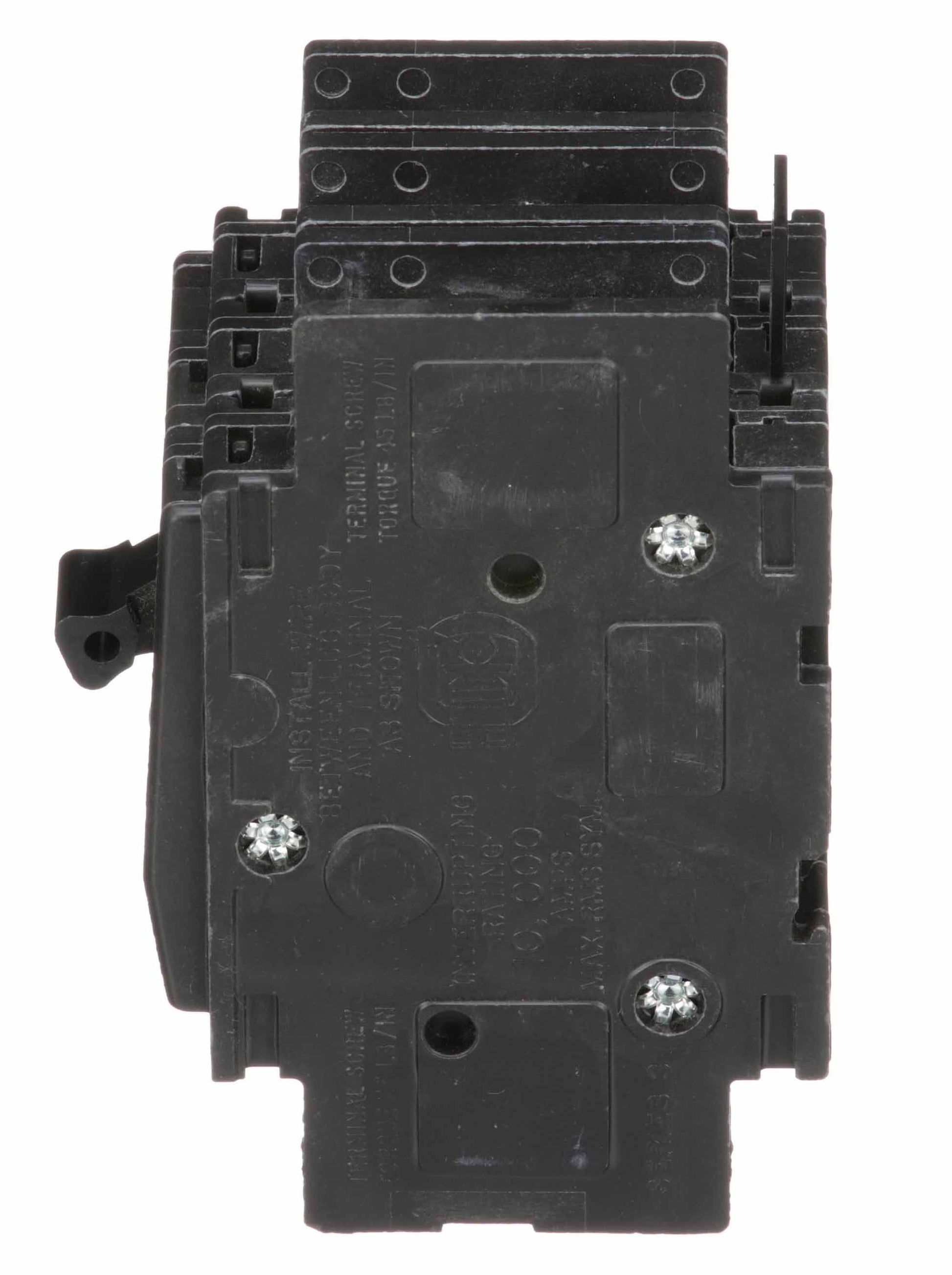

QOU390 - Square D 90 Amp 3 Pole 240VAC/60VDC QO Miniature Circuit Breaker, 10kA Interrupt, Unit Mount, Common Trip, Visi-Trip Indicator
Description
Product Overview
The QOU390 is a Square D QO series miniature circuit breaker with a 90 amp rating in a 3‑pole configuration. It is unit mounted, has a common trip, and includes a Visi‑Trip visible trip indicator.
Listed ratings include 240 VAC and 60 VDC with a 10 kA interrupting capacity.
Key Features
- 90 amp rating in a 3‑pole QO frame
- Rated for 240 VAC and 60 VDC
- 10 kA interrupting capacity
- Unit mount with common trip
- Visi‑Trip visible trip indicator
What this breaker does
The QOU390 is a three‑pole QO miniature circuit breaker intended to interrupt current in protected circuits when an overcurrent condition occurs. The common trip feature causes all poles to open together.
- Three‑pole breaker for multi‑wire or three‑phase circuits
- Common trip to open all poles simultaneously
- Visi‑Trip provides a visible indication if the breaker has tripped
Electrical ratings and interrupting capacity
Published ratings for this model include 90 A, 240 VAC and 60 VDC, and a 10 kA interrupting capacity. Use these values to check compatibility with the electrical system where the breaker will be installed.
- Ampere rating: 90 A
- Voltage ratings: 240 VAC and 60 VDC
- Interrupting capacity: 10 kA
Mechanical configuration and trip features
This product is listed as a unit‑mounted QO series breaker with three poles and a common trip mechanism. It includes a Visi‑Trip indicator that provides a visible indication when the breaker has tripped.
- Mounting: Unit mount
- Poles: 3
- Trip: Common trip
- Trip indicator: Visi‑Trip (visible)
Ordering and verification
Verify the exact model number (QOU390) and required quantity before ordering. The SKU for this item is QOU390.
- Manufacturer: Square D
- Model / SKU: QOU390
- Condition: New (as listed)
Before You Order
Confirm the model number (QOU390), electrical ratings (90 A, 240 VAC / 60 VDC), and the 3‑pole common trip configuration before ordering.
- Consult a qualified electrician if you are unsure about compatibility with your equipment.
- This page describes a single SKU: QOU390.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for QOU390 - Square D 90 Amp 3 Pole 240VAC/60VDC QO Miniature Circuit Breaker, 10kA Interrupt, Unit Mount, Common Trip, Visi-Trip Indicator. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Square D |
|---|---|
| SKU | QOU390 |
| Ampere Rating | 90 A |
| Poles | 3 |
| Voltage rating | 240 VAC / 60 VDC |
| Interrupting capacity | 10 kA |
| Mounting Type | Unit mount |
| Trip type | Common trip |
| Trip indicator | Visi‑Trip |
| Product type | QO miniature circuit breaker |
