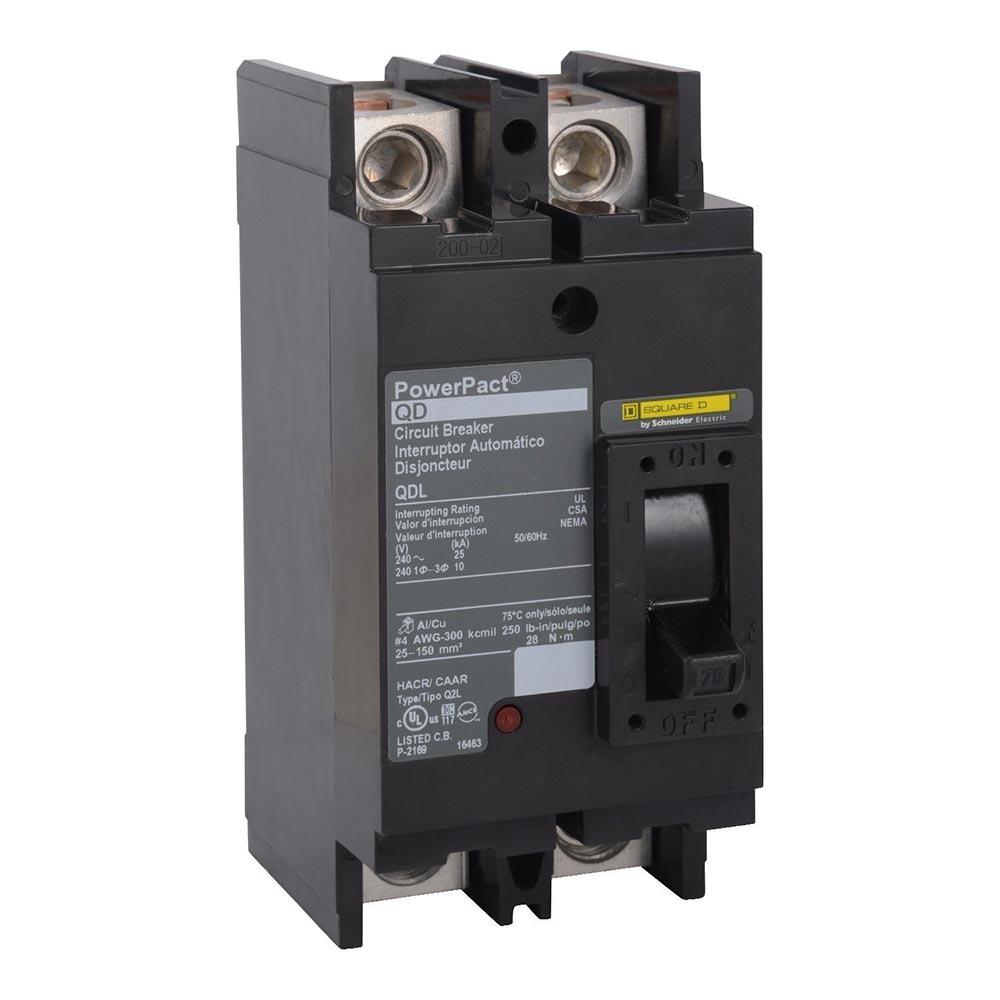

QDL22200 - Square D 200 Amp 2 Pole 240VAC Q Frame Molded Case Circuit Breaker Thermal Magnetic

Product Overview

The QDL22200 is a Square D Q‑frame molded case circuit breaker specified for 200 ampere, 2‑pole overcurrent protection on 240VAC systems. It employs a thermal‑magnetic trip mechanism for combined overload and short‑circuit protection.

This SKU is listed as new. For pricing and availability, request a quote.

Key Features

• 200 ampere rating
• 2‑pole configuration for 240VAC circuits
• Q‑frame molded case construction
• Thermal‑magnetic trip mechanism (overload and short‑circuit protection)
• Manufacturer: Square D

What this breaker does

The QDL22200 provides combined thermal and magnetic tripping to protect conductors and equipment from sustained overloads (thermal trip) and instantaneous high‑current faults (magnetic trip). It is intended for use as a service or distribution overcurrent device in 240VAC two‑pole circuits where a 200A protection point is required.

• Protects against overloads and short circuits via thermal‑magnetic mechanism
• Two‑pole design interrupts bothhots on a 240VAC circuit

Electrical ratings and configuration

Use the QDL22200 where a 200 amp, 2‑pole breaker is specified for a 240VAC load. The product listing identifies the device as a Q‑frame molded case breaker with thermal‑magnetic tripping.

• Amp rating: 200 A
• Poles: 2
• Voltage: 240 VAC
• Trip type: Thermal‑magnetic

Form factor and installation context

This SKU is a Q‑frame molded case circuit breaker. The listing does not include specific physical dimensions, terminal type, mounting style, or accessory compatibility. Confirm panel or enclosure compatibility and required accessories (handles, shunt trips, auxiliary contacts) from project documentation or the Square D technical literature before installation.

• Frame type: Q‑frame (molded case)
• Specific mounting and terminal details: not provided in this listing

Ordering and verification

The product is offered under SKU QDL22200 and is described as new. Pricing and availability require a quote. Confirm the exact model number and any required accessories or options before placing an order.

• Confirm the model number (QDL22200) and required quantity before ordering
• Request a quote for pricing and lead time

Before You Order

Confirm the full model number and the quantity required. This listing provides core electrical ratings but does not include terminal style, physical dimensions, accessory options, or installation instructions. For panel compatibility, accessories, and full installation requirements, consult Square D technical documentation or contact Lumera Electric for assistance.

• Verify panel/enclosure compatibility and terminal type
• Confirm whether accessories (handles, auxiliary contacts, shunt trip) are required
• Request a quote for pricing and availability
