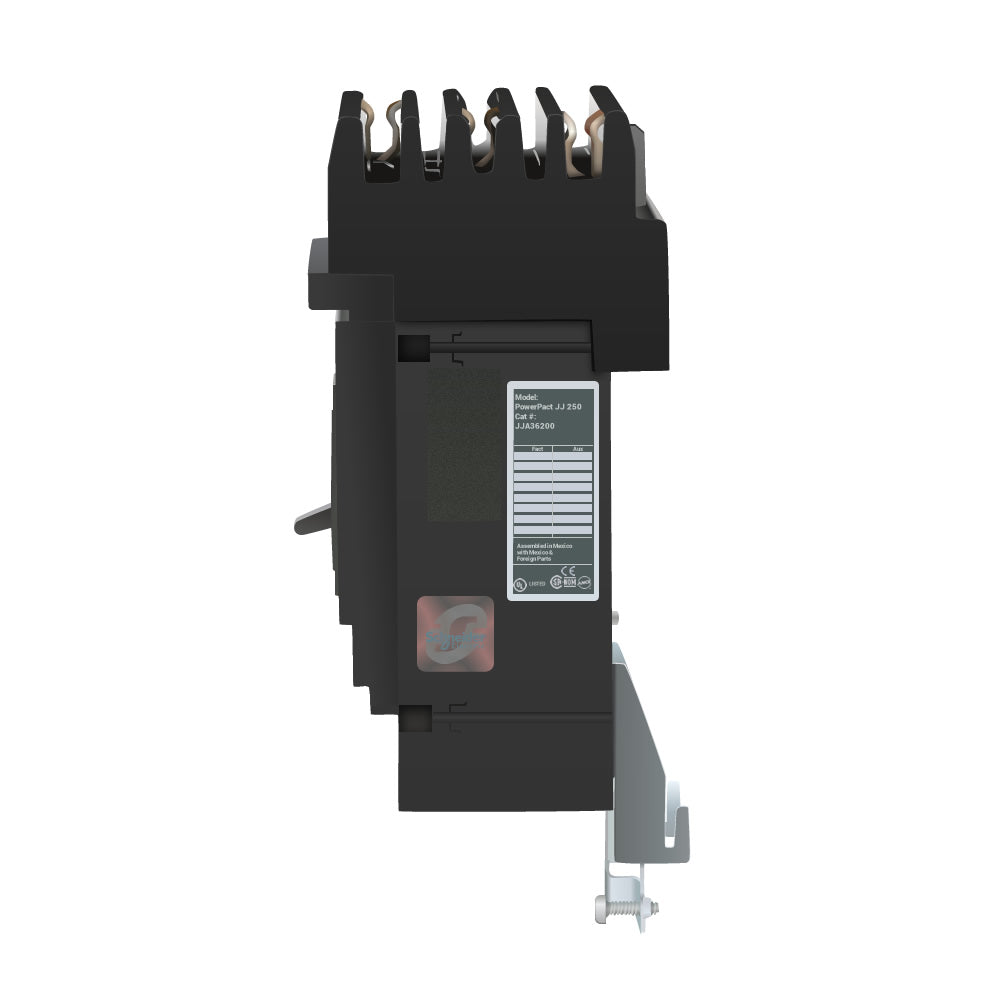

JJA36250 - Square D PowerPacT J-Frame 250A 3-Pole 600VAC 25kA I-Line Plug-In Molded Case Circuit Breaker, Thermal Magnetic Trip, UL/CSA/NOM/IEC/CE

Product Overview

The JJA36250 is a Square D PowerPacT J‑Frame molded case circuit breaker (MCCB) rated 250A, 3‑pole, 600 VAC with a 25 kA interrupting rating. It uses a thermal‑magnetic trip mechanism and is an I‑Line plug‑in design.

This SKU is factory‑original Square D equipment and is listed with UL, CSA, NOM, IEC and CE markings as indicated in the model designation.

Key Features

• Ampacity: 250 A; 3‑pole configuration for three‑phase systems
• Voltage rating: 600 VAC
• Interrupting rating: 25 kA
• Trip type: thermal‑magnetic (combined long‑time/short‑time protection)
• Form factor: PowerPacT J‑Frame I‑Line plug‑in molded case breaker

Function and protection

The JJA36250 provides overcurrent protection for three‑phase power circuits. Its thermal‑magnetic trip mechanism delivers both long‑time (thermal) protection for overloads and instantaneous (magnetic) protection for short‑circuit events.

• 3‑pole design protects all three phases simultaneously
• Combined thermal and magnetic trip characteristics for overload and short‑circuit protection

Electrical ratings and performance

Use this breaker in systems where the electrical requirements match its ratings. The model designation specifies the primary electrical limits.

• Nominal current rating: 250 A
• Voltage rating: 600 VAC
• Interrupting capacity: 25 kA (25,000 A)

Mounting and product configuration

The JJA36250 is a PowerPacT J‑Frame I‑Line plug‑in molded case circuit breaker designed for plug‑in installation into compatible switchgear and load centers that accept PowerPacT J‑Frame I‑Line devices.

• Form: PowerPacT J‑Frame
• Mounting style: I‑Line plug‑in molded case

Certifications and compliance

The model listing includes multiple regional and international designations indicating it meets recognized safety and conformity standards associated with Square D PowerPacT breakers.

• Listed markings shown in the product title: UL, CSA, NOM, IEC, CE

Before You Order

Confirm the model number and required quantity before ordering. Verify compatibility with your panel or switchgear and that system voltage, fault current levels and mounting style match the JJA36250 ratings.

• Check switchgear accepts PowerPacT J‑Frame I‑Line plug‑in breakers
• Confirm system short‑circuit current does not exceed the breaker's 25 kA interrupting rating
• If replacement, verify physical dimensions and connection type match the existing device
