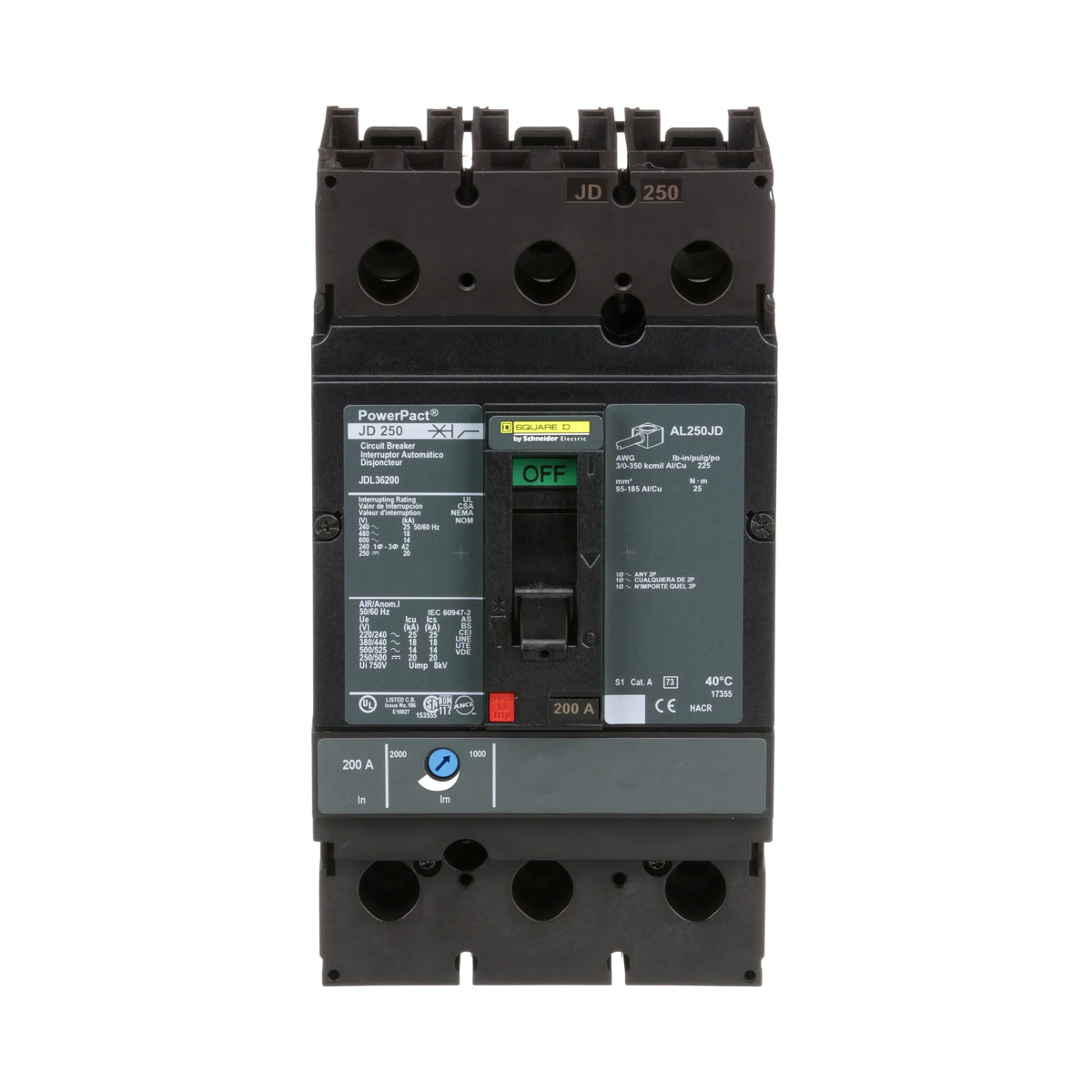

JDL36200 - Square D 200A 600V 3-Pole Powerpact J-Frame Molded Case Circuit Breaker

Product Overview

The JDL36200 is a Square D Powerpact J‑frame molded case circuit breaker rated 200 amperes and 600 volts AC across three poles. It is supplied as a new unit.

Designed for power distribution and overcurrent protection in three‑phase systems, this J‑frame breaker is a factory part number JDL36200. Contact Lumera Electric for a quote and ordering details.

Key Features

• Manufacturer: Square D
• Part number / SKU: JDL36200
• Rating: 200 A, 600 V AC
• Configuration: 3‑pole molded case (Powerpact J‑frame)
• Condition: New

Function and intended use

This Square D JDL36200 is a three‑pole molded case circuit breaker intended for overcurrent protection and switching in three‑phase electrical distribution systems. As a Powerpact J‑frame breaker, it is used in panelboards, switchboards, and other power distribution equipment sized for J‑frame breakers.

• Provides overcurrent protection for three‑phase loads
• Typical applications: power distribution and branch protection in commercial and industrial systems

Electrical ratings and application

The JDL36200 is rated for 200 amperes and 600 volts AC across three poles. Use the rating to confirm compatibility with your system's nominal voltage and load current requirements.

• Ampere rating: 200 A
• Voltage rating: 600 V AC
• Poles: 3 (three‑pole configuration for three‑phase protection)

Form factor and mounting family

This unit is part of Square D's Powerpact J‑frame line of molded case breakers. The J‑frame designation refers to the physical sizing and mounting family within the Powerpact series; confirm your enclosure or panel accepts Powerpact J‑frame breakers before ordering.

• Family: Powerpact J‑frame molded case breaker
• Designed for panel and switchboard installations that accept Powerpact J‑frame breakers

Ordering and pre‑purchase checks

Confirm the exact model number, system ratings, and quantity required before requesting a quote or placing an order. This SKU is sold as part number JDL36200 and is listed in new condition.

• Verify breaker trip type, accessories, or handle/auxiliary options if required (not specified here).
• Confirm physical fit with your panelboard or drawout mechanism if applicable.
• Request a quote from Lumera Electric for pricing and availability.

Before You Order

Confirm the model number and quantity required before ordering. This product description reflects the core, verified specifications for SKU JDL36200; it does not list optional accessories, trip type variations, or specific mounting hardware. Contact Lumera Electric to confirm fitment, required accessories, and to request a formal quote.

• Verify trip characteristic/type and any required electronic trip units or shunt release options — these are not specified here.
• Confirm panel compatibility with Powerpact J‑frame breakers.
• Provide system voltage and load details when requesting a quote to ensure correct configuration.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for JDL36200 - Square D 200A 600V 3-Pole Powerpact J-Frame Molded Case Circuit Breaker. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
