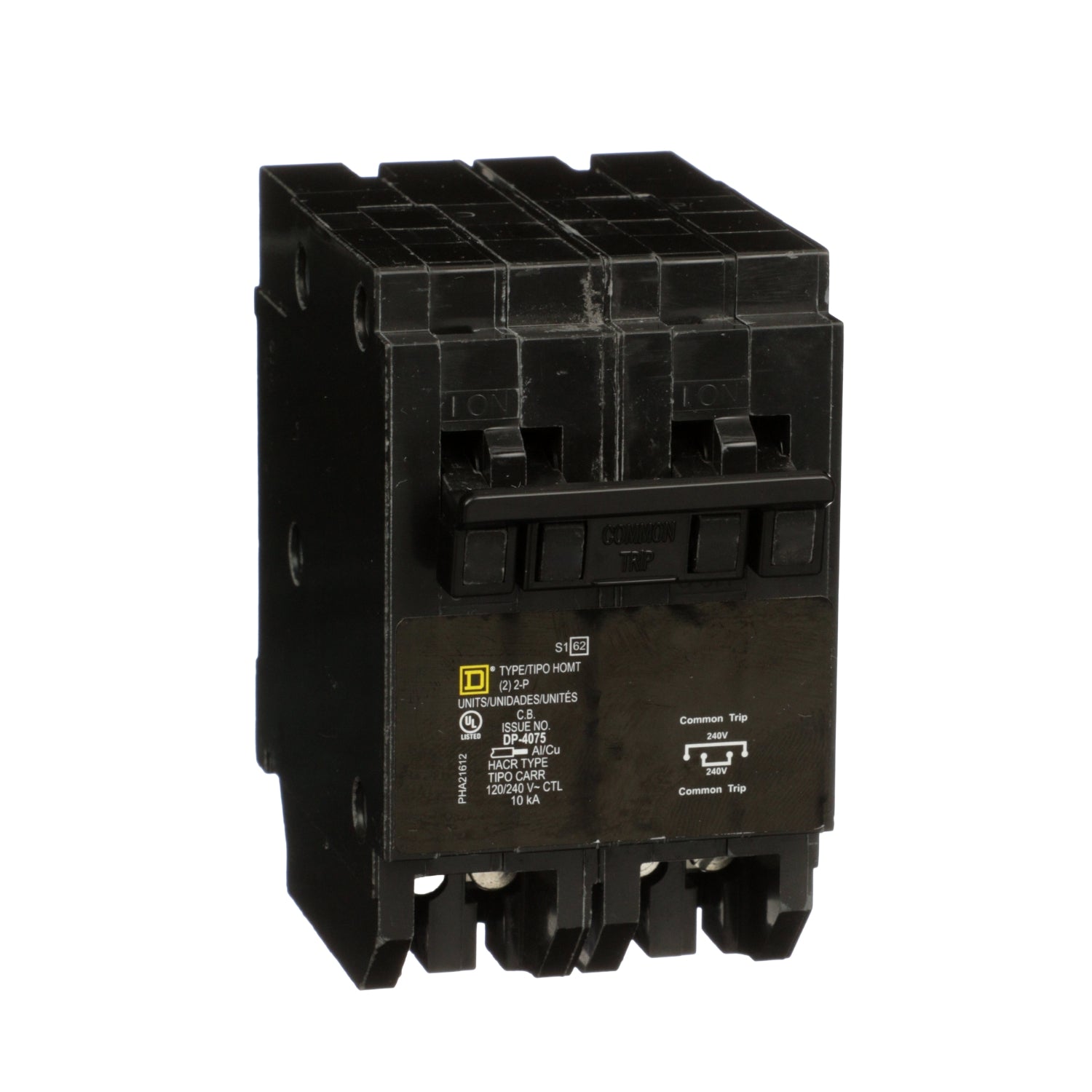

HOMT230230 - Schneider Electric Homeline Quad Tandem Circuit Breaker 2x2 Pole 30A 120/240V 10kA Plug-In

Product Overview

The HOMT230230 is a Square D Homeline quad tandem plug-in circuit breaker configured as two tandem pairs (2x2 pole). It is rated 30 A and 120/240 V with a 10 kA interrupting rating.

This is a plug-in Homeline-style breaker intended for load centers that accept tandem/quad tandem modules; confirm panel compatibility before ordering.

Key Features

• Quad tandem configuration (two tandem pairs)
• 30 A per breaker
• 120/240 V rating
• 10 kA interrupting capacity
• Plug-in Homeline form factor

Function and basic purpose

The HOMT230230 is a quad tandem Homeline circuit breaker that provides branch-circuit overcurrent protection in panels that accept tandem modules. The unit combines two tandem pairs (2x2 pole) to increase circuit density where allowed by the panel manufacturer.

• Protects branch circuits up to 30 A
• Intended for 120/240 V split-phase systems

Electrical ratings

This breaker is specified at 30 A with a 120/240 V rating and a 10 kA interrupting capacity. Use these values to confirm suitability with your system and coordinate with panel and load requirements.

• Rated current: 30 A
• Rated voltage: 120/240 V
• Interrupting capacity: 10 kA

Panel compatibility and form factor

The HOMT230230 uses the Homeline plug-in form factor and the tandem (skinny) footprint. Whether a panel accepts tandem or quad tandem breakers is determined by the panel manufacturer's labeling and allowed breaker types for each space.

• Plug-in Homeline style — fits panels that specify acceptance of Homeline tandem modules
• Confirm allowable tandem locations in the specific load center

Installation notes

This plug-in breaker seats on the panel bus without separate mounting hardware. Installation must follow the National Electrical Code and the panel manufacturer's instructions. Verify physical fit and permitted tandem positions in the panel before installation.

• Plug-in installation — seats on Homeline bus
• Follow NEC and panel labeling for permitted breaker types and locations

Before You Order

Confirm the panel model number and that the specific load center allows tandem/quad tandem breakers in the intended spaces.

• Verify the load center accepts Homeline tandem/quad tandem breakers.
• Confirm the exact part number (HOMT230230) when requesting a quote or placing an order.
