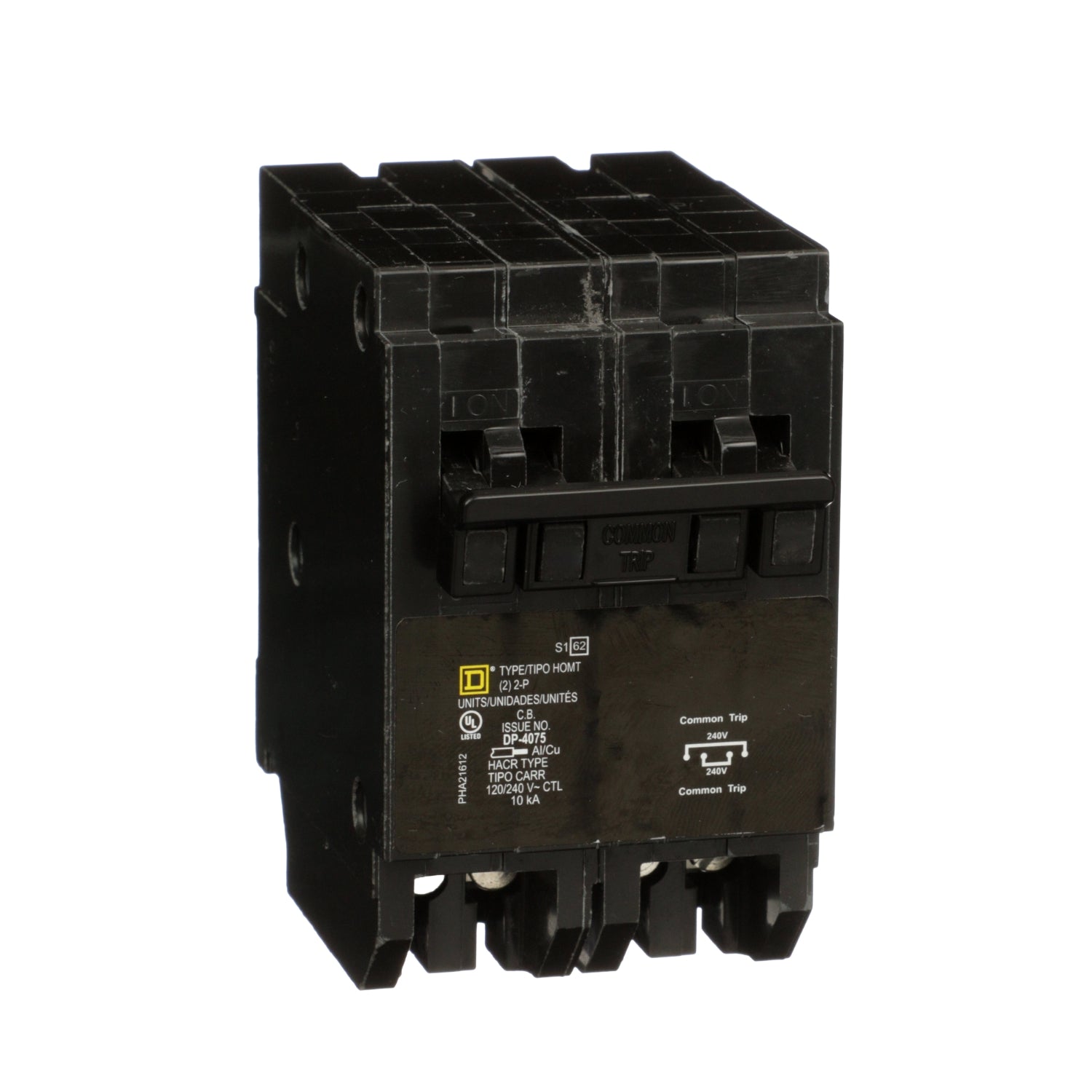

HOMT220250 - Square D Quad Tandem Circuit Breaker, Homeline, 1 x 2P 20A, 1 x 2P 50A, 120/240VAC, 10kAIC, Plug-In, Thermal Magnetic Trip

Product Overview

The HOMT220250 is a Square D Homeline quad tandem circuit breaker containing one 2-pole 20 A unit and one 2-pole 50 A unit in a plug-in, thermal-magnetic design.

Rated for 120/240 VAC with a listed interrupting rating of 10 kAIC. Designed for use in Homeline load centers that accept Homeline plug-in tandem breakers.

Key Features

• Configuration: Quad tandem — one 2-pole 20 A and one 2-pole 50 A
• Voltage: 120/240 VAC
• Trip type: Thermal-magnetic
• Mounting/connection: Homeline plug-in
• Interrupting rating: 10 kAIC

Function and basic operation

The HOMT220250 provides overcurrent protection in a quad tandem arrangement: two separate 2-pole circuits — one rated 20 A and one rated 50 A. The thermal-magnetic trip design provides thermal (overload) and magnetic (short-circuit) response.

• Two distinct 2-pole circuits in a compact tandem assembly
• Thermal-magnetic trip for overload and short-circuit response

Electrical ratings

This breaker is specified for 120/240 VAC service. The unit includes one 2-pole 20 A and one 2-pole 50 A branch. The listed interrupting rating is 10 kAIC.

• Voltage: 120/240 VAC
• Amperage: one 2P 20 A and one 2P 50 A
• Interrupting rating: 10 kAIC

Panel compatibility and mounting

The HOMT220250 uses the Homeline plug-in form factor. Confirm the target Square D Homeline load center accepts quad tandem or space-saving tandem breakers and that the bus/slot arrangement supports 2-pole tandem devices.

• Mounting: Homeline plug-in
• Intended for Homeline load centers that accept tandem breakers — verify fit before ordering

Ordering and installation notes

Order the exact part number HOMT220250 for this specific combination of 2-pole 20 A and 2-pole 50 A breakers. Installations must follow applicable electrical codes and the panel manufacturer's instructions.

• Model/Part number: HOMT220250
• Manufacturer: Square D
• Verify panel compatibility and local code requirements before installation

Before You Order

Confirm the part number and that your Square D Homeline panel accepts Homeline quad tandem/space-saving tandem breakers.

• Confirm model number: HOMT220250
• Verify panel compatibility for Homeline tandem breakers
• Request a quote for pricing and availability
