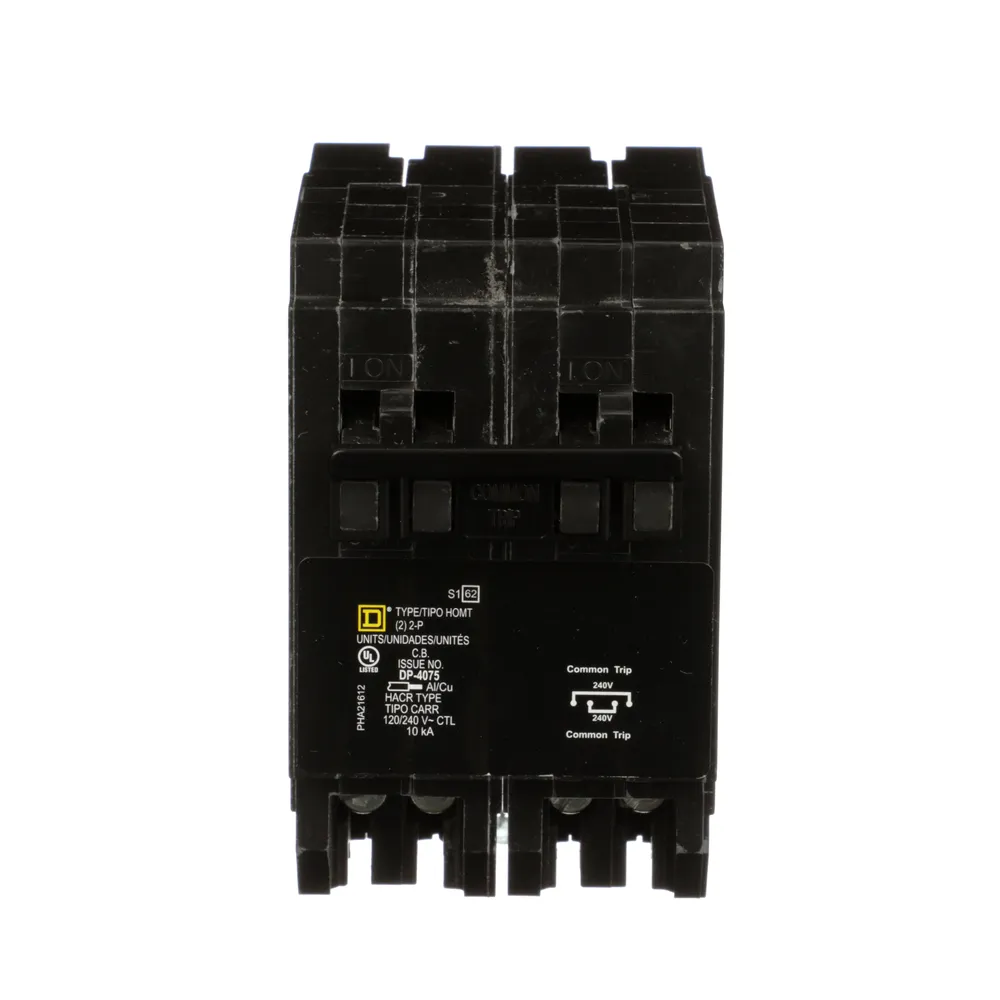

HOMT220220 - Square D Quad Tandem Mini Circuit Breaker, Homeline Series, 2 x 2-Pole 20A, 120/240VAC, 10kA, Plug-In Mount, UL Listed

Product Overview

The HOMT220220 is a Square D Homeline quad tandem mini circuit breaker that provides four 20 A circuits in a compact plug-in package designed for 120/240 VAC distribution panels.

This unit contains two 2-pole 20 A tandem breakers (often described as 2 × 2-pole) with a 10 kA interrupting rating and is UL Listed for use in compatible Homeline panels.

Key Features

• Four 20 A circuits delivered as two 2-pole tandem modules (quad tandem configuration)
• Rated for 120/240 VAC service
• 10 kA interrupting rating
• Plug-in mount for Homeline compatible load centers
• UL Listed

What this breaker does

The HOMT220220 provides four 20-ampere circuits packaged as two tandem 2-pole breaker modules—commonly referred to as a quad tandem mini breaker. It is intended to protect branch circuits on 120/240 VAC distribution systems where a compact multi-circuit solution is required.

• Delivers four protected branch circuits (20 A each).
• Useful where panel space is limited and a tandem/mini breaker is permitted by the panel manufacturer.

Electrical ratings and interrupting capacity

Use the HOMT220220 where the circuit requirements match its voltage, ampere, and interrupting ratings.

• Voltage: 120/240 VAC
• Ampere rating: 20 A (each circuit)
• Interrupting rating: 10 kA

Panel compatibility and mounting style

This breaker uses a plug-in mount designed for Square D Homeline style load centers and breaker buses. Confirm compatibility with the specific panel model before installation.

• Mounting: Plug-in
• Designed for Homeline series load centers (verify panel accepts tandem/mini breakers)

Certifications and safety information

The HOMT220220 is UL Listed. Use only in applications and panels that permit tandem or mini breaker installations and comply with local electrical codes.

• UL Listed

Before You Order

Confirm that your Square D Homeline load center model permits tandem/mini breakers and accepts this plug-in configuration. Verify the required quantity and model number before ordering.

• Confirm panel model and tandem breaker allowance before purchase.
• Match breaker ampacity and interrupting rating to application and local code requirements.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for HOMT220220 - Square D Quad Tandem Mini Circuit Breaker, Homeline Series, 2 x 2-Pole 20A, 120/240VAC, 10kA, Plug-In Mount, UL Listed. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
