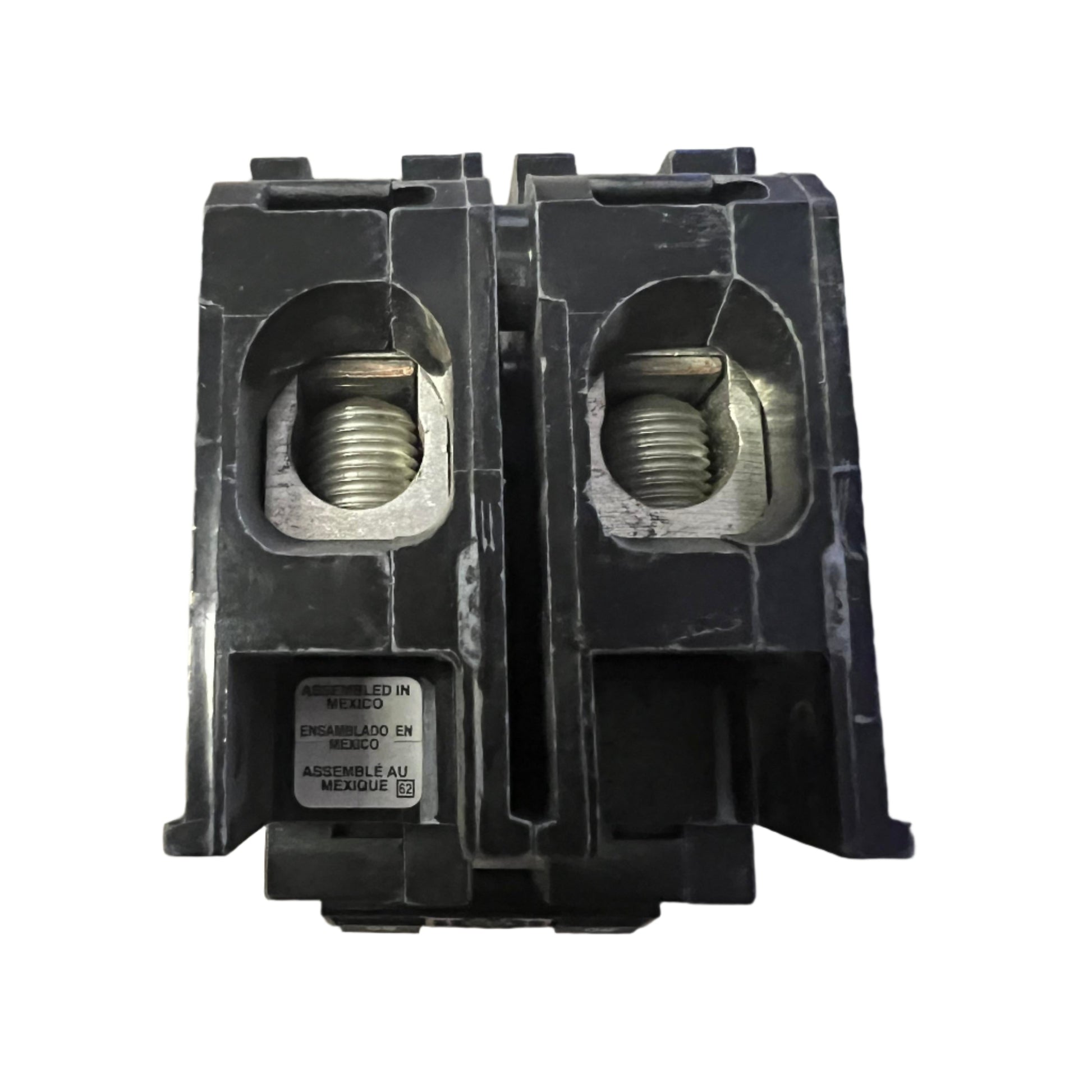

HOM280 - Square D 80 Amp 2 Pole 120/240V Plug-In Circuit Breaker 10kA AIR Homeline

Product Overview

Single SKU: HOM280 — Square D Homeline 80 amp, 2‑pole, 120/240V plug‑in circuit breaker rated 10 kA AIR.

Designed as a replacement or service part for Homeline load centers that accept plug‑in 2‑pole breakers. New condition; request a quote for pricing and availability.

Key Features

• 80 ampere, 2‑pole configuration for 120/240V circuits
• Plug‑in Homeline form factor for compatible load centers
• 10 kA AIR (Ampere Interrupting Rating)

What this breaker does

The HOM280 is a 2‑pole circuit breaker rated for 80 amperes at 120/240 volts. It provides overcurrent protection for multi‑wire branch circuits and equipment circuits that require simultaneous disconnection of both poles.

• Protects 120/240V loads up to 80 A per manufacturer rating
• Two linked poles open both hot conductors for clear disconnection

Electrical ratings and interrupting capacity

This unit is specified as an 80A, 2‑pole breaker for 120/240V systems with a 10 kA AIR (Ampere Interrupting Rating). Use these ratings when matching the breaker to the available fault current at the installation point.

• Ampacity: 80 A
• Poles: 2 (double pole)
• Voltage: 120/240 V
• Interrupting rating: 10 kA AIR

Panel compatibility and form factor

The HOM280 is a Homeline plug‑in style breaker intended for load centers that accept Square D Homeline plug‑in breakers. Confirm your panel is a Homeline platform and accepts 2‑pole plug‑in breakers before ordering.

• Form factor: Homeline plug‑in 2‑pole breaker
• Intended for use in compatible Square D Homeline load centers

Ordering and verification

This page describes the exact SKU HOM280. Pricing and availability are handled via quote—request a quote to obtain current pricing and lead time.

• Part number / SKU: HOM280
• Manufacturer: Square D
• Condition: New
• Request a quote for pricing and availability

Before You Order

Confirm the panel platform, existing breaker form factor, and exact part number before ordering to ensure fit and compatibility.

• Verify your load center accepts Square D Homeline plug‑in 2‑pole breakers.
• Confirm the required ampacity (80 A) and interrupting rating (10 kA AIR) match the site fault current and system needs.
• Request a quote for pricing and availability.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for HOM280 - Square D 80 Amp 2 Pole 120/240V Plug-In Circuit Breaker 10kA AIR Homeline. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
