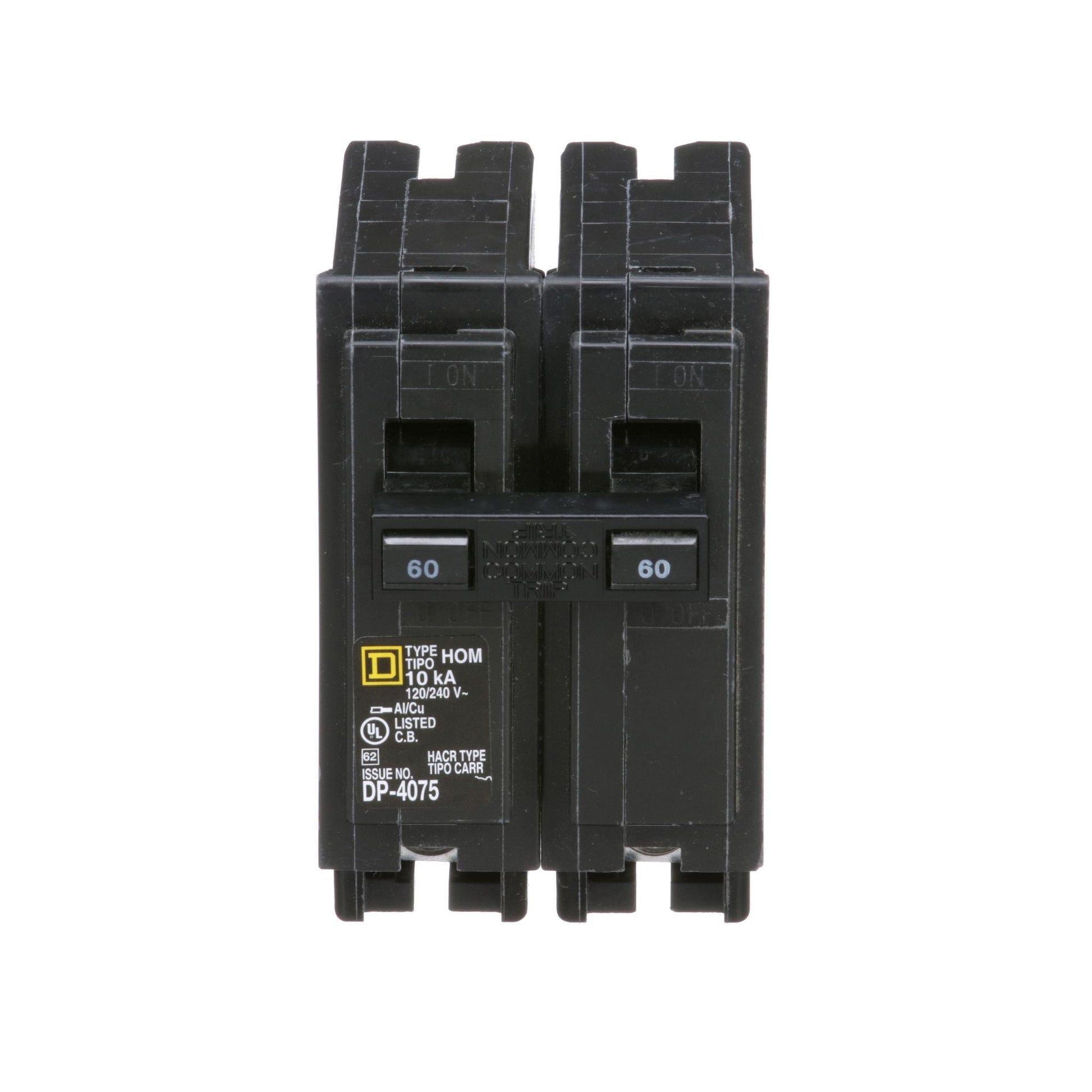

HOM260 - Square D Homeline 60 Amp 2 Pole 120/240VAC Plug-In Circuit Breaker, 10kA Interrupt, Standard Trip, UL Listed

(No Ratings)
SKU: HOM260
Price: Request a Quote
Free shipping on orders over $1,500

Description

Product Overview

Square D HOM260 is a Homeline 60 A, 2-pole plug-in circuit breaker for 120/240 VAC service with a 10 kA interrupting rating and standard thermal-magnetic trip.

This SKU is UL listed and intended for use in Homeline load centers that accept Homeline plug-in breakers.

Key Features

  • 60 A, 2-pole thermal-magnetic circuit breaker for 120/240 VAC
  • Homeline plug-in form factor
  • 10 kA interrupting rating
  • Standard (non-GFCI/non-AFCI) trip
  • UL listed

Function

The HOM260 is a two-pole thermal-magnetic circuit breaker that provides overcurrent protection for 120/240 VAC branch circuits. As a standard-trip device it responds to overloads and short-circuit conditions using internal thermal and magnetic elements.

  • Simultaneous disconnect of both poles for multiwire or 240 V circuits
  • Intended for branch-circuit overcurrent protection

Electrical ratings and performance

This breaker is rated for 60 A and for 120/240 VAC systems. The listed interrupting rating for this model is 10 kA.

  • Rated current: 60 A
  • Voltage rating: 120/240 VAC
  • Interrupting rating: 10 kA

Panel compatibility and form factor

HOM260 uses the Homeline plug-in form factor and is intended for Square D Homeline load centers that accept Homeline plug-in breakers. Confirm the panel accepts Homeline breakers and that panel labeling or documentation matches the breaker form factor before ordering.

  • Form factor: Homeline plug-in 2-pole breaker
  • Series: Square D Homeline

Installation notes

The breaker installs by plugging into a compatible Homeline bus and latching into place. Installation should be performed by a qualified electrician and in accordance with local electrical codes and the panel manufacturer's instructions.

  • Installation: Plug-in mount for Homeline panels
  • Trip type: Standard thermal-magnetic (no GFCI or AFCI functionality in this SKU)
  • UL listed indicates the product meets applicable UL requirements

Before You Order

Confirm the model number (HOM260), panel compatibility, and required quantity before ordering.

  • Verify your load center accepts Square D Homeline plug-in breakers.
  • Confirm a 60 A breaker is appropriate for the intended branch circuit.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for HOM260 - Square D Homeline 60 Amp 2 Pole 120/240VAC Plug-In Circuit Breaker, 10kA Interrupt, Standard Trip, UL Listed. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandSquare D
SKUHOM260
SeriesHomeline
Poles2
Rated Current60 A
Voltage120/240 VAC
Interrupting Rating10 kA
Trip TypeStandard thermal-magnetic
Mounting TypePlug-in (Homeline)
CertificationsUL listed
