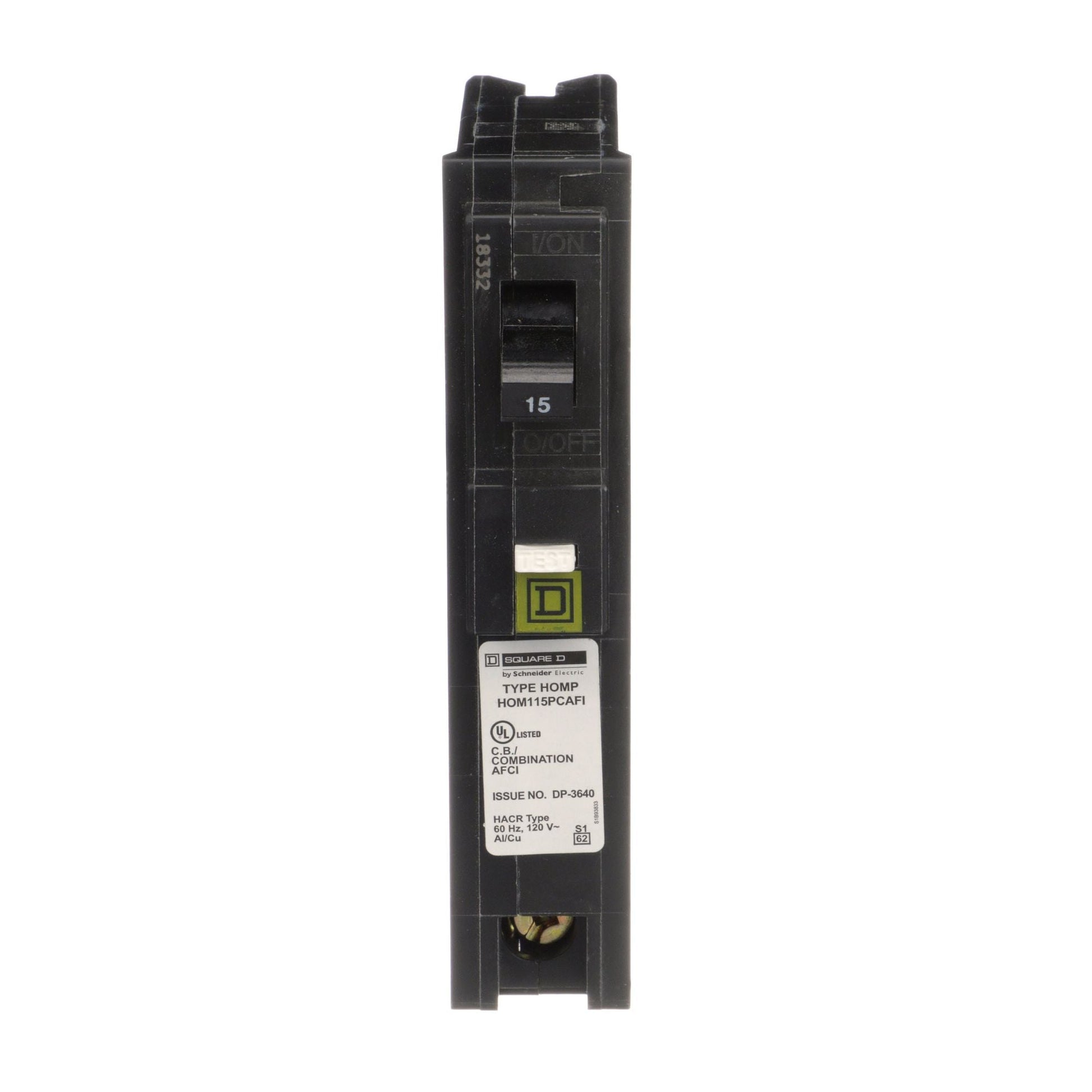

HOM115PCAFI - Square D Homeline 15 Amp 1 Pole 120V Plug-On Neutral Combination Arc Fault Circuit Breaker, 10kA Interrupt, HOM Series, UL Listed

Product Overview

HOM115PCAFI is a Square D Homeline 15 amp, 1‑pole, 120 V combination arc‑fault circuit breaker with a plug‑on neutral connection and a 10 kA interrupting rating. It is UL listed and intended for branch‑circuit protection where AFCI protection is required.

Verify panel compatibility and installation requirements before purchasing.

Key Features

• 15 A, 1‑pole combination arc‑fault circuit breaker (AFCI)
• Plug‑on neutral connection for compatible Homeline panels
• 10 kA interrupting rating
• UL listed

Function and intended use

This HOM115PCAFI is a combination arc‑fault circuit breaker (AFCI) that provides 15 A branch‑circuit overcurrent protection and arc‑fault detection intended to address combination arc conditions on a single branch circuit.

• Provides 15 A overcurrent protection on a single branch circuit
• Combination AFCI detects types of arcing identified by the device design

Electrical ratings and performance

Use this breaker in 120 V single‑phase branch circuits rated for 15 A. The breaker is specified with a 10 kA interrupting capacity.

• Voltage: 120 V
• Amperage: 15 A
• Poles: 1 (single‑pole)
• Interrupting rating: 10 kA

Connections and physical interface

The HOM115PCAFI features a plug‑on neutral connection for direct neutral connection to compatible Homeline load centers or panels that support plug‑on neutral breakers. It installs using the Homeline plug‑on mounting mechanism.

• Mounting: Homeline plug‑on style
• Neutral: plug‑on neutral

Certifications and regulatory listing

This model is listed to UL standards and is part of the Square D Homeline family of circuit breakers.

• Listing: UL listed

Before you order

Confirm the exact model number and verify panel compatibility before ordering.

• Confirm your load center accepts Homeline plug‑on neutral breakers
• Ensure a 15 A, 120 V, single‑pole breaker is the correct specification for your circuit
• Consult a qualified electrician if you are unsure about compatibility or installation

Before You Order

Verify panel compatibility and that a 15 A, 120 V single‑pole AFCI breaker is the correct component for your application.

• Confirm the load center accepts Homeline plug‑on neutral breakers
• If unsure about compatibility or installation, consult a qualified electrician

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for HOM115PCAFI - Square D Homeline 15 Amp 1 Pole 120V Plug-On Neutral Combination Arc Fault Circuit Breaker, 10kA Interrupt, HOM Series, UL Listed. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
