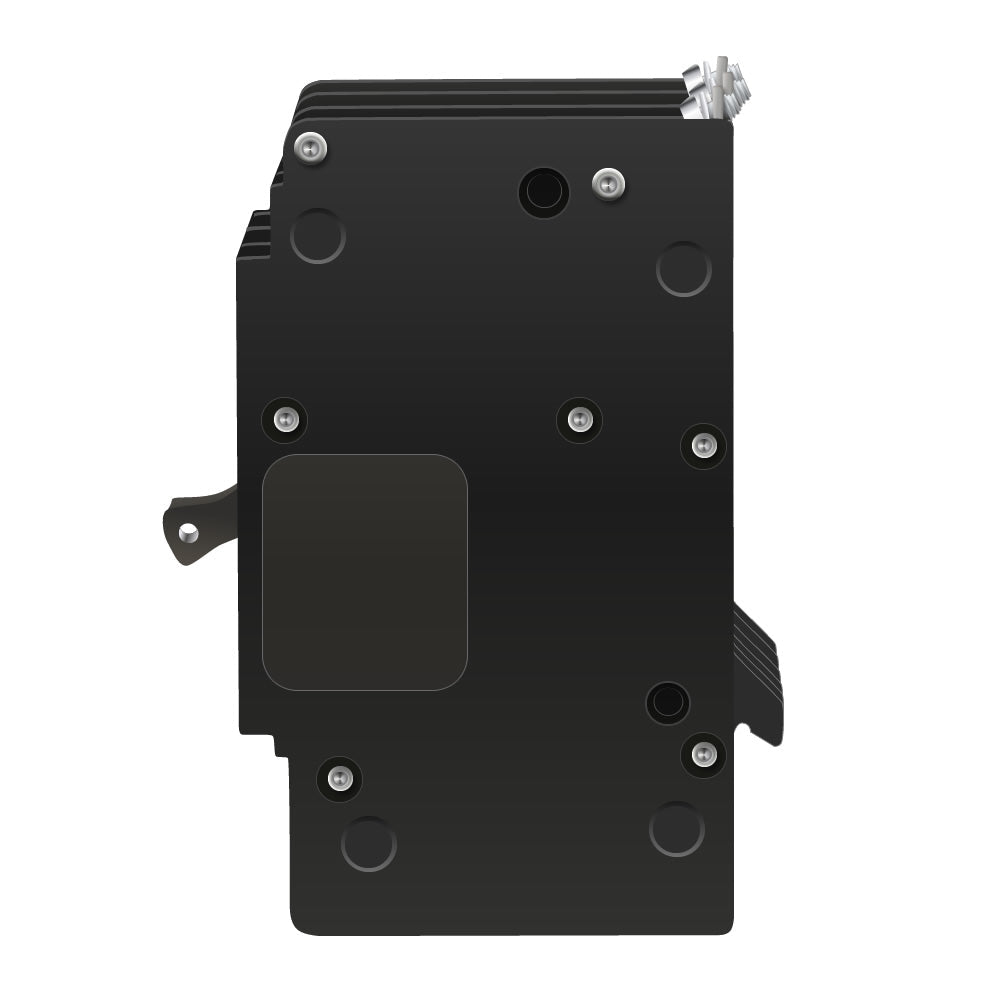

EDB34125 - Schneider Electric (Square D) 3-Pole 125 A 480Y/277 V AC Bolt-On Circuit Breaker, Type EDB

Product Overview

EDB34125 is a Square D (Schneider Electric) Type EDB bolt‑on circuit breaker configured as a 3‑pole device rated 125 A for 480Y/277 V AC systems.

This listing covers the single SKU EDB34125 in new condition. Request a quote for pricing and availability.

Key Features

• Manufacturer: Square D (Schneider Electric)
• Series / Type: Type EDB bolt‑on
• Poles: 3
• Amp rating: 125 A
• Voltage rating: 480Y/277 V AC
• Mounting: bolt‑on

What this breaker does

The EDB34125 is a 3‑pole bolt‑on circuit breaker from Square D's Type EDB family. It is intended to provide overcurrent protection and switching in three‑phase AC distribution equipment where a Type EDB bolt‑on breaker is required.

• Three‑pole configuration for three‑phase circuits
• Bolt‑on mounting style for compatible panels and switchgear

Electrical ratings and compatibility

Use the listed ratings to confirm this breaker matches your system requirements: 125 A ampere rating and 480Y/277 V AC voltage rating. Verify these ratings against your electrical design or replacement part specifications.

• Ampere rating: 125 A
• Voltage rating: 480Y/277 V AC
• Poles: 3

Mounting and physical fit

The EDB34125 uses a bolt‑on mounting form factor. Ensure the target panel or switchgear is designed to accept Square D Type EDB bolt‑on breakers before ordering.

• Mounting: bolt‑on
• Confirm panel/switchgear compatibility with Type EDB bolt‑on devices

Ordering considerations

This page represents the single SKU EDB34125 in new condition. Confirm the part number and electrical ratings match your requirements. Pricing and availability are provided via quote.

• Part number: EDB34125
• Manufacturer: Square D (Schneider Electric)
• Condition: New
• Request a quote for pricing and lead time

Before You Order

Verify the model number, ampere and voltage ratings, and that your panel accepts Type EDB bolt‑on breakers before ordering.

• Confirm panel or switchgear compatibility with Type EDB bolt‑on mounting
• Request a quote for pricing and availability

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EDB34125 - Schneider Electric (Square D) 3-Pole 125 A 480Y/277 V AC Bolt-On Circuit Breaker, Type EDB. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
