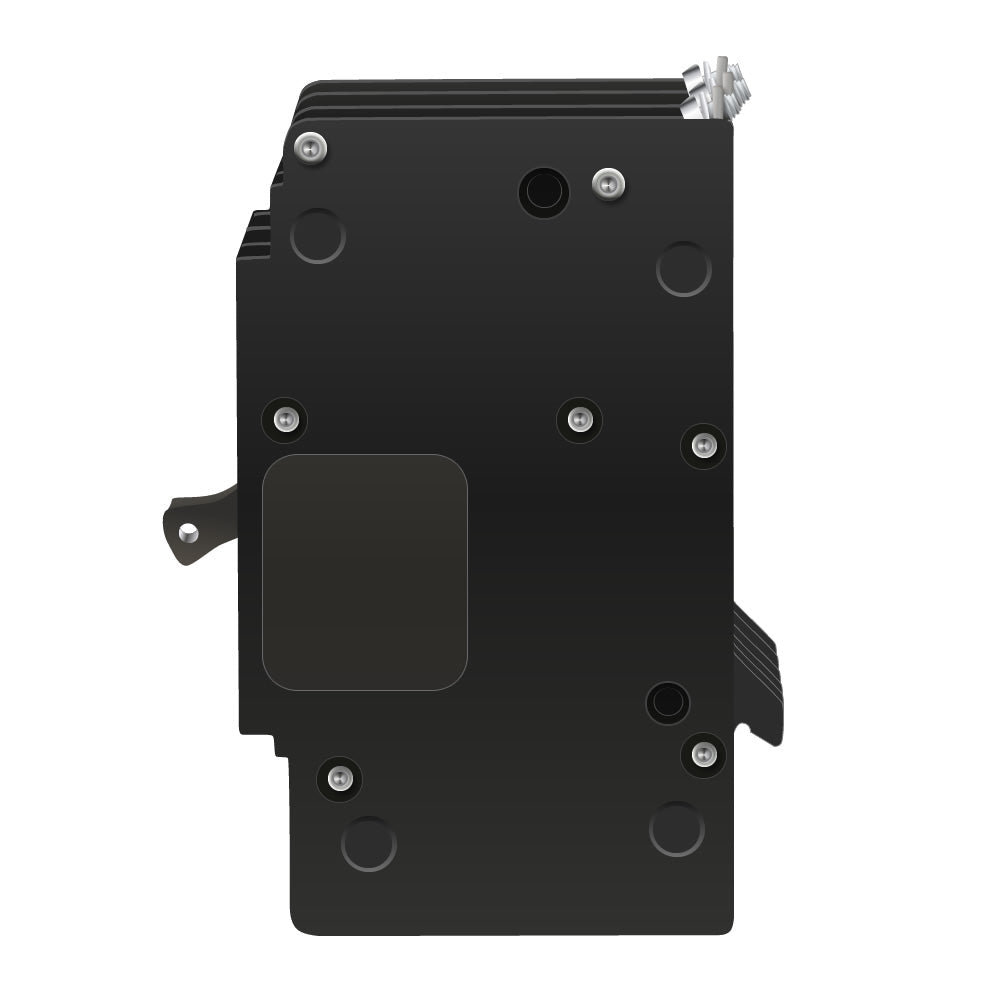

EDB34080 - Schneider Electric (Square D) 3-Pole 80 A 480Y/277 V AC Bolt-On Circuit Breaker, Type EDB

Product Overview

EDB34080 is a Square D (Schneider Electric) Type EDB bolt‑on circuit breaker engineered for three‑pole, 80 ampere protection in 480Y/277 V AC power distribution systems.

This SKU is offered as a new unit and is sold as a single model; request a quote for pricing and availability.

Key Features

• Type: EDB bolt‑on circuit breaker (Square D)
• Poles: 3‑pole configuration for three‑phase systems
• Rated current: 80 A
• Voltage rating: 480Y/277 V AC
• Mounting: bolt‑on style

Function and intended use

The EDB34080 is a three‑pole circuit breaker designed to provide overcurrent protection for three‑phase circuits. It is intended for use in distribution equipment and switchboards where a bolt‑on Type EDB breaker is specified.

• Three‑pole design protects all phases together to maintain system balance and safety.
• Suitable for industrial and commercial three‑phase power distribution applications requiring an 80 A protective device at 480Y/277 V AC.

Electrical ratings and system compatibility

This breaker is rated for 80 A continuous current at a system voltage of 480Y/277 V AC. Verify that the system voltage and fault‑current characteristics at the installation point are compatible with this rating.

• Rated current: 80 A
• Voltage: 480Y/277 V AC
• Poles: 3

Mounting and installation context

The EDB34080 uses a bolt‑on mounting configuration (Type EDB). Installers should fit this breaker into panels or switchgear designed to accept Type EDB bolt‑on breakers.

• Mounting: bolt‑on
• Intended for switchboards and distribution panels that accept Square D Type EDB bolt‑on units

Ordering guidance

This listing covers the single SKU EDB34080. Confirm the exact model and quantity needed before ordering or requesting a quote.

• Manufacturer: Schneider Electric (Square D)
• Condition: New
• Part number / SKU: EDB34080

Before You Order

Confirm the EDB34080 model number, system voltage, and required quantity before requesting a quote or placing an order.

• Verify panel or switchgear compatibility with Square D Type EDB bolt‑on breakers.
• Confirm that 80 A and 480Y/277 V AC ratings match the application and protective coordination needs.
