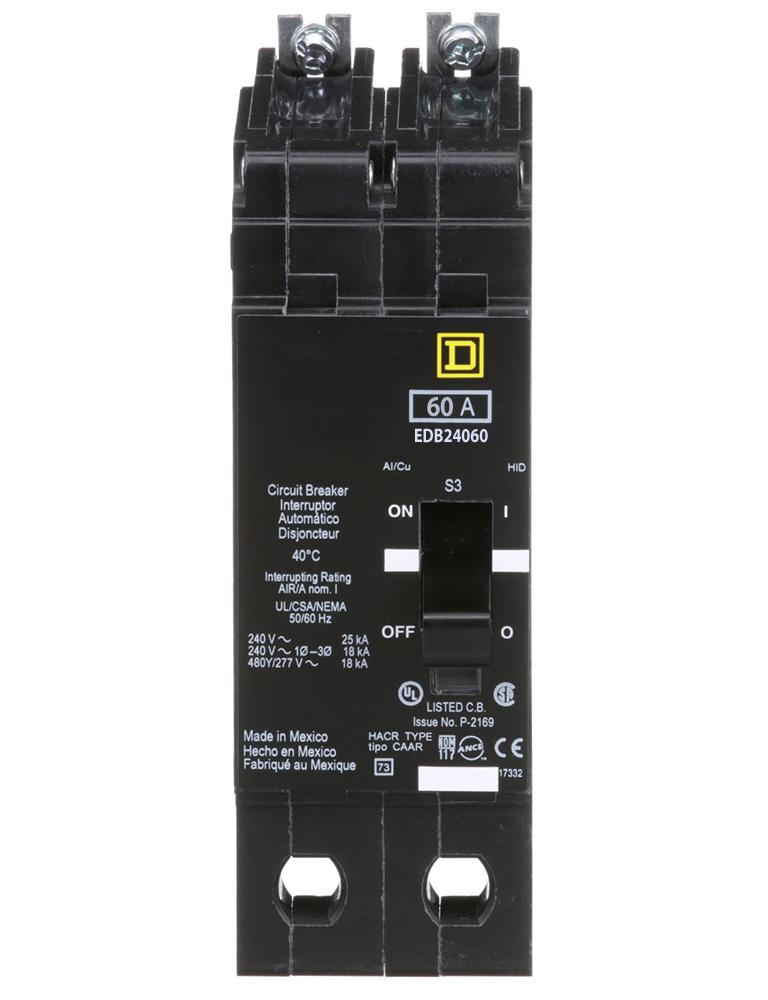

EDB24060 - Schneider Electric (Square D) 2-Pole 60 A 480Y/277 V AC Bolt-On Circuit Breaker, Type EDB

Product Overview

EDB24060 is a Square D Type EDB bolt‑on circuit breaker configured as a 2‑pole device rated 60 A at 480Y/277 V AC. It is supplied new.

Confirm compatibility with the target panel or equipment prior to ordering.

Key Features

• 2‑pole bolt‑on construction
• Rated current: 60 A
• Rated voltage: 480Y/277 V AC
• Manufacturer: Schneider Electric (Square D)
• Type designation: EDB (bolt‑on style)

Function and Intended Use

The EDB24060 is a bolt‑on circuit breaker designed to provide overcurrent protection for two connected poles in systems that use a 480Y/277 V AC nominal voltage. It is a Type EDB bolt‑on unit intended for panels that accept Square D Type EDB breakers.

• Two‑pole device interrupts two conductors simultaneously
• Designed to mount in panels or distribution assemblies compatible with Type EDB bolt‑on breakers

Electrical Ratings

Key electrical specifications for this SKU are listed below. Use these values to confirm suitability for your system.

• Rated current: 60 A
• Rated voltage: 480Y/277 V AC
• Poles: 2

Panel Compatibility and Mounting

This breaker uses a bolt‑on mounting style (Type EDB). Panels must be designed to accept Square D Type EDB bolt‑on breakers for physical and electrical compatibility.

• Mounting style: bolt‑on (Type EDB)
• Confirm the panel model and bus configuration accept Type EDB breakers before ordering or installing

Ordering and Verification

Verify the part number and key ratings before ordering to ensure the breaker matches your system and panel requirements.

• Check model: EDB24060
• Confirm poles: 2; amp rating: 60 A; voltage: 480Y/277 V AC
• Request a quote for pricing and availability

Before You Order

Confirm the model number (EDB24060) and that your panel accepts Square D Type EDB bolt‑on breakers before placing an order.

• Verify mechanical bolt‑on fit and bus arrangement in your panel
• Confirm electrical suitability: 2‑pole, 60 A at 480Y/277 V AC
• Request a quote for pricing and availability

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EDB24060 - Schneider Electric (Square D) 2-Pole 60 A 480Y/277 V AC Bolt-On Circuit Breaker, Type EDB. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
